FOX Perf 2.0 Smooth Body IFP 2-3″ Front Lift Coilovers and 0-1.5″ Rear Lift Shocks for 2019-2021 Ford Ranger 2WD/4WD

SKU: 2x985-02-148_2x985-24-266
Sale!

Description

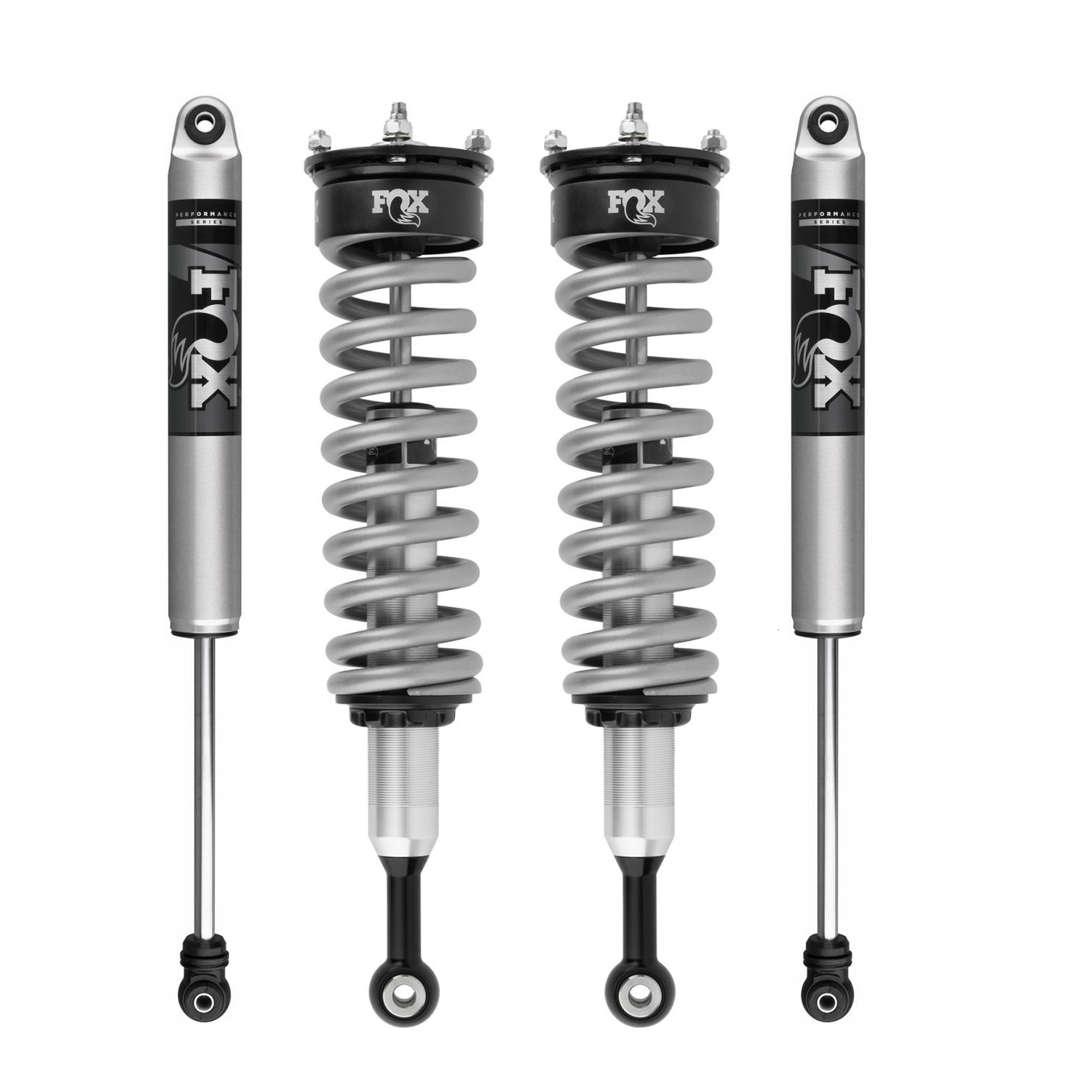

FOX Perf 2.0 Smooth Body IFP 2-3″ Front Lift Coilovers and 0-1.5″ Rear Lift Shocks for 2019-2021 Ford Ranger 2WD/4WD

FOX Performance 2.0 Smooth Body IFP 2-3″ Front Lift Coilovers and 0-1.5″ Rear Lift Shocks for 2019, 2020, 2021 Ford Ranger 2WD/4WD (Fits Non U.S. Models Only)

Part: 2x985-02-148_2x985-24-266

Fitment Note: Fits Non U.S. Models Only

Front coilovers:

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.
Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.
Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

FRONT COILOVERS FEATURES AND SPECIFICATIONS:


Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8″ hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bearing Large diameter, heavy-duty spherical
Adjustments Ride height preload ring
Extended 20.430
Compressed 16.040
Travel 4.390
Top Mount OEM
Bottom Mount Eyelet
Fitment notes Fits Non U.S. Models Only

REAR SHOCKS FEATURES AND SPECIFICATIONS:


Body 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
Body Plating Clear-anodized for a durable finish
Reservoir Internal IFP mono-tube reservoir design
Components Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft 5/8″ hard chrome plated heat-treated alloy steel
Piston Race-developed high-flow piston design
Valving Application specific valving to maximize performance
Seals Redundant sealing pack system main seal, wiper seal, scraper seal
Bushings Quiet nitrile rubber allows for increased suspension articulation
Extended 25.920
Compressed 16.300
Travel 9.620
Top Mount Eyelet
Bottom Mount Eyelet
Fitment notes Fits Non U.S. Models Only
