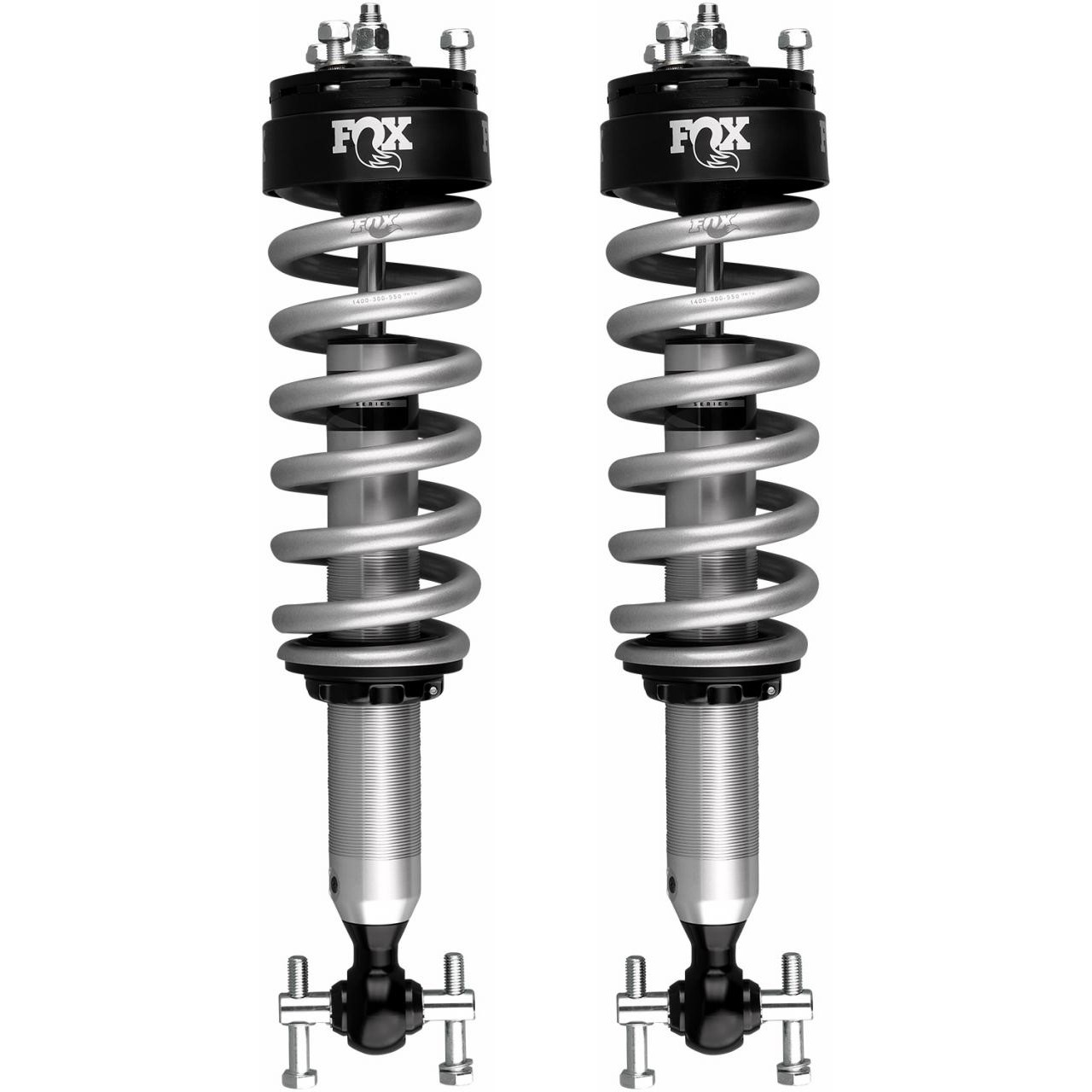

Fox Performance Series 2.0 IFP 0-3″ Front Coilovers For 2019-2023 Ford Ranger 2WD/4WD

Description
Fox Performance Series 2.0 IFP 0-3″ Front Coilovers For 2019-2023 Ford Ranger 2WD/4WD

Fox Performance Series 2.0 IFP 0-3″ Front Coilovers For 2019, 2020, 2021, 2022, 2023 Ford Ranger 2WD/4WD

Part: 2×985-02-133

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.

Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.

Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

• Body: 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time
• Body Plating: Clear-anodized for a durable finish
• Reservoir: Internal IFP mono-tube reservoir design
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 5/8″ hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Bearing: Large diameter, heavy-duty spherical
• Adjustments: Ride height preload ring
• Extended: 20.500
• Compressed: 16.030
• Travel: 4.470
• Top Mount: OEM
• Bottom Mount: Bar Pin
• Fitment notes: Fits U.S. Models Only
