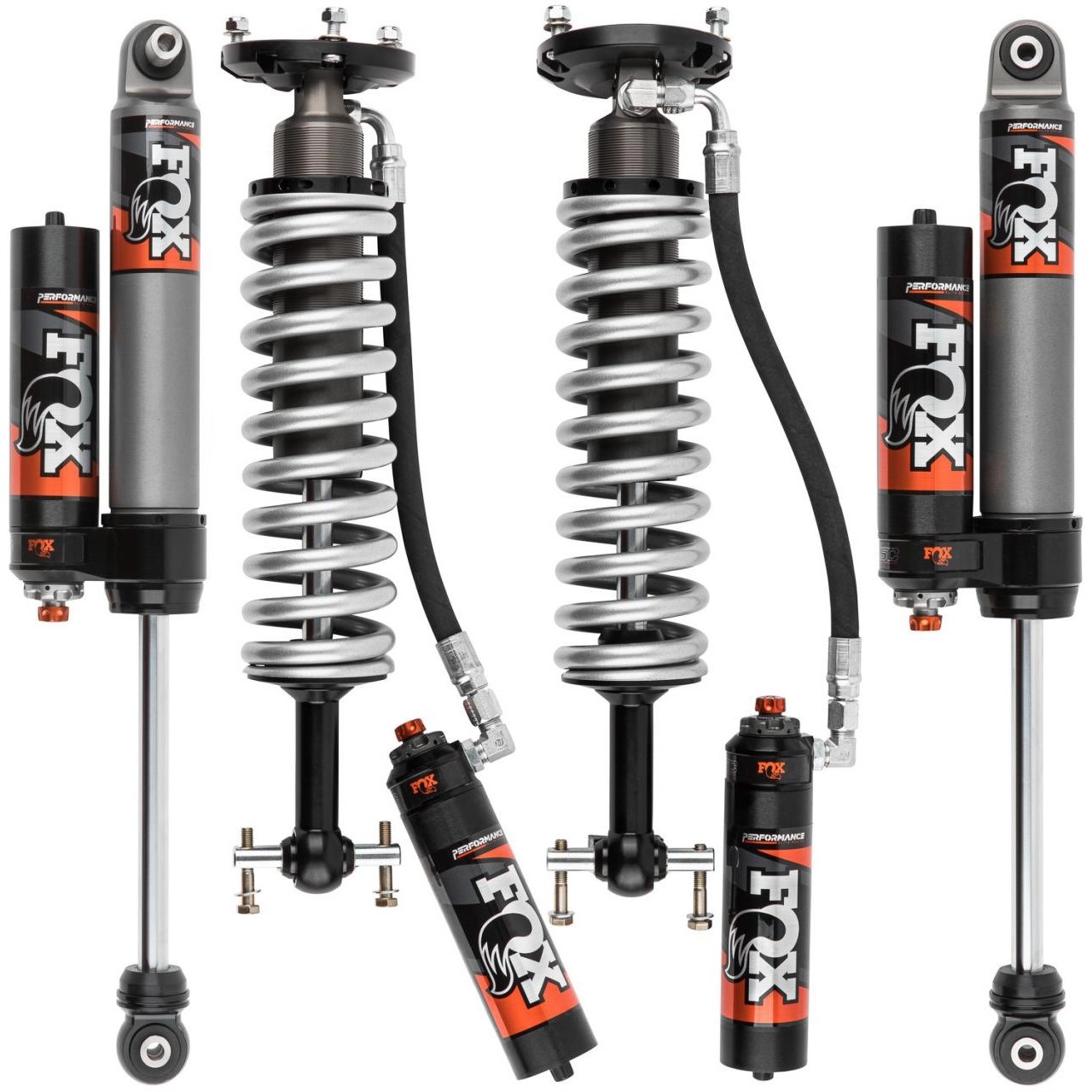

Fox Series 2.5 Adjustable RR 2-3″ Front Coilovers, 0-1.5″ Rear Shocks For 2019-2023 Ford Ranger 2WD/4WD

Description
Fox Series 2.5 Adjustable RR 2-3″ Front Coilovers, 0-1.5″ Rear Shocks For 2019-2023 Ford Ranger 2WD/4WD

Fox Series 2.5 Adjustable RR 2-3″ Front Coilovers, 0-1.5″ Rear Shocks For 2019, 2020, 2021, 2022, 2023 Ford Ranger 2WD/4WD

Part: 883-06-156_883-26-059

Front Coilovers:

Before any of our shocks reach production, they’ve had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our bolt-on Performance Elite Series Coil-over Reservoir shocks provide improved damping in any terrain.

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Performance Elite Series Coil-over Reservoir shocks deliver.

• Body: 2.5″ Impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
• Body Plating: Hard-anodized for a durable finish
• Reservoir: 2.5″ Smooth bore and honed seamless alloy reservoir
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Spring: Application specific, adjustable 3.0 Eibach® racing springs
• Shaft: 7/8″ hard chrome plated steel shafts
• Piston: 6061-T6 hard-anodized, high flow aluminum piston
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Bearing: PTFE-lined, heat-treated, alloy steel spherical
• Adjustments: Ride height preload ring
• Adjuster Type: DSC – Dual Speed Compression
• Extended: 19.910
• Compressed: 15.940
• Travel: 3.970
• Top Mount: OEM
• Bottom Mount: Bar Pin
• Fitment notes: Fits U.S. Models Only | Includes Universal Bracket

Rear Shocks:

Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they’ve been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.

The external reservoir allows for increased oil and nitrogen capacity while delivering a striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.

• Body: 2.5″ impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
• Body Plating: Hard-anodized for a durable finish
• Reservoir: External reservoir design separates shock oil from the high-pressure nitrogen
• Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft: 7/8″ hard chrome plated heat-treated alloy steel
• Piston: Race-developed high-flow piston design
• Valving: Application specific valving to maximize performance
• Seals: Redundant sealing pack system main seal, wiper seal, scraper seal
• Bearing: PTFE-lined, heat-treated, alloy steel spherical
• Adjuster Type: DSC – Dual Speed Compression
• Extended: 25.030
• Compressed: 15.490
• Travel: 9.545
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Fitment notes: Fits U.S. Models Only
