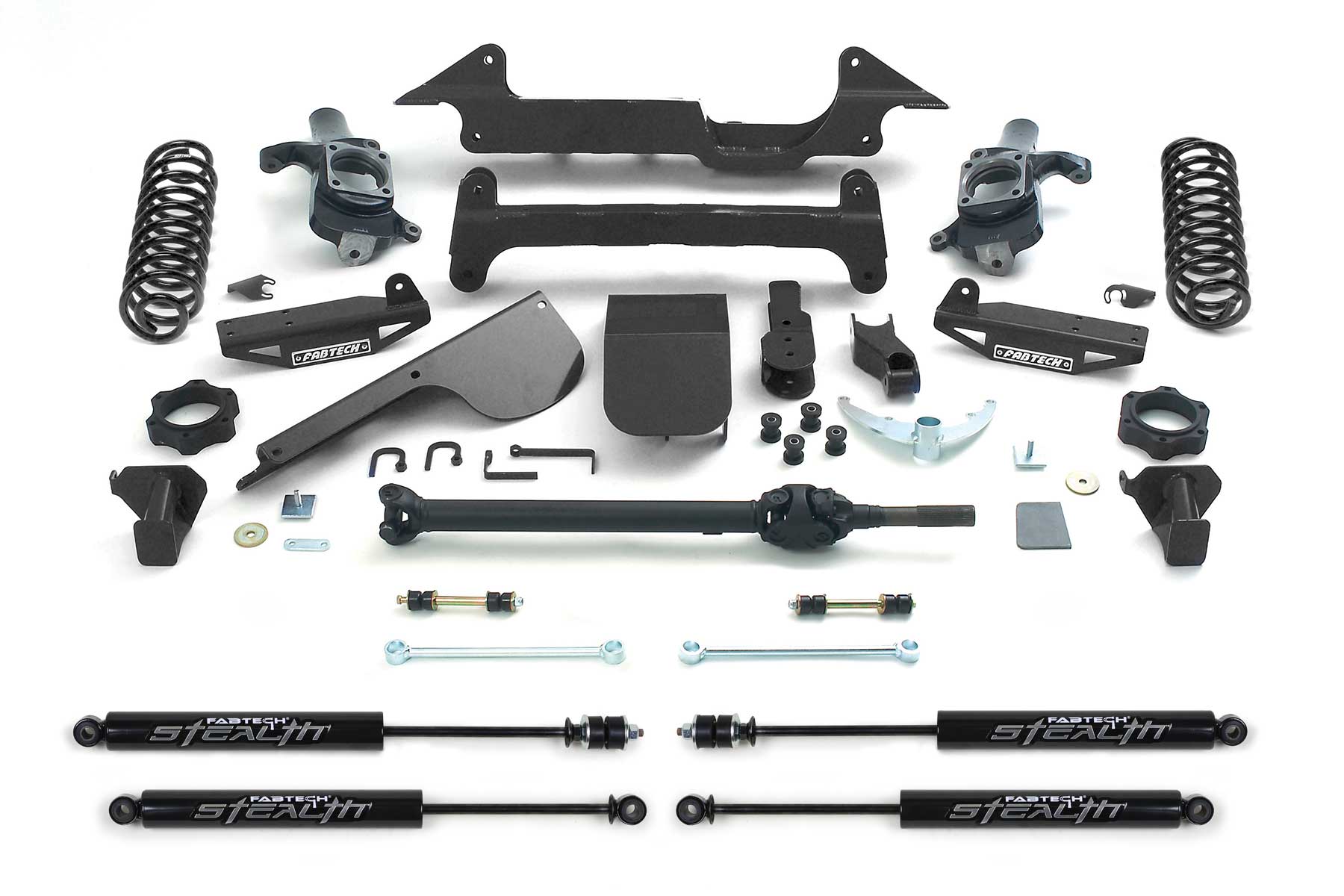

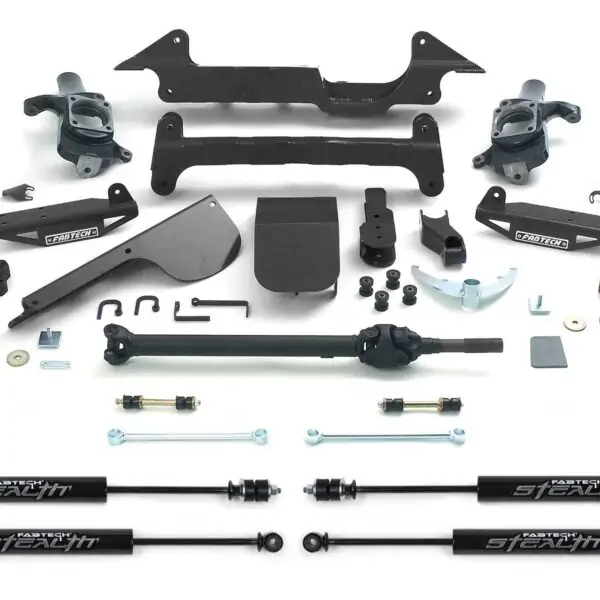

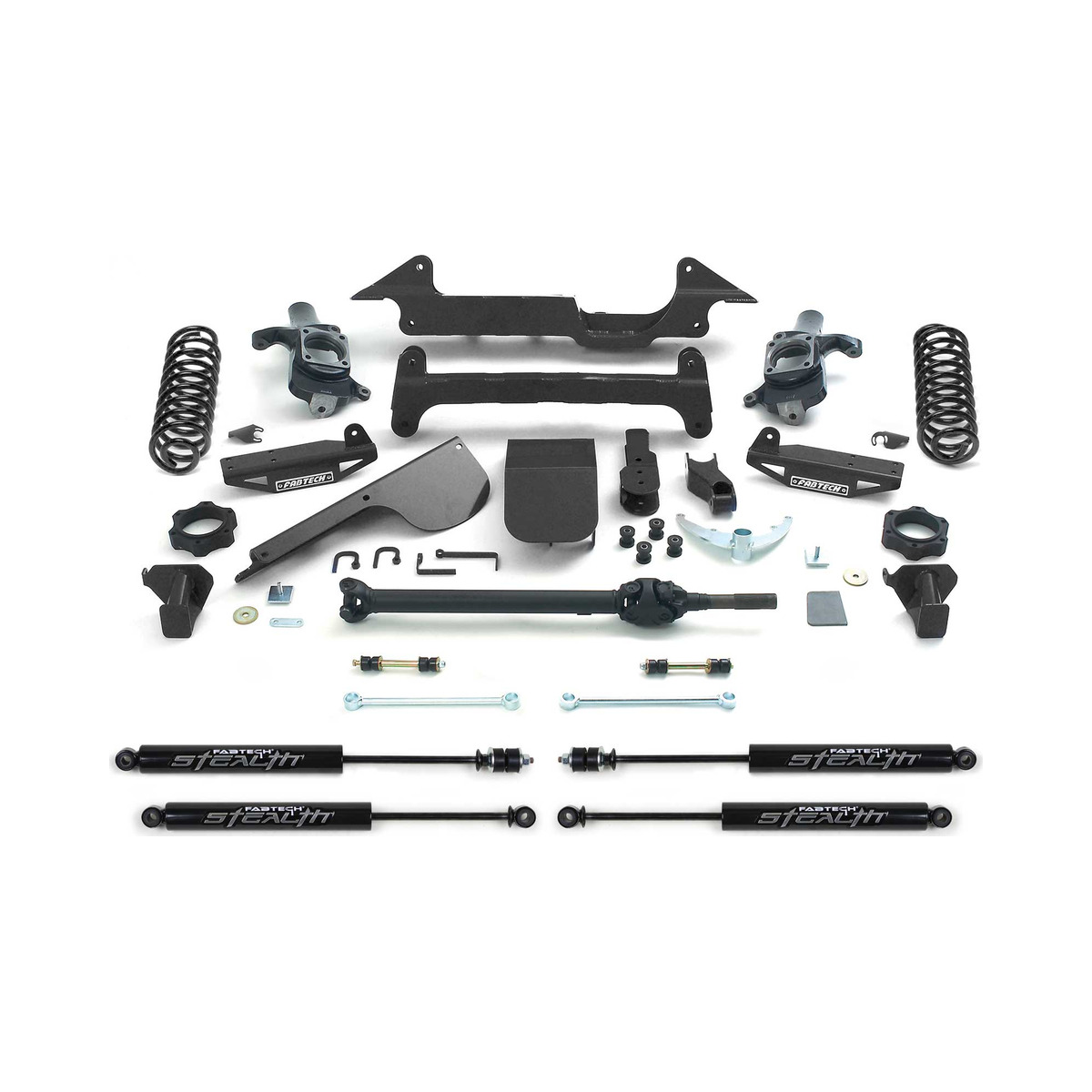

Fabtech Performance 6″ Lift Kit with stealth shocks for 2003-2008 Hummer H2 4WD

Description
Fabtech Performance 6″ Lift Kit with stealth shocks for 2003-2008 Hummer H2 4WD

Fabtech Performance 6″ Lift Kit with stealth shocks for 2003, 2004, 2005, 2006, 2007, 2008 Hummer H2 4WD

Part: K5000M

Our Hummer system is constructed much like all of our IFS systems with extended steering knuckles and high clearance crossmembers but the similarities stop there. To properly address the H2’s fulltime transfer case we include a CV style front driveshaft with this system to provide smooth driveline operation. Also unique to this system is two 1/4″ thick skid plates, one for the front differential and one for the transfer case. Rear lift comes from replacement coil springs that are driver and passenger specific.

• Extended Length Ductile Iron Spindles
• 1/4″ Thick High Arched Crossmembers
• Two 1/4″ Thick Skid Plates
• Front CV Driveshaft
• Rear Coil Springs

NOTE: 61. Includes front CV Driveshaft.

Tires & Wheels

• Tire Size – 37/12.50R17 Wheel Size – 17×10 w/ 4 5/8in BS w/minor trimming
• Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
• Tire Size – 38/15.50R18 Wheel Size – 18×10 w/ 5in BS w/minor trimming
• Tire Size – 40/13.50R17 Wheel Size – 17×10 w/ 4 5/8in BS w/minor trimming

Included Shocks

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.



• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality
