Rock Krawler Gladiator Lift Kit 4.5″ X Factor Coil Over System For 2020-2025 Jeep Gladiator JT
Description
Rock Krawler Gladiator Lift Kit 4.5″ X Factor Coil Over System For 2020-2025 Jeep Gladiator JT
Gladiator Lift Kit 4.5″ X Factor Coil Over System For 2020-2022 Jeep Gladiator JT Rock Krawler
Part: JT45XF-DCS
The Rock Krawler JT 4.5 inch X Factor Mid Arm Coil Over System was specifically designed for those who want a front coilover set-up, maximum articulation from a mid-arm kit and the durability and off-road performance you expect from Rock Krawler Suspension.
This system feature a 2.625 inch remote reservoir coil overs up front and 2.625 inch remote reservoir shocks in the back. The X Factor Series adjustable lower control arms offer a total of 90 degrees of misalignment.
Rock Krawler’s industry leading triple rate coils give you 4.5 inches of lift and improves the on-road ride over the factory linear rate springs. All Rock Krawler JT systems includes two rear spring seats, as well as the corresponding two front spring pads.
The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on-road handling.
System Benefits:
2.625 inch Remote Reservoir Coil Over Front 2.625 inch Remote Reservoir Shock Rear Excellent Highway Ride Improved Off-Road Ability Triple Rate Coil Springs Front and Rear Spring Leveling Pads Lifetime Warranty on All Hard Parts

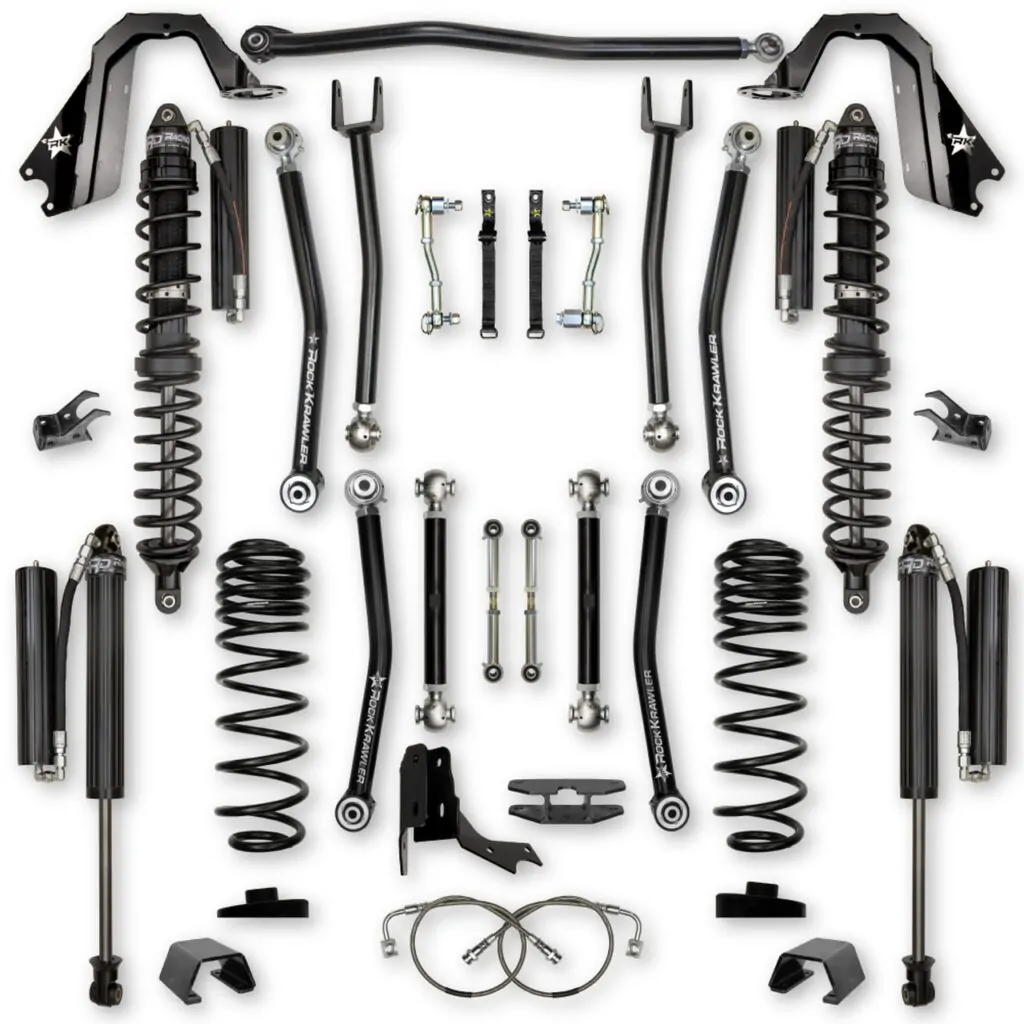

System Includes:
- (2) 2.625 inch remote reservoir front coil overs
- (2) 2.625 inch remote reservoir rear shocks
- (2) Frame side coil over mounts
- (2) Axle side coil over mounts
- (2) Front adjustable lower control arms
- (2) Front adjustable upper control arms
- (1) Adjustable front track bar
- (2) Sway bar disconnects
- (2) Front Spring Pads
- (2) Sway bar disconnect straps
- (1) Carrier bearing drop bracket
- (2) Rear shock reservoir mounts
- (2) Rear adjustable lower control arms
- (2) Rear adjustable upper control arms
- (2) Extended rear sway bar links
- (2) Quad rate rear coil springs
- (2) Rear Spring Seats
- (1) Bolt-on rear track bar relocation bracket
Tire Fitment:
Sport and Overland with Full OEM Fenders 37 inch Tall Tires (3 inch Bump Stop Height Recommended) Sport and Overland with Trimmed or High Lined OEM Fenders 38 inch Tall Tires (3 inch Bump Stop Height Recommended) Rubicon with Full OEM Fenders 37 inch/38 inch Tall Tires (3 inch Bump Stop Height Recommended) Rubicon with Trimmed or High Lined OEM Fenders 40 inch Tall Tires (3 inch Bump Stop Height Recommended)
Wheel Fitment: Sport and Overland Wheel Fitment Recommendations 37 inch/38 inch Tall Tires – Recommend 3.5 inch of Back Spacing Rubicon or Sport with Wide Track Axles Fitment Recommendations 37 inch/38 inch Tall Tires – Recommend 4.5 inch of Back Spacing 40 inch Tall Tires – Recommend 3.5 inch of Back Spacing General
Notes:
- All lift heights based on Rubicon models
- Designed to maintain 1/2 inch of rake on Rubicon Models
- As shown valid for OEM axles only
- If so equipped will require removal of rear shutter shock
- Requires aftermarket front drive shaft
YouTube video if available:
Country of Origin: USA
Lift Height (if applicable): 4.5 Inch
Location (if available): Front and Rear
Fitment Notes (if applicable): *Designed for 3.6 V6 Applications
Shocks Included (if applicable):
Remote Reservoirs Included (if applicable):
Coilovers Included (if applicable):
Recommended Tire Size (if applicable): 37/40
Kit Components (if applicable):
Vehicle Fuel Type (if applicable):
