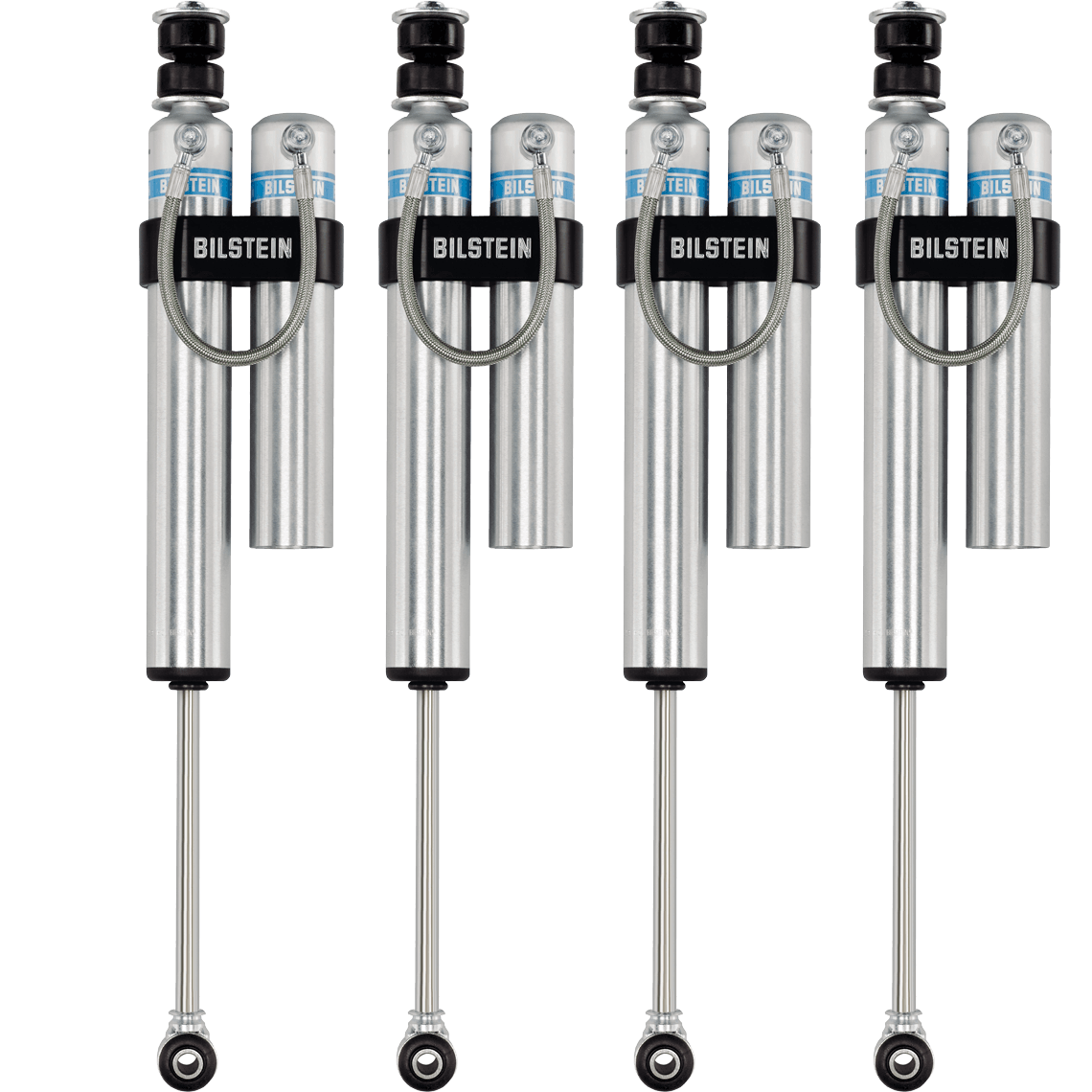

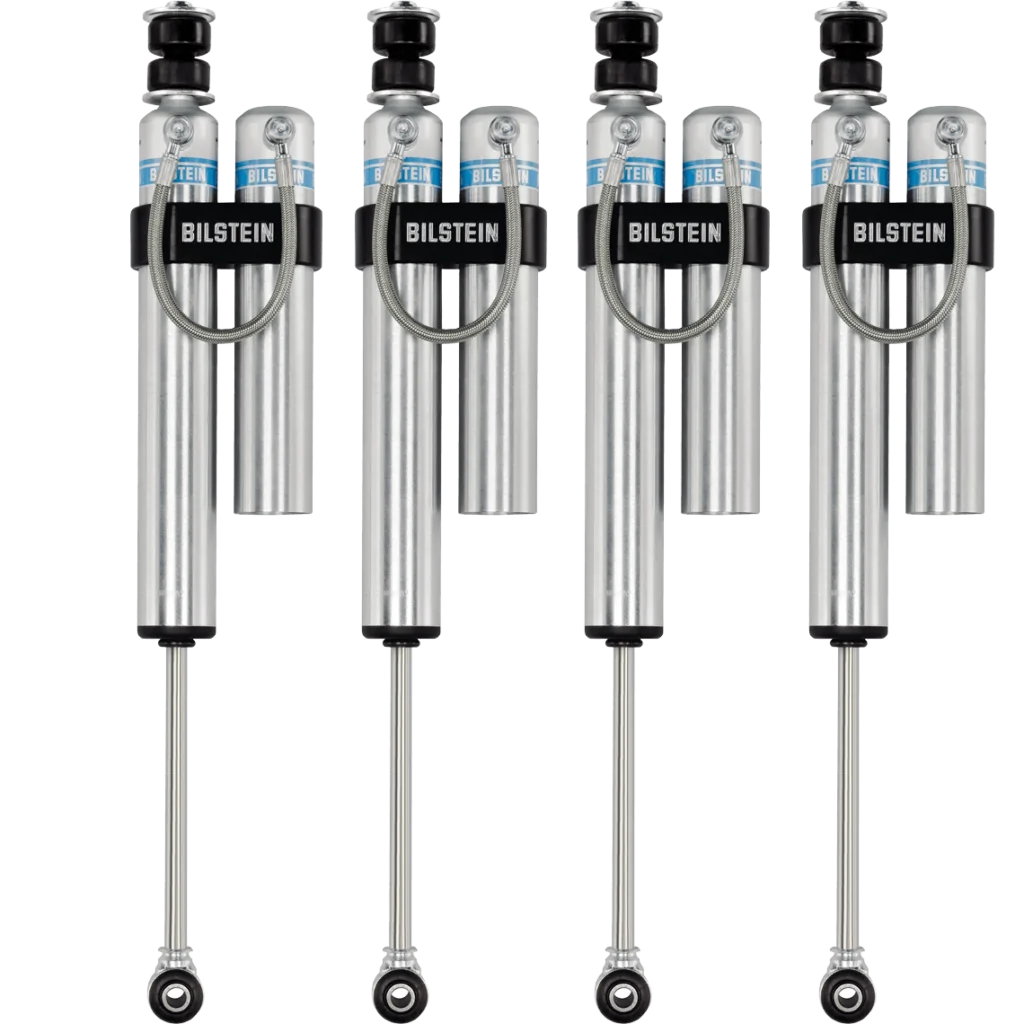

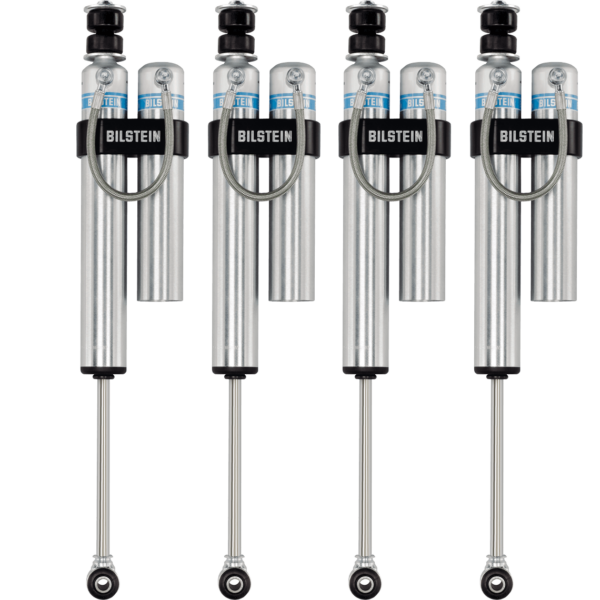

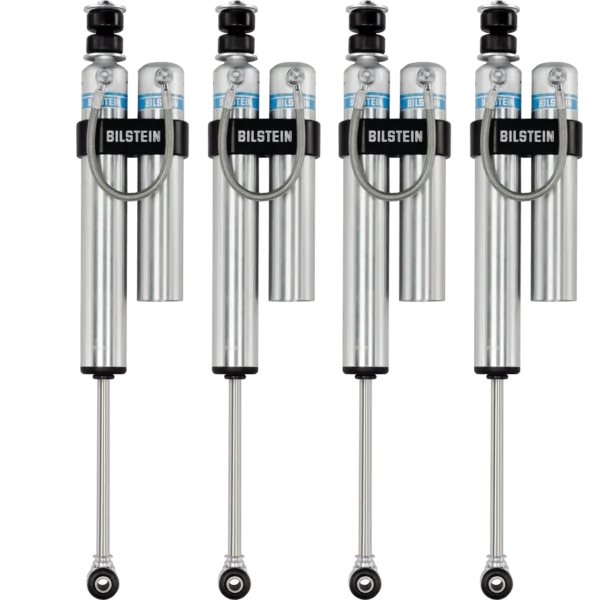

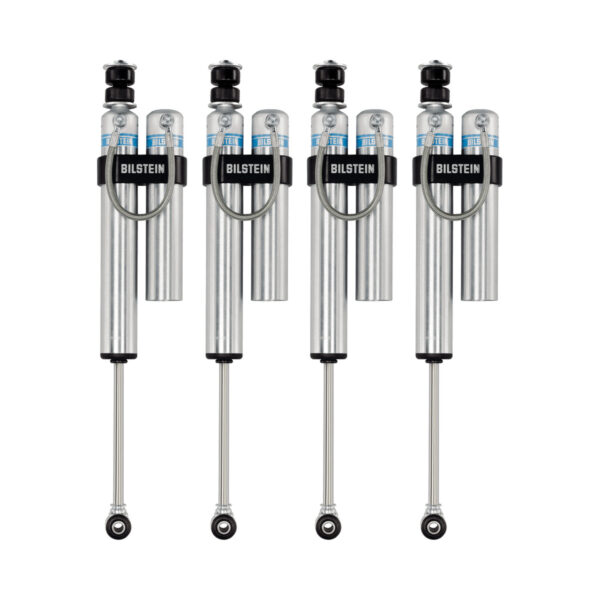

Bilstein B8 5160 Remote Reservoir 3-4.5″ Front, 1.5-2.5″ Rear Lift Shocks for 2020-2023 Jeep Gladiator JT

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

• Collapsed Length (IN): 17.56
• Extended Length (IN): 29.38
• Collapsed Length (MM): 446.0
• Extended Length (MM): 746.2
• Finish: Zinc Plated
• Reservoir: Yes
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Adjustable Damping: Non-Adjustable

Notes:

• Requires appropriate bump stop extensions and aftermarket driveshaft

Rear Shocks:

• Collapsed Length (IN): 16.83
• Extended Length (IN): 28.41
• Collapsed Length (MM): 427.5
• Extended Length (MM): 721.7
• Finish: Zinc Plated
• Reservoir: Yes
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Adjustable Damping: Non-Adjustable

Notes:

• Requires appropriate bump stop extensions
