Bilstein 5100 1.5-3″ Front 2″ Rear Lift Shocks +Stabilizer 07-’18 Jeep Wrangler JK

Name: Bilstein 5100 1.5-3" Front 2" Rear Lift Shocks +Stabilizer 07-’18 Jeep Wrangler JK
Brand: Bilstein
SKU: 24-146708_24-146715_24-158428
Availability: InStock
Rating: 5.00 (2 reviews)

SKU: 24-146708_24-146715_24-158428

5 out of 5 based on 2 customer ratings

(2 customer reviews)

Sale!

Bilstein 5100 1.5-3″ Front and 2″ Rear Lift Shocks +Stabilizer for 07-’17 Jeep Wrangler (JK) 2WD/4WD

Description
Bilstein 5100 1.5-3″ Front 2″ Rear Lift Shocks +Stabilizer 07-’18 Jeep Wrangler JK

Bilstein 5100 1.5-3″ Front and 2″ Rear Lift Shocks +Stabilizer for 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Jeep Wrangler (JK) 2WD/4WD

Front Shocks:

Series: 5100

Front Extended Length(in): 24.63

Front Collapsed Length(in): 14.98

Part Number: 24-146708

Front Shocks Fitment Notes: Compression bump stop on chassis may need to be modified to prevent damage to the shock absorber, Must use wheel spacers or offset aftermarket wheels.

Rear Shocks:

Series: 5100

Rear Extended Length(in): 25

Rear Collapsed Length(in): 15.39

Part Number: 24-146715

Rear Shocks Fitment Notes: Compression bump stop on chassis may need to be modified to prevent damage to the shock absorber, Must use wheel spacers or offset aftermarket wheels.

Steering Stabilizer Shock:

Series: 5100

Extended Length(in): 20.01

Collapsed Length(in): 13.19

Part Number: 24-158428

Shock Fitment Notes:

Fitment: Bilstein 5100 1.5-3″ Front and 2″ Rear Lift Shocks +Stabilizer for 07-’17 Jeep Wrangler (JK) 2WD/4WD

Brand: Bilstein – B8 5100 Series

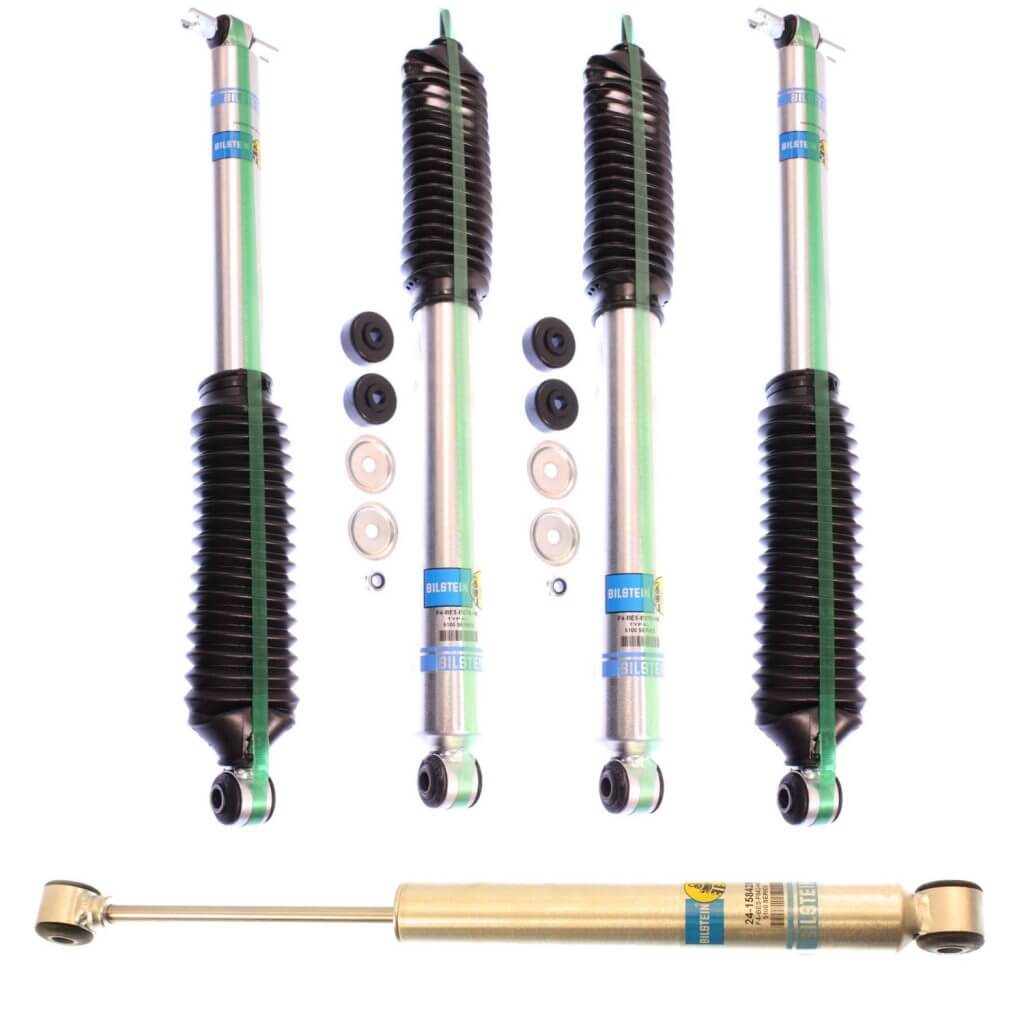

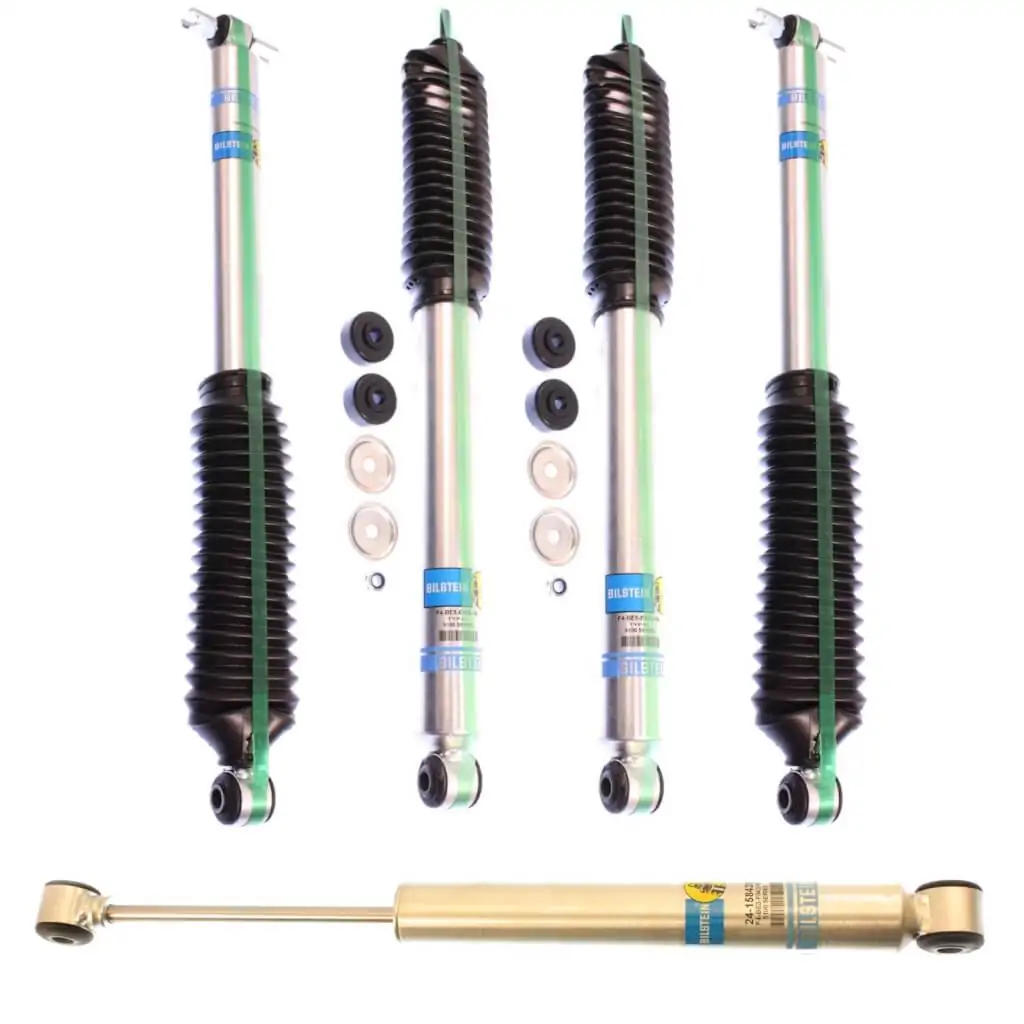

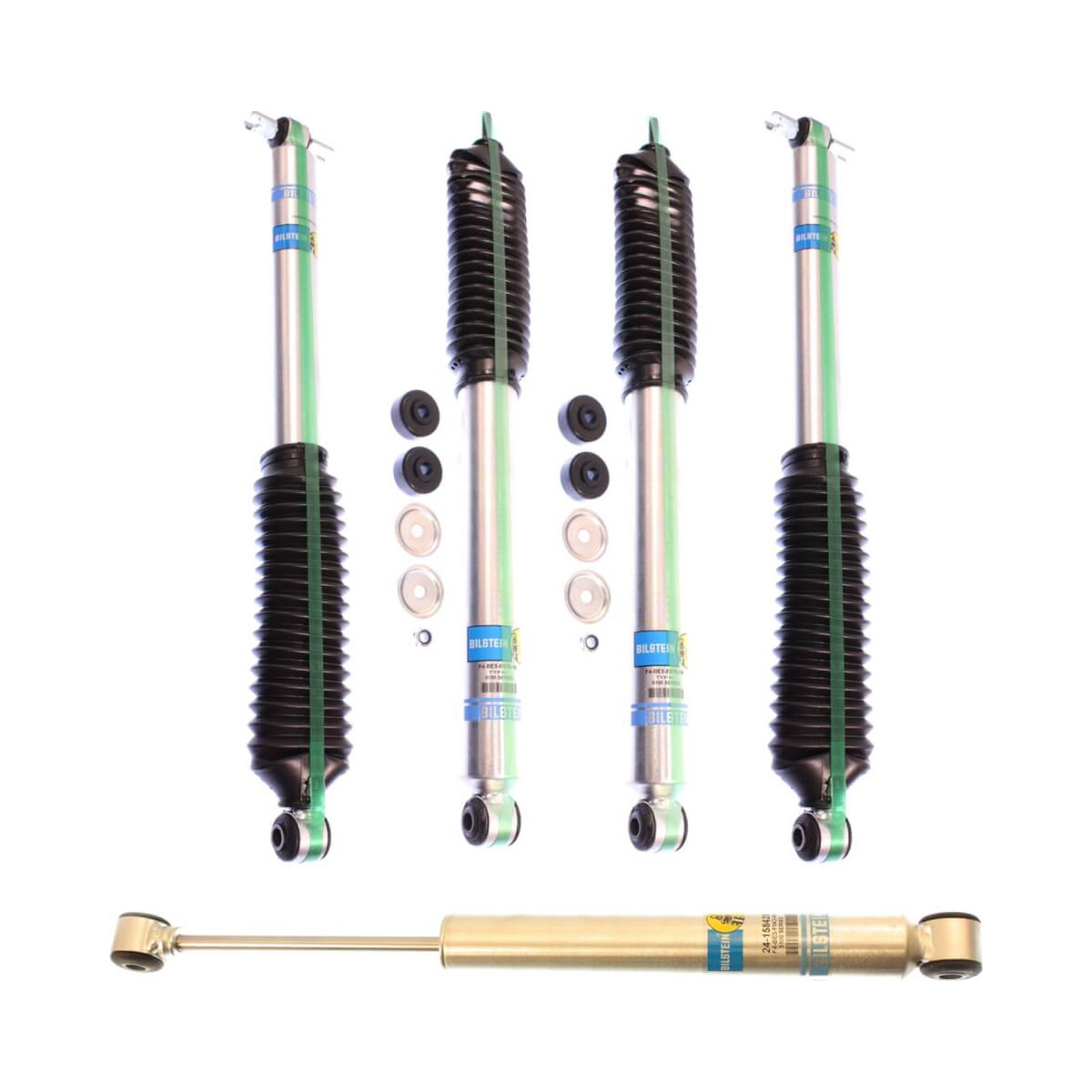

Listing Type: Kit (5 Shocks Total)

2 Front Shocks (46mm) / Part #24-146708
2 Rear Shocks (46mm) / Part #24-146715
1 Steering Stabilizer Shock (36mm) / Part #24-158428

Vehicle Fitment:

2007-2017 Jeep Wrangler

Fitment Notes:

Fits 1.5″-3″ front lift & 2″ rear lift
Steering stabilizer is single OE replacement
Requires wheel spacers or offset aftermarket wheels

Tech Specs:

Part Number: 24-146708
Weight (lbs): 4.63
Old Part Number: BE5-E670
Old Part Number: F4-BE5-E670-H0
Series: B8 5100
Position: Front
Descriptor: For Front Lifted Height: 1.5-3″
Descriptor: Must use wheel spacers or purchase aftermarket offset wheels
Collapsed Length (IN): 14.98
Extended Length (IN): 24.63
Lower Mount Type: Eye 12.1mm
Upper Mount Type: Stem
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: 46mm ID Smooth Body (Non-Coilover)

Part Number: 24-146715
Weight (lbs): 4.63
Old Part Number: BE5-E671
Old Part Number: F4-BE5-E671-H0
Series: B8 5100
Position: Rear
Descriptor: For Rear Lifted Height: 2″
Descriptor: Must use wheel spacers or purchase aftermarket offset wheels
Collapsed Length (IN): 15.39
Extended Length (IN): 25
Lower Mount Type: Eye 12.1mm
Upper Mount Type: Bar Pin
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: 46mm ID Smooth Body (Non-Coilover)

Part Number: 24-158428
Weight (lbs): 2.9
Old Part Number: BE3-F842
Old Part Number: F4-BE3-F842-H0
Series: B8 5100 (Steering Damper)
Position: Front
Collapsed Length (IN): 13.19
Extended Length (IN): 20.01
Lower Mount Type: Eye 12.7mm
Upper Mount Type: Eye 12.7mm
Internal Design: Monotube
Finish: Zinc Plated
Reservoir: No
Body Design: 36mm ID Smooth Body (Non-Coilover)

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV’s with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Includes 4 Shocks and 1 Steering Stabilizer
