Jeep JK Front Axle Truss Dana 44 07-18 Wrangler JK Rubicon w/ C2 Gussets ProTek EVO Manufacturing

Description
Jeep JK Front Axle Truss Dana 44 07-18 Wrangler JK Rubicon w/ C2 Gussets ProTek EVO Manufacturing

Jeep JK Front Axle Truss Dana 44 07-18 Wrangler JK Rubicon w/ C2 Gussets ProTek EVO Manufacturing

Part: EVO-1143-44

The JK Front axle is prone to bending causing a costly replacement. The EVO MFG JK ProTek Front Axle Truss is specifically designed to give the axle ample strength to prevent deflection. Manufactured from 3/16 inch Laser cut steel and CNC press brake formed one piece sections that minimize excess heat and weld shrinkage which ensures a truer axle after install. Less heat, less chance of axle warping and easier install.

Integrated 3/16 inch steel backbone through center of main truss sections collectively add to 9/16 inch total backbone bracing. Secondary 1/4 inch steel differential bridge connects left and right truss sections over cast differential center section giving a extremely strong one piece integrated truss system covering the entire axle end to end. Secondly the differential bridge allows for no need to weld to the differential casting which requires a specialty welding process for proper adhesion.

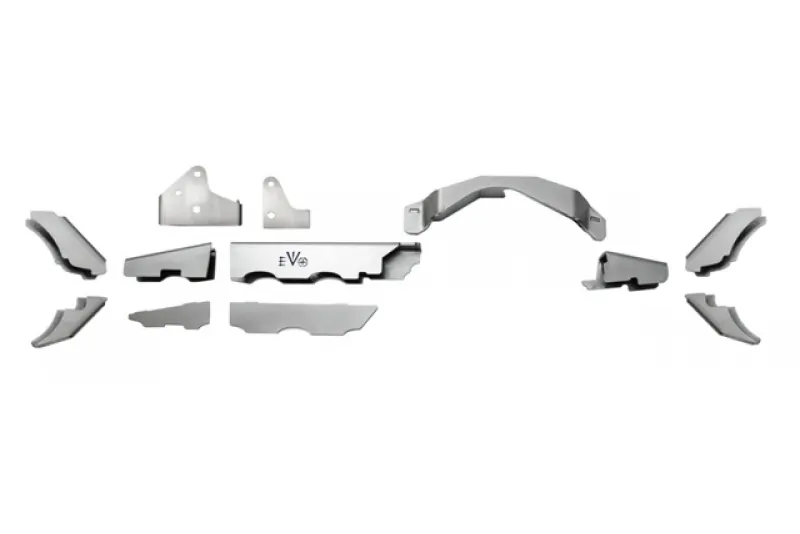

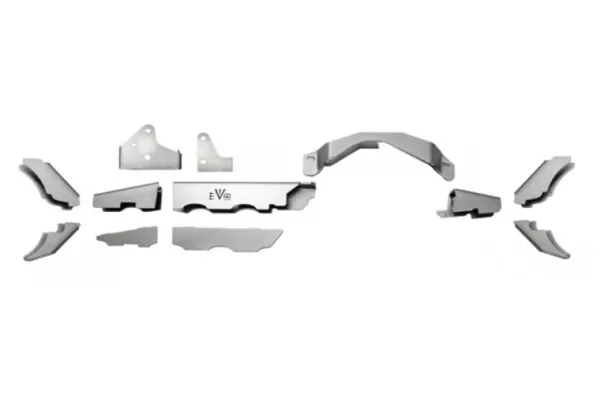

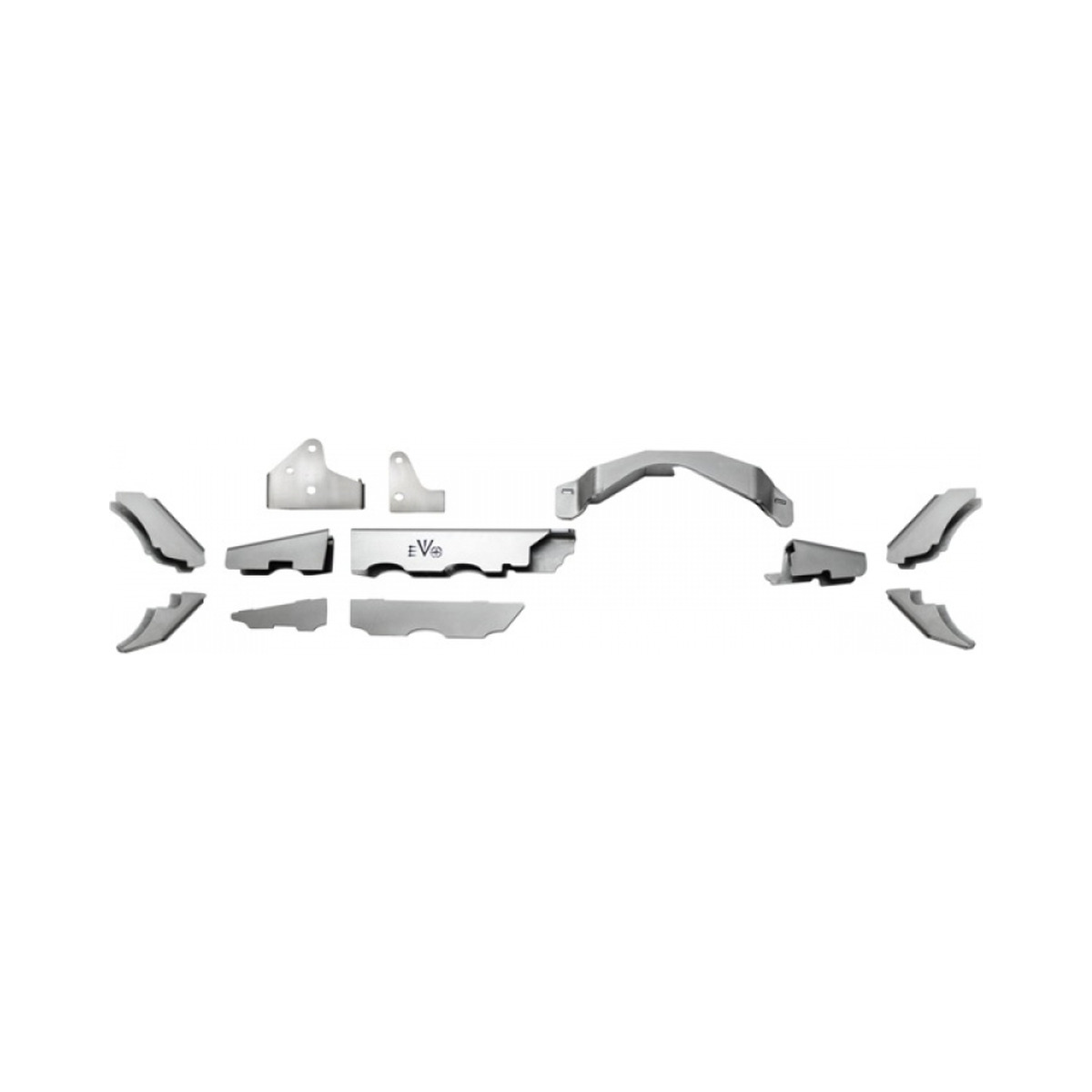

This kit comes complete with EVO MFG JK ProTek Front Axle Truss and EVO MFG C2 Axle Gussets which complete the axle bracing all the way down to the axle end forgings commonly known as the axle C’s.
Details:

• Dana 44
• Front Axle
• Jeep Wrangler JK/JKU 07-18
• 3/16 Inch Laser Cut Steel

Sold As: Each

Material: Steel

Color:

Warranty:

Manufactured in: USA

Fitment Notes:

Doors:

Hardware included:

Number of boxes: 2

Recommended Tire Size:

Transmission type:

Install time: 5-7 Hours
