SuperLift 3.5″ Suspension Lift Kit for 1987-1996 Jeep Wrangler YJ

Description
SuperLift 3.5″ Suspension Lift Kit for 1987-1996 Jeep Wrangler YJ

SuperLift 3.5″ Suspension Lift Kit for 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 Jeep Wrangler YJ

Part: K849

• Superide replacement springs offer the best balance of stability, flexibility and ride quality
• Durable Poly spring eye bushings
• Transfer case lowering kit, combined with rear spring degree shims, corrects rear driveshaft angle
• Longer front anti-sway bar links prevent bar pre-load
• Compression travel-stop extensions for front and rear prevent over compression
• New front and rear U-bolt kits
• Relocation brackets for the front and rear track bars prevent steering wheel kick and align the body and axle
• Dropped pitman arm reduces drag link angle
• Brake hose relocation brackets ensure adequate hose length
• Superide shocks included
• Lifetime Warranty
• Satisfaction Guarantee

Tire and Wheel Info

The 1.5″ lift allows 31″ tires; add a 2″ body lift for 33s. 3.5″ of lift runs 33″ tires, and 35s with a 2″ body lift.

IMPORTANT DISCLAIMER: The provided tire/wheel fitments are approximate.

Actual dimensions of a given tire size can vary considerably from one brand to another.

Manufacturers’ wheel offset and backspacing measurement points are not always consistent.

Backspacing greatly impacts tire-to-fender clearance when turning.

Wheel width and backspacing influence whether the tires protrude past the fenders, and to what extent.

Considering these important factors, we recommend that you fit-check your tire/wheel selection prior to purchasing.

Installation Notes

If equipped with 13″ rear driveshaft, lengthening may be required.

Brake line / hose relocating hardware included in kit box.

Installation Instructions

• 5040.pdf

Product Overview

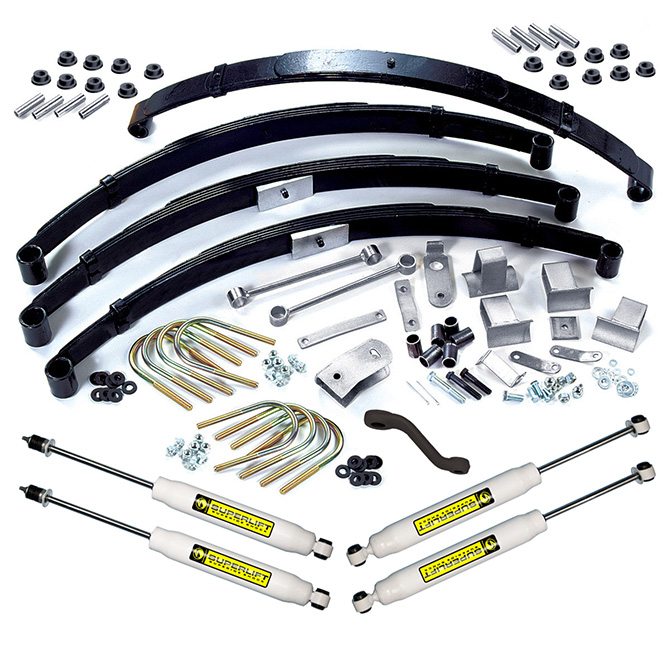

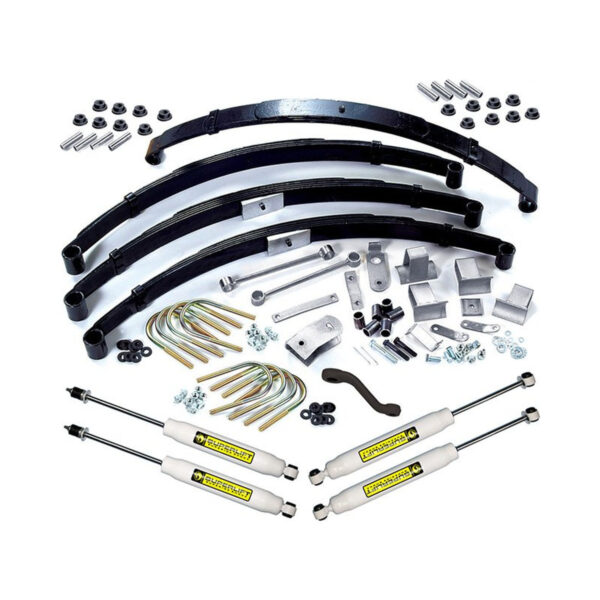

New Superide springs provide the lift. The lift kit also includes components to relocate front and rear track bars, brake hoses, and suspension compression travel bump-stops. Additional components include a U-bolt kit, longer front sway bar links, transfer case drop brackets to relieve rear driveshaft angle and front/rear Superide shocks. You will not find a more tailored and complete system for your YJ.

Popular options include our steering stabilizer kit, replacement Poly bushings for the leaf spring frame/shackle eyes, and sway bar quick disconnects for those desiring maximum articulation.

Fitment Table
