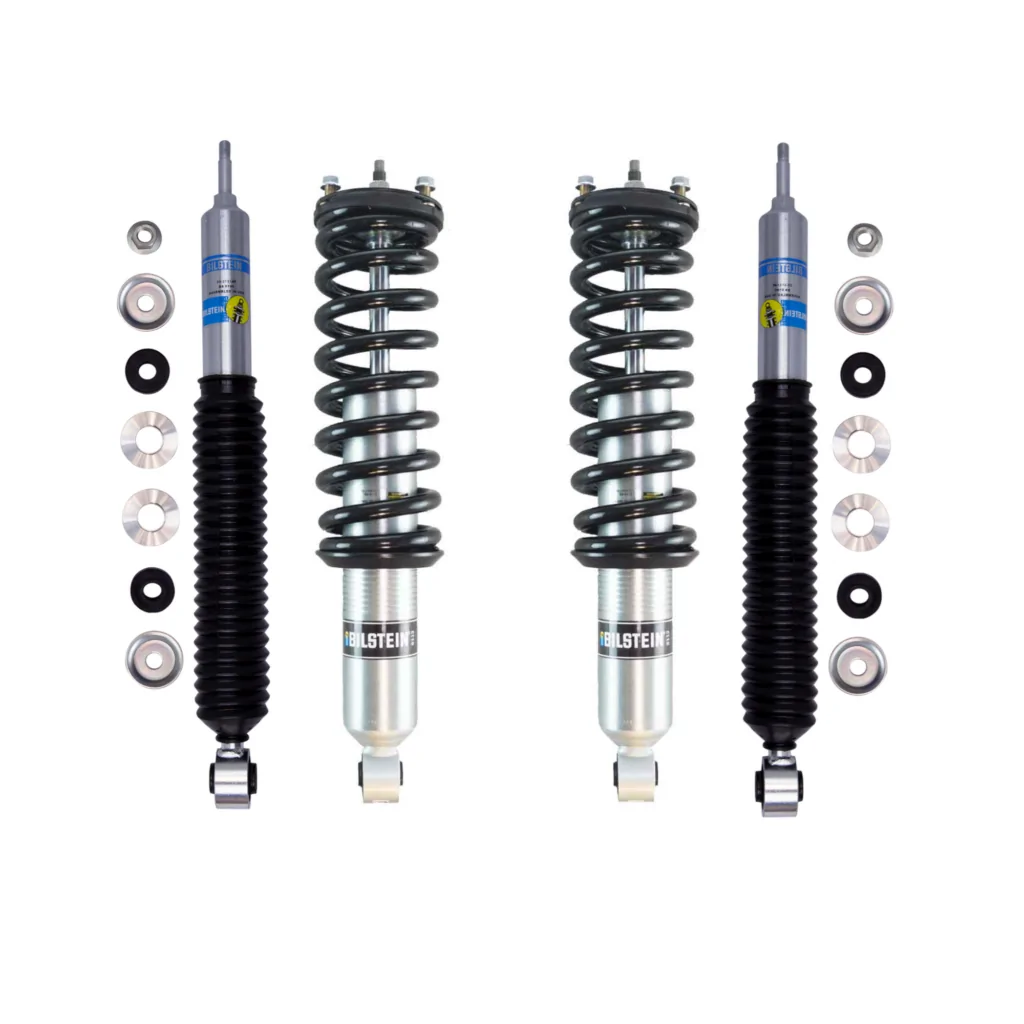

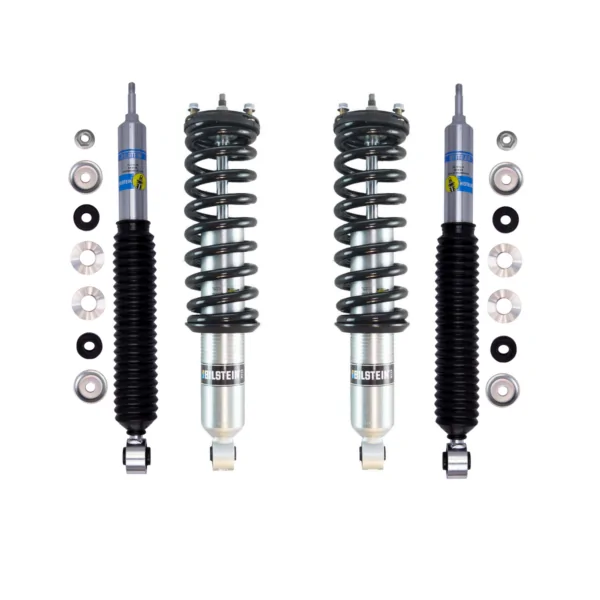

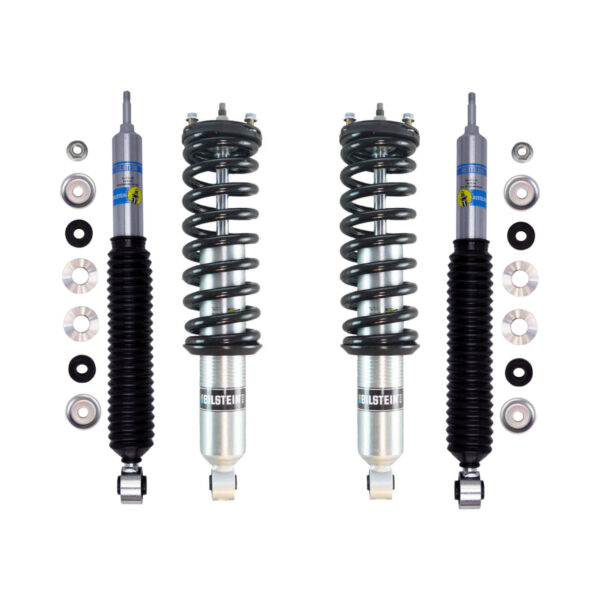

Bilstein 6112 Assembled 1.7-3.2″ Coilovers and B8 5100 0-2″ Rear Lift Shocks for 2003-2009 Lexus GX470 4WD (150-200 lbs)

Description
Bilstein 6112 Assembled 1.7-3.2″ Coilovers and B8 5100 0-2″ Rear Lift Shocks for 2003-2009 Lexus GX470 4WD (150-200 lbs)

Bilstein 6112 Assembled 1.7-3.2″ Coilovers and B8 5100 0-2″ Rear Lift Shocks for 2003, 2004, 2005, 2006, 2007, 2008, 2009 Lexus GX470 4WD (150-200 lbs)

Part: 47-311190-GX-ASBSR (old:47-284142-GX-ASB)

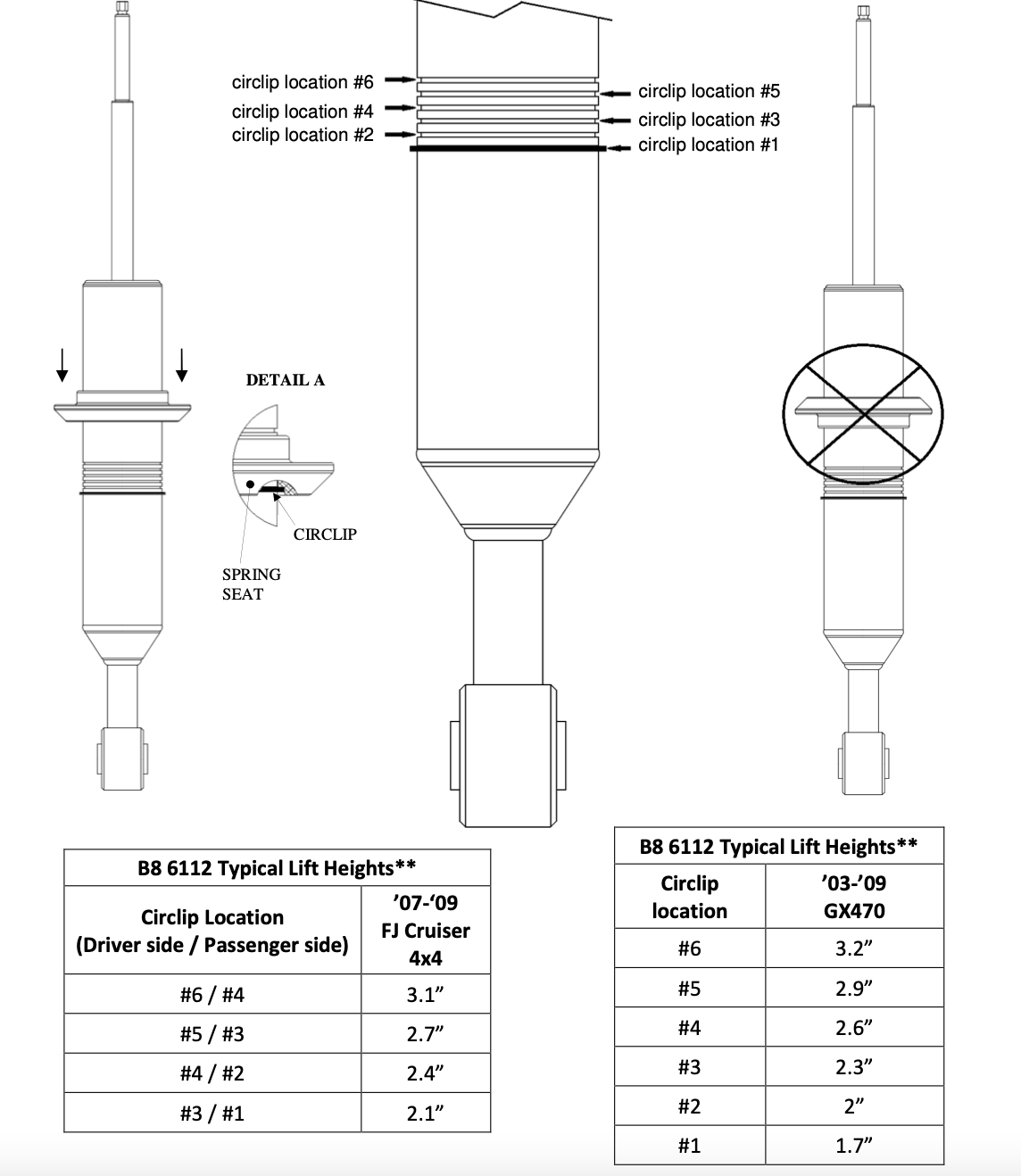

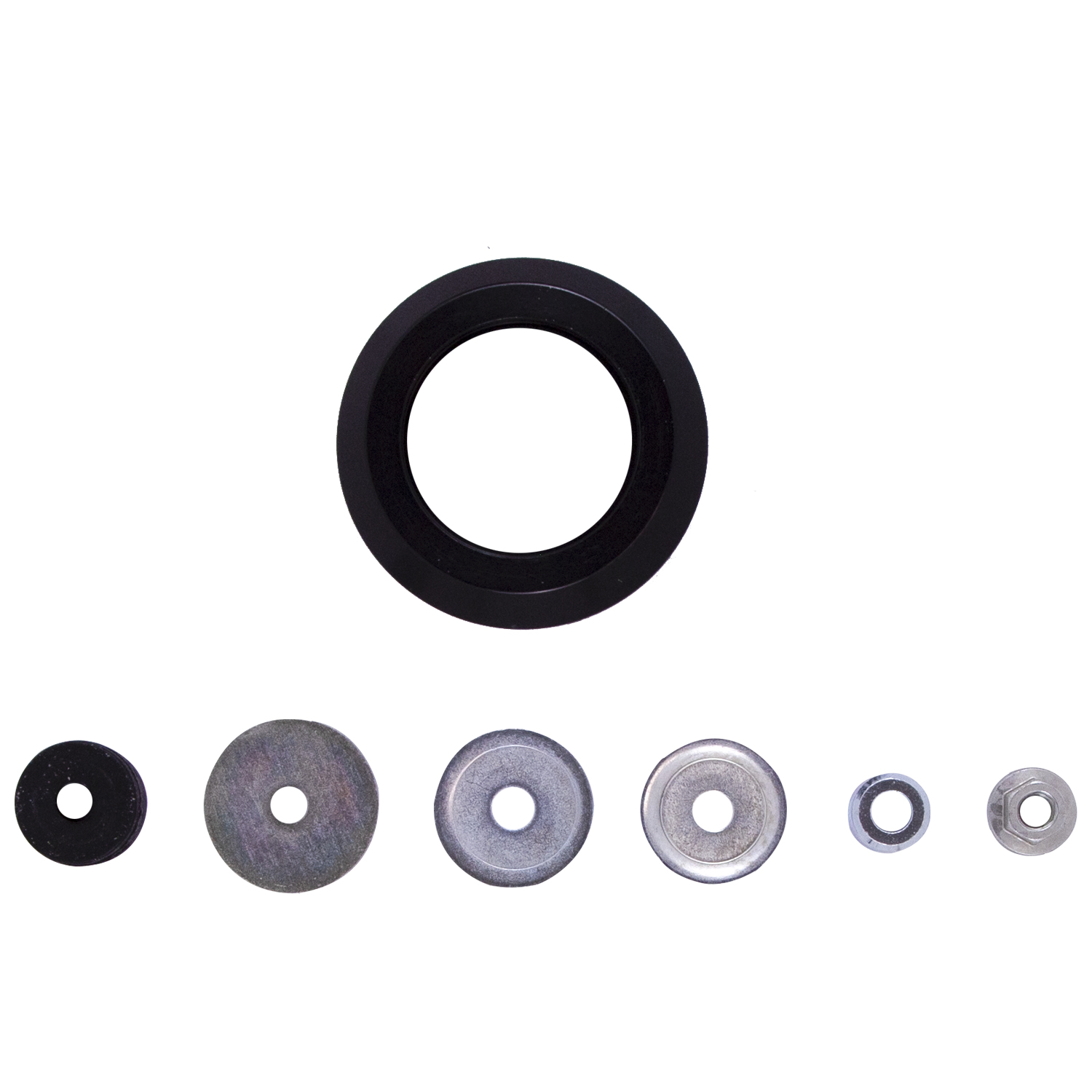

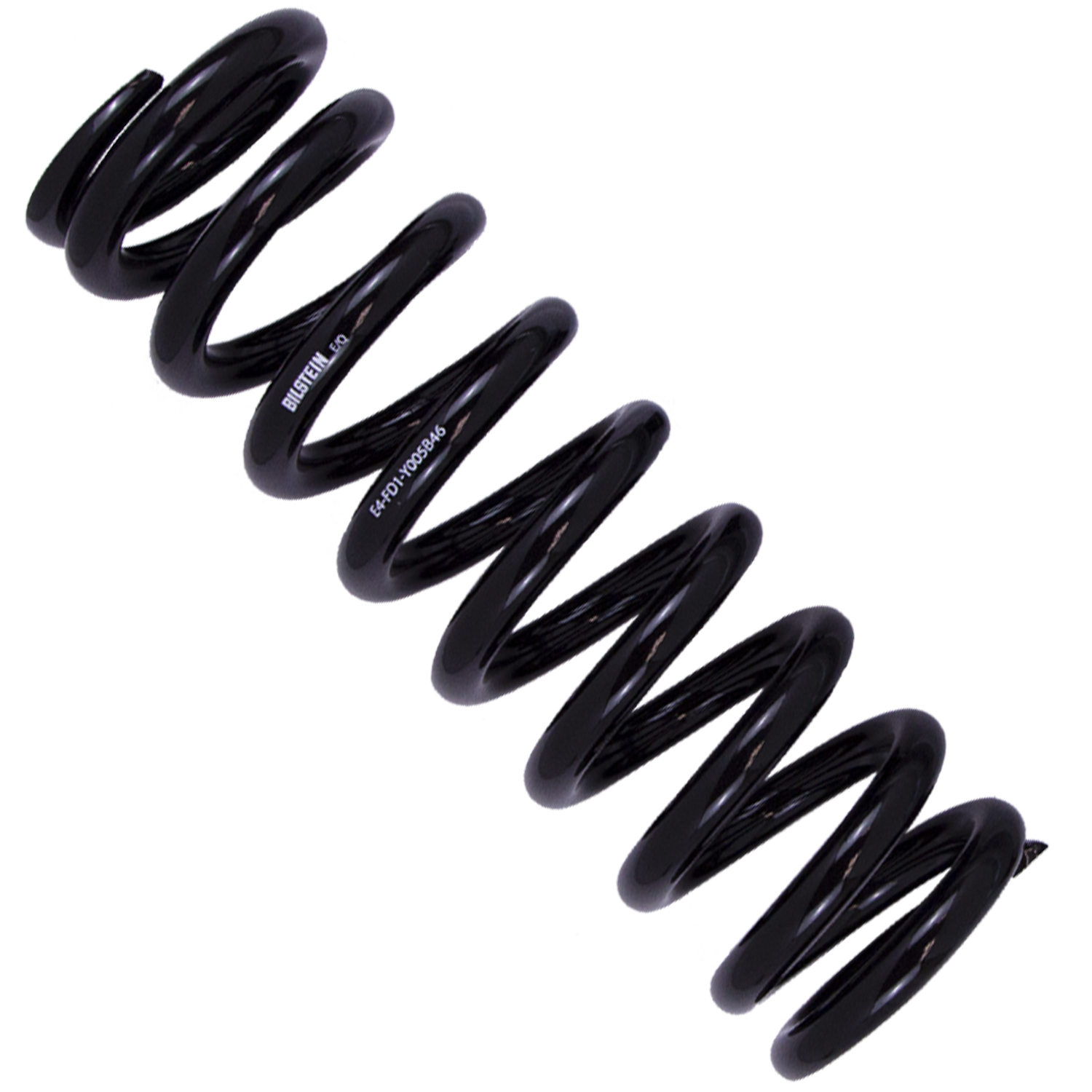

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Download 47-284142 installation instructions

• Finish: Dampers: Zinc Plated/Springs: Black
• Reservoir: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter: 60mm

Notes:

• For 150-200 lbs additional front weight
• Requires use of 2X Toyota Upper Shock Mount Assy 48609-60100

REAR SHOCK SPECIFICATIONS:

Part: 2x 33-313146

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

• Collapsed Length (IN): 14.91
• Extended Length (IN): 23.03
• Collapsed Length (MM): 378.8
• Extended Length (MM): 585.0
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Adjustable Damping: Non-Adjustable
