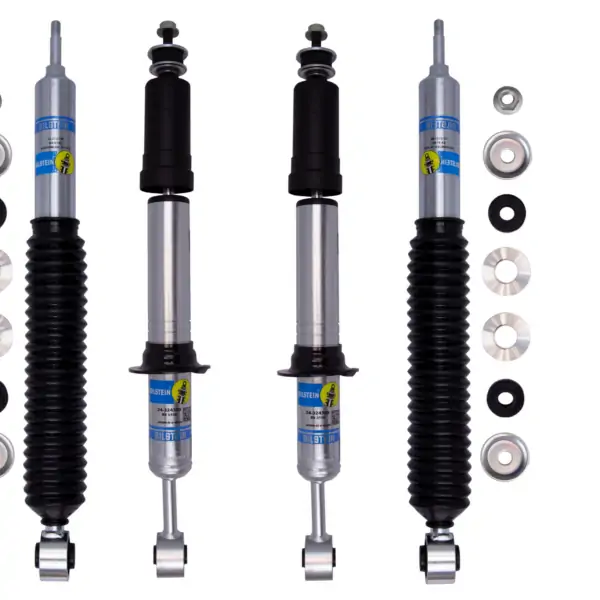

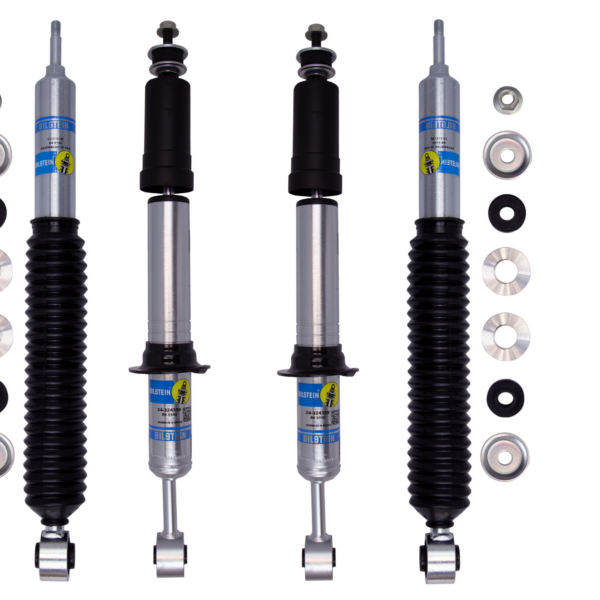

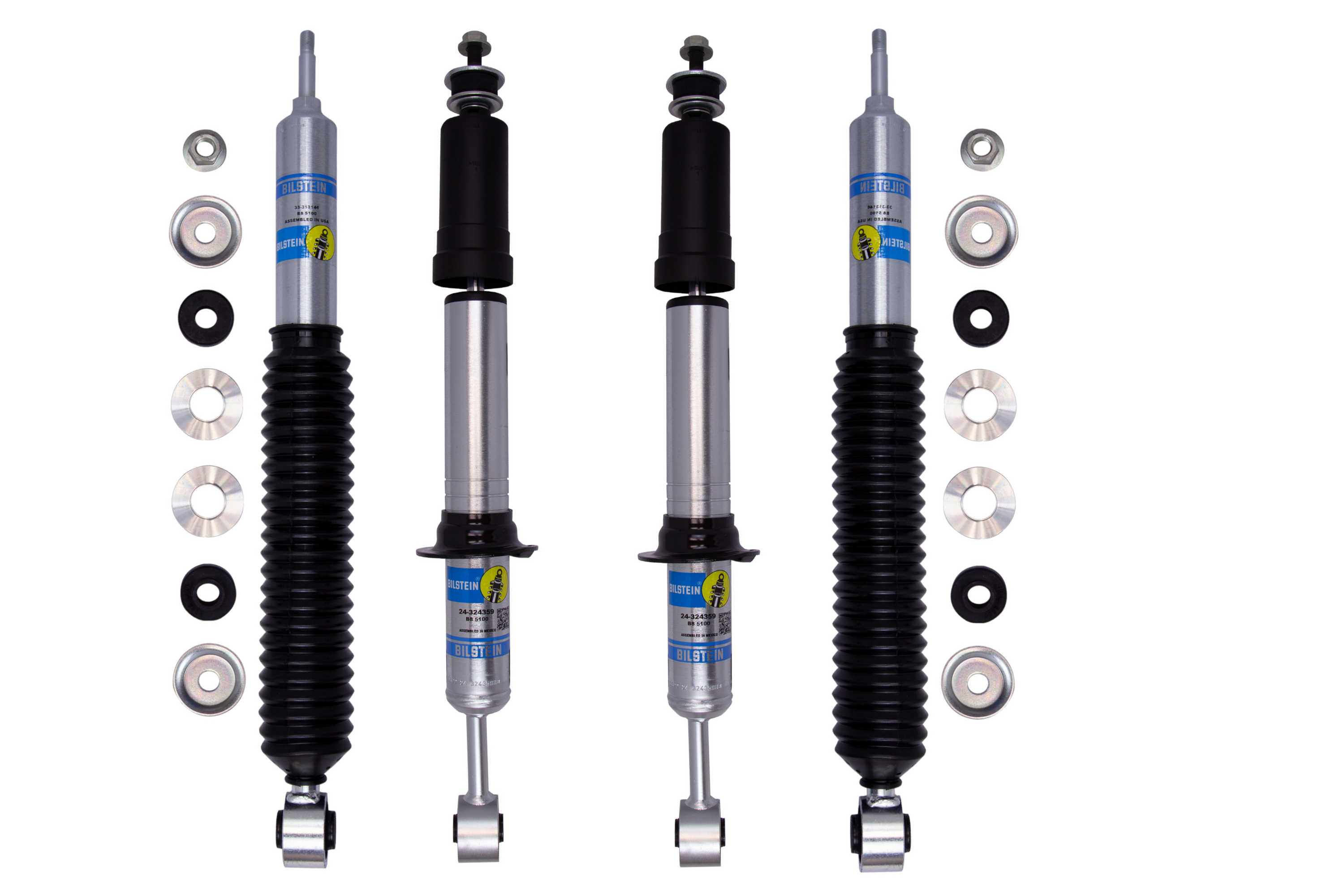

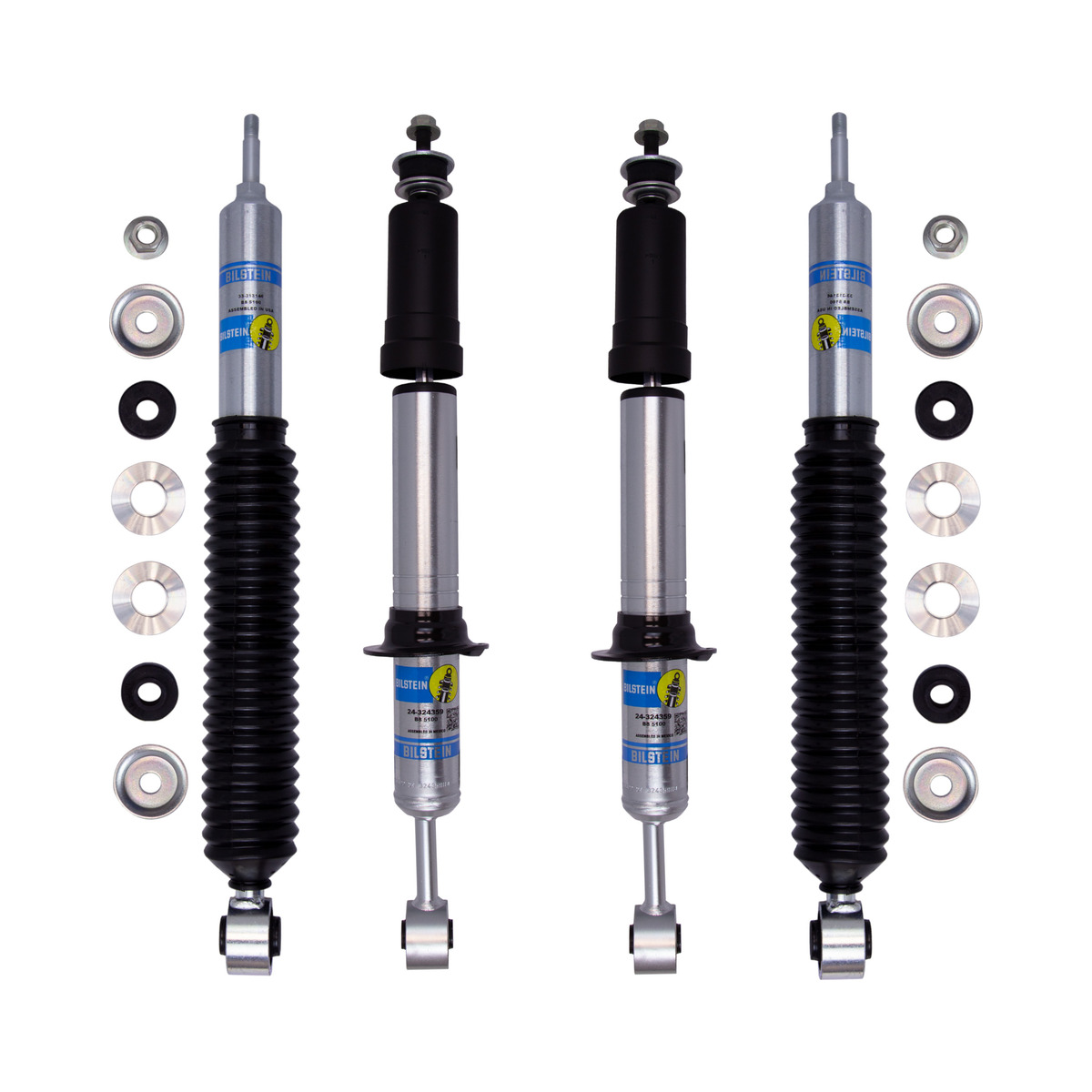

Bilstein 5100 Height Adjustable 0-2.5″ Front and 0-2″ Rear Lift Shocks for 2003-2009 Lexus GX470

Includes: 2 Front and 2 Rear Shocks

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

FRONT SHOCK SPECIFICATIONS:

• Extended Length (IN): 22.56 Inch
• Compressed Length (IN): 17.03 Inch
• Upper Mounting Style: Stud
• Lower Mounting Style: Eyelet

Features:

• Bilstein Zinc plated front shocks.
• Nitrogen charged gas shock.
• 4 lower spring cup clip positions allow the front to be lifted for leveling up to 2.5″.
• Improved ride & control on/off road.
• Bilstein Quality & limited lifetime warranty.

NOT RECOMMENDED FOR USE WITH SPACERS OR LIFT COILS UNLESS LOWEST (STOCK) SETTING IS USED.

C475 Setting instructions

REAR SHOCK SPECIFICATIONS:

ollapsed Length (IN): 14.91
Extended Length (IN): 23.5
Collapsed Length (MM): 378.8
Extended Length (MM): 597.0
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Replacement Mounting Kit: B4-KT1-Z103A00

Notes:

• Requires Rear Coil Spring Conversion
