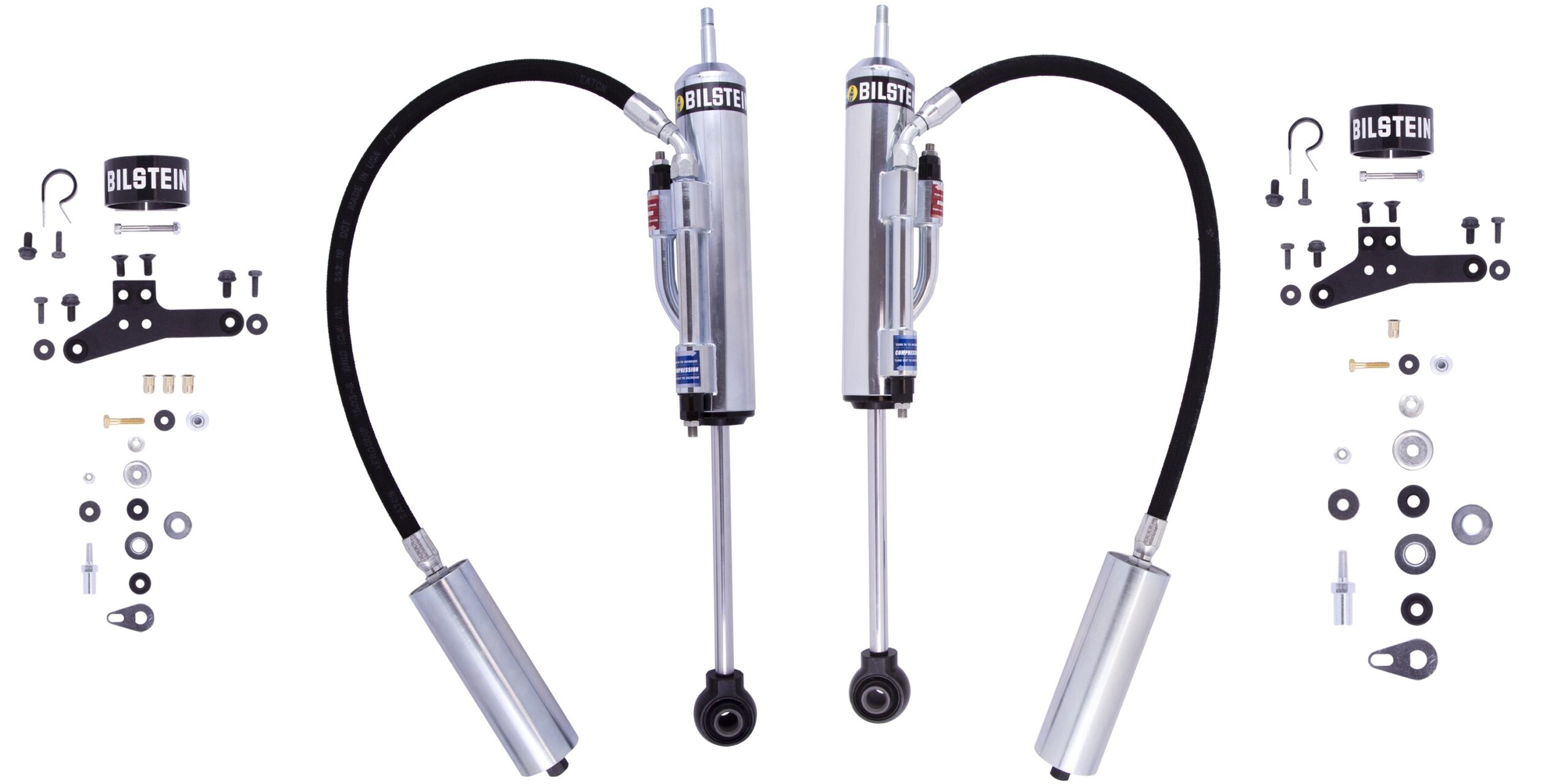

Bilstein B8 8100 (Bypass) 0-1.5″ Rear Lift Shocks for 2003-2009 Lexus GX470

Description
Bilstein B8 8100 (Bypass) 0-1.5″ Rear Lift Shocks for 2003-2009 Lexus GX470

Bilstein B8 8100 (Bypass) 0-1.5″ Rear Lift Shocks for 2003, 2004, 2005, 2006, 2007, 2008, 2009 Lexus GX470

Part: 25-284584_25-284591

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

• Collapsed Length (IN): 14.72
• Extended Length (IN): 24.09
• Collapsed Length (MM): 374.0
• Extended Length (MM): 612.0
• Finish: Zinc Plated
• Reservoir: Yes
• Body Design: Bypass Body (Non-Coilover)
• Body Diameter: 60mm

• For Rear Lifted Height: 0-1.5″
• Without Kinetic Dynamic Suspension System (KDSS)
• Requires Rear Coil Spring Conversion
