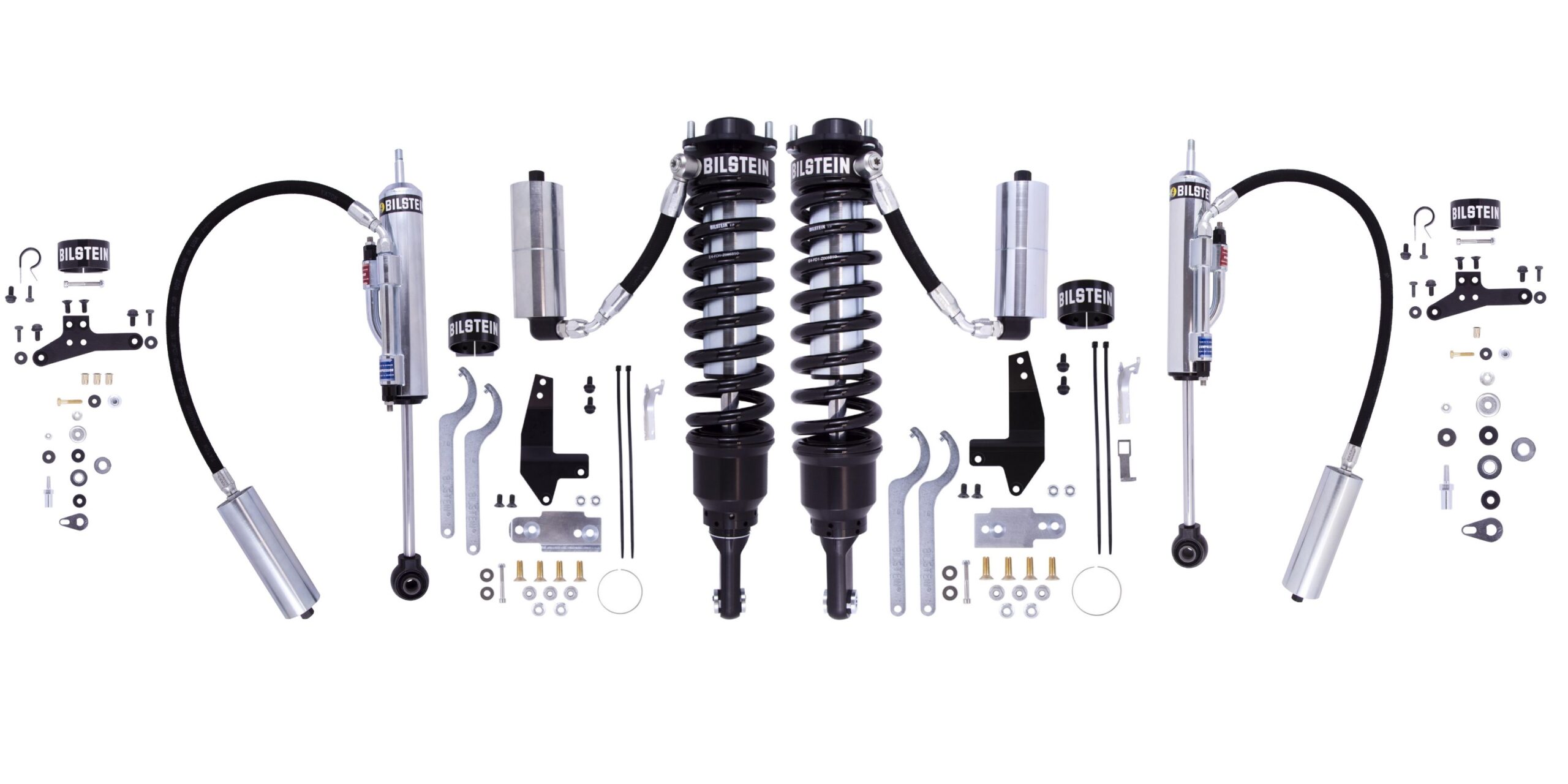

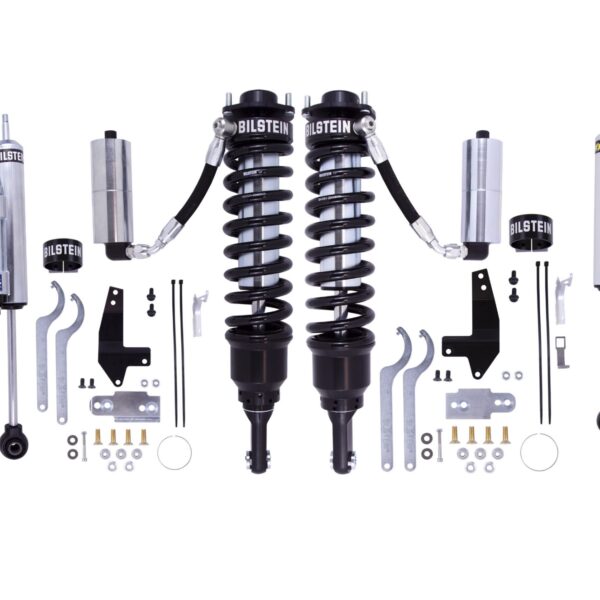

Bilstein B8 8112 0-3″ Lift Kit For 2003-2009 Lexus GX470

Description
Bilstein B8 8112 0-3″ Lift Kit For 2003-2009 Lexus GX470

Bilstein B8 8112 0-3.4″ Lift Kit For 2003, 2004, 2005, 2006, 2007, 2008, 2009 Lexus GX470

Part: 41-284834_41-284827_25-284584_25-284591

Front Coilovers:

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

• Collapsed Length (IN): 17.99
• Extended Length (IN): 22.80
• Collapsed Length (MM): 456.9
• Extended Length (MM): 579.1
• Finish: Dampers: Zinc Plated/Springs: Black
• Reservoir: Yes
• Aftermarket Upper Arms Required: No
• Body Design: Smooth Body (Coilover)
• Body Diameter: 60mm
• Adjustable Damping: Non-Adjustable
• Optional Heavy Load Springs: 53-291387

Notes:

• Front Lift Height: 1.3-3″
• Without Kinetic Dynamic Suspension System (KDSS)

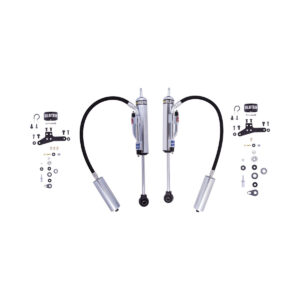

Rear Shocks:

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

• Collapsed Length (IN): 14.72
• Extended Length (IN): 24.09
• Collapsed Length (MM): 374.0
• Extended Length (MM): 612.0
• Finish: Zinc Plated
• Reservoir: Yes
• Body Design: Bypass Body (Non-Coilover)
• Body Diameter: 60mm

• For Rear Lifted Height: 0-1.5″
• Without Kinetic Dynamic Suspension System (KDSS)
• Requires Rear Coil Spring Conversion
