Bilstein 5100 0-2.2″ Front Shocks for 2017-2023 Nissan Titan Non-XD

SKU: 24-268189
Sale!
Bilstein 5100 0-2.2" Front Shocks for 2017-2019 Nissan Titan Non HD
Bilstein 5100 0-2.2" Front Shocks for 2017-2019 Nissan Titan Non HD

Description
Bilstein 5100 0-2.2″ Front Shocks for 2017-2023 Nissan Titan Non-XD

Bilstein 5100 0-2.2″ Front Shocks for 2017, 2018, 2019, 2020, 2021, 2022, 2023 Nissan Titan Non-XD

Part: 24-268189

Need it Assembled?

OR

Need Front Assembled and the Rear Shocks?

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Type: Gas Charged
Internal Design: Monotube
Adjustable: Yes
Extended Length (IN): 15.31 Inch
Compressed Length (IN): 10.94 Inch
Upper Mounting Style: Stem
Lower Mounting Style: Eye
Rod Finish: Zinc Plated
With Reservoir: No
Includes Boot: Yes

Quantity: Pair



Features:
  • 46 Millimeter Monotube Design Ensures Consistent, Fade-Free Performance In All Conditions
  • Increases Suspension Travel
  • Utilizes Vehicle‘s Stock Front Coil Springs And OEM Mounting Hardware
  • Limited Lifetime Warranty

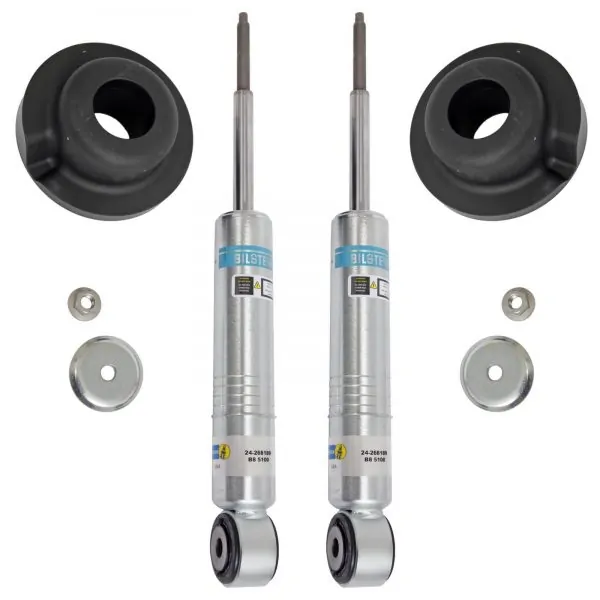

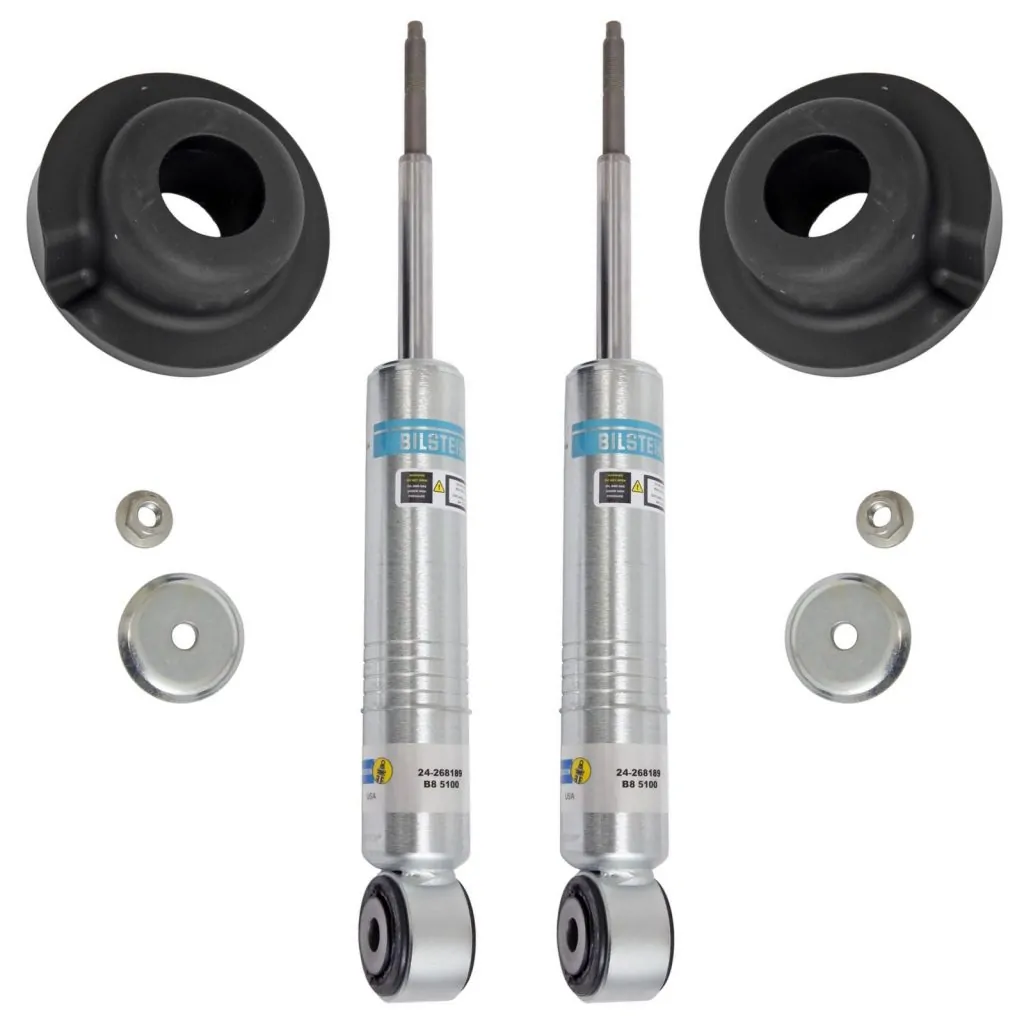

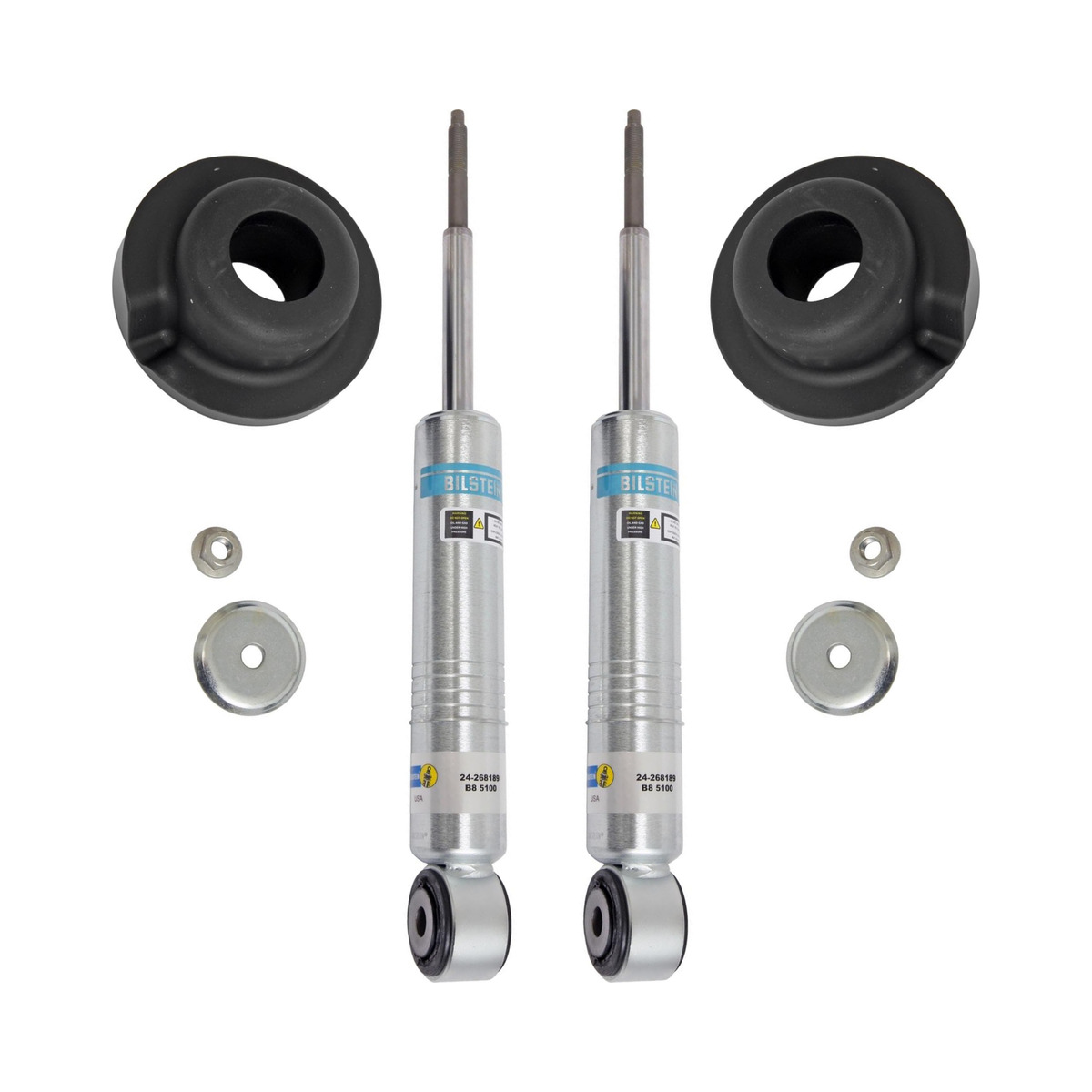

Includes Shocks exactly as pictured

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Bilstein 5100 0-2.2″ Front Shocks for 2017-2023 Nissan Titan Non-XD”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Can I use these shocks on 2020 Titan 2wd SV trim?? Secondly what's the maximum lift possible with these shocks on SV trim.
    1. 0 votes
      QCan I use these shocks on 2020 Titan 2wd SV trim?? Secondly what's the maximum lift possible with...... Read more
      There are no answers for this question yet. Answer now
      2. what is the stem size and tread pitch on the adjustable ride height struts for a 2011 nissan titan
    2. 0 votes
      Qwhat is the stem size and tread pitch on the adjustable ride height struts for a 2011 nissan titan
      There are no answers for this question yet. Answer now
      3. what is the size of the stem and tread pitch? i had a nut back off and i need to buy a new onw
    3. 0 votes
      Qwhat is the size of the stem and tread pitch? i had a nut back off and i need to buy a new onwanswer now
      A what is the stem size and thread pitch on the adjustable ride height shocks for 2011 nissan titan
      4. Will these work to level a 2021 Pro4X Titan?
    4. 0 votes
      QWill these work to level a 2021 Pro4X Titan?answer now
      A It will fit on 2020 Nissan Titan PRO-4X Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y600A00_0.pdf But unfortunately, the manufacturer did not conduct a study for 2021 for this reason, it cannot guarantee that it will fit
      5. I have 3 inch spacers already on front, what groove setting would I use with the 5100?
    5. 0 votes
      QI have 3 inch spacers already on front, what groove setting would I use with the 5100?answer now
      A You will need to remove the spacer. There is no need to use a spacer with this shock. This shock can work with stock coils. To obtain the desired height, you need to rearrange the rings on shock Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y600A00_0.pdf
      6. I have a 2017 Titan Pro4x. With using these shocks to raise the front 2 inches, will a 295/70/18 m/t tire fit?
    6. 0 votes
      QI have a 2017 Titan Pro4x. With using these shocks to raise the front 2 inches, will a 295/70/18 ...... Read more answer now
      A Can't be sure about tire size, we recommend test fitment first.  Pro-4X is already lifted so additional lift amount can be less than 2''
      7. Hello, i own a 2018 Nissan Titan pro4X and wanted to know what you recommend for a front leveling shock...the 5100 series or the B86100 series? I don't do a lot of serious 4 wheeling but do spend some time in the mountains hunting and mountain biking.Thank you
    7. 0 votes
      QHello, i own a 2018 Nissan Titan pro4X and wanted to know what you recommend for a front leveling...... Read more answer now
      A 5100s are good for usual ride, 6100s are better for heavier offroading
      8. i have a 2020 nissan titan pro4x will these shocks work for my truck to get it leveled
    8. 0 votes
      Qi have a 2020 nissan titan pro4x will these shocks work for my truck to get it leveledanswer now
      A yes these shocks will work
