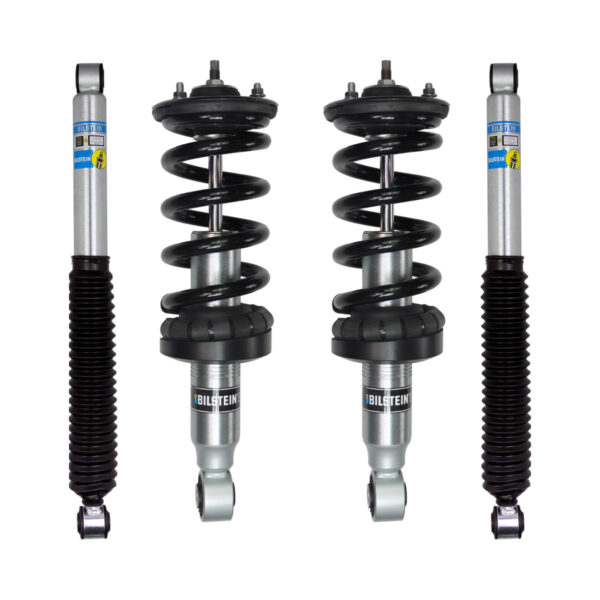

Bilstein B8 6100 Assembled Front 0-2″ Lift Coilovers and 0-1″ Rear Lift Shocks for 2016-2024 Nissan Titan XD

SKU: 6100BILXD16
Sale!

Description
Bilstein B8 6100 Assembled Front 0-2″ Lift Coilovers and 0-1″ Rear Lift Shocks for 2016-2024 Nissan Titan XD

Bilstein B8 6100 Assembled Front 0-2″ Lift Coilovers and 0-1″ Rear Lift Shocks for 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Nissan Titan XD Only

Part: 6100BILXD16

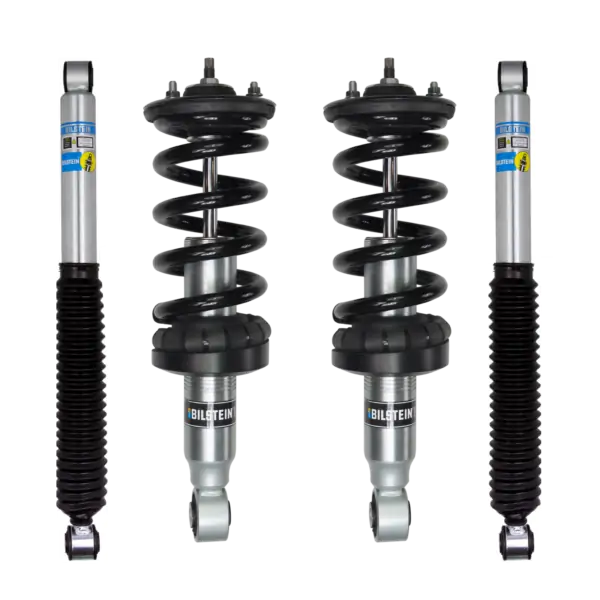

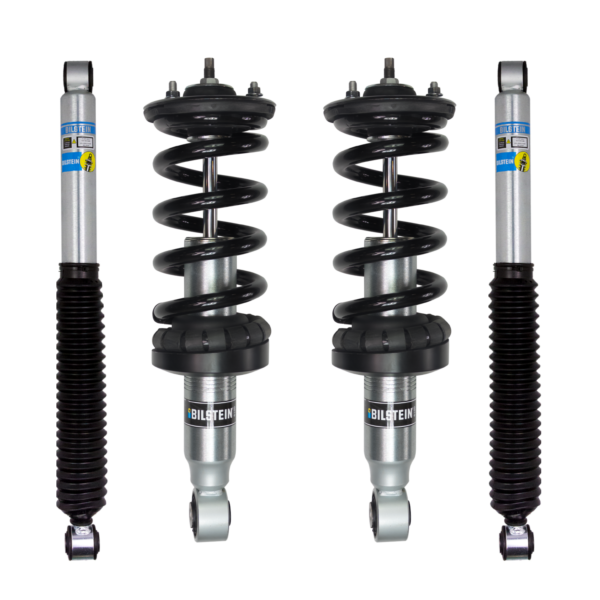

Includes 2 Shocks (24-322669) and 2 coils, assembled with new top mounts, bushings, hardware. Assembly may take 3-7 days.

Will not work on other sub-models of Nissan, if you have NON XD Nissan then you would need a different assembly.

Product Description

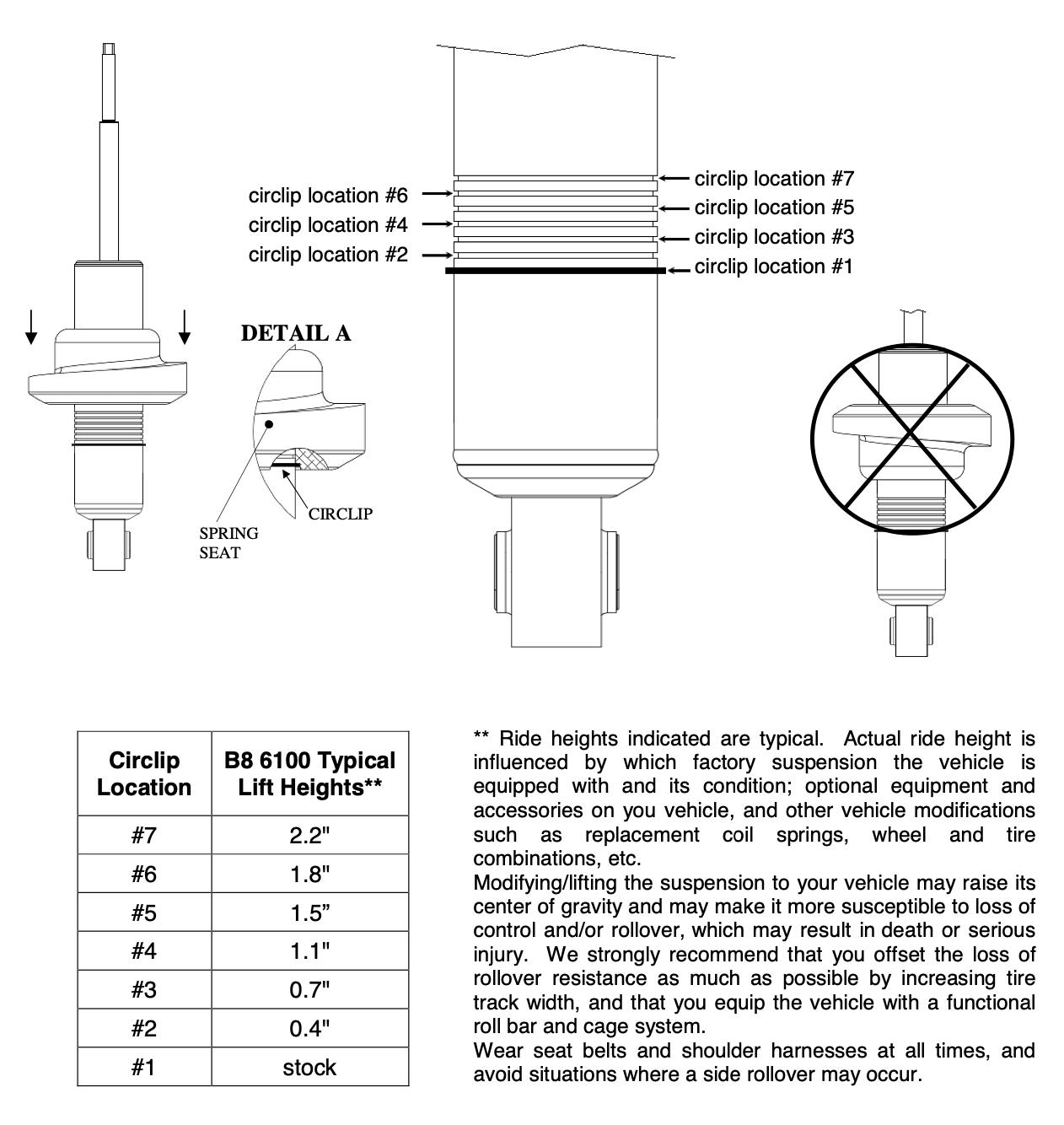

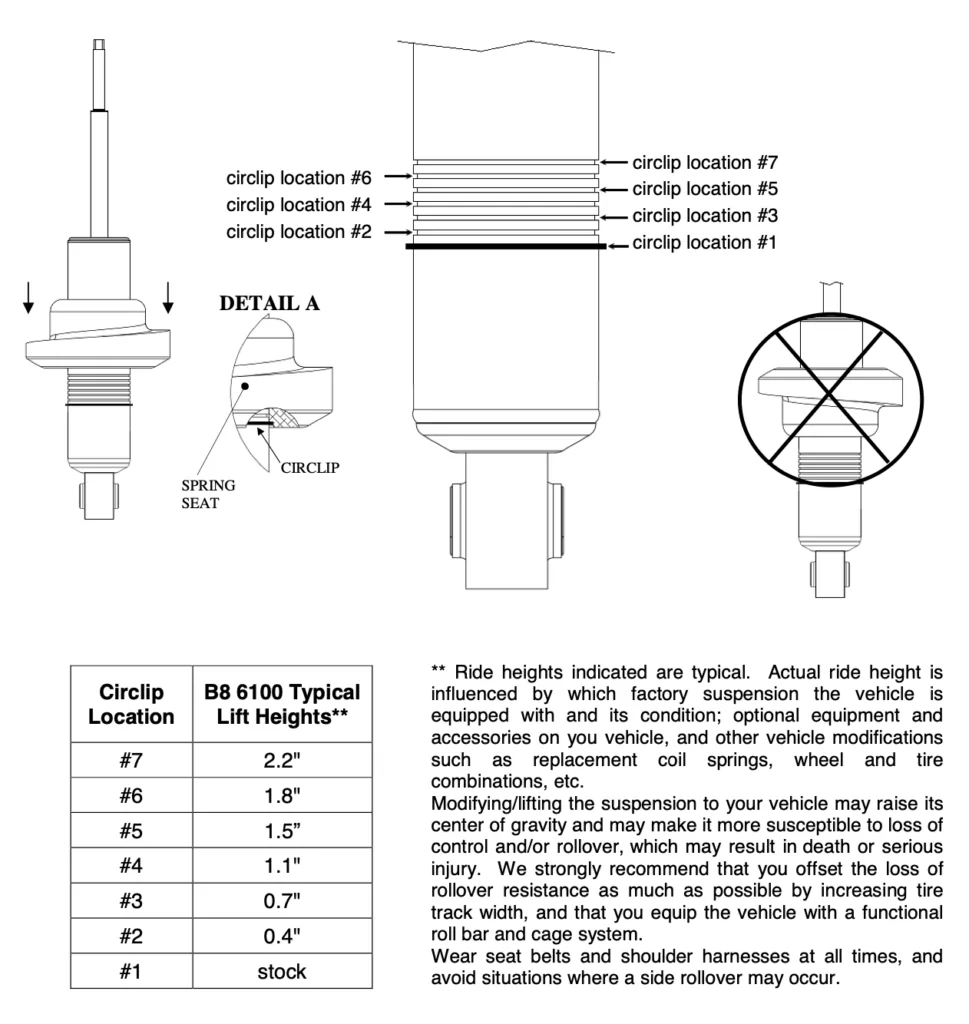

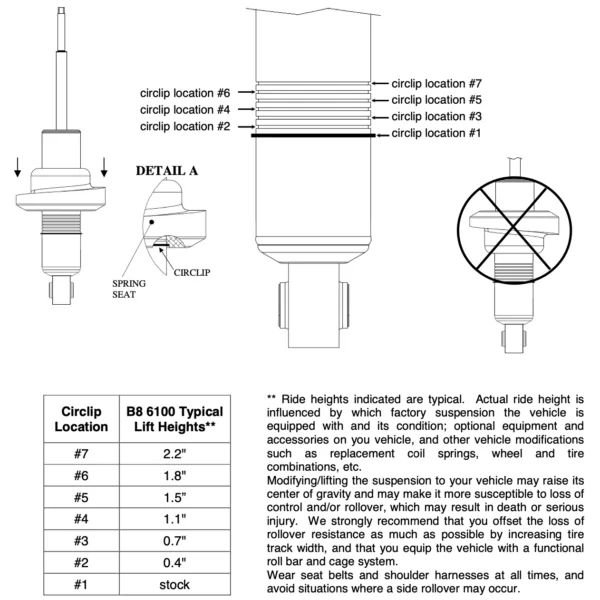

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV’s with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-2.5 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

  • Collapsed Length (IN): 14.42
  • Extended Length (IN): 18.43
  • Collapsed Length (MM): 366.2
  • Extended Length (MM): 468.0
  • Finish: Zinc Plated
  • Reservoir: No
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Body Diameter: 60mm
  • Adjustable Damping: Non-Adjustable

Fits:

  • Nissan Titan XD 2WD 2016-2019 (Fits models with V8 engine)
  • Nissan Titan XD 4WD 2016-2021

Download Installation Instructions for Bilstein B8 6100 0-2″ Front Lift Adjustable Shocks for 2016-2021 Nissan Titan

REAR SHOCKS:

Collapsed Length (IN)16.20
Extended Length (IN)25.81
Collapsed Length (MM)411.5
Extended Length (MM)655.7
FinishZinc Plated
ReservoirNo
Body DesignSmooth Body (Non-Coilover)
Body Diameter46mm
Spring Seat IncludedNo
Adjustable DampingNon-Adjustable

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Bilstein B8 6100 Assembled Front 0-2″ Lift Coilovers and 0-1″ Rear Lift Shocks for 2016-2024 Nissan Titan XD”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      Does this product fit 2019 Nissan titan XD 5.0 Cummins diesel
    1. 0 votes
      QDoes this product fit 2019 Nissan titan XD 5.0 Cummins dieselanswer now
      A yes will work
    2. Do you fit a 2016 Nissan Titan XD 2WD Diesel 5.0 ?
    3. 0 votes
      QDo you fit a 2016 Nissan Titan XD 2WD Diesel 5.0 ?answer now
      A yes it will fit
