Bilstein 4600 Front and Rear shocks for 2011-2017 BMW X3

Description
Bilstein 4600 Front and Rear shocks for 2011-2017 BMW X3

Bilstein 4600 Front and Rear shocks for 2011, 2012, 2013, 2014, 2015, 2016, 2017 BMW X3

Part number: 35-197157_35-197195_24-197205
Includes: 2 front shocks and 2 rear shocks.

Front Left

Part number: 35-197157
Series: 4600
Extended length: 22.4 Inch
Compressed length: 17.95 Inch
Front Upper mounting: Stem
Front Lower mounting: Base Cup
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Deflective Disc Valving

Includes dust shield: No
Includes hardware: No
Includes boot: Yes

Body color: Yellow
Body material: Steel
Body diameter: —
Front Rod diameter: 1.41 Inch
Rod finish: Polished
Rod material: Steel

Front Right

Part number: 35-197195
Series:
Extended length: 22.4 Inch
Compressed length: 17.95 Inch
Front Upper mounting: Stem
Front Lower mounting: Base Cup
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Deflective Disc Valving

Includes dust shield: No
Includes hardware: No
Includes boot: Yes

Body color: Yellow
Body material: Steel
Body diameter: —
Front Rod diameter: 1.41 Inch
Rod finish: Polished
Rod material: Steel

Rear

Part number: 24-197205
Series: 4600
Extended length: 20.16 Inch
Compressed length: 13.31 Inch
Rear Upper mounting: Stem
Rear Lower mounting: Eyelet
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Deflective Disc Valving

Includes dust shield: No
Includes hardware: No
Includes boot: No

Body color: Yellow
Body material: —
Body diameter: —
Rear Rod diameter: —
Rod finish: —
Rod material: —

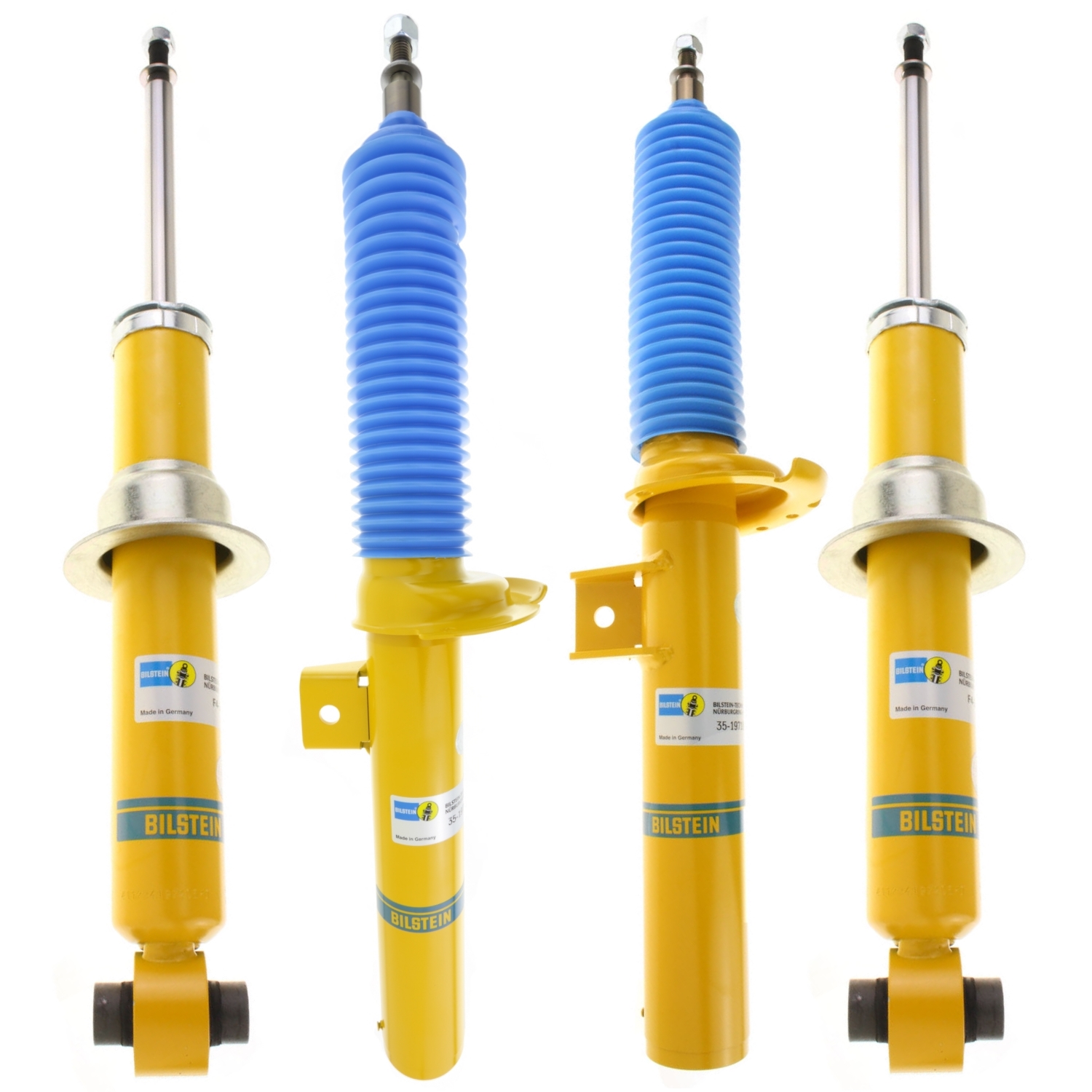

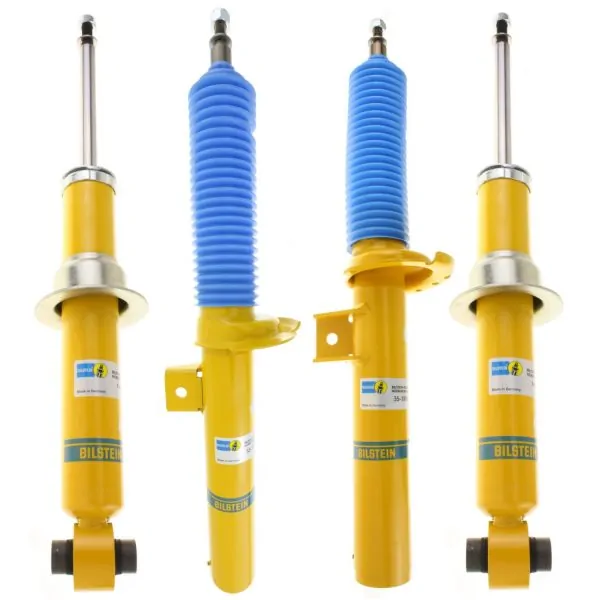

Includes Shocks exactly as pictured
