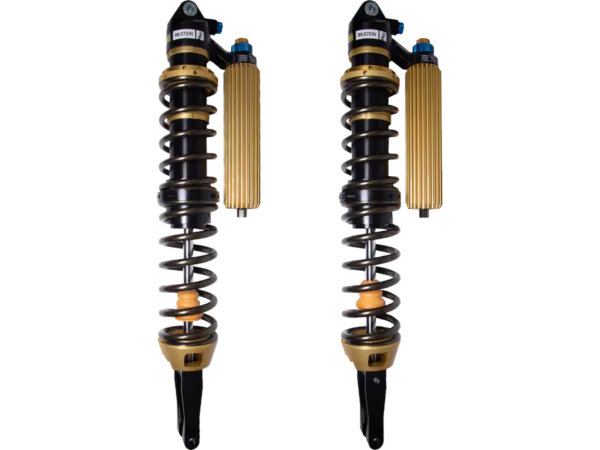

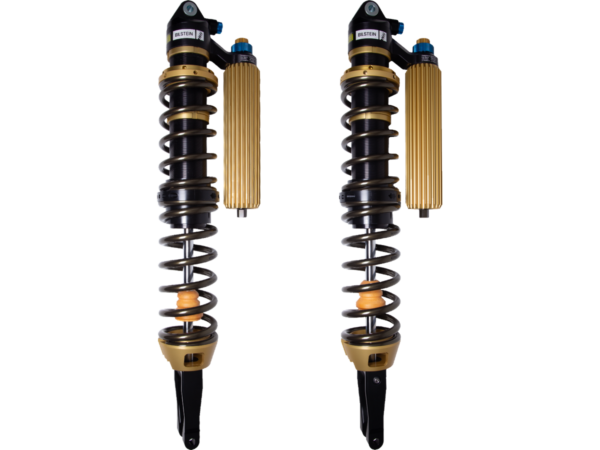

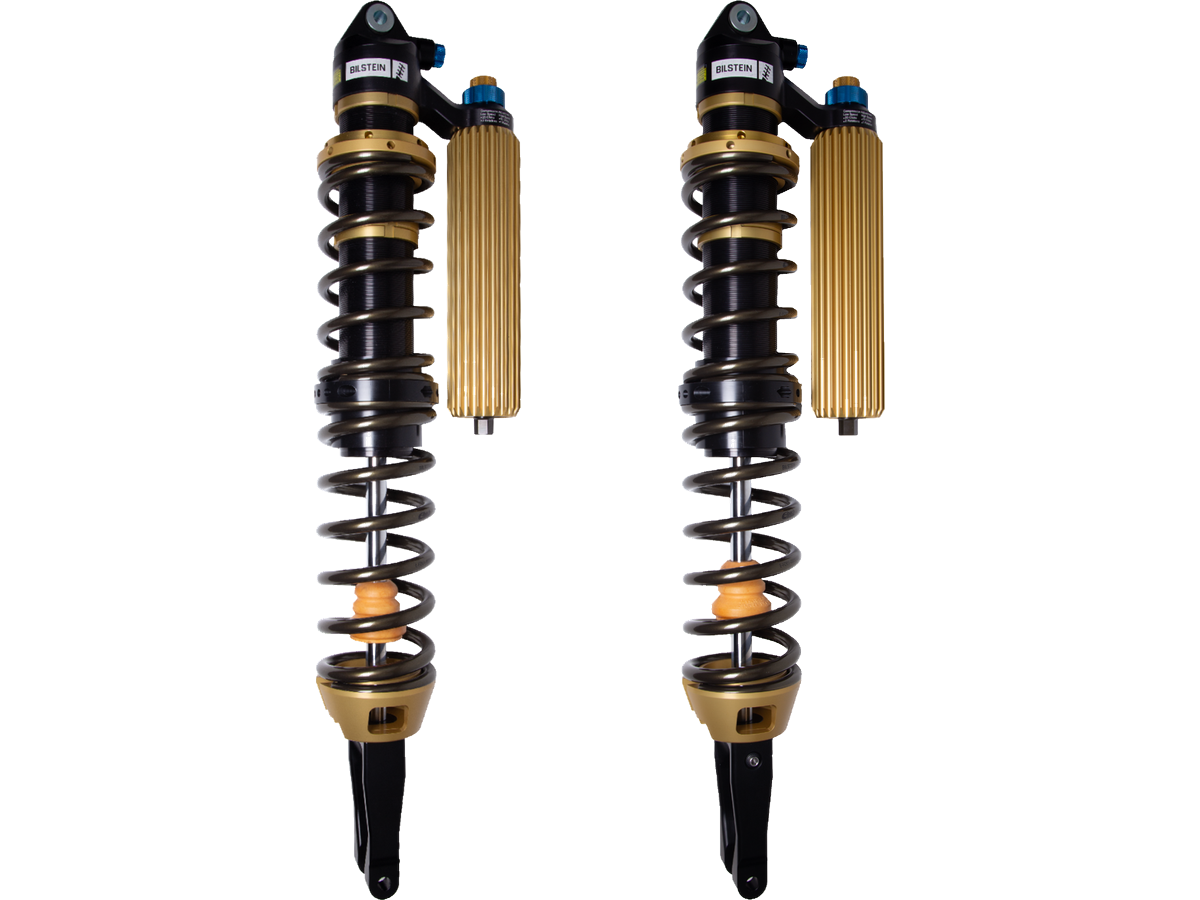

Bilstein Black Hawk Powersports Front Kit for 2022-2024 Polaris RZR Pro R 4 Ultimate

Description
Bilstein Black Hawk Powersports Front Kit for 2022-2024 Polaris RZR Pro R 4 Ultimate

Bilstein Black Hawk Powersports Front Kit for 2022, 2023, 2024 Polaris RZR Pro R 4 Ultimate

Part: 41-341704_41-341698

Bilstein Black Hawk Powersports coilovers are specifically engineered to vastly improve the performance of your UTV. These direct fit coilovers offer position sensitive damping and 4-way adjustability, all features that will take your UTV to the next level. Black Hawk Powersports feature Bilstein’s patented ZoneControl position sensitive technology that contains 5 independently tuned damping zones; 3 Compression and 2 Rebound. ZoneControl incorporates an internal Jounce Cut Off system (JCO) which is effectively a 2-Stage hydraulic bump stop. The JCO has a 10-position clicker that allows the rider to fine tune bottom out control. For Rebound, ZoneControl features a Rebound Cut Off (RCO) that acts to settle the vehicle at the final stage of suspension droop. The RCO will protect the damper, eliminating the need for a limit strap. Black Hawk Powersports offer 4 unique external adjustments; High/Low speed compression, rebound, and JCO. All easily accessible and ready for quick damping changes on the fly. Bilstein Black Hawk powersports are an all-aluminum design with gold finned reservoirs. All applications come with Dual Rate Coils and crossover nuts for easy ride height and spring preload adjustments. Black Hawk Powersports are completely serviceable and designed to withstand race conditions right out of the box. This extremely versatile coilover package will provide excellent comfort and unsurpassed bottom out control. Experience a unique “bottomless” ride with Bilstein’s new Black Hawk Powersports coilover packages.

Collapsed Length (in) : 24.02

Extended Length (in) : 34.76

Collapsed Length (mm) : 610.0

Extended Length (mm) : 883.0

Compression @0.52m/s : Adjustable

Rebound @0.52m/s : Adjustable

Finish : Type III Hard Anodized

Reservoir : Yes

Body Design : Threaded Body

Body Diameter (od) : 3.0 in.

Body Material : Aluminum alloy

Billet Reservoir Clamp Included : Yes

Spring Length (in) : 10.00/12.00

Upper/lower Spring Rate (lbs/in) : 250/350

Service Type : Racer Rebuildable

Adjustable Damping : 4-Way Adjustable – High and Low Speed Compression, Rebound, JCO-Jounce Cut-Off (Hydraulic Bump)

Piston Diameter (mm) : 70.0

Position Sensitive Damping : Yes

Seats : 4 Seats

Track Width : 72 in.
