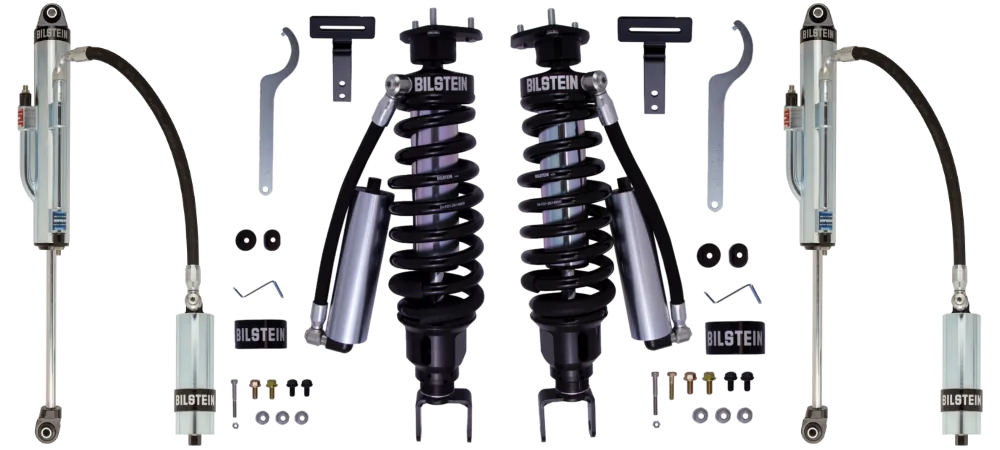

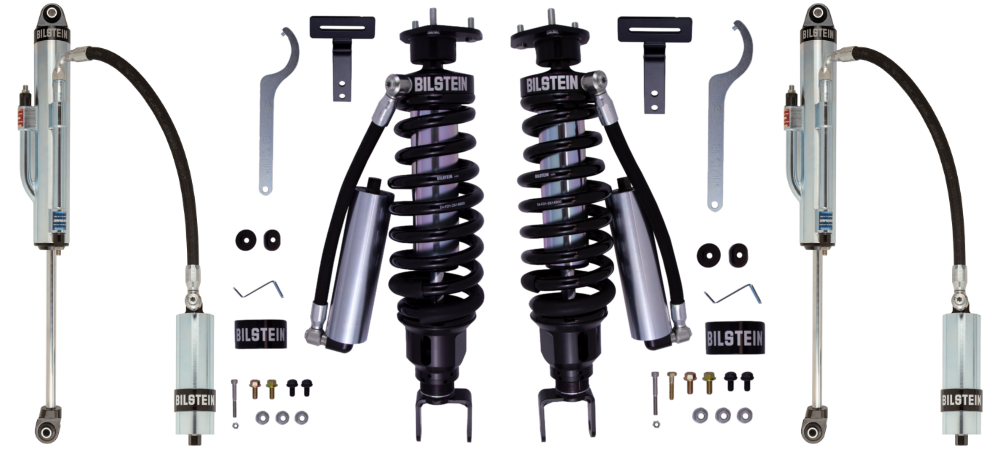

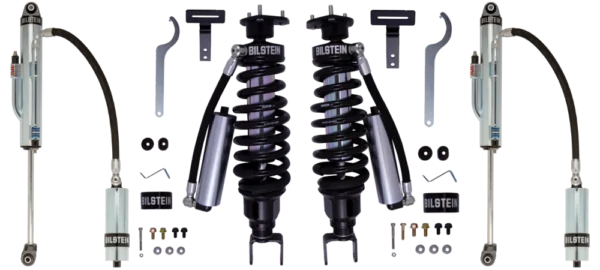

Bilstein B8 8112 ZoneControl CR 0.6-2.6″ Front Coilovers B8 8100 (Bypass) 0-2″ Rear Lift Shocks for 2019-2022 Ram 1500 4WD/2WD 5 ft 7 in Bed

Description
Bilstein B8 8112 ZoneControl CR 0.6-2.6″ Front Coilovers B8 8100 (Bypass) 0-2″ Rear Lift Shocks for 2019-2022 Ram 1500 4WD/2WD 5 ft 7 in Bed

Bilstein B8 8112 ZoneControl CR 0.6-2.6″ Front Coilovers B8 8100 (Bypass) 0-2″ Rear Lift Shocks for 2019, 2020, 2021, 2022 Ram 1500 4WD/2WD 5 ft 7 in Bed

Part: 41-325247 (old part number 41-242513)_41-325230 (old part number 41-242391)_25-281804_25-259018

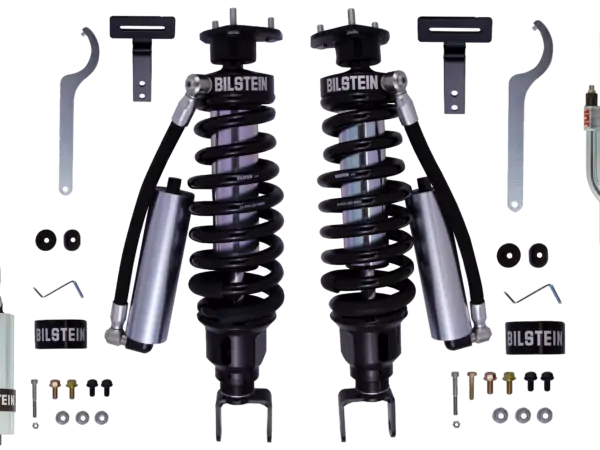

Front Coilovers:

Bilstein B8 8112 (ZoneControl) CR suspension kits are a direct fit, position sensitive coilover designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

• Collapsed Length (IN): 16.90
• Extended Length (IN): 22.39
• Collapsed Length (MM): 429.3
• Extended Length (MM): 562.8
• Finish: Dampers: Zinc Plated/Springs: Black
• Reservoir: Yes
• Body Design: Smooth Body (Coilover)
• Body Diameter: 60mm
• Adjustable Damping: Non-Adjustable

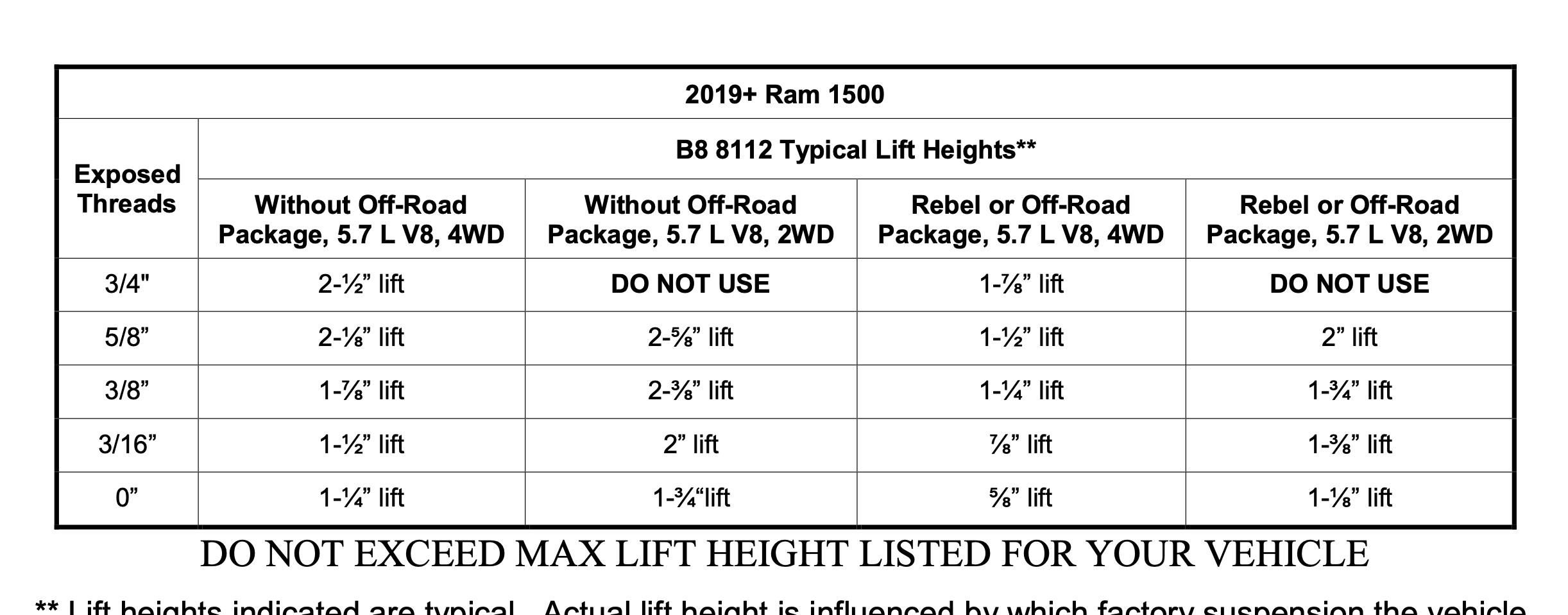

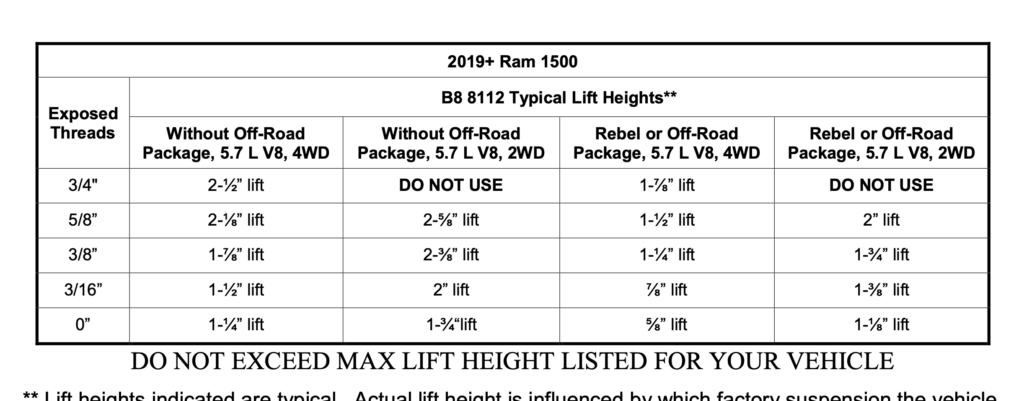

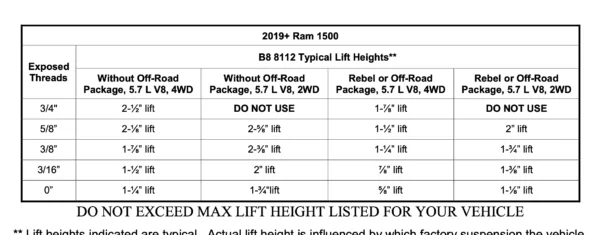

Front Notes:

• Ram 1500 2WD:
  Front Lift Height without factory Off-Road Package: 1.75-2.6″
  With factory Off-Road Package: 1.1-2″
• Ram 1500 4WD
  Front Lift Height without factory Off-Road Package: 1.25-2.5″
  With factory Off-Road Package: 0.6-1.9″
• Without Air Leveling Suspension
• Fits models with V8 engine
• Fits Vehicles with Front Coil
• Without Air Leveling Suspension

Rear Lift Shocks:

Bilstein B8 8100 (Bypass) is a direct fit, position sensitive, damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters, allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose, remote reservoir exit port, delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience, offering unparalleled ride comfort and incredible bottom out control.

• Collapsed Length (IN): 15.69
• Extended Length (IN): 25.82
• Collapsed Length (MM): 398.5
• Extended Length (MM): 655.9
• Finish: Zinc Plated
• Reservoir: Yes
• Body Design: Bypass Body (Non-Coilover)
• Body Diameter: 60mm
• Adjustable Damping: Double Adjustable – Compression and Rebound

Rear Notes:

• For Rear Lifted Height: 0-2″ without factory Off-Road Package
• For Rear Lifted Height: 0-1″ with factory Off-Road Package
• 5 ft 7 in Bed
• Without Air Suspension
• Fits Vehicles with Rear Coil
