Carli 2.5″ Levelling Lift Kit System for 2014-2024 Ram 2500 4WD Diesel

Does not work with rear auto-level air suspension.

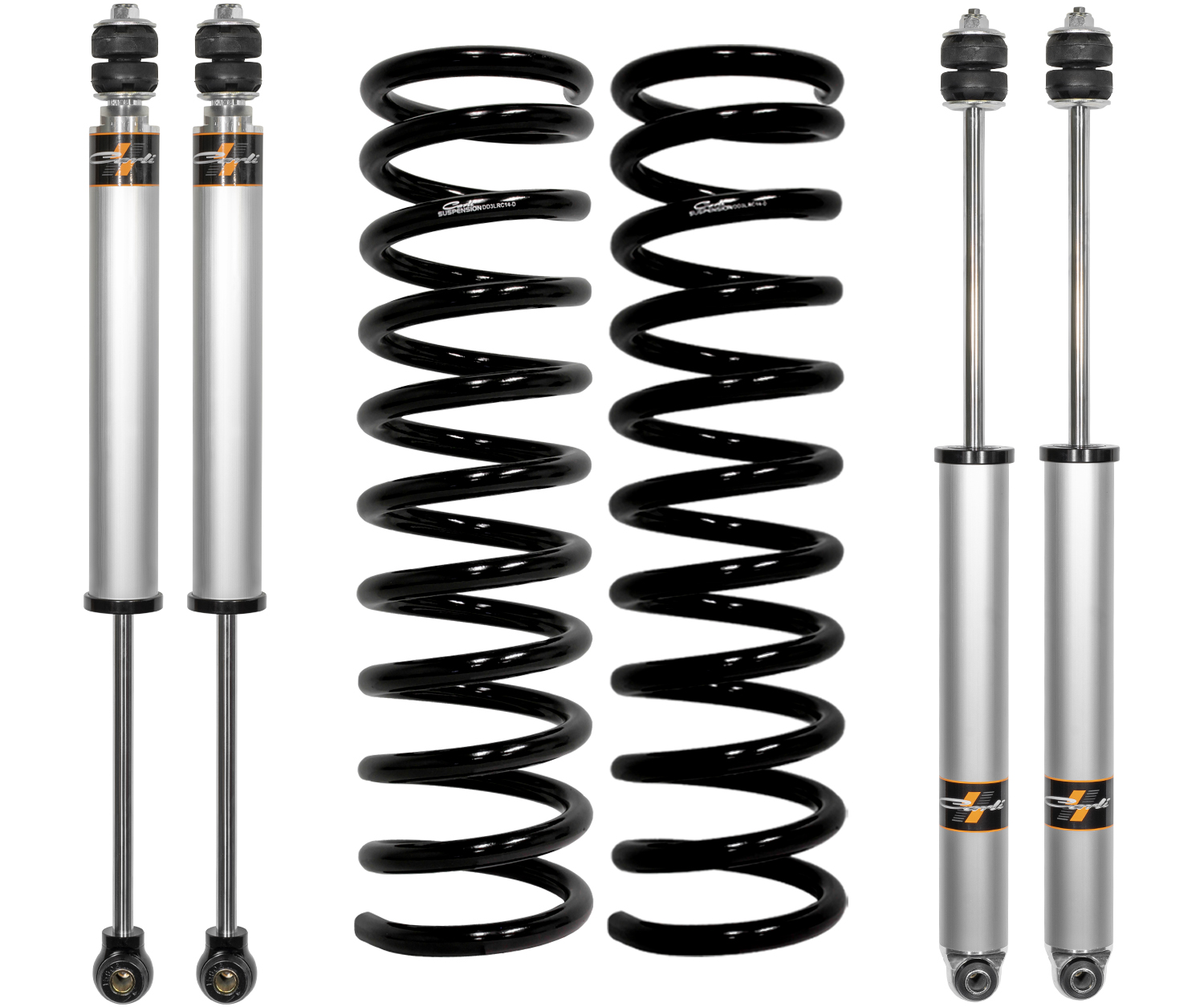

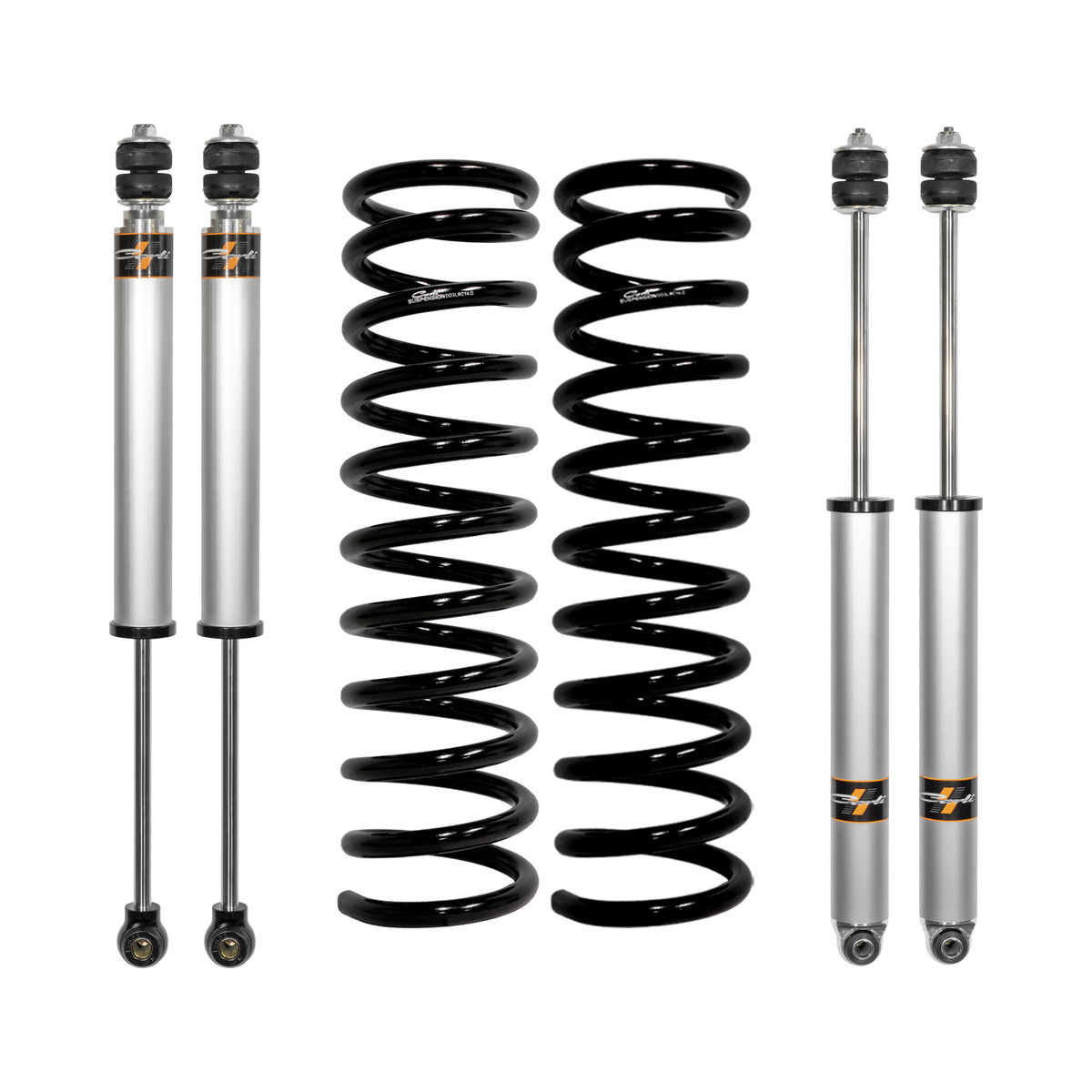

The “Base” leveling system includes the Carli Coils and front and rear Carli SPEC 2.0″ Shocks. Nothing additional to this “Base” kit is needed but we highly recommend customers purchase the adjustable track bar.

This system is designed for the customer that keeps their truck on the road with an eye for quality and appreciation for bang-for-their-buck. Utilizing Carli SPEC 2.0″ Diameter, Internal Reservoir shocks, we’ve developed a tune that delivers all-around comfort and ride quality designed for on-road, in town, highway, and towing/hauling. The 2.5” lift height doesn’t require the front or rear geometry correction of our 3” Systems.

At the heart of this system is a 2.5” lift, Linear Rate Coil Spring paired to matched travel mono-tube, internal reservoir, Carli SPEC 2.0. These shocks boast 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli. More details on these shocks can be found HERE.

The rear shocks are also included with this system and have been custom tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that aren’t looking for massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, this is the perfect kit.

The front axle will be slightly pulled to the Driver’s side following installation of the lift; this can be corrected with the addition of our Adjustable Track Bar. Further, ride quality can be substantially increased with the addition of our Torsion Sway Bar. We recommend a 35” tire on a wheel that’s no more than 9” wide with 5.5”-6” Backspace. An 18” diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size. For more details, see our article on wheel and tire selection and tire pressures:

Tires and Wheels: How Do They Affect My Ride?

This system will NOT be upgradeable to any of the 3″ Carli Suspension Systems. It’s designed to be a solution for customers wanting a quality system with minimal lift and part inclusion. Customers can purchase the Pintop leveling shock package for a huge boost in on-road control and off-road performance as well as ancillary components compatible with this lift height but there isn’t compatibility between the 2.5″ leveling and 3″ lift systems.

We recommend slight eccentric bolt compensation to correct caster after the lift as there are no Radius Arm Drops. For this reason, customers may experience a slight bow in the coil spring. We did not experience a coil bow in any of our test trucks but it’s possible at the 2.5” lift height without a Radius Arm Drop Bracket.
