Fox 2.0 Perf Series 6″ Front Lift Reservoir and 6″ Rear Lift Perf Shocks for 2014-2024 Ram 2500 4WD
Sale!Description

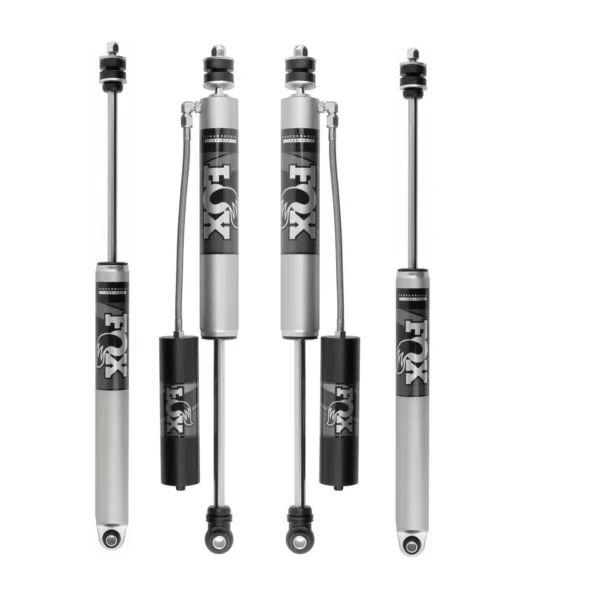

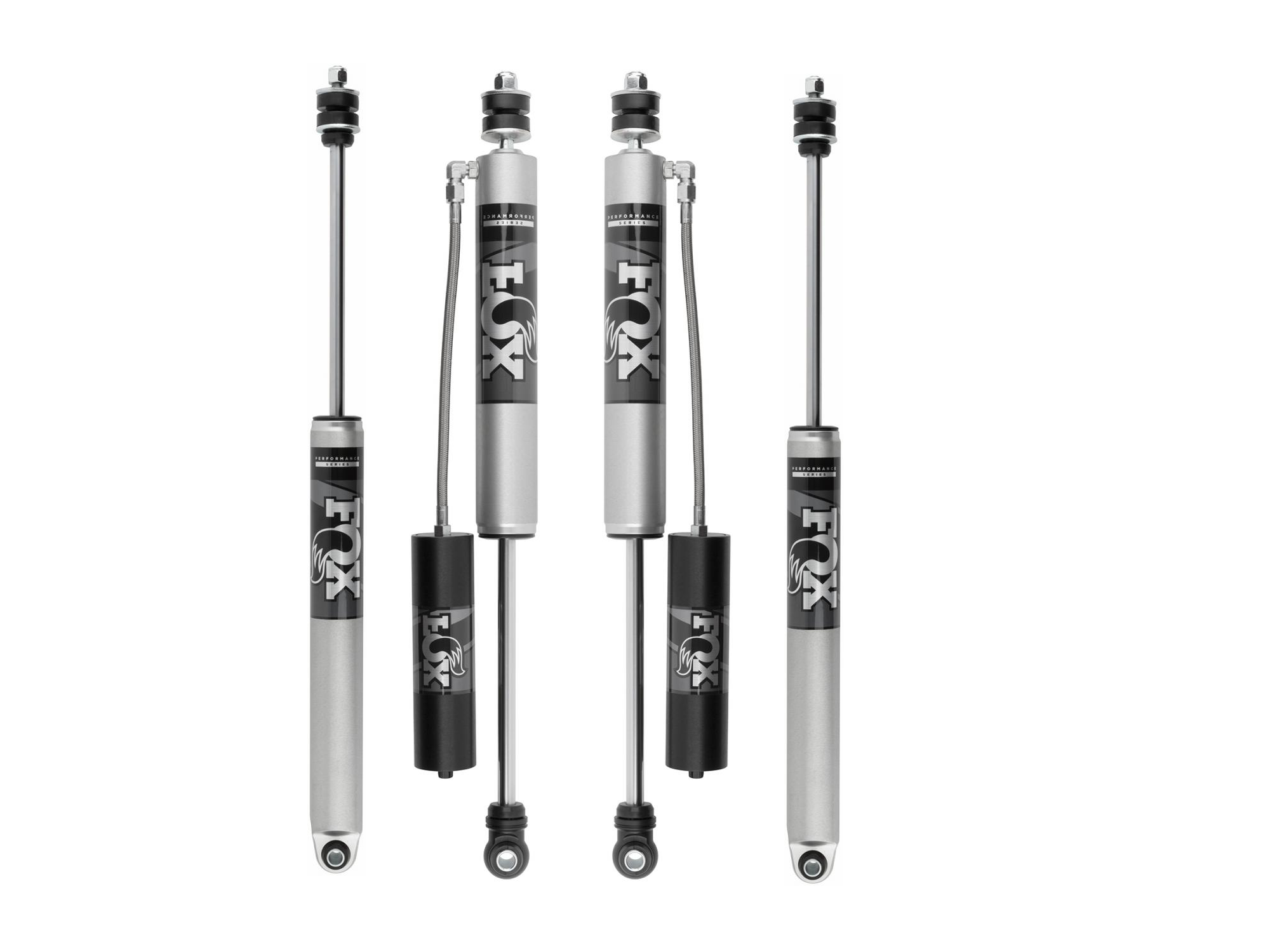

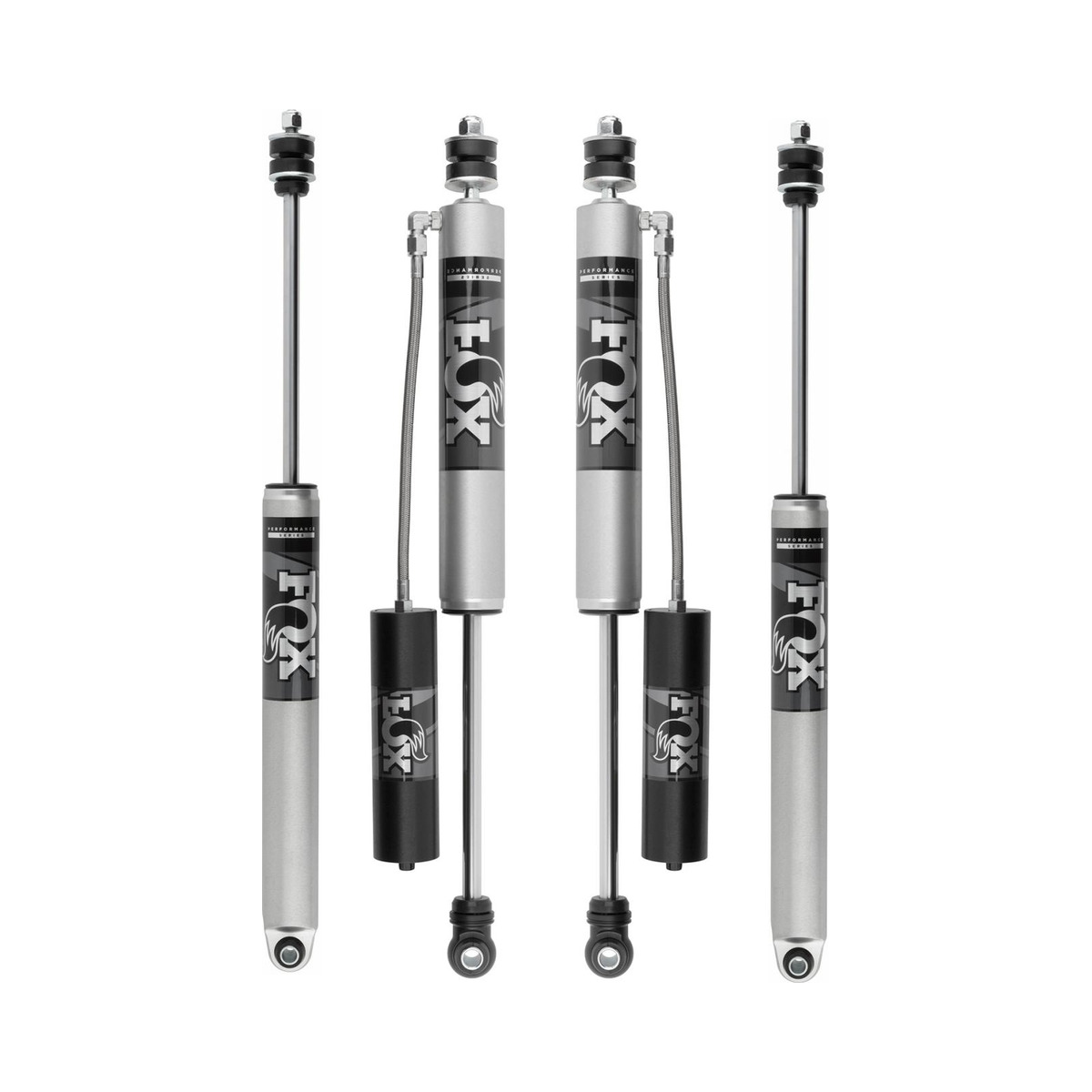

Fox 2.0 Perf Series 6″ Front Lift Reservoir and 6″ Rear Lift Perf Shocks for 2014-2024 Ram 2500 4WD
Fox 2.0 Perf Series 6″ Front Lift Reservoir and 6″ Rear Lift Perf Shocks for 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Ram 2500 4wd
Part: 885-24-234_2x985-24-201
Includes 2 Shocks
The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX’s industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.
Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Features and Specifications:
Body | 2.0″ Impact extruded 6061-T6 aluminum will resist rust over time |
---|---|
Body Plating | Clear-anodized for a durable finish |
Reservoir | 2.0″ Smooth bore 6061-T6 Aluminum is hard anodized |
Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
Piston | Race-developed high-flow piston design |
Valving | Application specific valving to maximize performance |
Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
Bushings | Quiet nitrile rubber allows for increased suspension articulation |
Extended | 26.370 |
Compressed | 16.750 |
Travel | 9.620 |
Top Mount | Stem Top |
Bottom Mount | Eyelet |
REAR SHOCK SPECIFICATION:
The Performance Series 2.0 IFP smooth body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.
Body | 2.0” Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece body resists rust over time |
---|---|
Body Plating | Clear-anodized for a durable finish |
Reservoir | Internal IFP mono-tube reservoir design |
Components | Black-anodized, CNC-machined 6061-T6 billet aluminum |
Shaft | 5/8″ hard chrome plated heat-treated alloy steel |
Piston | Race-developed high-flow piston design |
Valving | Application specific valving to maximize performance |
Seals | Redundant sealing pack system main seal, wiper seal, scraper seal |
Bushings | Quiet nitrile rubber allows for increased suspension articulation |
Extended | 28.640 |
Compressed | 17.650 |
Travel | 10.990 |
Top Mount | Stem Top |
Bottom Mount | Eyelet |
Be the first to review “Fox 2.0 Perf Series 6″ Front Lift Reservoir and 6″ Rear Lift Perf Shocks for 2014-2024 Ram 2500 4WD”
Questions and answers of the customers
-
Do these shocks include reservoir mount brackets for the front shocks? Thanks
- A yes, comes with reservoir mountings hardware
