Camburg Chevy/GMC 1500 99-18 | Ford Ranger 83-12 | F-150 2wd 82-03 MIG Extended Length Shackles

Description
Camburg Chevy/GMC 1500 99-18 | Ford Ranger 83-12 | F-150 2wd 82-03 MIG Extended Length Shackles

Camburg Chevy/GMC 1500 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 | Ford Ranger 83-12 | F-150 2wd 82-03 MIG Extended Length Shackles

Part: CAM-120003

Description

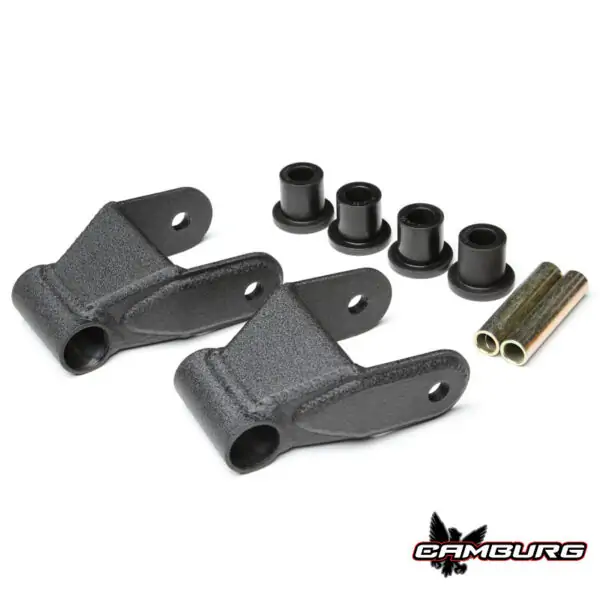

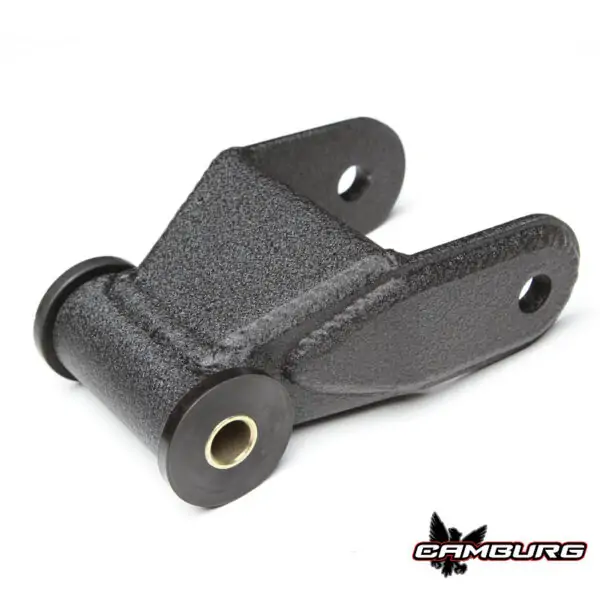

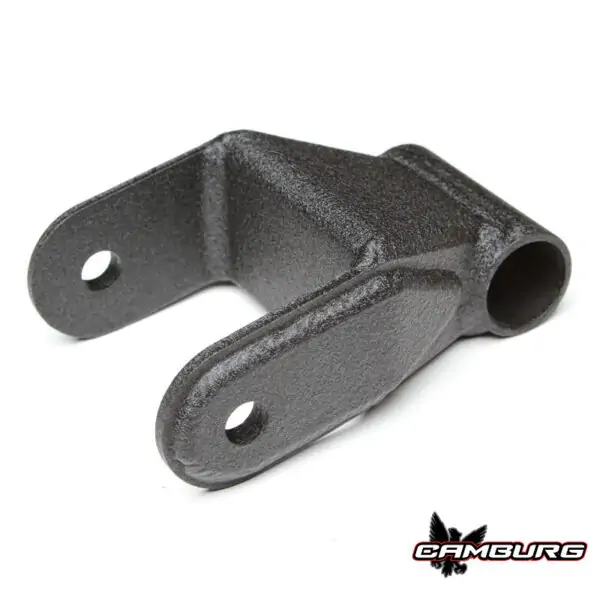

Our extended shackle is designed around using Deaver leaf springs but can also be used with stock springs. We’ve updated the design to a fully boxed/sealed version so they don’t have the dimple dies.

These are longer length  than the stock shackles and allow for maximum wheel travel. Using polyurethane bushings keeps them from deflecting under articulation like the stock ones and also allows them to pivot smoother and unrestricted.

The stock shackles are too short and limit droop. These are 1″ longer on the Chevy Silverado and 1.5″ longer on the Ranger and F-150. Since the shackles are longer, they will lower the ride height slightly compared to the stock shackles.

On Ford Rangers you will need to cut a hole in the bed for the shackle to clear or use an aftermarket drop hanger which will raise the ride height back up.

These are laser cut from HRP&O steel, CNC formed, MIG welded and powdercoated textured black.

These shackles are 6″ eye to eye in length.

Tech Specs:

• Shackles

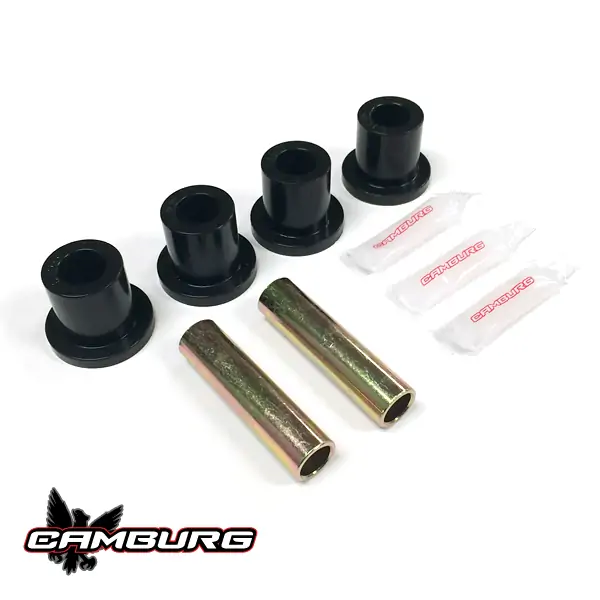

• Polyurethane Bushings & Sleeves
• Grease

Notes:

Application:
