Camburg Ford F-250/350 4wd 05-22 Uniball Radius Arm Kit

Description
Camburg Ford F-250/350 4wd 05-22 Uniball Radius Arm Kit

Camburg Ford F-250/350 4wd 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 Uniball Radius Arm Kit

Part: CAM-110204

Description

Looking to take your leveling kit to the next level? Our uniball radius arms improve geometry for better handling both on and off-road, have increased ground clearance and are considerably stronger than the stock versions.

We’ve been building radius arms for 20+ years for Ford vans, trucks and i-beam race trucks. For our new 2005-2022 Ford F-250/350’s radius arms, we went with a thick 3/16” boxed construction design for added ground clearance and thinner cross section for more tire clearance when turning without sacrificing strength. We correct and increase positive caster geometry for better handling and stability; eliminating the dreaded “death wobble” some can experience from time to time. We use FK “Made in the USA” heat-treated, PTFE (teflon) lined 1” uniballs for the frame pivots with our CNC machined stainless mis-alignment spacers and the factory hardware. This allows for smooth and bind free movement and zero flex under braking with little to no maintenance. These bolt right into the factory mounts so you’re not deceasing ground clearance or adding leverage to the frame rails with a drop bracket. If and when the uniballs need to be replaced, they’re easily serviceable and readily available. For the 2008-2022 models, we also supply bracketry and hardware to correct the sway-bar geometry.

The radius arms are CAD designed, laser cut, CNC formed, MIG welded, sandblasted, powder coated in our trademark Camburg gray and are ready to install with all the necessary hardware included.

• Not compatible on 2023 models equipped with Ford’s OnBoard Scales & Smart Hitch package (Limited, Platinum, King Ranch & Lariat)

Tech Specs:

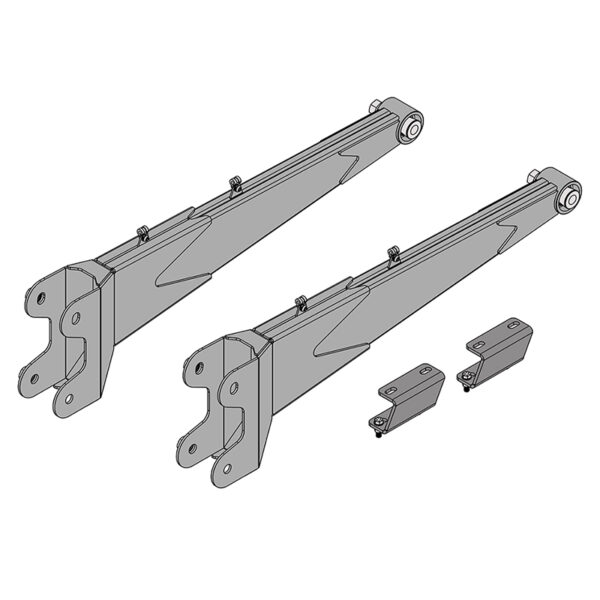

• Boxed radius arms (pair)
• Uniball stainless frame pivot spacers
• Sway-bar drop down brackets and hardware (for 2008-2022 models)

Notes:

• For 2-3.5″ of lift only
• 5.25″ max wheel backspacing with 37″ tires (4.75″ backspacing recommended)
• Not compatible on 2023 models equipped with Ford’s OnBoard Scales & Smart Hitch package (Limited, Platinum, King Ranch & Lariat)

Lift amounts, tire and wheel sizing, suspension specifications, etc. are generalized as they can vary slightly from vehicle to vehicle with so many production variables between manufactures, products and vehicle options/packages from the factory. We’re supplying you the best information at our disposable along with the information supplied to us from the brands we sell. With so many variables of wheel size, offset/backspacing, tire size, brands and styles, the amount of lift and specific suspension components installed, etc., you may need to trim plastic/sheet metal and/or modify the body mount behind the front tires to eliminate tire rubbing.
