Camburg Ford Ranger 2wd/4wd 19-23 FOX 2.0 Trail Series Kit

Description
Camburg Ford Ranger 2wd/4wd 19-23 FOX 2.0 Trail Series Kit

Camburg Ford Ranger 2wd/4wd 2019, 2020, 2021, 2022, 2023 FOX 2.0 Trail Series Kit

Part: CAM-110188-UC

Description

Update: Ford introduced a cast steel knuckle/spindle (painted black) in mid 2020 which has a different upper ball-joint taper than the aluminum versions (raw silver). We now include both sets of lower uniball spacers with our arms so everyone has what they need in one part number.

Our Camburg FOX 2.0 Trail Series kit is a great all around suspension system for your Ford Ranger utilizing FOX’s 2.0 series of shocks.

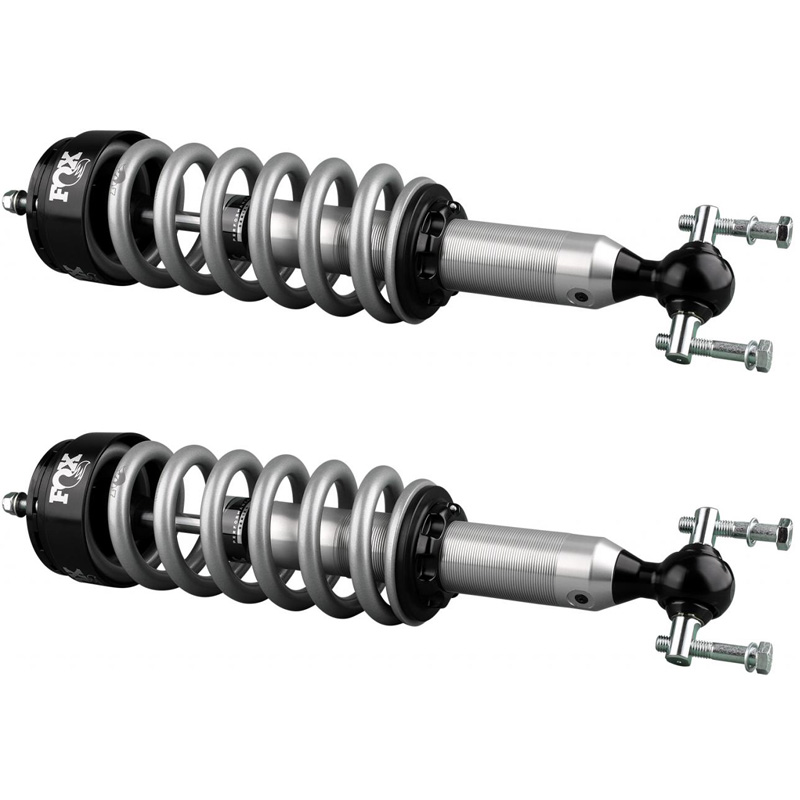

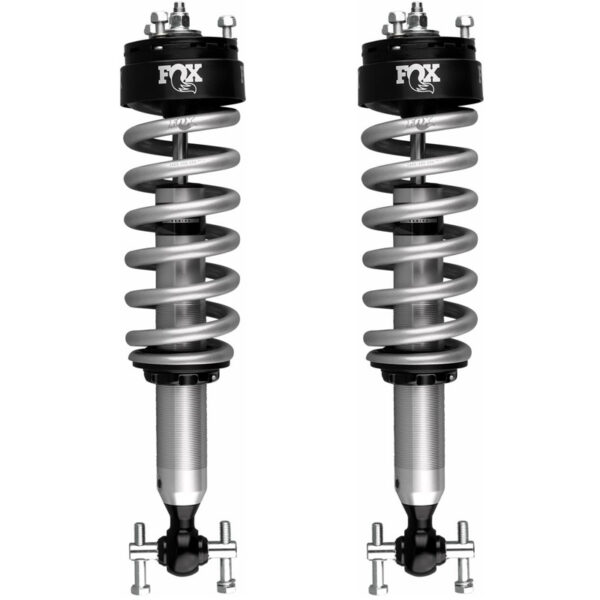

FOX 2.0 Performance Series IFP Coilovers are valved specifically for your application, we are able to gain 0-3 inches of lift and increase wheel travel as well. These Factory Series shocks feature a smooth-bore, clear coated, zinc plated, honed seamless alloy body, black anodized 6061-T6 billet aluminum components, a 5/8″ hard chrome plated heat treated alloy steel shaft and an internal reservoir design to separate shock oil from the high-pressure nitrogen. FOX direct replacement shocks deliver race-winning performance in a simple direct replacement bolt on shock. Each application has been rigorously tested by FOX engineers to maximize suspension travel and performance on and off the road.

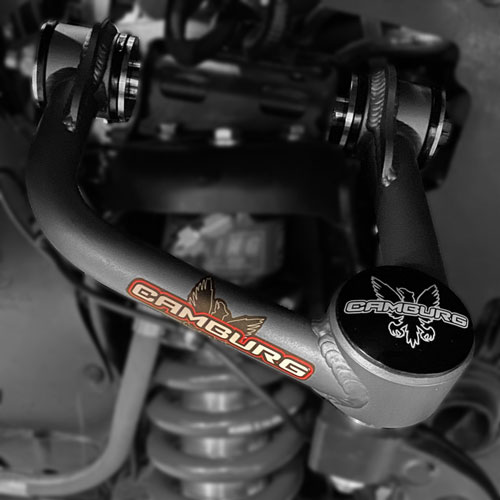

After lifting your truck, the stock upper arms become the limiting factor and hold back your suspensions performance. Our uniball upper arms address these issues and more.  Replacing the stock ball-joint with a uni-ball bearing, we can increase wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We also engineered the arms with more caster and changed the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling.

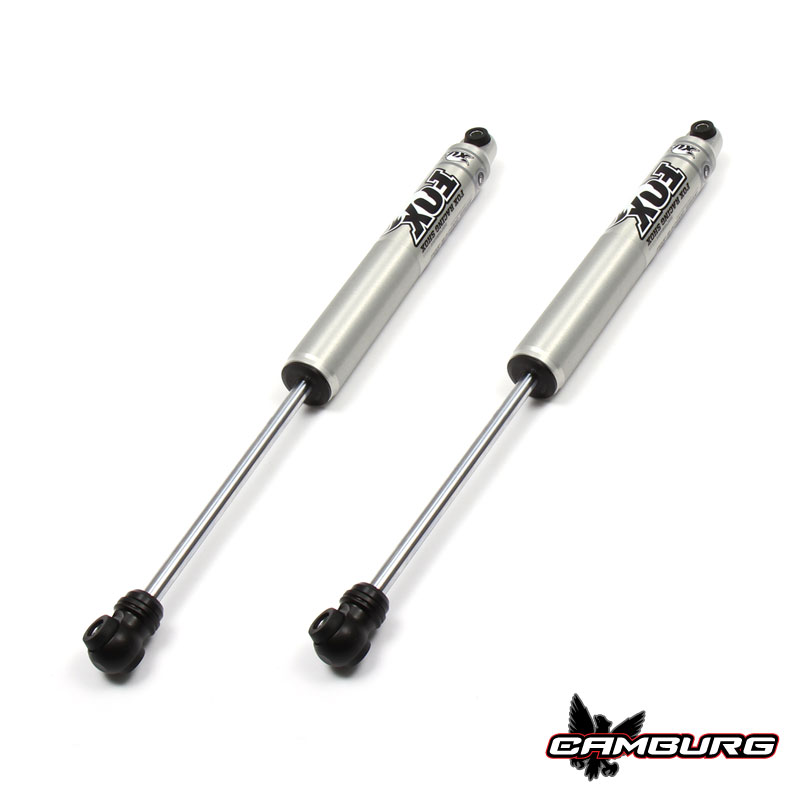

In the rear we go with a pair of FOX’s 2.0 Performance Series shocks. These shocks have a larger aluminum shock body which holds more oil for better shock performance offroad and have a firmer ride.

• Tremor models will see 1-1.5″ of lift as they are already lifted from the factory

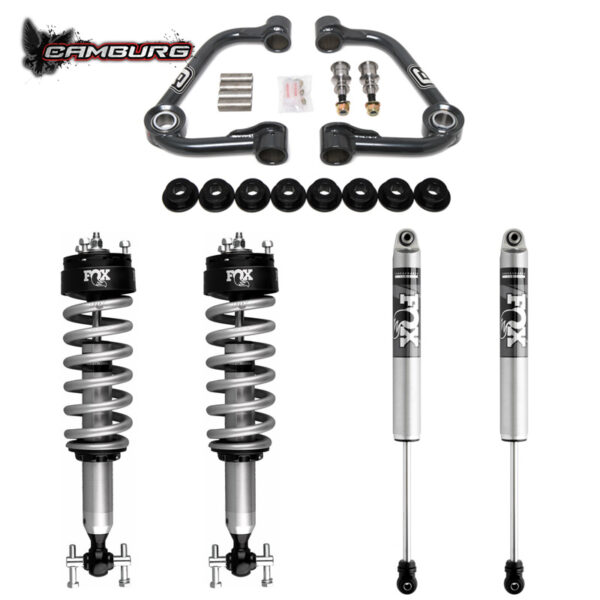

Tech Specs:

• FOX Performance Series 2.0 Coilovers (# 985-02-133)
• Camburg 1.25 Uniball Upper Arms (# CAM-110180)
• FOX Performance Series 2.0 IFP Rear Shocks (# 985-24-207)

Notes:

Update: Ford introduced a cast steel knuckle/spindle (painted black) in mid 2020 which has a different upper ball-joint taper than the aluminum versions (raw silver). We now include both sets of lower uniball spacers with our arms so everyone has what they need in one part number.

• Tremor models will see 1-1.5″ of lift as they are already lifted from the factory
• For US model trucks only

Application:
