Camburg Ford Ranger Edge 2wd 01-12 Entry Level 6.0 Kit

Description
Camburg Ford Ranger Edge 2wd 01-12 Entry Level 6.0 Kit

Camburg Ford Ranger Edge 2wd 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012 Entry Level 6.0 Kit

Part: CAM-110008

Description

Our 6.0 kit for the 2wd Ford Rangers set the bar years ago as the best performance kit available.

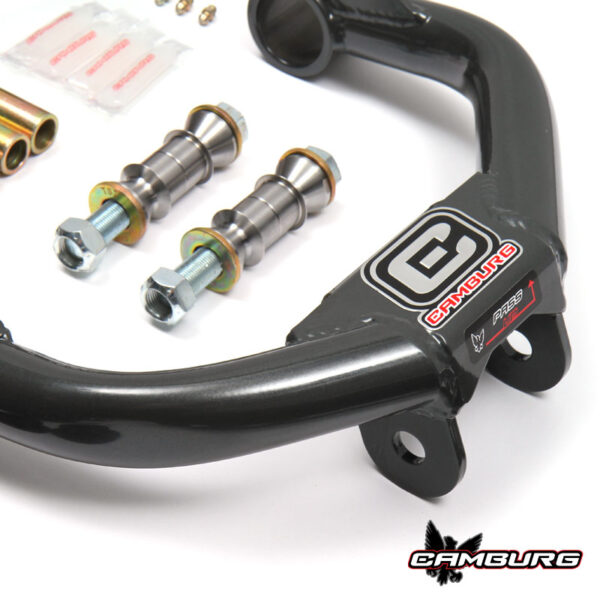

The kit uses our 3″ lift fabricated race spindles with a massive 1″ vertical uniball that replaces the weak upper ball-joint that is prone to fail. This allows for 10″ of useable wheel travel. The upper arms are made from 1.50″ x .120 wall 4130 chromoly tubing and double shears the uniball. We use Bilstein 5100 series shocks for added control and are valved for this kit. By adjusting the torsion bars you can setup the front end with 4-5″ of lift. Track width is  increased 1.5″ per side giving you a wider stance for better stability and added wheel travel. This is why Fiberglass front fenders are highly recommended. We now include our weld-on upper frame gusset reinforcement kit.

You will need to lift the rear of the truck around 2.5″+/-  to go along with this kit. We recommend Deaver’s F-31 leaf springs with longer Bilstein 5100 shocks.

This kit fits 2wd Rangers with torsion bars only. For coil spring trucks use our Ranger XLT 5.5 kits.

** This also fits 2wd 1995-2005 Explorers and 2001-2006 SportTrac’s with 11.25″ brake rotors. Call for more info.

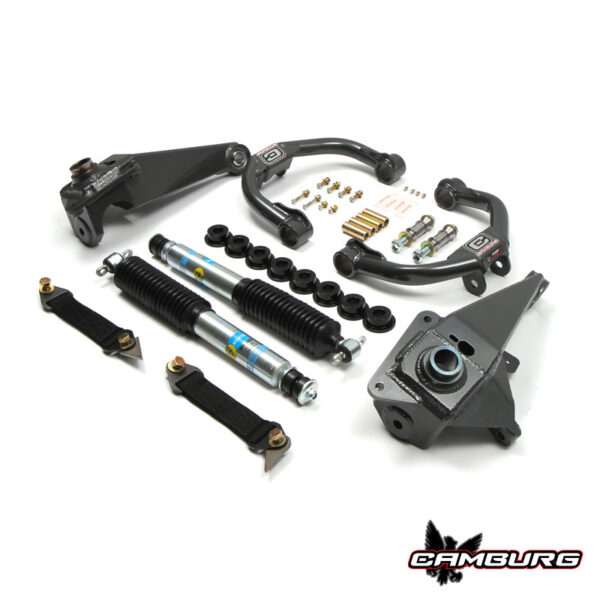

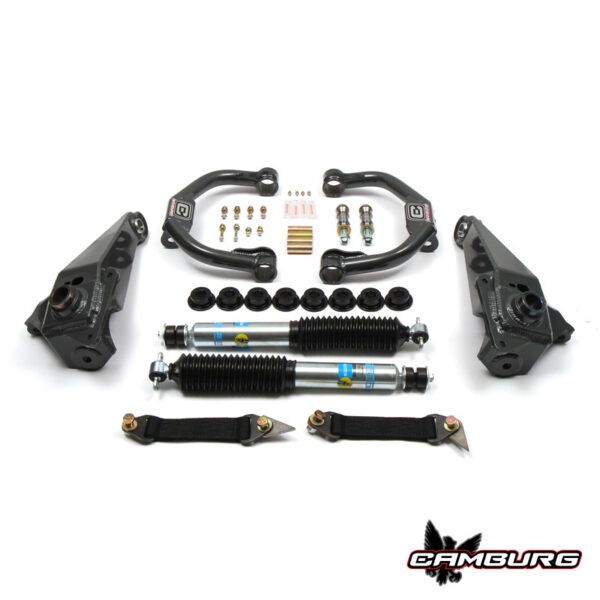

Tech Specs:

• Fabricated Race Spindles
• Chromoly upper a-arms
• 10″ Limit Straps
• Stainless/Kevlar braided extended front brake lines (130007)
• Frame gusset reinforcement kit
• Bilstein 5100 Shocks (24-185523 w/ special t-bar)

Notes:

• Must re-use the factory OEM spindle snouts/pins. Aftermarket versions will not work
• Fiberglass front fenders required to run 33″ tires
• You will need to lift the rear around 2.5″+/-

We build these in limited production runs throughout the year so availability could be delayed.
