Camburg Toyota 4-Runner 03-14 | FJ 07-14 Performance Spindle Kit

Description
Camburg Toyota 4-Runner 03-14 | FJ 07-14 Performance Spindle Kit

Camburg Toyota 4-Runner 03-14 | FJ 07-14 Performance Spindle Kit for 2003, 2004, 2005, 2006, 2007, 2008, 2009 Lexus GX470

Part: CAM-310114

Description

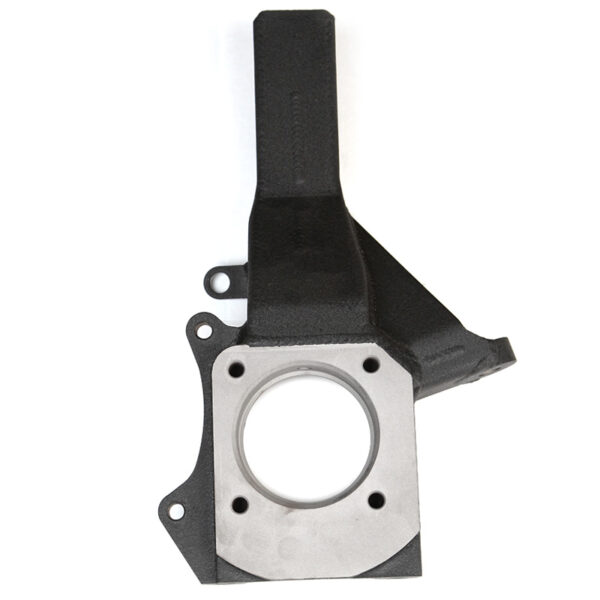

With our stock length replacement lower arms available, it was time to release our fully fabricated spindles for the customers wanting the ultimate combination of parts. These are the strongest stock replacement spindles out there on the market. These work with our long-travel kit, our stock length lower arms and even the stock lower arms.

We designed these around the factory OEM spindle geometry and took them to the next level in strength and craftsmanship. With over 15+ years of running history of the stock design and us building custom versions for the military, we took what we’ve learned and know and applied them to our new Camburg performance spindles. We improved upon the design Toyota started with a much stronger detailed version. We relocate the ABS speed sensor that is prone to being damaged off-road internally.

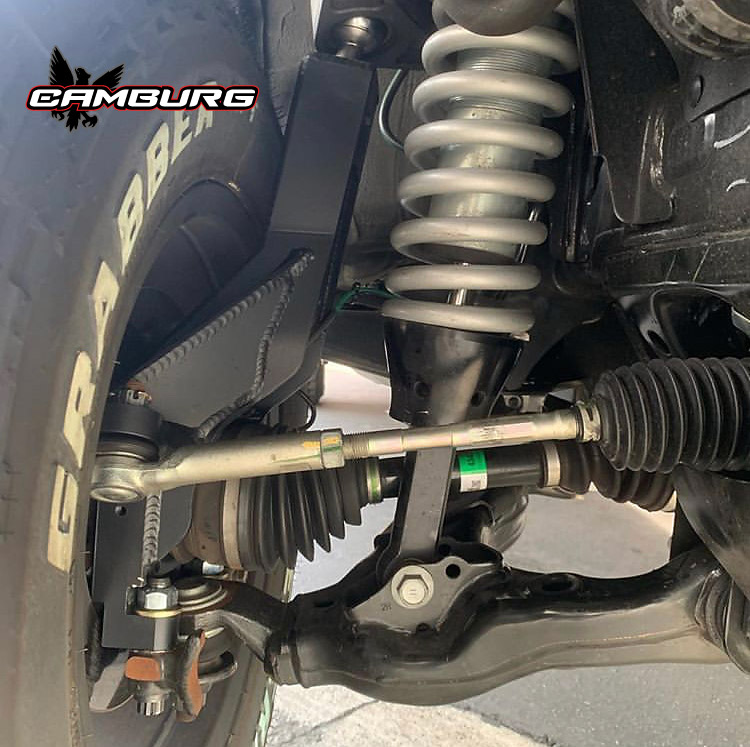

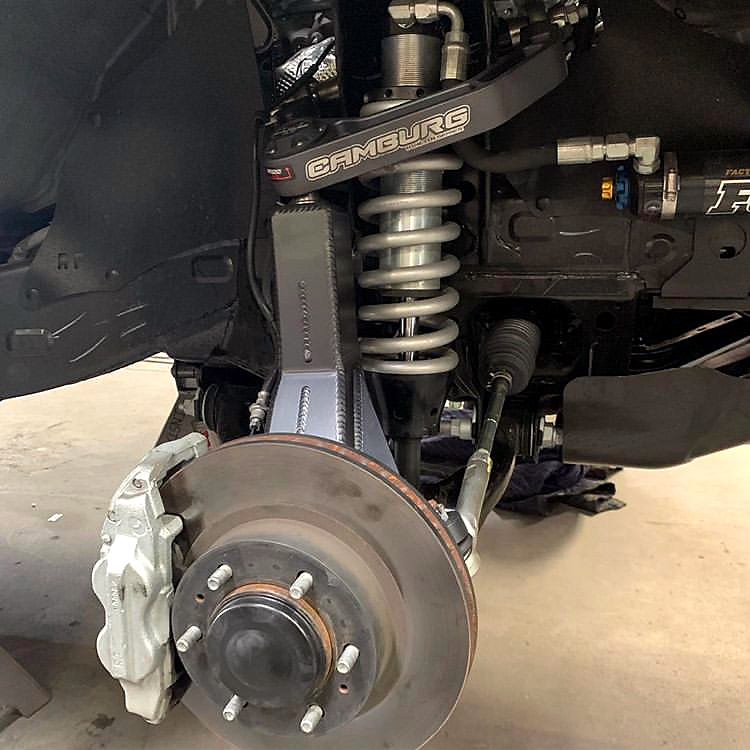

These work on 4wd and 2wd models with no modifications regardless if you’re running stock lower arms or a long travel kit. These do not lift the truck or widen it since it’s built around the factory specs. We do remove the provision for the front sway-bar so it will need to be removed (non-KDSS). Strength, performance and articulation is our main focus on a product like this while having 2.5 coilovers that have added low speed compression to control body roll. We weren’t willing to compromise the integrity of the spindle for the serious off-roaders. If you have FOX 2.5 DSC coilovers you can adjust the low speed compression to control body roll during cornering.

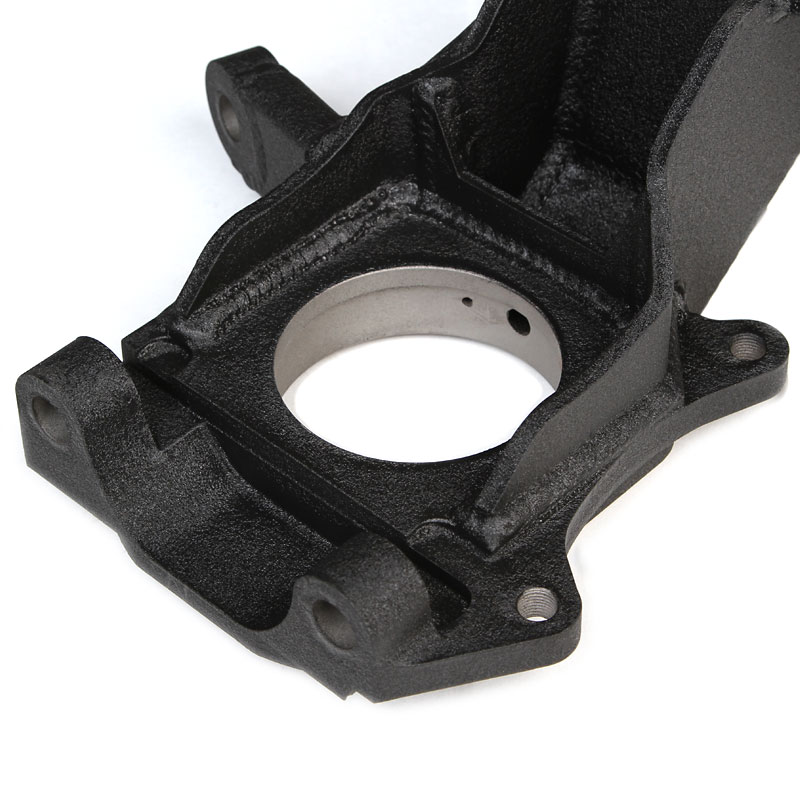

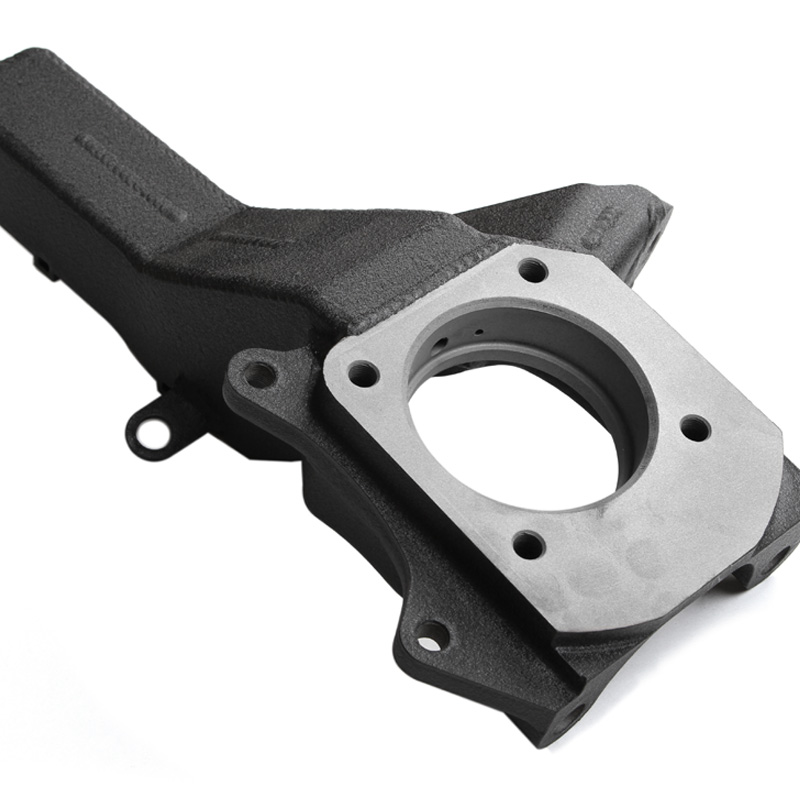

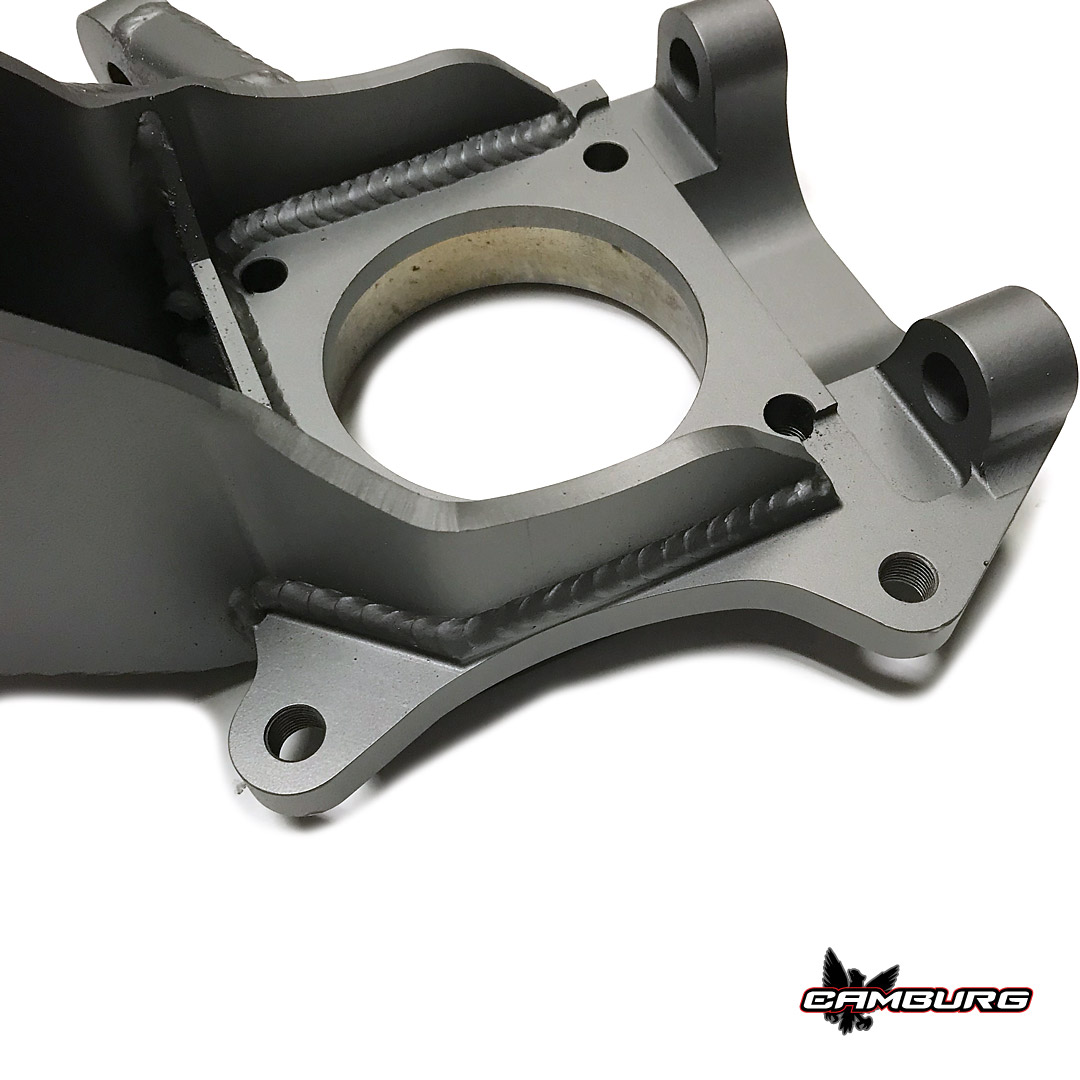

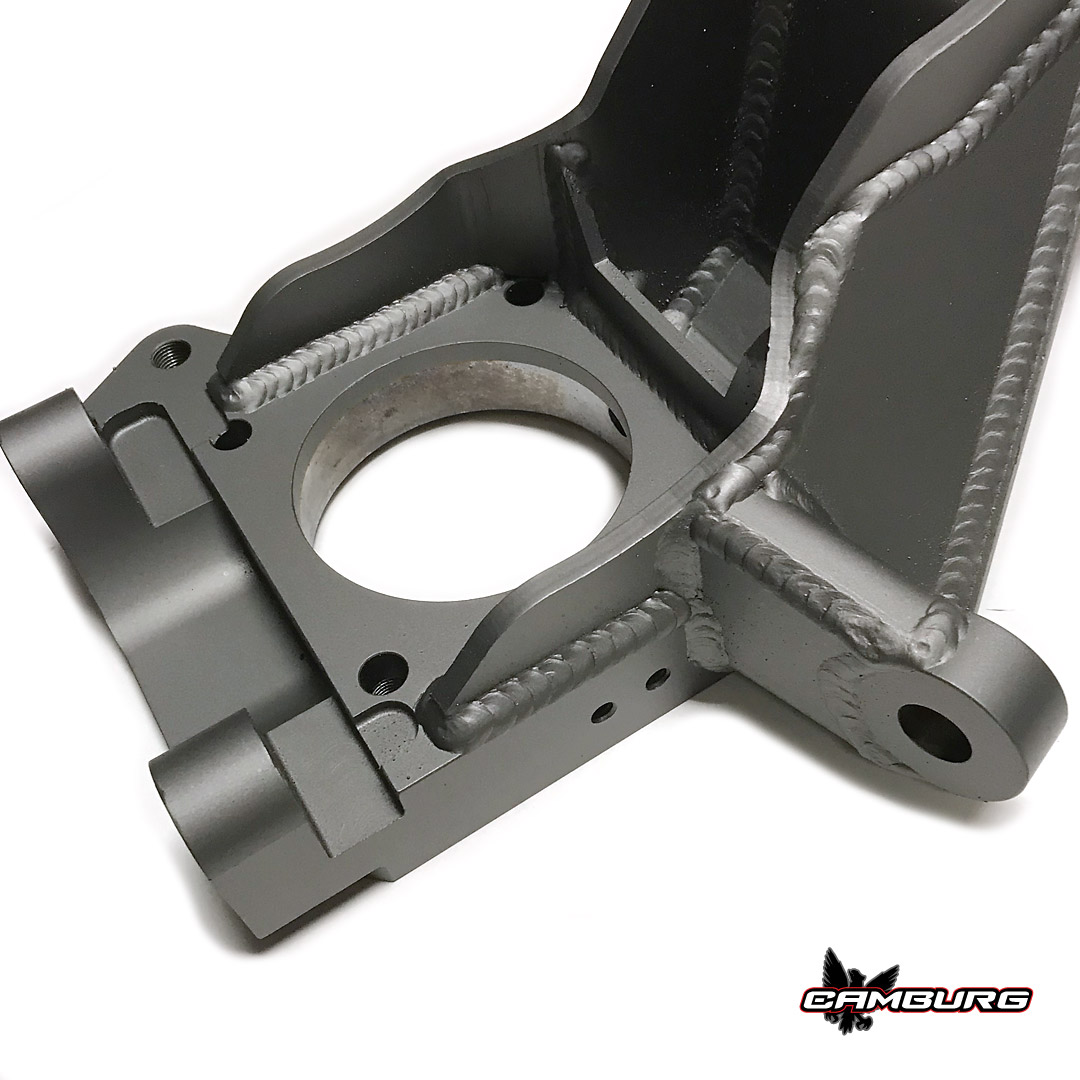

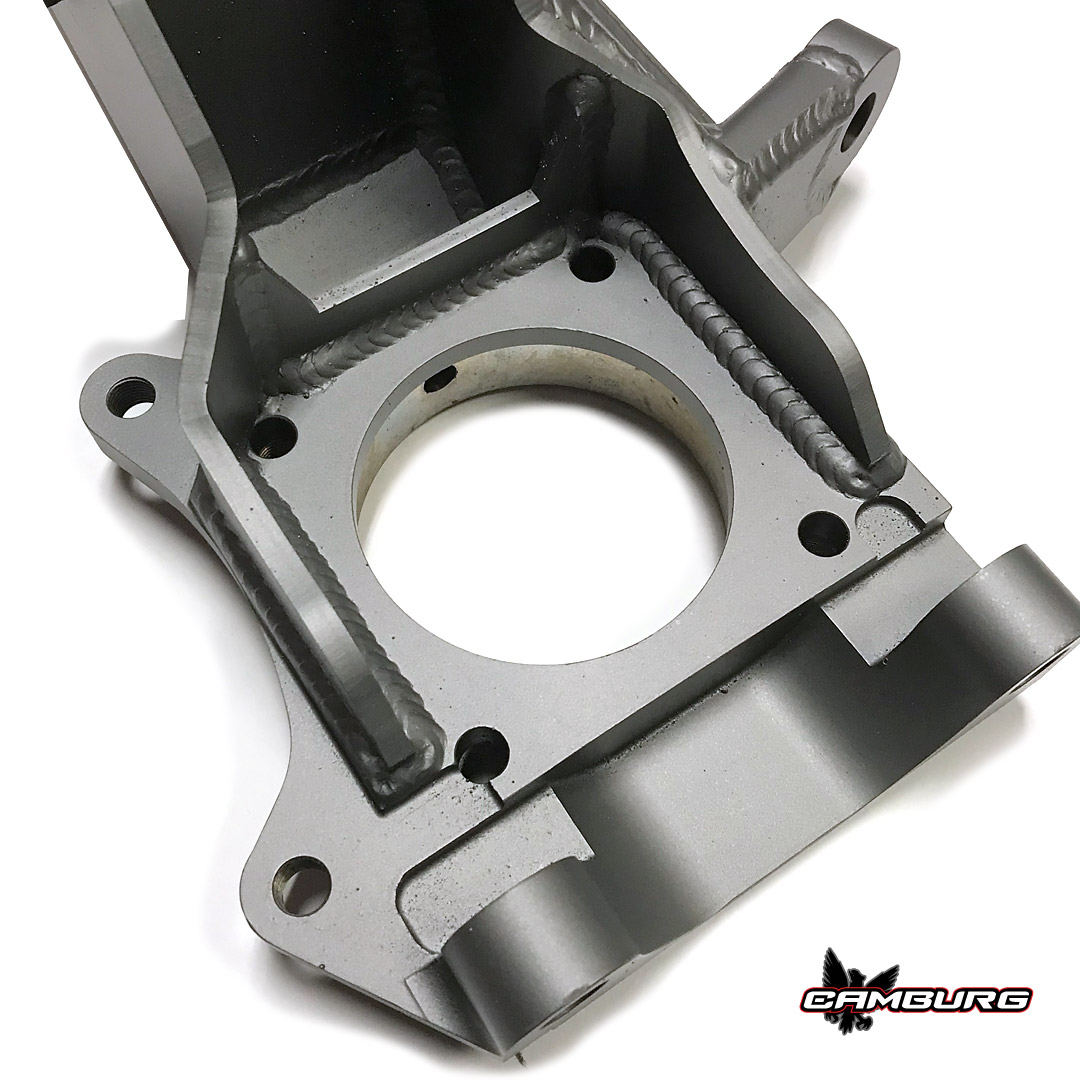

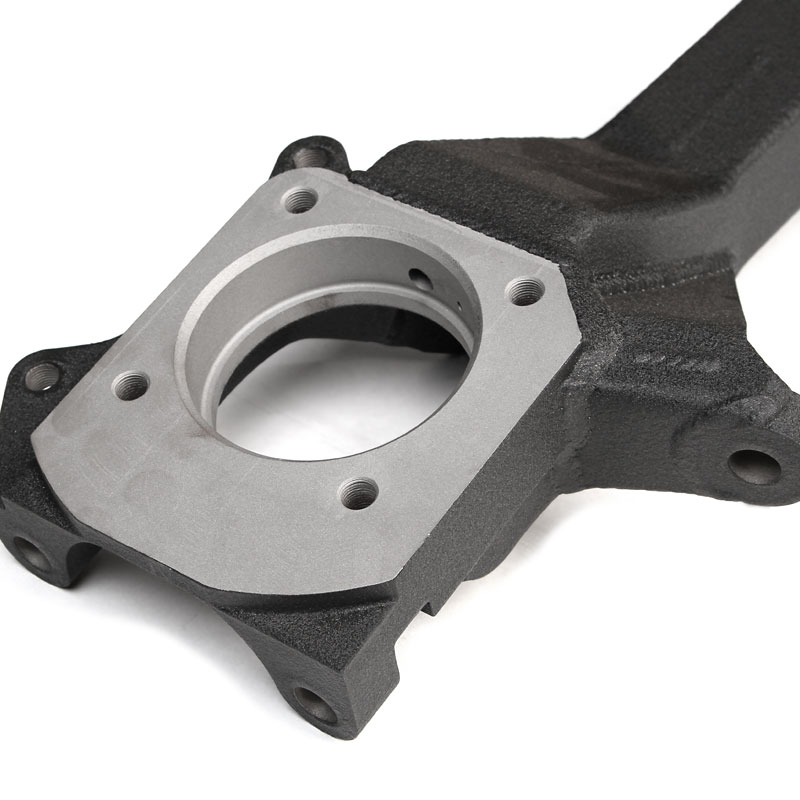

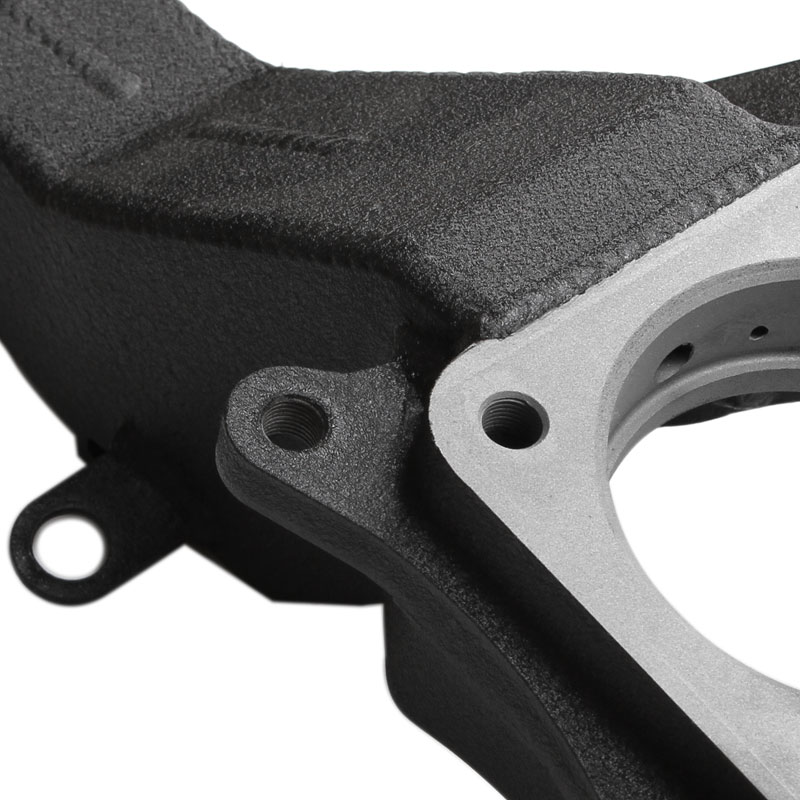

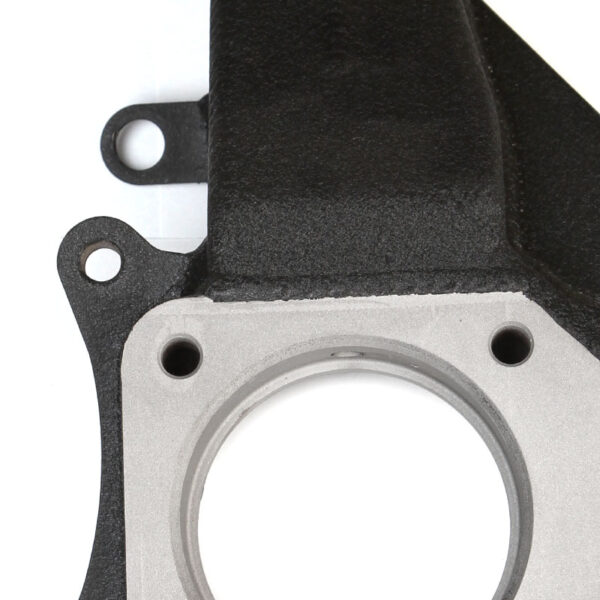

Using the latest Faro scanning technology and Solidworks CAD/CAM modeling, we build these in house for the utmost control. We start with steel billets that get heavily CNC machined for weight reduction and precision, MIG weld the laser cut plates, then have them sand blasted and powder coated textured black. Once in your hands they are ready to be installed and we include stronger stainless braided kevlar reinforced front brake lines.

When increasing tire size from stock, we recommend a zero offset wheel (4.50-4.75″ backspacing) for added clearance. Stock wheels and tires fit correctly “as is”.

• Works with uniball and ball-joint style upper control arms
• Also fits 2003-2009 Lexus GX-470’s & 2010-2014 GX-460’s

Tech Specs:

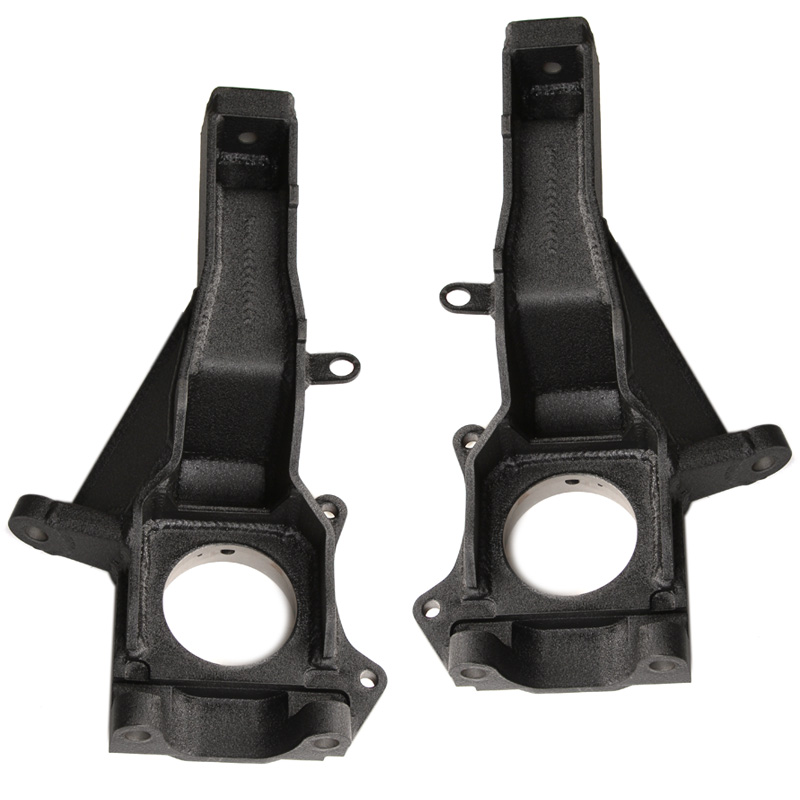

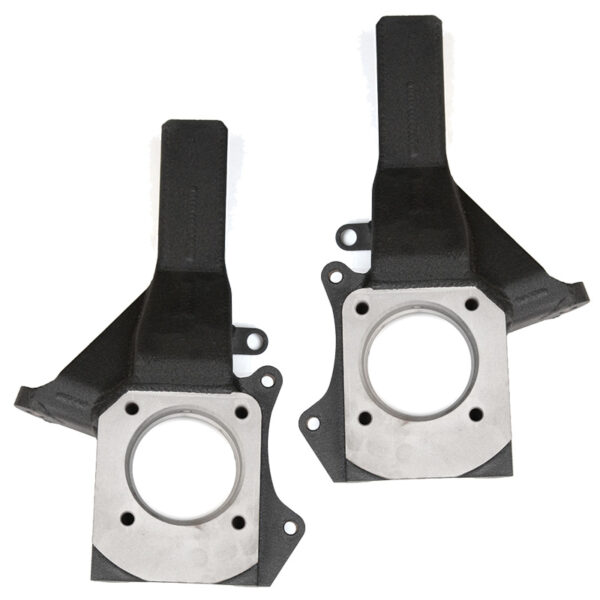

• Fabricated spindles (pair)
• Stainless/Kevlar stock length front brake line kit (CAM-330027)

Notes:

• When increasing tire size from stock, we recommend a zero offset wheel (4.50-4.75″ backspacing) for added clearance. Stock wheels and tires fit correctly “as is”.
• On older or higher mileage 4wd vehicles we recommend replacing the inner hub seal as it can be worn & brittle.
• Must remove the factory sway-bar on non-KDSS models
• These are designed to replace the OEM stock parts, these will not work on drop-down bracket lift kits that replace the spindle/knuckle with a much taller version.
• With so many variables of wheel size, offset/backspacing, tire size, brands and styles, the amount of lift and specific suspension components, etc., you may need to trim the plastic inner fenders and/or modify the body mount behind the front tires to eliminate tire rubbing.
• Also fits 2003-2009 Lexus GX-470’s & 2010-2014 GX-460’s

Application:
