AirLift Rear Helper Spring Bellows for 2015-2024 Ram 3500 2WD

AirLift Rear Helper Spring Bellows for 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024 Ram 3500 2WD

Part: 84294

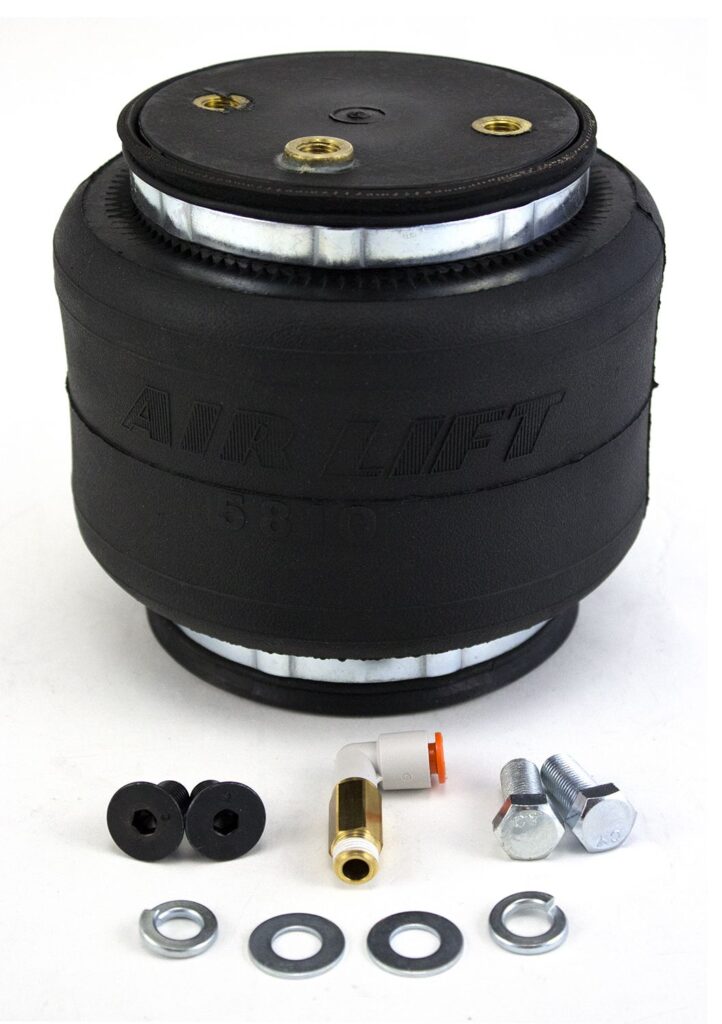

84294 AirLift Helper Spring Bellows

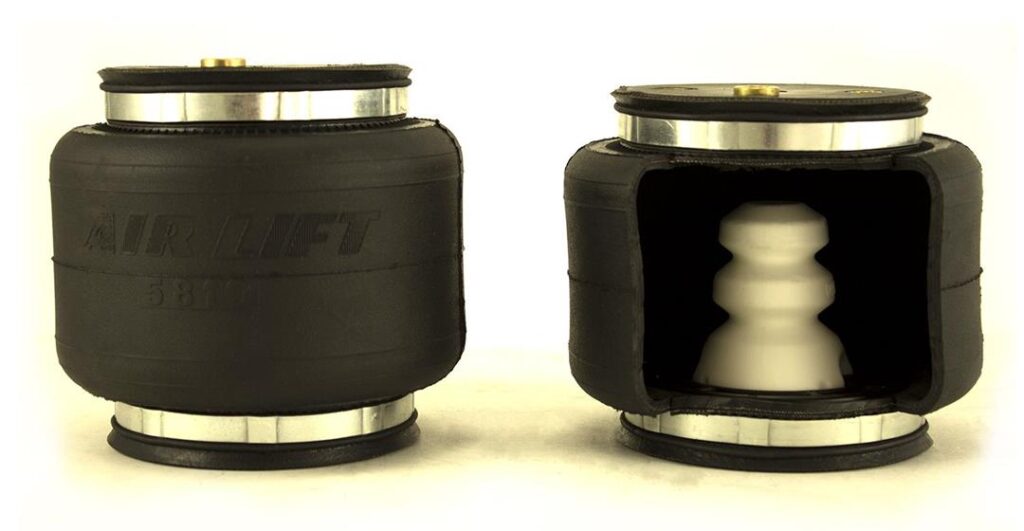

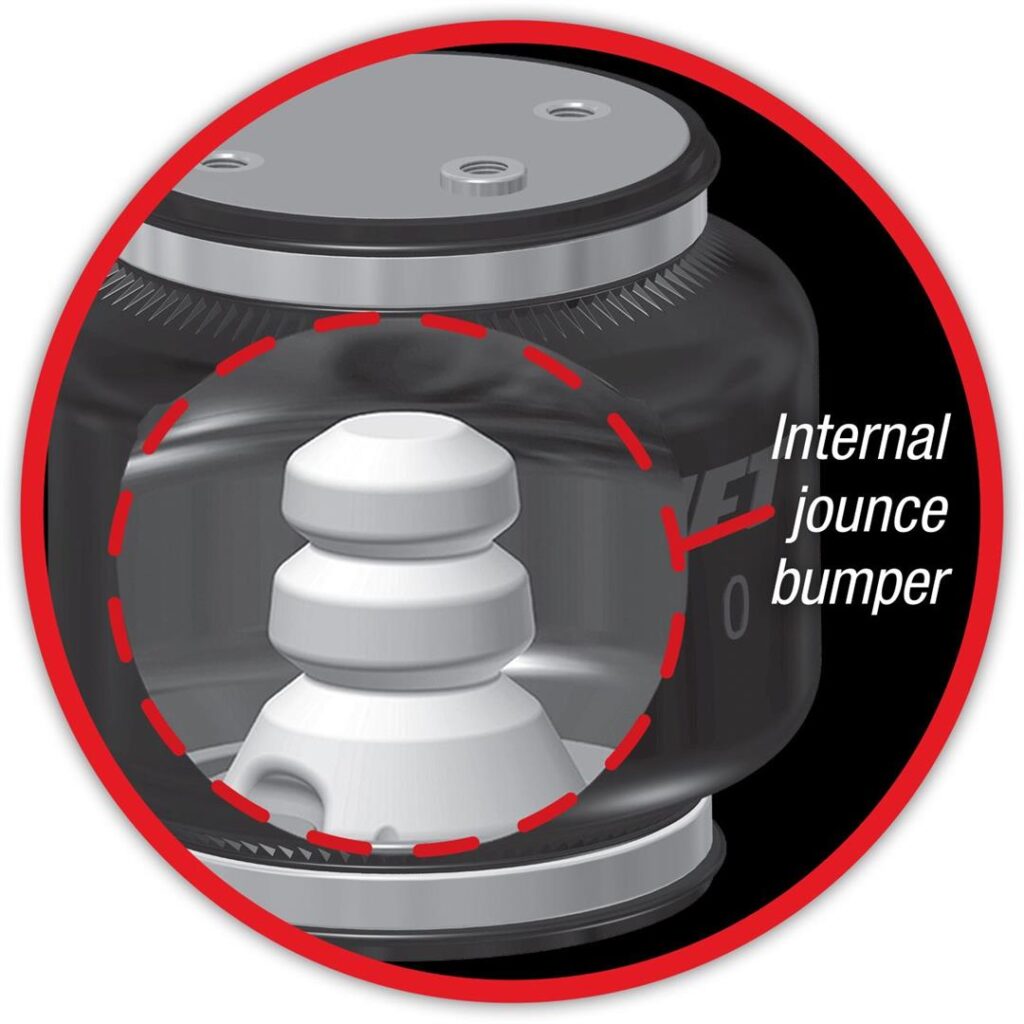

Helper Spring Bellows; LoadLifter 5000 ™ Ultimate; Single Bellows With Internal Jounce Bumper; 7.1 Inch Extended Height; 2.7 Inch Compressed Height; 7 Inch Diameter; 2500 Pound Load Capacity at 100 PSI; 1/8 Inch Port Size; Rubber; Black; Single; With Hardware

Attributes Type: Single Bellow With Jounce Bumper Extended Height (IN): 7.1 Inch Compressed Height (IN): 2.7 Inch Diameter (IN): 7 Inch Load Capacity (LB): 2500 Pounds At 100 Pounds Per Square Inch Inflation Port Size: 1/8 Inch NPT Color: Black Material: Rubber Includes Hardware: Yes
LoadLifter 5000 ULTIMATE replacement air spring; One air spring; Hardware included; Lifetime Warranty; This replacement air spring is designed to replace air spring when it is heavily damaged. It is made from rubber with synthetic fabric reinforcement which ensures extreme durability. This bellow features genuine high strength rustproof composite end caps. It consists of steel girdle ring and has high burst pressure
Features & Benefits Designed To Replace Air Spring When It Is Heavily Damaged Made From Rubber With Synthetic Fabric Reinforcement Which Ensures Extreme Durability Bellow Features Genuine High Strength Rustproof Composite End Caps Consists Of Steel Girdle Ring And Has High Burst Pressure Refer To The Document Tab For The New Authorized Installer Program Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/AIR/TechnicalBulletins/Air Lift Installer Program.pdf

[Type: Single Bellow With Jounce Bumper
Extended Height (IN): 7.1 Inch
Compressed Height (IN): 2.7 Inch
Diameter (IN): 7 Inch
Load Capacity (LB): 2500 Pounds At 100 Pounds Per Square Inch
Inflation Port Size: 1/8 Inch NPT
Color: Black
Material: Rubber
Includes Hardware: Yes
]

Attributes

• Type: Single Bellow With Jounce Bumper
• Extended Height (IN): 7.1 Inch
• Compressed Height (IN): 2.7 Inch
• Diameter (IN): 7 Inch
• Load Capacity (LB): 2500 Pounds At 100 Pounds Per Square Inch
• Inflation Port Size: 1/8 Inch NPT
• Color: Black
• Material: Rubber
• Includes Hardware: Yes

Compatibility Notes: LoadLifter 5000 ULTIMATE replacement air spring; One air spring; Hardware included; Lifetime Warranty; This replacement air spring is designed to replace air spring when it is heavily damaged. It is made from rubber with synthetic fabric reinforcement which ensures extreme durability. This bellow features genuine high strength rustproof composite end caps. It consists of steel girdle ring and has high burst pressure
Features & Benefits Designed To Replace Air Spring When It Is Heavily Damaged Made From Rubber With Synthetic Fabric Reinforcement Which Ensures Extreme Durability Bellow Features Genuine High Strength Rustproof Composite End Caps Consists Of Steel Girdle Ring And Has High Burst Pressure Refer To The Document Tab For The New Authorized Installer Program Limited Lifetime Warranty

Fitment Notes:

Position On Vehicle: Rear

[Rear]
