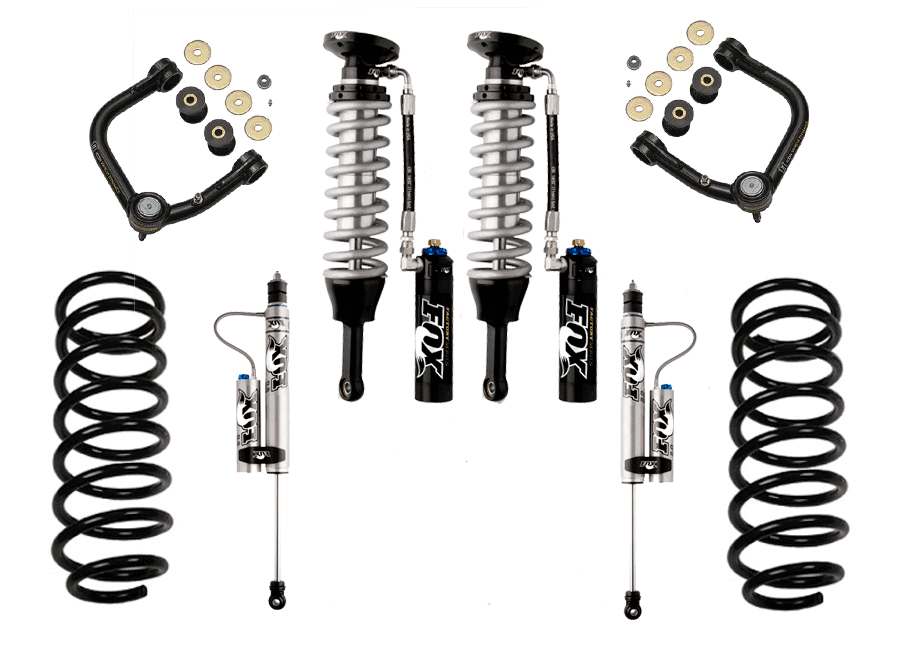

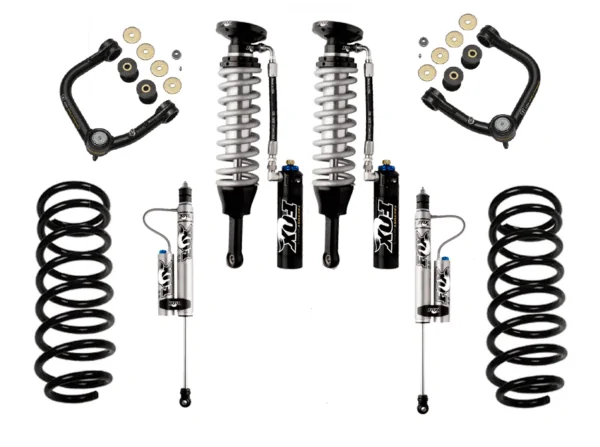

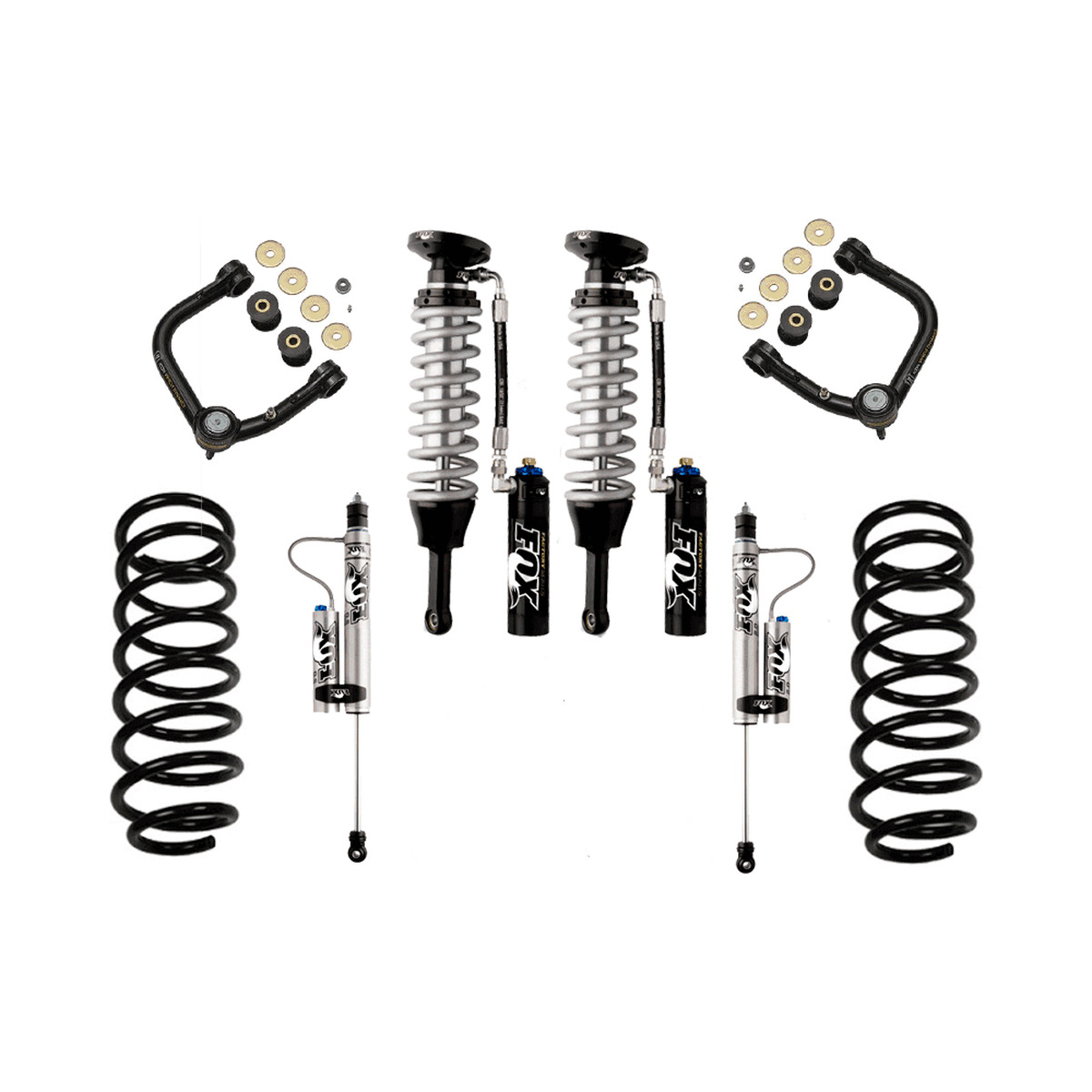

FOX 3″ Suspension Lift Kit for 2003-2009 Toyota 4Runner

Description
FOX 3″ Suspension Lift Kit for 2003-2009 Toyota 4Runner

FOX 3″ Suspension Lift Kit for 2003, 2004, 2005, 2006, 2007, 2008, 2009 Toyota 4Runner

Kit includes:

• 883-06-130 – FOX 2.5 Factory Series 0-3″ Lift Front Extended Travel Coil-Over Reservoir with DSC Adjuster. Preset at approximately 2″ of lift from factory. Before any of FOX shocks reach production, they’ve had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. FOX pushes the boundaries to give you that same precise control and race-proven performance you can feel. FOX bolt-on Factory Race Series Coil-over Reservoir shocks provide improved damping in any terrain.Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-over Reservoir shocks deliver.


  ---

  Body	2.5″ Smooth bore and honed seamless alloy body
  Body Plating	Zinc-plated and double-clear coated for long lasting finish
  External Reservoir	2.5″ Smooth bore and honed seamless alloy reservoir
  Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
  Spring	Application specific, adjustable 3.0 Eibach® racing springs
  Shaft	7/8″ hard chrome plated steel shafts
  Piston	6061-T6 hard-anodized, high flow aluminum piston
  Valving	Application specific valving to maximize performance
  Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
  Oil	JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  Bearing	PTFE-lined, heat-treated, alloy steel spherical
  Mounting	Direct replacement for stock and aftermarket lifts kits
  Adjustments	Ride height preload ring

• 985-26-118 – FOX 2.0 Performance Series Reservoir 2-3″ Rear Lift Shocks with CD AdjusterThe aluminum bodied 2.0 Performance Series Reservoir smooth body shock delivers FOX’s industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock.Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the 2.0 Performance Series Reservoir shock a predicable ride quality capable of handling the roughest road conditions.


  ---

  Body	2.0″ Metal impacted 6061-T6 aluminum will resist rust over time
  Body Plating	Clear-anodized for a durable finish
  External Reservoir	2.0″ Smooth bore 6061-T6 Aluminum is hard anodized
  Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
  Shaft	5/8″ hard chrome plated heat-treated alloy steel
  Piston	Race-developed high-flow piston design
  Valving	Application specific valving to maximize performance
  Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
  Oil	JM92 Advanced Suspension Fluid for improved performance at variable temperatures
  Bushings	Quiet nitrile rubber allows for increased suspension articulation
  Mounting	Direct replacement for stock and aftermarket lifts kits
  Options	Compression Damping (CD) Adjuster (Included)

•    OME 2″ Rear Coils

•  ICON Delta Joint Tubular UCAS 58451DJ:

  FEATURES & BENEFITS

  • ICON Delta Joint
  • 1026 DOM Steel Construction
  • CNC Bent Tubing
  • Serviceable Dual Stage Bushings
  • CNC Machined Bushing Housings and Sleeves
  • Built-In Caster Correction
  • Black Semi-Gloss Powder Coat Finish

  TECH INFO:

  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys | 17×8.5 w/ 4.75″ Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18×9 w/ 5″ Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33″ x 11.50″
