Bilstein 0-2.5″ Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner

SKU: BK4R09
5 out of 5 based on 18 customer ratings
(18 customer reviews)
Sale!
Bilstein 0-2.5" Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner
Bilstein 0-2.5" Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner

Description
Bilstein 0-2.5″ Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner

Bilstein 0-2.5″ Lift Kit With Rear Coils For 2003, 2004, 2005, 2006, 2007, 2008, 2009 Toyota 4Runner

Part: BK4R09

Front 24-324359 (old: 24-239370) height adjustable 5100 shocks provide 0 to 2 1/2″ lift

Collapsed Length (IN): 17.03
Extended Length (IN): 22.59
Collapsed Length (MM): 432.5
Extended Length (MM): 573.7
Finish: Zinc Plated
Reservoir: No
Body Design: Snap Ring Grooved Body (Coilover)
Body Diameter: 46mm
Adjustable Damping: Non-Adjustable



Rear 33-313146 (old: 33-187174) 5100 shocks work with  0″ to 2″ lift

Collapsed Length (IN): 14.91
Extended Length (IN): 23.03
Collapsed Length (MM): 378.8
Extended Length (MM): 585.0
Finish: Zinc Plated
Reservoir: No
Body Design: Smooth Body (Non-Coilover)
Body Diameter: 46mm
Adjustable Damping: Non-Adjustable



Notes:
Front lift is achieved by the adjustment of the front shocks. Stock front coils need to be reused.



Rear Coil Springs (Bilstein Brand):
Rear Coil Springs 36-281817
4Runner 2WD – Rear Lift Height: 1.8″
4Runner 4WD – Rear Lift Height: 1.75″
or
Rear Coil Springs 36-281824
4Runner 2WD – Rear Lift Height: 2.25″
4Runner 4WD – Rear Lift Height: 2.3″
or
Rear Coil Springs Heavy Load Package 400 Pound Constant Weight 36-281831
4Runner 2WD – Rear Lift Height: 2.5″
4Runner 4WD – Rear Lift Height: 2.2″

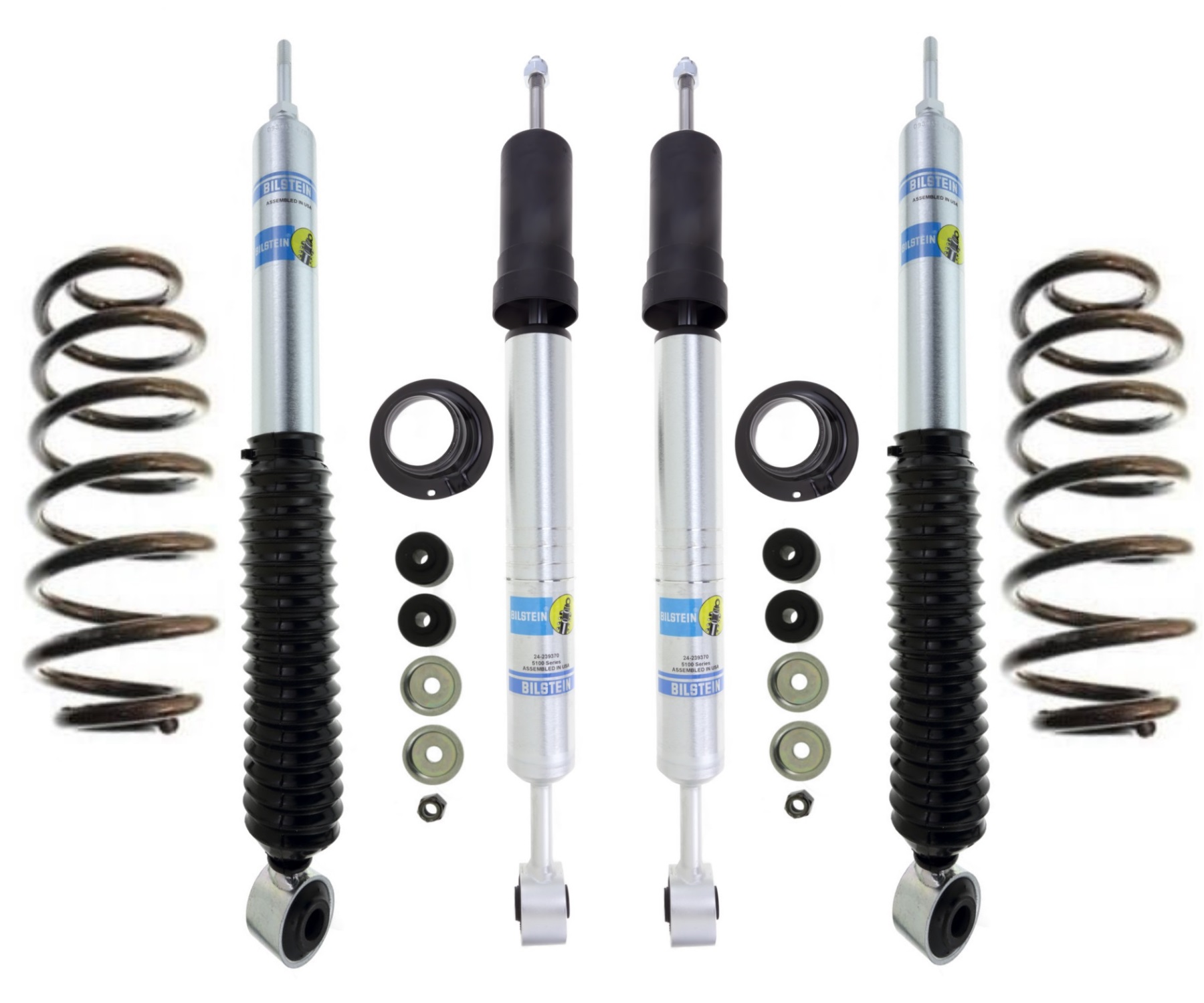

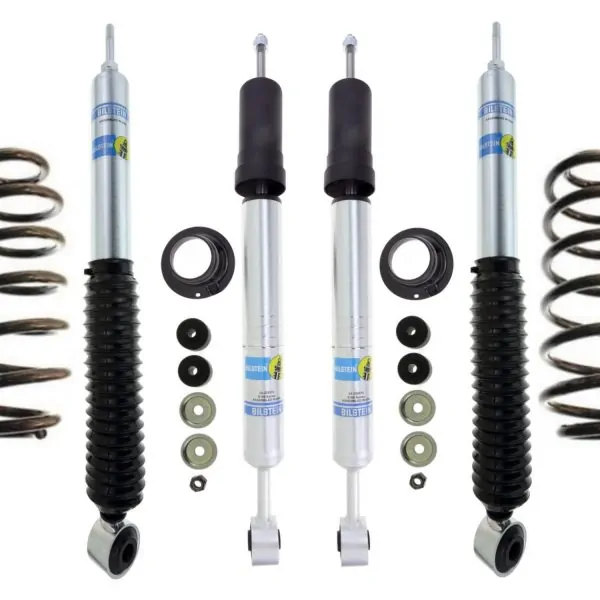

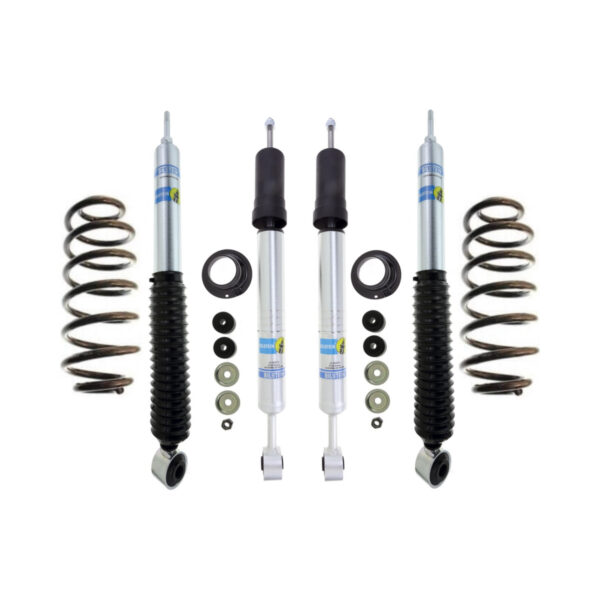

Includes Shocks exactly as pictured

We have other rear coil options available, please message us if you are interested.

Interested in full lift kit?

Customer reviews

Rated 5 out of 5 stars
18 reviews
5 stars 18 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

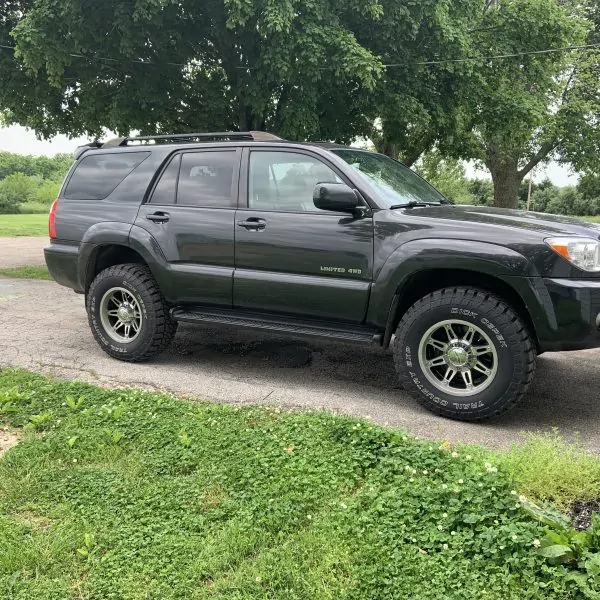

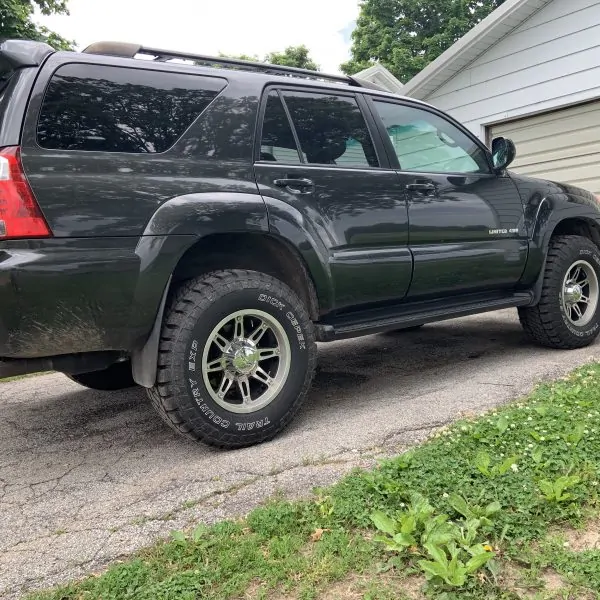

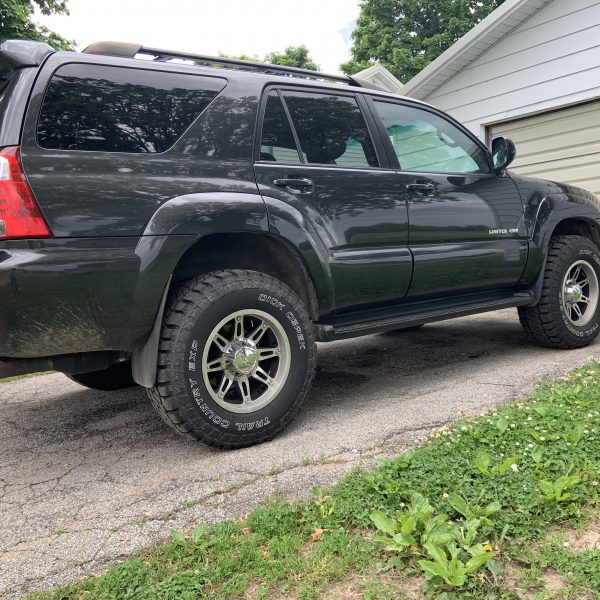

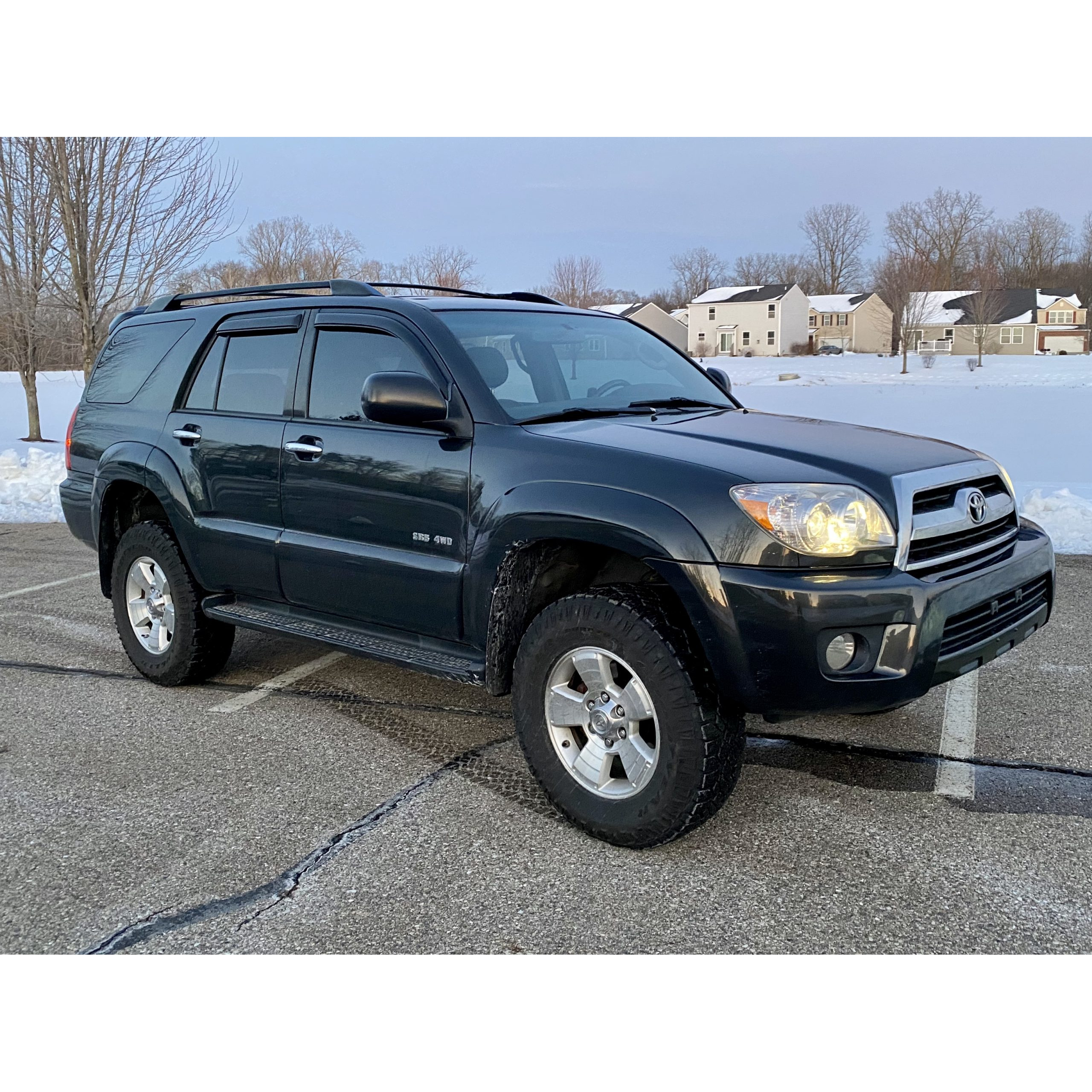

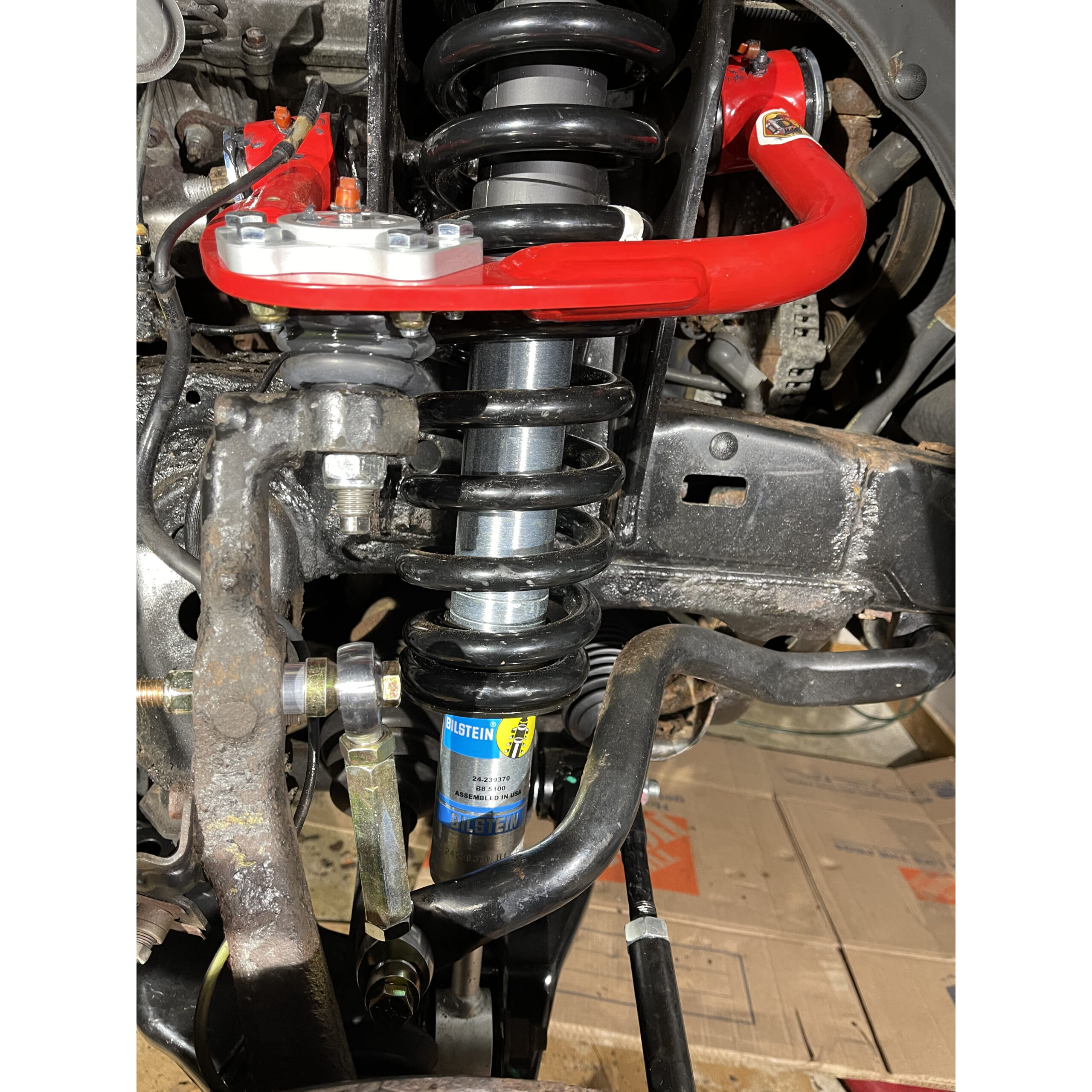

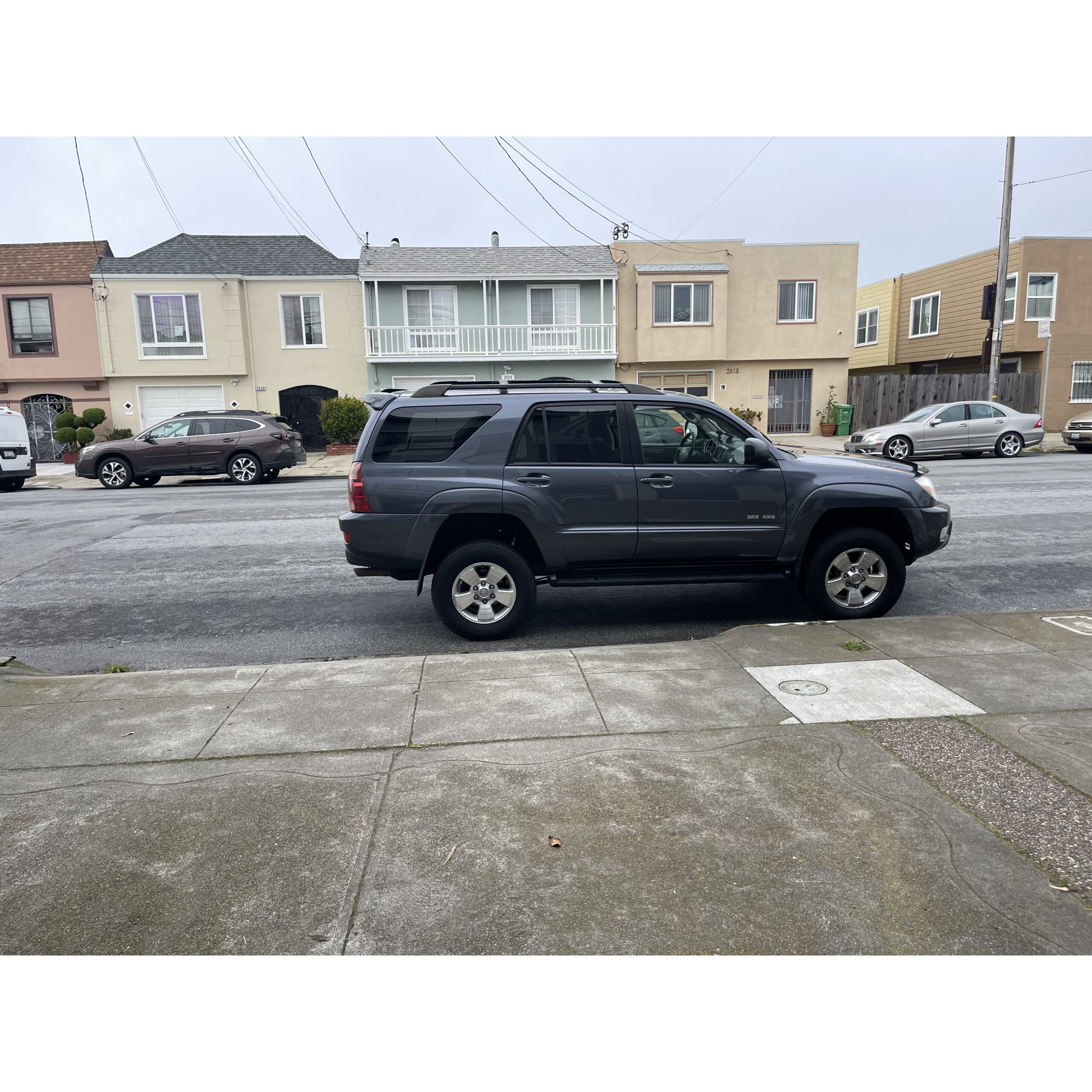

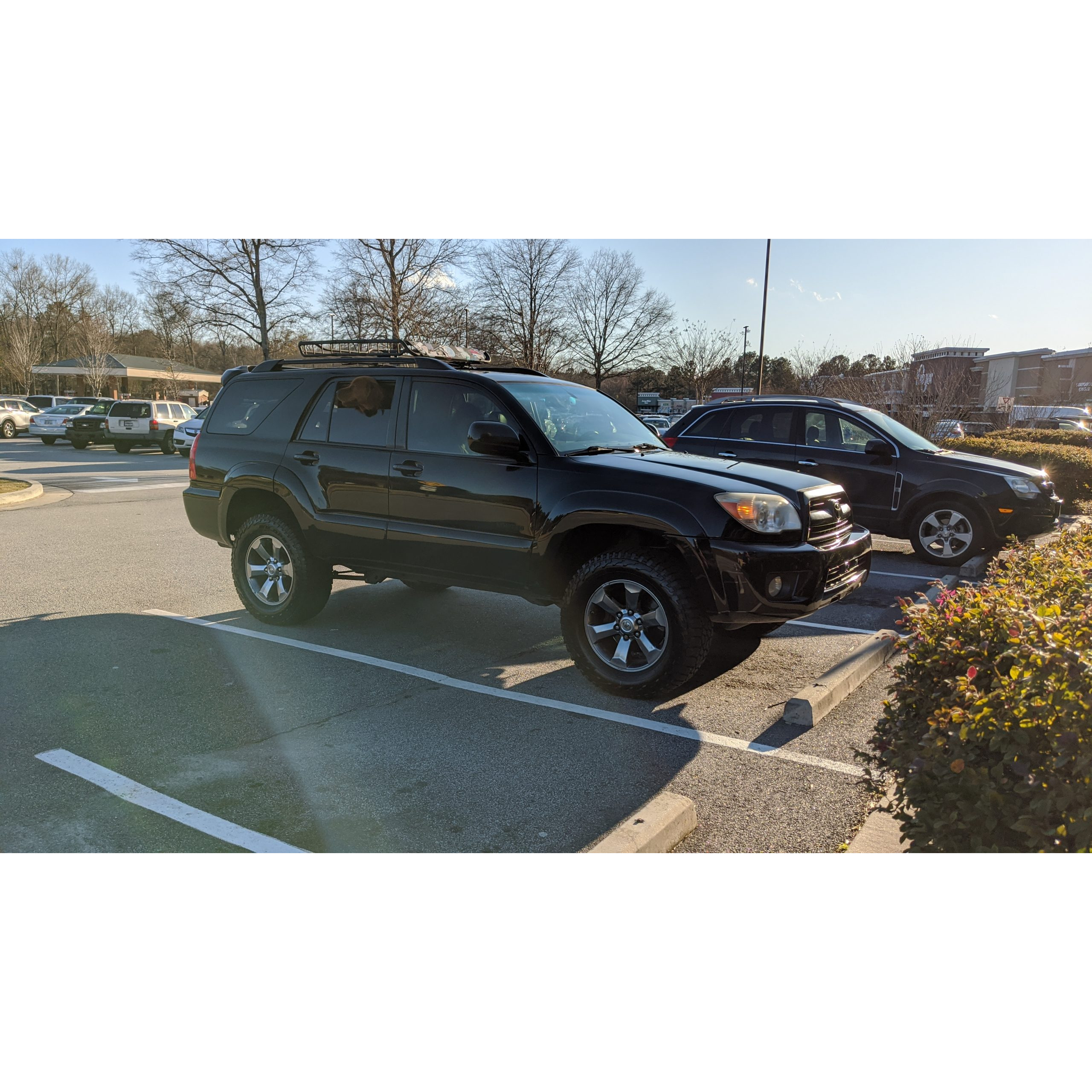

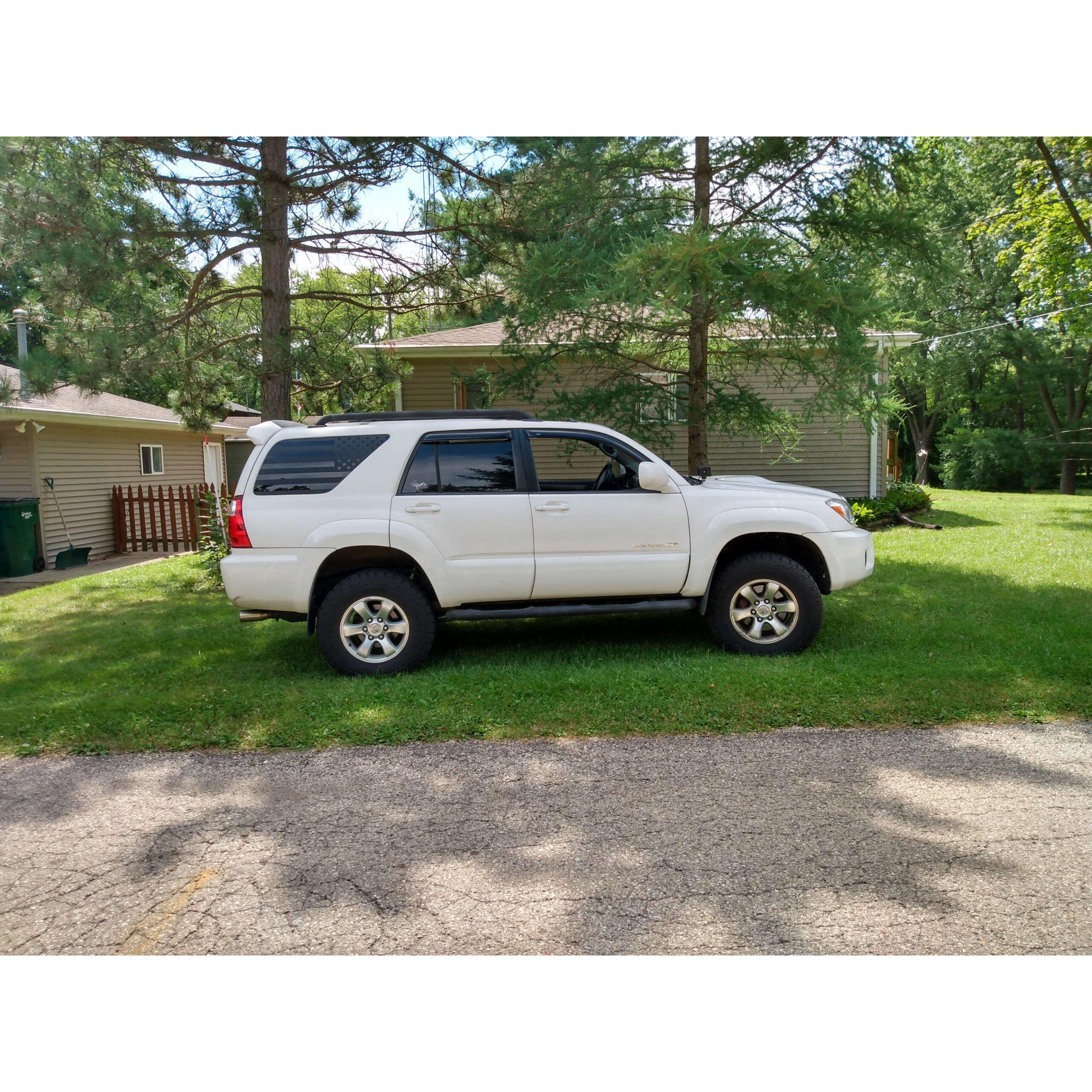

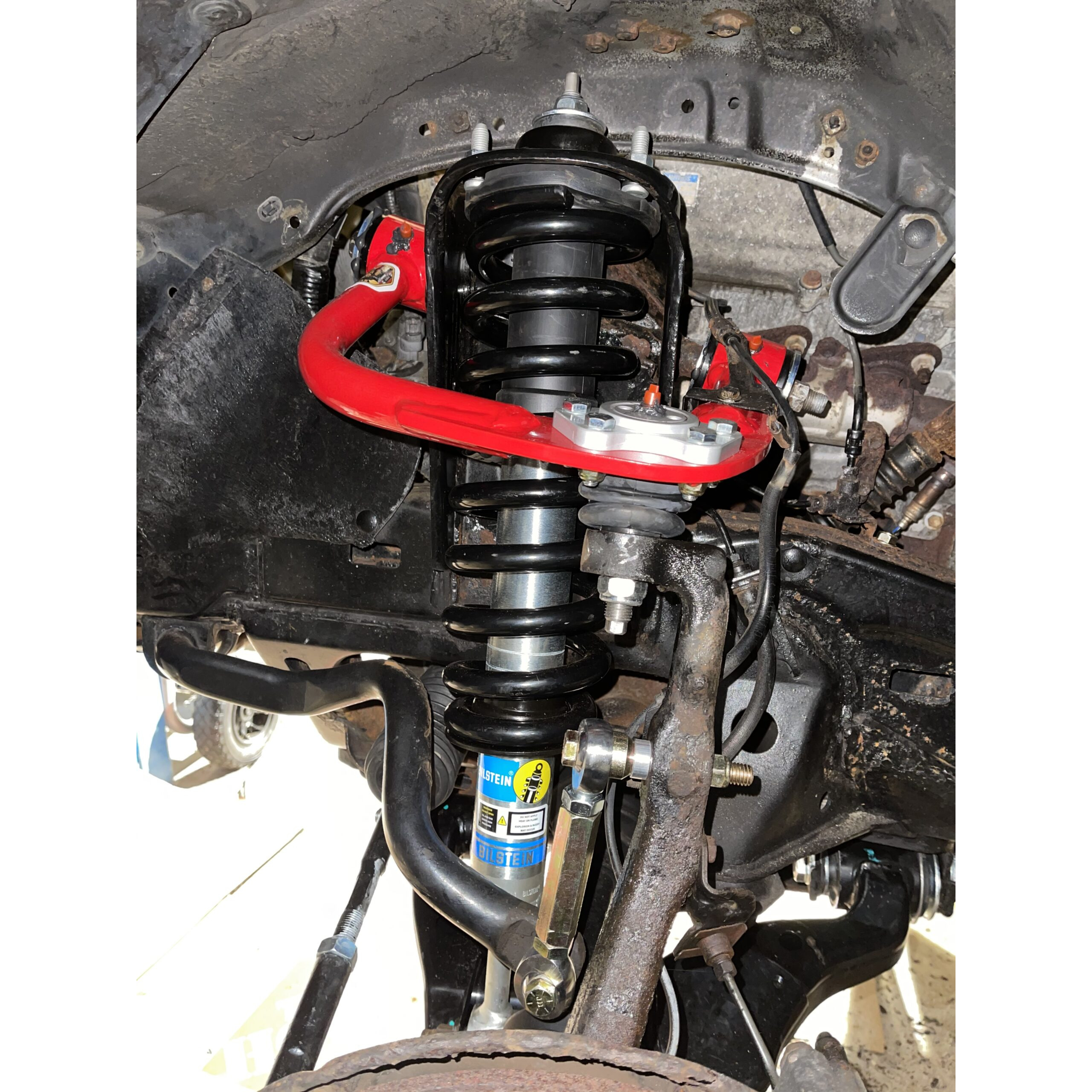

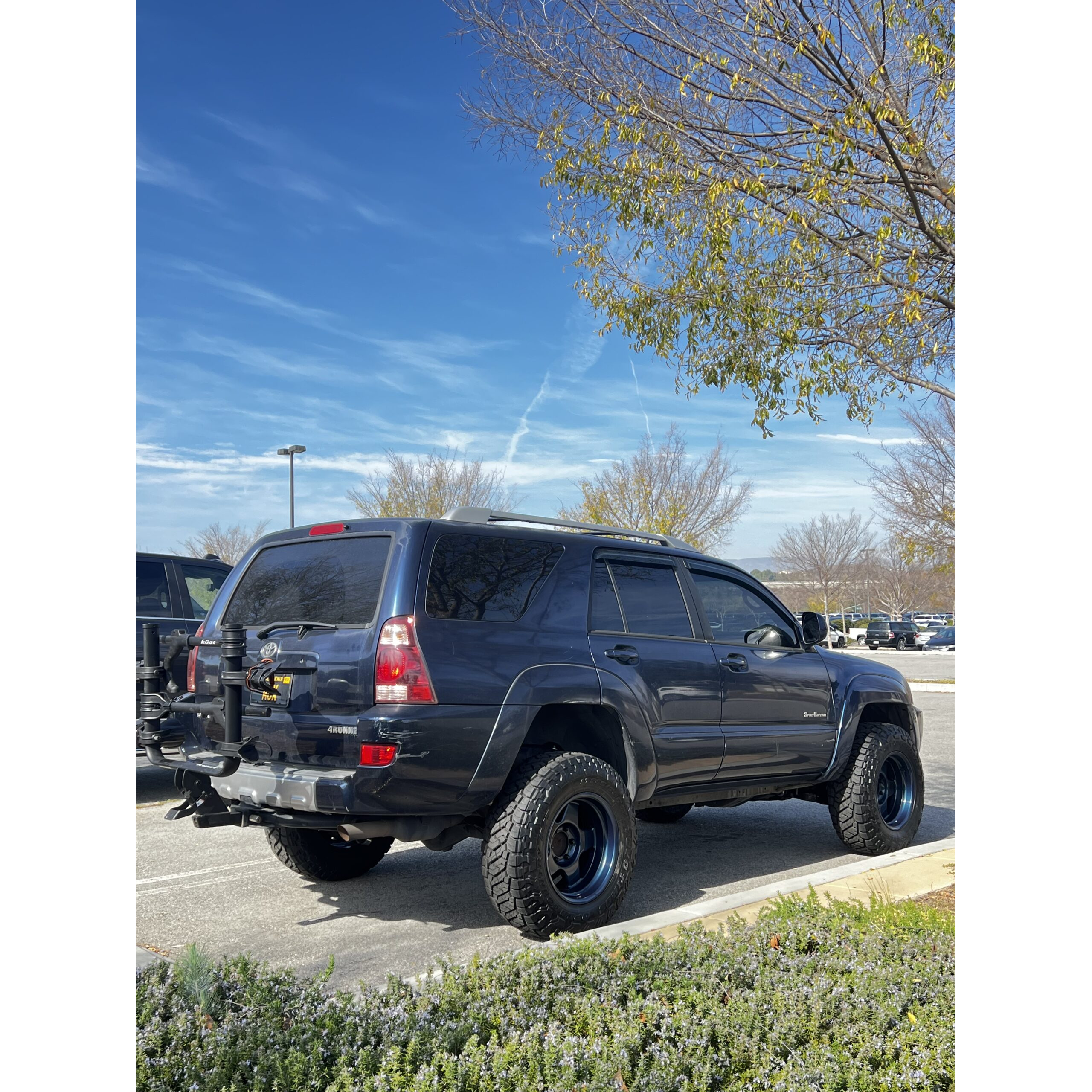

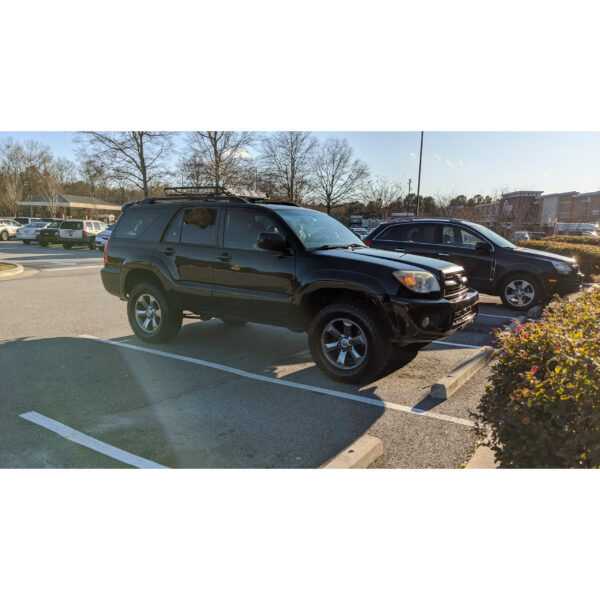

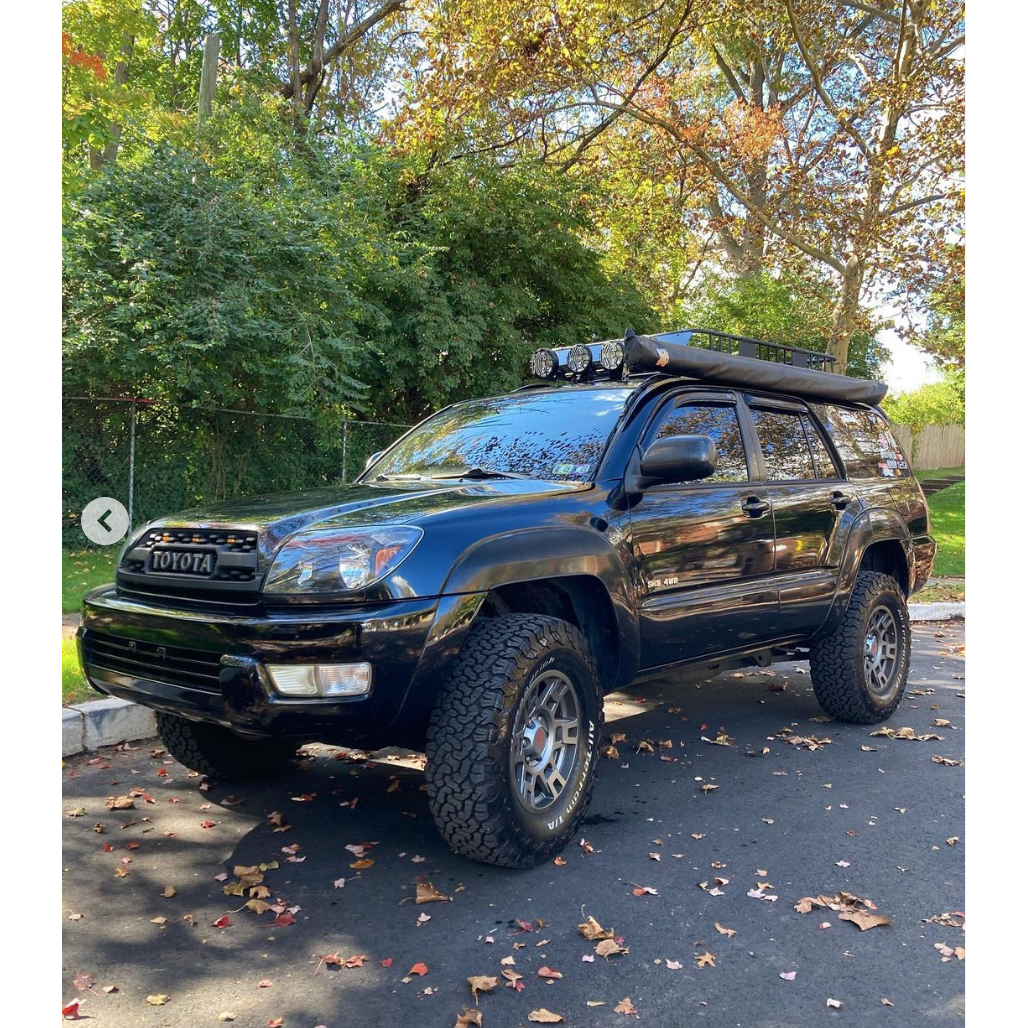

18 reviews for Bilstein 0-2.5″ Lift Kit With Rear Coils For 2003-2009 Toyota 4Runner

    Load more

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        With this kit on a 2wd Can you factory wheels and larger tires
      1. 0 votes
        QWith this kit on a 2wd Can you factory wheels and larger tiresanswer now
        A yes will fitThese wheels will fit without rubbing:Rim* 8" Tire Width* 12" Tire* 32.5" Backspace* 4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help

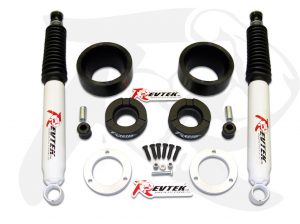

        2. I want to get new tires and wheels i am thinking about getting 285/55/20 would this kit work with the 1.5 Revtech leveling kit? or would they fit with out the leveling kit? Im open to know what off set i would need?
      2. 0 votes
        QI want to get new tires and wheels i am thinking about getting 285/55/20 would this kit work with...... Read more answer now
        A You will have to uninstall the 1.5 Revtech leveling kit. Front shocks work with a stock spring. To obtain different lifting heights, you need to rearrange the rings on shock Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y323A00.pdf When using the top position of the ring, you can use Rim* Tire Width* Tire* Backspace* 8" 12" 32.5" 4.5"
        3. Does this kit come with all the mounting hardware for all of the shocks?
      3. 0 votes
        QDoes this kit come with all the mounting hardware for all of the shocks?
        There are no answers for this question yet. Answer now
        4. With the front shocks on the second setting (1.75" of lift) which rear coil would pair nicely for a level lift?
      4. 0 votes
        QWith the front shocks on the second setting (1.75" of lift) which rear coil would pair nicely for...... Read more answer now
        A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png1-1.3'' rear maybe.
        5. I have about 50 lbs of gear in the back of the 4runner at all times and I often (but not all the time) carry a motorcycle hitch carrier off the back that adds another 300-350 lbs. Which rear springs would you recommend for this?
      5. 0 votes
        QI have about 50 lbs of gear in the back of the 4runner at all times and I often (but not all the ...... Read more answer now
        A Rear Coil Springs 36-281824 4Runner 4WD – Rear Lift Height: 2.3″will be good
        6. *Edit* I have a 2005 4runner SR5 v6 4wd, the previous owner replaced the front coilovers/springs with that of a 2010 Tacoma TRD Sport, I don't believe they are the 2.5" Body shocks, they are the yellow bilsteins. This kit says the stock front coils need to be reused, but will it work with the Tacoma TRD sport front coils that I now have?
      6. 0 votes
        Q*Edit* I have a 2005 4runner SR5 v6 4wd, the previous owner replaced the front coilovers/springs ...... Read more answer now
        A TRD sport uses 2'' body shocks and so front coils can be reused.TRD PRO version uses different 2.5'' body shocks
        7. I have a 2005 4runner SR5 v6, the previous owner replaced the suspension with that of a Tacoma TRD which gave it a bit of a lift. This kit says the stock front coils need to be reused, but will it work with the Tacoma TRD front coils that I now have?
      7. 0 votes
        QI have a 2005 4runner SR5 v6, the previous owner replaced the suspension with that of a Tacoma TR...... Read more answer now
        A if you have TRD PRO coilovers for 2.5'' body shocks it will not fit
        8. Should I replace my uca’s after doing a full 2.5” lift?
      8. 0 votes
        QShould I replace my uca’s after doing a full 2.5” lift?answer now
        A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
        9. Is this kit compatible with xreas hydraulics?
      9. 0 votes
        QIs this kit compatible with xreas hydraulics?answer now
        A X-reas system is to be disabled and removed for this kit to be installed
        A Will this kit work with a 2008 4Runner limited 2wd with x reas
        10. Will 285s fit well with this kit?
      10. 0 votes
        QWill 285s fit well with this kit?answer now
        A These wheels will fit without rubbing:Rim* Tire Width* Tire* Backspace* 8" 12" 32.5" 4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help
        11. If I got this kit with the rear coils, would I still need a 1/2” spacer?
      11. 0 votes
        QIf I got this kit with the rear coils, would I still need a 1/2” spacer?answer now
        A I had a 2003 4Runner with spacers previous to having this kit installed and set to a 2" lift--you don't need the spacers afterwards.
        12. I bought this kit for my gen 4 4runner. turned out really nice. sold that an now have a GX470. Does the same kit for for that truck?
      12. 0 votes
        QI bought this kit for my gen 4 4runner. turned out really nice. sold that an now have a GX470. Do...... Read more
        There are no answers for this question yet. Answer now
        13. I use a hitch hauler probably 50% of the time with 100 lbs or so on it and then another 100 +- lbs in the trunk. Should i get the heavy load springs? 9The weight on the hitch hauler hangs off the back and sits the rear down more than same amount of weight in trunk)
      13. 0 votes
        QI use a hitch hauler probably 50% of the time with 100 lbs or so on it and then another 100 +- lb...... Read more answer now
        A we'd recommend medium coils36-281824
        14. With the 2.5” lift what size tire could I fit with factory 17” wheels?
      14. 0 votes
        QWith the 2.5” lift what size tire could I fit with factory 17” wheels?
        There are no answers for this question yet. Answer now
        15. Does this kit level the body?
      15. 0 votes
        QDoes this kit level the body?
        There are no answers for this question yet. Answer now
        16. The rear coils do level the rig out with 2.5” of front lift, correct? And my 4runner is the sr5 without xreas soot is still a direct replacement? Some of the lifts I’ve been looking at have very specific lifts for xreas or non xreas
      16. 0 votes
        QThe rear coils do level the rig out with 2.5” of front lift, correct? And my 4runner is the sr5 w...... Read more answer now
        A These will fit the truck without x-reas.In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
        17. Will this kit fit a 2004 GX470? I will also use this kit to do the rear airbag conversion.
      17. 0 votes
        QWill this kit fit a 2004 GX470? I will also use this kit to do the rear airbag conversion.
        There are no answers for this question yet. Answer now
        18. do I need front springs? or just use the stock ones?
      18. 0 votes
        Qdo I need front springs? or just use the stock ones?answer now
        A Front shocks are height adjustable - you can get 2,5'' of front lift using stock coils if you have stock weight (no aftermarket bumper/winch)
        19. Does this lift work for the urban runner with xreas suspension.
      19. 0 votes
        QDoes this lift work for the urban runner with xreas suspension.answer now
        A Yes, but it will require disabling x-reas
        20. Thinking about getting the heavy weight springs for the rear. Plan on getting a heavy bumper for the rear but won’t be for a while. Would the heavy springs be too much without the weight for the stock control arms?
      20. 0 votes
        QThinking about getting the heavy weight springs for the rear. Plan on getting a heavy bumper for ...... Read more answer now
        A Heavy springs can be used, but with some HD rear coils longer rear shocks (for 3'' rear lift) will be required.What springs are on your mind?
        21. Can I use this kit if I ditch the rear air suspension?
      21. 0 votes
        QCan I use this kit if I ditch the rear air suspension?
        There are no answers for this question yet. Answer now
        22. The 5100 rear shock says 2" lift maximum. Two of the three rear spring sets state more than 2" of lift. What are the 5100 rear shocks compatible with?
      22. 0 votes
        QThe 5100 rear shock says 2" lift maximum. Two of the three rear spring sets state more than 2" of...... Read more answer now
        A This set is made up correctly and the rear shocks correspond to all the proposed springs, only you need to pay attention to the extra weight of your truck and the lifting height you want to get
        23. I have a 2003 4Runner sr5 v8 with the 5100 adj shocks with 2.5 lift in front and rear spacer in back to keep it level. They need to be replaced. With this kit if I do the 2.5 in front again and remove the rear spacer which set of rear springs should I get to make it level? Thx
      23. 0 votes
        QI have a 2003 4Runner sr5 v8 with the 5100 adj shocks with 2.5 lift in front and rear spacer in b...... Read more answer now
        A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.png
        24. What is the average shipping turn around time?
      24. 0 votes
        QWhat is the average shipping turn around time?answer now
        A They overnighted it to me from the opposite side of the country. Had my kit the second day after I ordered it. Wow!
        25. DO I NEED TO DROP TRANSFER CASE WITH THIS LIFT
      25. 0 votes
        QDO I NEED TO DROP TRANSFER CASE WITH THIS LIFTanswer now
        A Diff drop kit is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life. We can offer https://www.suspensionlifts.com/shop/toyota-fj-cruiser/revtek-differential-drop-kit-2003-2018-toyota-4runner-fj-cruiser/https://www.suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/complete-lift-kits/front-differential-drop-kit/It is not necessary to lower the transfer case
