Bilstein 5100 0-2.3″ Lift Front Shocks for 1996-2002 Toyota 4Runner
Sale!
Description

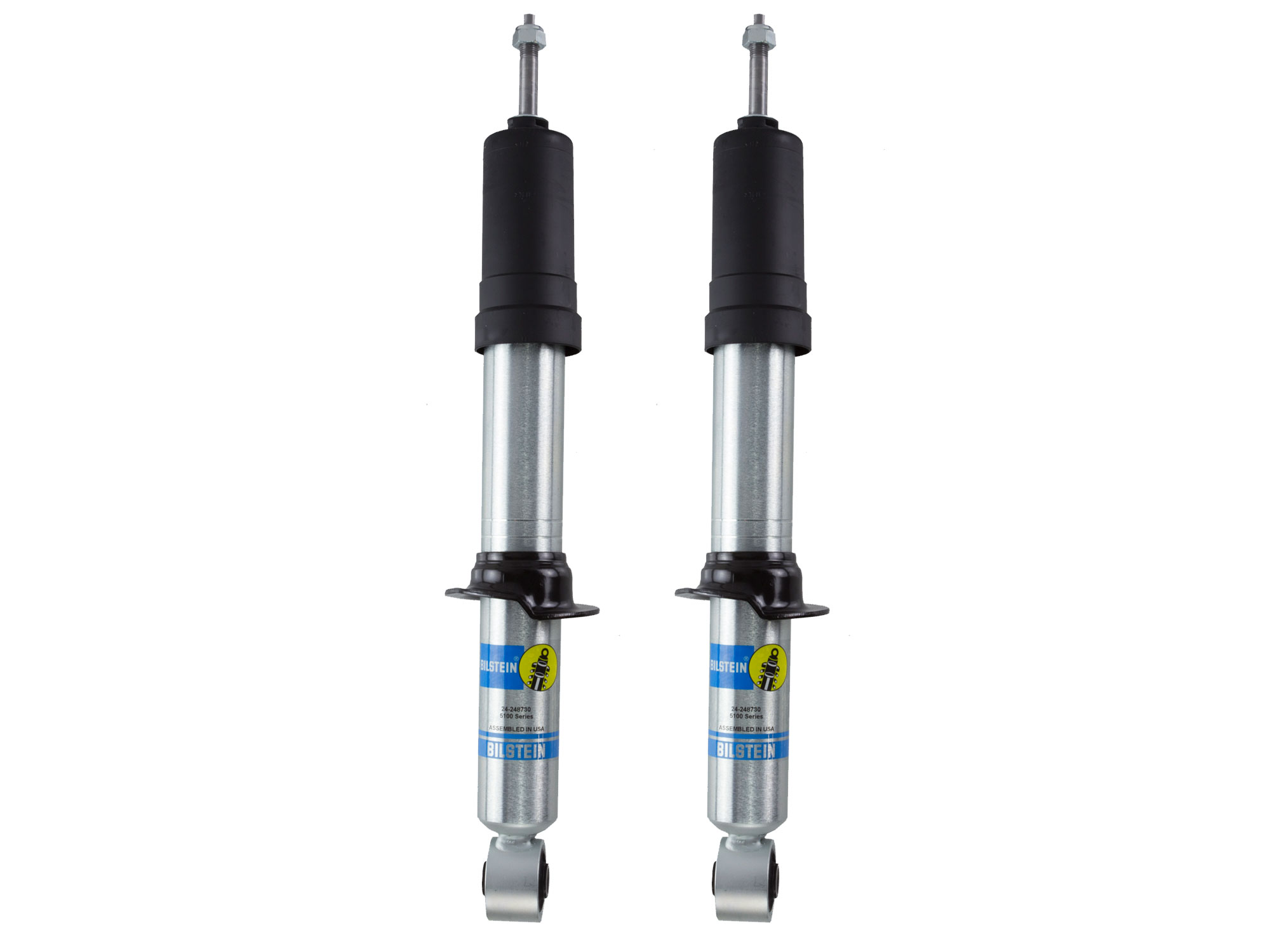

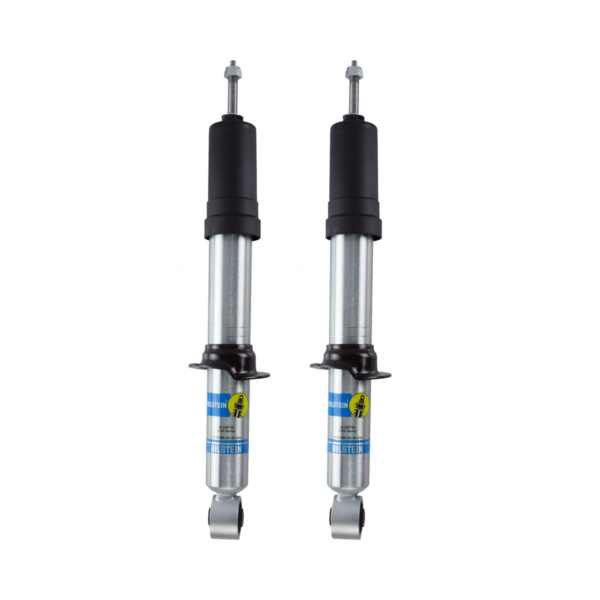

Bilstein 5100 0-2.3″ Lift Front Shocks for 1996-2002 Toyota 4Runner
Bilstein 5100 0-2.3″ Lift Front Shocks for 1996, 1997, 1998, 1999, 2000, 2001, 2002 Toyota 4Runner 4WD/2WD
Part: 2×24-248730
Need them assembled?
- Sale!
Bilstein/OME 5100 1.5-3″ Lift Assembled Coilovers for 1996-2002 Toyota 4Runner
(3 reviews)Original price was: $719.49.$681.95Current price is: $681.95.
Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV’s with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
| TYPICAL FRONT LIFT HEIGHT** | ||||
|---|---|---|---|---|
| snap ring location # | with 2″ lift rear coil spring installed (Rate = 220lb/in) | with 1.5″ lift rear coil spacers installed | with OE rear coil springs | |
| 1 | stock | stock | stock | |
| 2 | 0.78″ | 0.53″ | 0.63″ | |
| 3 | 1.61″ | 1.05″ | 1.25″ | |
| 4 | 2.3″ | Do NOT use | 1.88″ | |
** Ride heights indicated are typical. Actual ride height is influenced by which factory suspension the vehicle is equipped with and its condition; optional equipment and accessories on your vehicle, and other vehicle modifications such as replacement coil springs, wheel and tire combinations, etc.
Modifying/lifting the suspension to your vehicle may raise its center of gravity and may make it more susceptible to loss of control and/or rollover, which may result in death or serious injury. We strongly recommend that you offset the loss of rollover resistance as much as possible by increasing tire track width, and that you equip the vehicle with a functional roll bar and cage system.
Wear seat belts and shoulder harnesses at all times, and avoid situations where a side rollover may occur.
Includes 2 Shocks
Questions and answers of the customers
-
Will this model fit a 2004 tacoma 4x4 with stock springs and what will the heights be on all notches
- QWill this model fit a 2004 tacoma 4x4 with stock springs and what will the heights be on all notchesanswer nowA No, it will not. You will need https://www.suspensionlifts.com/shop/toyota-tacoma/1995-2004/front-lifts-and-coilovers-95-04-tacoma/bilstein-5100-0-2-front-lift-shocks-96-02-toyota-tacoma-4wd/What bushings do I use for these and washers?
- A OEM bushings and washers are reusedHI, I have 99 4runner with Bilstein 5100 on the front and rear. 24-28730 with Eibach coils. on the front. I want to do a 2" lift F and R possibly higher in the front. What rear coils should I use? What snap ring position on the front ? And is there any thing else I will need. Thank you.
- QHI, I have 99 4runner with Bilstein 5100 on the front and rear. 24-28730 with Eibach coils. on th...... Read moreThere are no answers for this question yet. Answer nowWill this fit a gx470?
- A newer gen 4runner shocks will fit GX470https://www.suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-shocks/front-height-adjustable-5100-bilstein-shocks/https://www.suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-shocks/bilstein-height-adjustable-front-and-matching-5100-rear-shocks/For a 3rd gen 4runner, can these give a 3inch lift when paired with OME 883 springs? if so, what snap ring setting would the shocks need to be set on?
- QFor a 3rd gen 4runner, can these give a 3inch lift when paired with OME 883 springs? if so, what ...... Read more answer nowA lowest notch setting for 3rd gen 4runnerHi do you guys ship to Canada? And what would be the option, price conversion total as well if you do.
- QHi do you guys ship to Canada? And what would be the option, price conversion total as well if yo...... Read moreThere are no answers for this question yet. Answer nowProbably been asked a million times...but what snap ring position do you recommend with 2" liftOME 880's? Some boards say leave it at the lowest (1), but your website here and the included pamphlet talk about the 3rd or 4th notch for 1.6-2.3 lift. Thanks!
- QProbably been asked a million times...but what snap ring position do you recommend with 2" liftOM...... Read more answer nowA With 2'' lift springs you are to use lowest notch.If using stock coils, than please use 3-4 notchDo these not come with the top stem rubber bushing and washers?
I purchased these for my car and have a gap at the top now. There was only bottom bushing in my set.
- QDo these not come with the top stem rubber bushing and washers? I purchased these for my car and ...... Read more answer nowA HelloTHe shocks come as pictured.You may use your old bushings if they are in a good conditionI already have a pro comp 3 inch lift with the full strut, I wanna try to put the 5100 in stead of the pro comp es6000 I just wanna make sure it will work. As long as I have the 5100 set to the same height as the pro combo shock I should be able to keep the pro comp cool correct?
- QI already have a pro comp 3 inch lift with the full strut, I wanna try to put the 5100 in stead o...... Read more answer nowA With these shocks you can get up to 2.5'' lift on stock coils. May use spacers such as * * * https://suspensionlifts.com/shop/toyota-tacoma/1995-2004/front-lifts-and-coilovers-95-04-tacoma/front-top-plate-spacer-one-14-inch/ * * * https://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/front-lifts/front-top-plate-spacer-kit/ * * * to get 3''
ATTENTION STATE OF CALIFORNIA CONSUMERS. WARNING: Cancer and reproductive harm – www.p65warnings.ca.gov

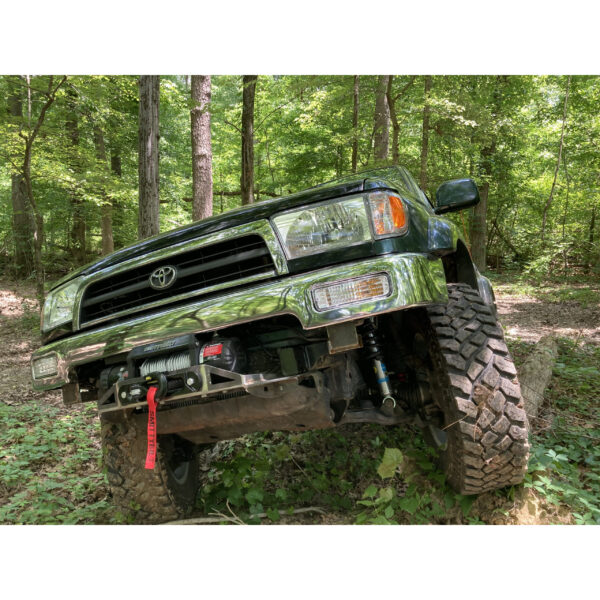

8 reviews for Bilstein 5100 0-2.3″ Lift Front Shocks for 1996-2002 Toyota 4Runner
