Bilstein 6112 1.5-3.2″ Medium Duty(150-200lbs) Coilover Kit for 2010-2024 Toyota 4Runner 4WD

SKU: 47-311039
5 out of 5 based on 1 customer rating
(1 customer review)

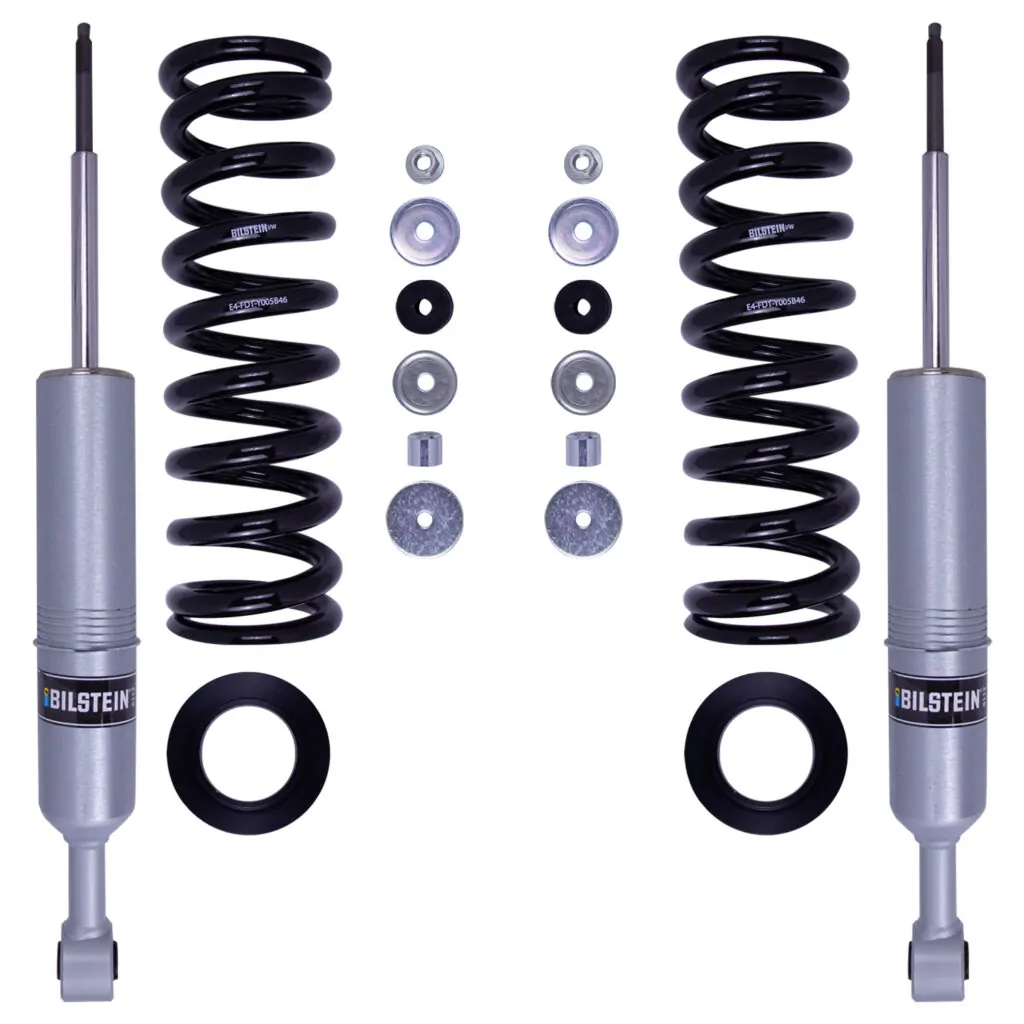

Bilstein 6112 1.5-3.2" Medium Duty(150-200lbs) Coilover Kit for 2010-2023 Toyota 4Runner 4WD

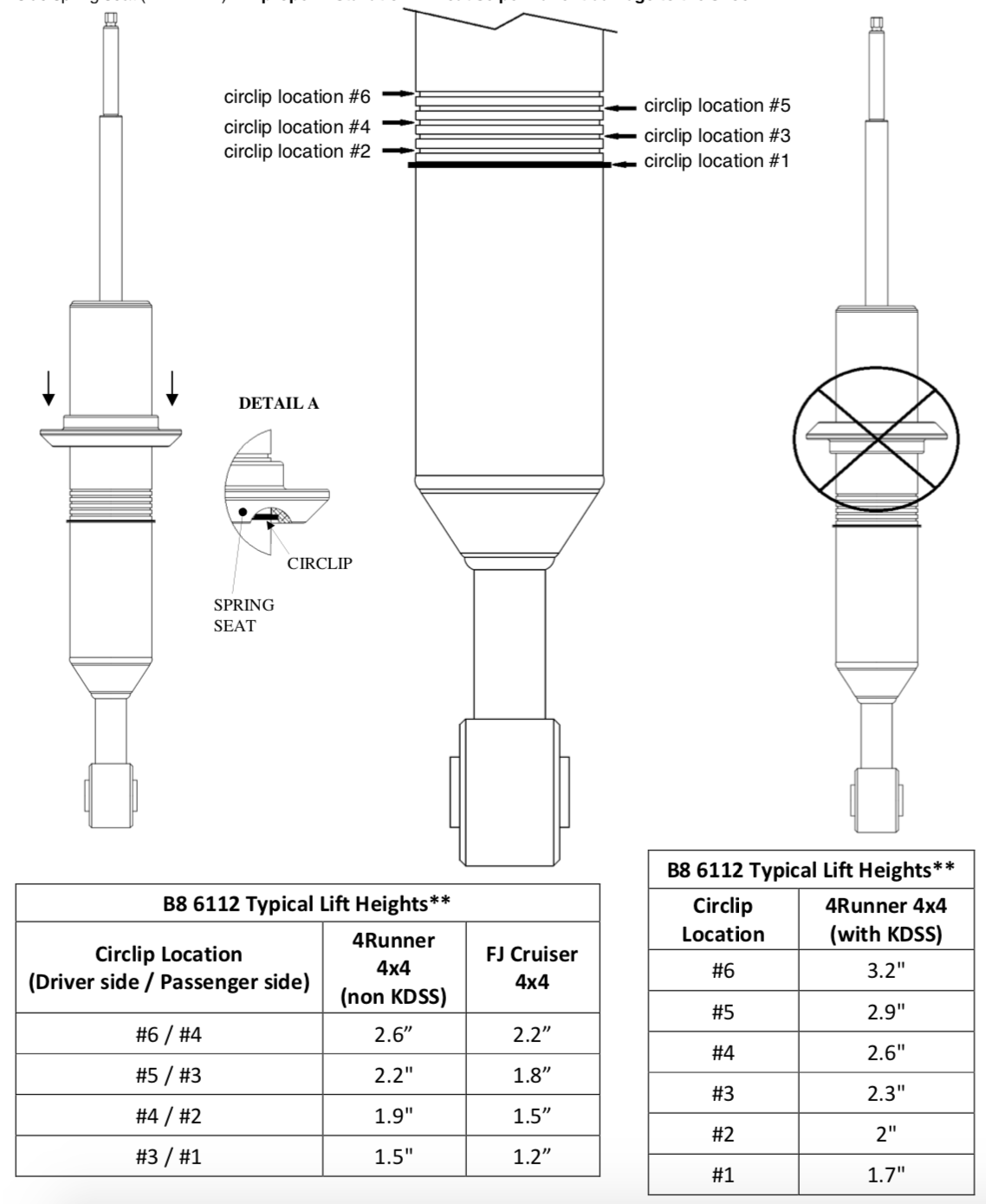

Bilstein 6112 1.5-3.2 inch Medium Duty Lift Kit for 2010-2019 Toyota 4Runner settings
Bilstein 6112 1.5-3.2" Medium Duty(150-200lbs) Coilover Kit for 2010-2023 Toyota 4Runner 4WD

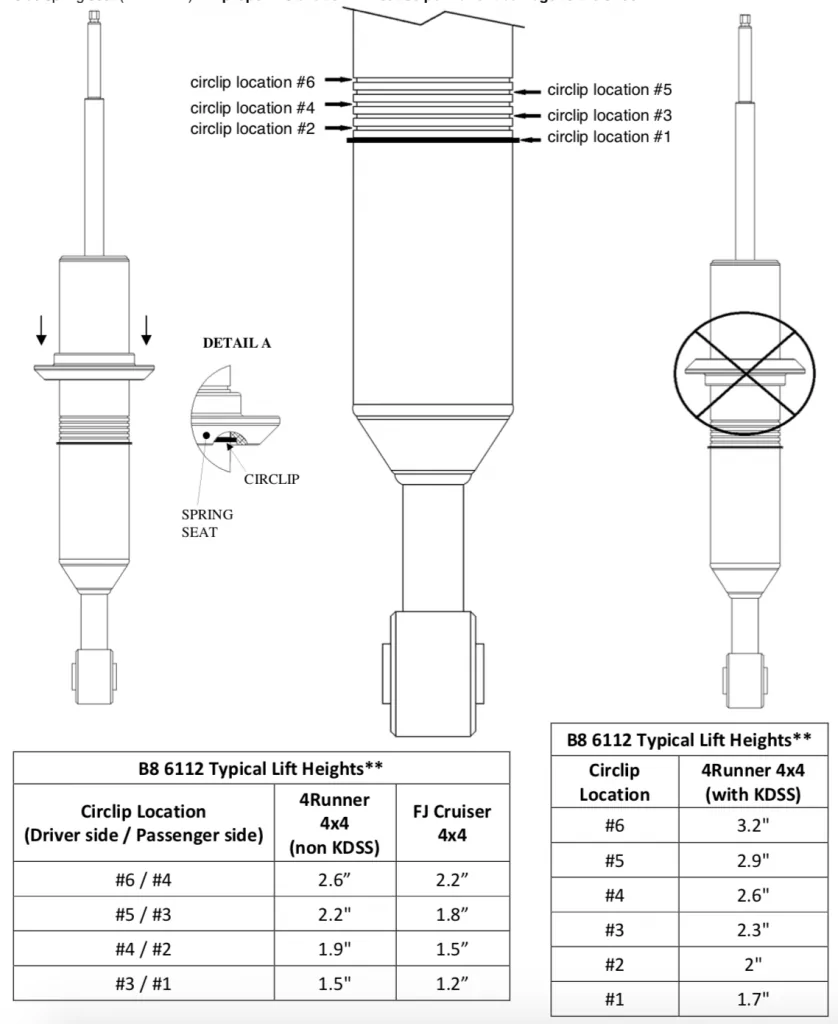

Bilstein 6112 1.5-3.2 inch Medium Duty Lift Kit for 2010-2019 Toyota 4Runner settings

Description

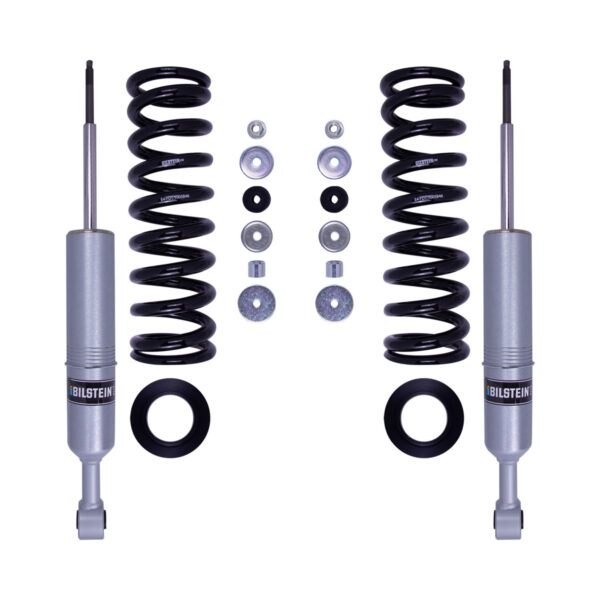

Bilstein 6112 1.5-3.2″ Medium Duty(150-200lbs) Coilover Kit for 2010-2024 Toyota 4Runner 4WD

Bilstein 6112 1.5-3.2″ Medium Duty Coilover Kit for 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 Toyota 4Runner 4WD

Part: 47-311039 (old: 47-281202)

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Fitment notes: For 150-200 lbs additional front weight

Need them assembled?

Customer reviews

Rated 5 out of 5 stars
1 review
5 stars 1 100 %
4 stars 0 0 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

1 review for Bilstein 6112 1.5-3.2″ Medium Duty(150-200lbs) Coilover Kit for 2010-2024 Toyota 4Runner 4WD

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        Will this option work for a 2022 4Runner with KDSS suspension?
      1. 0 votes
        QWill this option work for a 2022 4Runner with KDSS suspension?answer now
        A yes will workbut if you have X-REAS - that system will require disabling
        2. Are these shocks longer than factory shocks? If so, how much?
      2. 0 votes
        QAre these shocks longer than factory shocks? If so, how much?
        There are no answers for this question yet. Answer now
        3. Do i need to change upper arm control with fhis lift kit?
      3. 0 votes
        QDo i need to change upper arm control with fhis lift kit?answer now
        A no need to replace the upper arm control
        A Yes
        4. Can I still use this model if I dont have a winch or a metal bumper?
      4. 0 votes
        QCan I still use this model if I dont have a winch or a metal bumper?answer now
        A yes you can but the ride will feel stiffer
        5. Do you have a phone number for bilstein shock manufacturers do not want to purchase another set and have the same problem. Looked at the diagram and it seems like nothing changed. Really like the shock but the spring has me worried and the actual ride height. Thank you
      5. 0 votes
        QDo you have a phone number for bilstein shock manufacturers do not want to purchase another set a...... Read more
        There are no answers for this question yet. Answer now
        6. The medium duty 6112 is using a heavier spring and the shock settings are staying the same. From the instructions it looks like the same shock. So at the top setting whith the medium spring you will probably get rid of all the nose dive and body sway?
      6. 0 votes
        QThe medium duty 6112 is using a heavier spring and the shock settings are staying the same. From ...... Read more answer now
        A Yes, you are right
        A this has a lot more valving than the standard 6112 and a 700lb spring vs a 600lb
        A Are you getting more than 2.5” of lift? Whith this new valving and spring? I noticed the old 6112 started drooping quite a bit and my tires started to rub on the front fenders.
        A Can you use a spacer whith this shock? Looking at the chart you can only use the 2.5 settings for non Kds 4runner. Is ok to use a .25 or . 50 spacer to try and get 3” of lift up front on the 4runner?
        7. What is the difference between these two springs? Are you actually getting A 3 inch lift whith the 8112 because of the spring or the setting on the shock?
      7. 0 votes
        QWhat is the difference between these two springs? Are you actually getting A 3 inch lift whith th...... Read more answer now
        A Hi Here is the installation instructions for this kit, it will help you understand in more detail.https://productdesk.cart.bilsteinus.com/media/products/bilstein/E4-WM5-Y586A00_0.pdf In this set, the lift is obtained by moving the clips into different grooves
        8. The instructions above show only 6 circlip settings however the shocks have 7. Do you know which clip position will match with the 2.9inch lift above?
      8. 0 votes
        QThe instructions above show only 6 circlip settings however the shocks have 7. Do you know which ...... Read more answer now
        A here is instruction https://productdesk.cart.bilsteinus.com/media/products/bilstein/E4-WM5-Y586A00_0.pdf
        A As stated, those instructions only show 6 positions while the 6112's have 7 positions. That was the question.
        9. Does this kit work with a KDSS equipped 5th gen 4Runner?
      9. 0 votes
        QDoes this kit work with a KDSS equipped 5th gen 4Runner?answer now
        A Yes, it will work.
        10. Can I order the heavy load springs without the strut assembly? I already own the earlier 6112 setup but want to add +150 lbs weight to the front of the truck. Just need the Coil.
      10. 0 votes
        QCan I order the heavy load springs without the strut assembly? I already own the earlier 6112 set...... Read more answer now
        A For these shocks, you need 53-291387 coils part number. They are not in stock unfortunately.-Fits Bilstein 6112 and 8112 shocks only-Not for use with OEM style shocks
