Bilstein 6112 0-3.5″ Front Lift Coilovers for 2010-2024 Toyota 4Runner

SKU: 47-310025_n9
Bilstein 6112 0-3.5 Front Lift Coilovers for 2010-2023 Toyota 4Runner-47-310025
47-310025 clip settings
Bilstein 6112 0-3.5 Front Lift Coilovers for 2010-2023 Toyota 4Runner-47-310025
47-310025 clip settings

Description

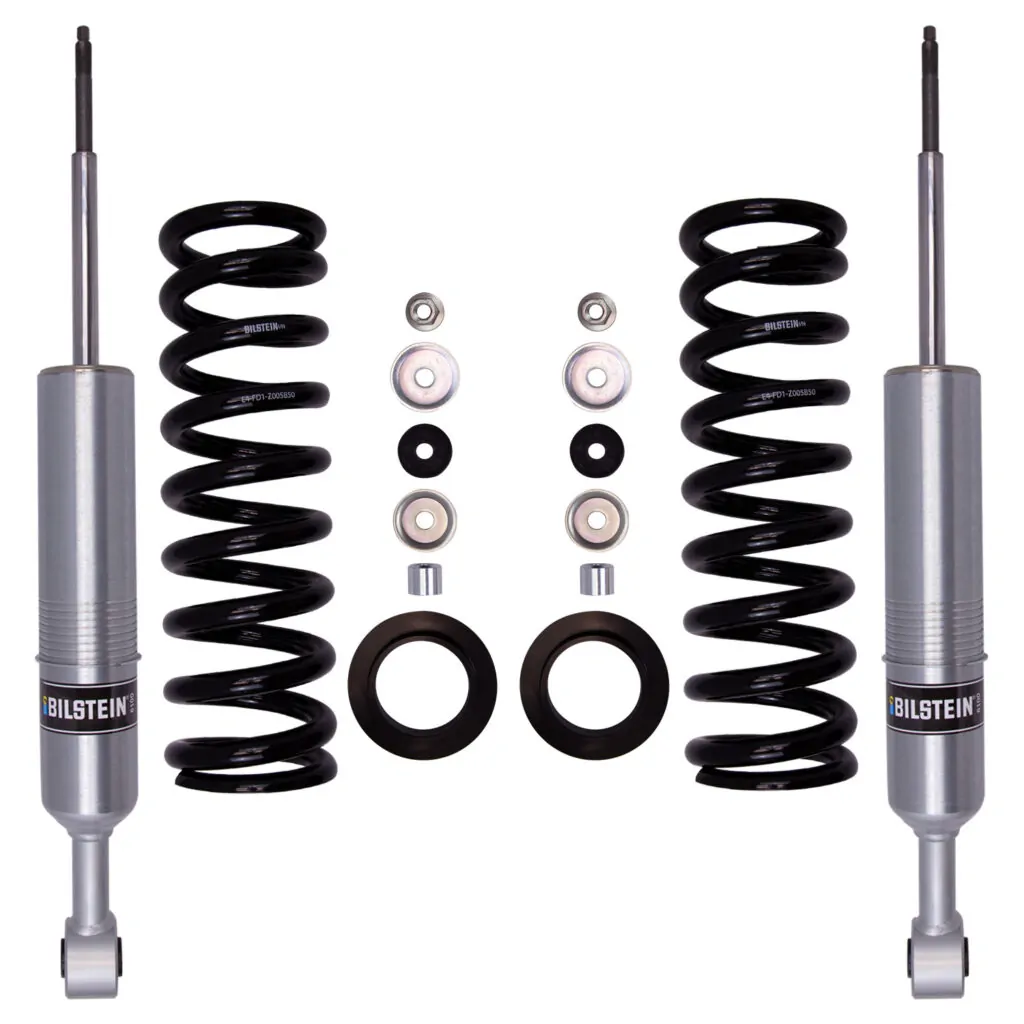

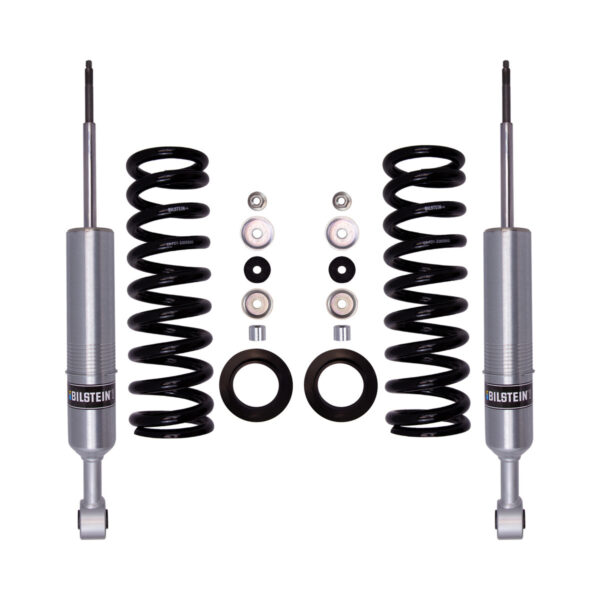

Bilstein 6112 0-3.5″ Front Lift Coilovers for 2010-2024 Toyota 4Runner

Bilstein 6112 0-3.5″ Front Lift Kit for 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2021, 2022, 2023, 2024 Toyota 4Runner

Part: 47-310025

Finish: Zinc Plated
Reservoir: No
Body Design: 60mm ID Snap Ring Grooved Body (Coilover)

Front Shocks Fitment Notes:  Without XREAS Suspension

Designed for the serious off-road adventure seeker, the all new Bilstein B8 6112 kit is the ultimate suspension solution. The Bilstein B8 6112 kit optimizes off-road and on-road capabilities with a 60mm digressive piston for increased damping control. This kit features specially designed cold wound springs and an adjustable spring seat which allows for vehicle leveling, larger tires, and increased ground clearance. The kit comes with (2) 60mm shock absorbers (2) springs and (2) billet spring seats. Bilstein B8 6112 kits are a direct bolt on for late model half-ton trucks and SUVs which utilize a front factory coilover suspension design. The Bilstein B8 6112 kit is for front applications and reuses the OEM top mount and spring isolators. To maximize performance, Bilstein recommends a B8 5160 remote reservoir shock absorber for the rear application.

Tire Info: 285 Tire on the top setting with a coil spring in the rear.

If you need coilovers assembled:

If you need a full kit assembled:

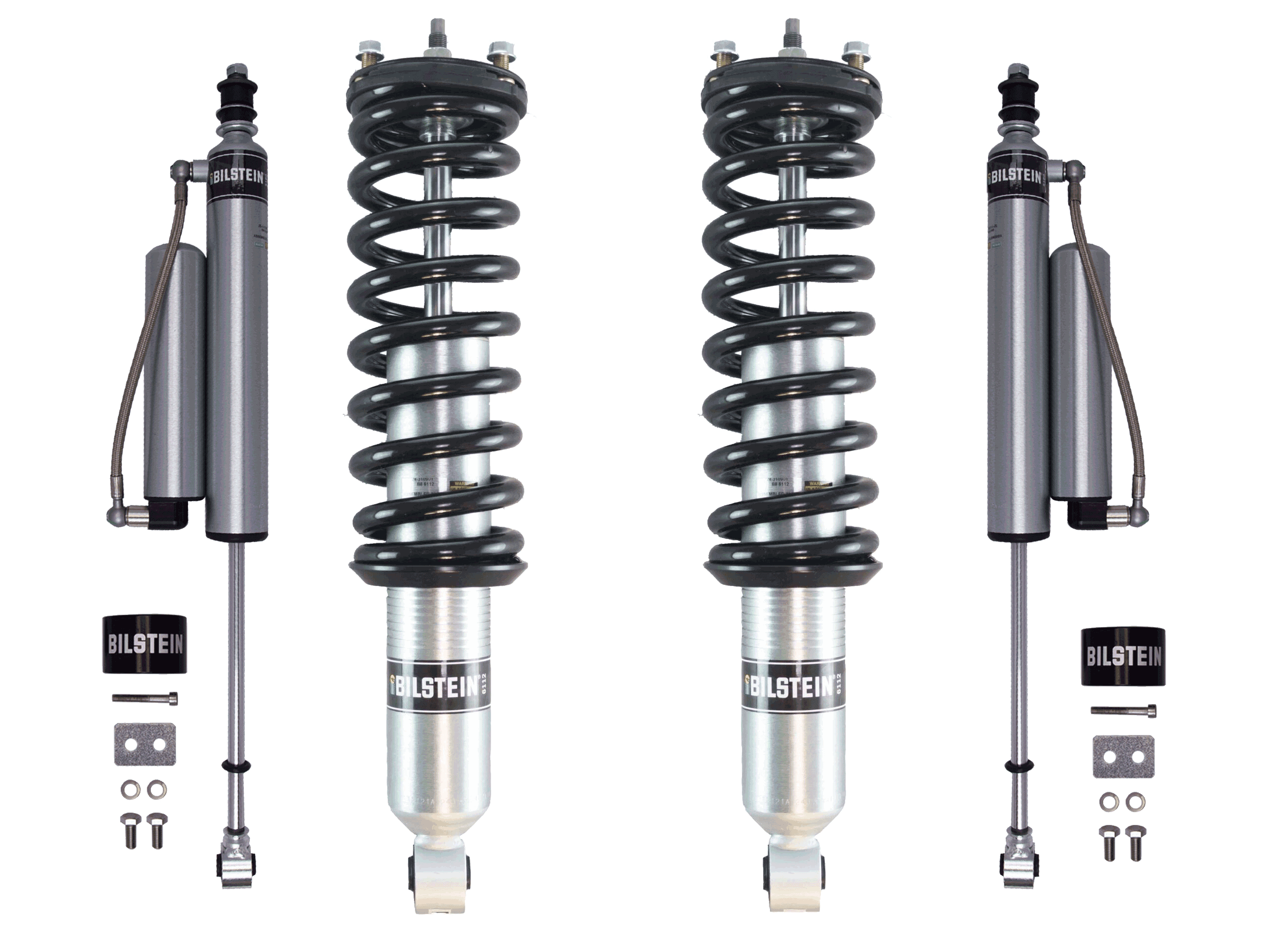

Recommended Shocks for the rear:

Recommended Rear Lift:

Want Medium Duty Spring Rate?

; 6112 Coilover includes Bilstein Coil and Qty 2 of 24-310031 Shocks

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Bilstein 6112 0-3.5″ Front Lift Coilovers for 2010-2024 Toyota 4Runner”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      2019 non kdss with no added weight. 600lb spring and set the clips to the 7 driver and 5 passenger with still a 5/8 lean. This normal? Would it hurt to also add a lean spacer?
    1. 0 votes
      Q2019 non kdss with no added weight. 600lb spring and set the clips to the 7 driver and 5 passenge...... Read more
      There are no answers for this question yet. Answer now
      2. I've installed the 6112 on my 2015 4runner SR5 with the suspension set to the highest setting. I took it to Gateway tire for an alignment and they told me they couldn't re align it do to the lift. Is this a common issue or were they just being lazy? Thanks.
    2. 0 votes
      QI've installed the 6112 on my 2015 4runner SR5 with the suspension set to the highest setting. I ...... Read more
      There are no answers for this question yet. Answer now
      3. Are 5160 reservoir shocks ride hight adjustable or do you have to put OME springs in the rear?
    3. 0 votes
      QAre 5160 reservoir shocks ride hight adjustable or do you have to put OME springs in the rear?answer now
      A rear shocks do not lift the rear by themselves - you can use them with lifted coils
      4. How can I lift the 6112' to a 3 inch lift properly 2012 4runner for some rock crawling
    4. 0 votes
      QHow can I lift the 6112' to a 3 inch lift properly 2012 4runner for some rock crawlinganswer now
      A The most you can get with this kit is 2.5 ″ lift height Installation Instructions https://productdesk.cart.bilsteinus.com//media/products/bilstein/E4-WM5-Y506A00_4.pdf
      5. The shocks 6112 is good for Toyota 4Runner 93 sr5 4x4?
    5. 0 votes
      QThe shocks 6112 is good for Toyota 4Runner 93 sr5 4x4?
      There are no answers for this question yet. Answer now
      6. Is there a warranty on the shock?
    6. 0 votes
      QIs there a warranty on the shock?answer now
      A Bilstein shocks are under warranty. Signs of misuse or abuse will void your warranty. Minor leaks are not considered a warranty issue. More info about Bilstein USA Warranty on 5100, 5125, and 5160 shocks can be found here: https://us.bilstein.com/en/blog/understanding-bilstein-warranty-procedures-policy/
      7. What about 4runners with KDSS? Any issues?
    7. 0 votes
      QWhat about 4runners with KDSS? Any issues?answer now
      A no issues at all, they will fit
      8. Can you run the 6112 as a leveling kit in the front and OEM stock suspension in the back? And by can you I really mean should you? Will it ride weird?
    8. 0 votes
      QCan you run the 6112 as a leveling kit in the front and OEM stock suspension in the back? And by ...... Read more answer now
      A The ride is good, you can use middle clip setting for leveling
      9. What is the length of the coil spring and are they 600, 650 or 700lbs?
    9. 0 votes
      QWhat is the length of the coil spring and are they 600, 650 or 700lbs?answer now
      A they are about 10% stronger tan stock coils
      10. Is there a set of 6112s that reuse the OEM spring?
    10. 0 votes
      QIs there a set of 6112s that reuse the OEM spring?answer now
      A unfortunately 6112s are wider, so oem coils will not work.5100s reuse oem coils
      11. Are these springs able to handle more weight than the stock springs?
    11. 0 votes
      QAre these springs able to handle more weight than the stock springs?answer now
      A this spring is about 10% stronger than the stock If you have a heavy bumper or winch, you will need another spring
      12. Could I use this kit as a leveling kit on a 2019 4runner off road?
    12. 0 votes
      QCould I use this kit as a leveling kit on a 2019 4runner off road?answer now
      A Yes it Will Fit
      13. Will
    13. 0 votes
      QWillanswer now
      A This LIFT KIT is fit for 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 Toyota 4Runner
      14. Can you confirm a few things. Would you recommend to replace the OEM UCA’s with this lift kit set st 1.75” ? I was thinking Camburg UCA’s but not sure if it will create kinked/offset position in the camber?Also with this set at 1.75” do I need the sway bar spacers ? Will the coil clear the sway bar on 2018 4Runner TRD Off Road non KDSS?
    14. 0 votes
      QCan you confirm a few things. Would you recommend to replace the OEM UCA’s with this lift kit set...... Read more answer now
      A Sway bar relocation is not needed.UCA's are recommended but not require for 3'' lift, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
      15. do these come with the 7 rings pictured on the shocks? I also saw these on amazon for like 20
    15. 0 votes
      Qdo these come with the 7 rings pictured on the shocks? I also saw these on amazon for like 20answer now
      A Yes, there are 7 settings. No, we can't sell this kit for $20
      16. Do I need any additional parts if I'm installing this on my 2017 4runner Trd off road premium w/ kdss?
    16. 0 votes
      QDo I need any additional parts if I'm installing this on my 2017 4runner Trd off road premium w/ ...... Read more answer now
      A No additional parts needed
