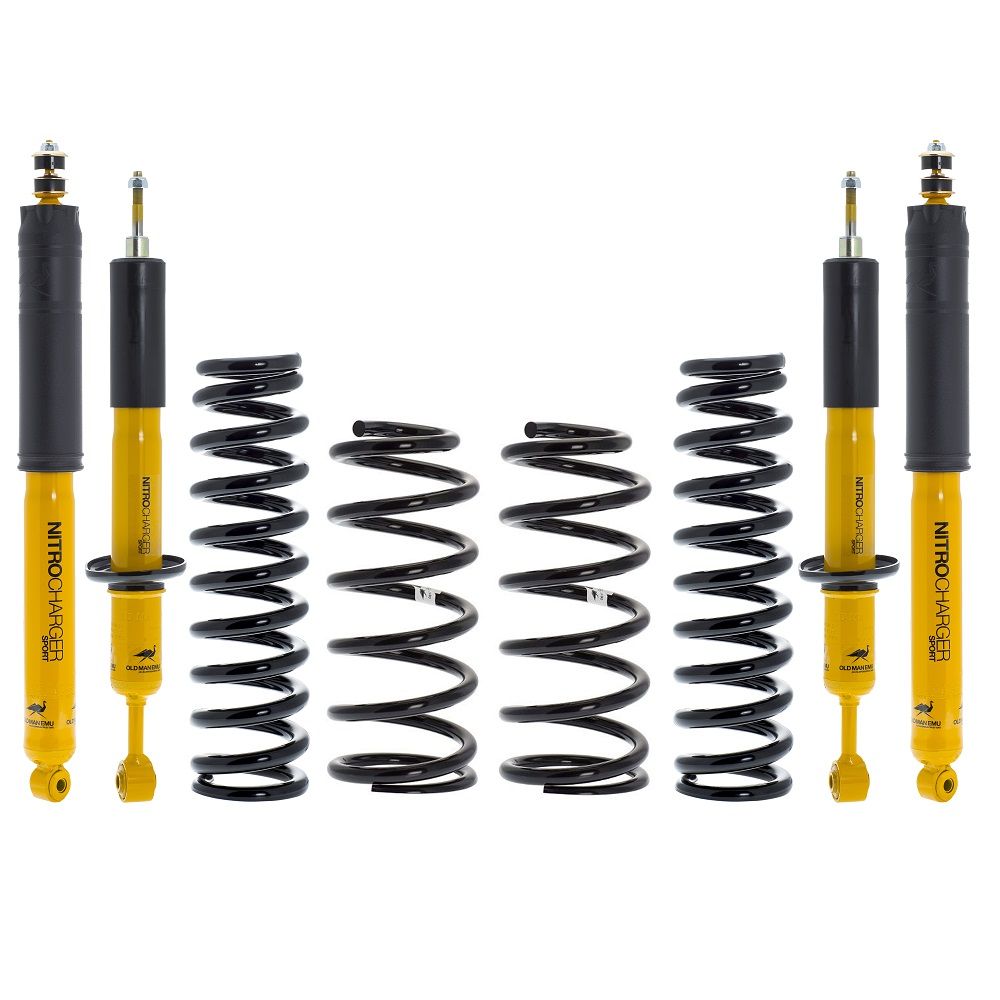

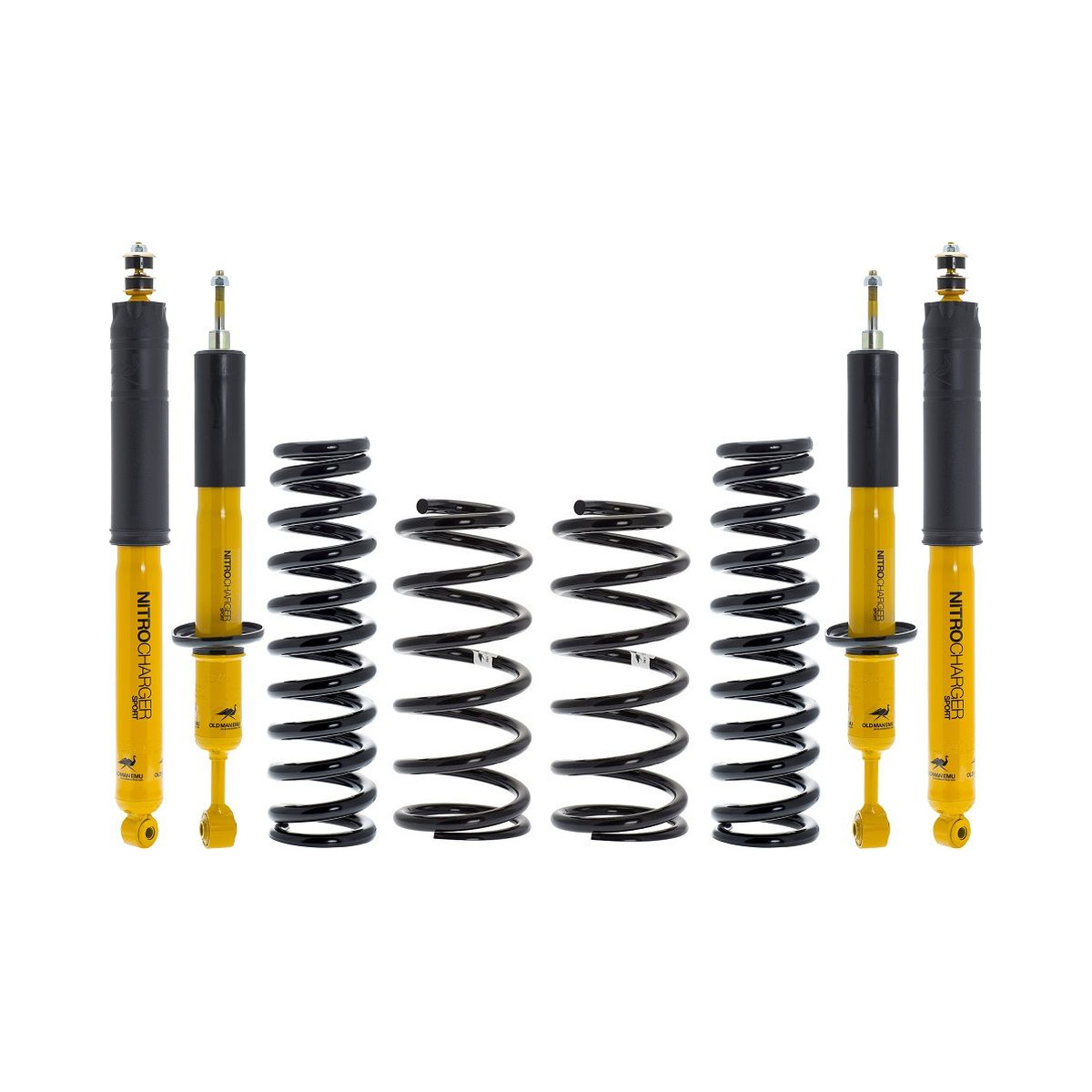

ARB / OME 3″ lift kit for 2010-2024 Toyota 4Runner

SKU: OME-4R210
3.8 out of 5 based on 5 customer ratings
(5 customer reviews)
Sale!
ARB / OME 3" lift kit for 2010-2023 Toyota 4Runner
ARB / OME 3" lift kit for 2010-2023 Toyota 4Runner

Description
ARB / OME 3″ lift kit for 2010-2024 Toyota 4Runner

ARB / OME lift kit for 2010, 2011, 2012, 2013, 2014, 2015, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2021, 2022, 2023, 2023 Toyota 4Runner 4WD/2WD

Part: OME-4R210

Need them assembled?

The relationship between vehicle weight and suspension is where Old Man Emu gets its name – the emu is a large Australian flightless bird, when it runs, its powerful legs absorb most of the impact, allowing it to move over all types of terrain while its body remains virtually motionless. This is what Old Man Emu strives to achieve with its range of fully integrated 4×4 shocks and suspension systems. Old Man Emu suspension systems include carefully matched spring and shock combinations engineered to improve vehicle ride, handling and control under various loads.

This kit has been specifically designed for your 2010+ 4Runner and has been proven in the harsh conditions of the Australian Outback.

One coil spring option 4001 with multiple “rings” for extra weight: No Bar, Bar or Winch only and Bar + Winch vehicle setups. Factory geometry allowed for a 2-inch lift and while still maintain an adequate level of droop.

Select weight settings from options:

  • Stock Weight 2″ Lift (Clip 2/1)
  • Alloy Bull Bar Only 2″ Lift (Clip 3/2)
  • Steel Bull Bar Only 2″ Lift (Clip 4/3)
  • Bull Bar & Winch 2″ Lift (Clip 5/4)
  • Bull Bar, Winch & Accessories 2″ Lift (Clip 5)

Rear coils: Choose one option in dropdown:

  • OME 2889: Medium 3 inch lift coils: Uses 60080 rear shocks
  • OME 2898: 440 lbs Constant Load Heavy 3 inch lift coils. Uses 60080 rear shocks
  • OME 2899: 880 lbs Constant Load Heavy 3 inch lift coils. Uses 60080 rear shocks

Includes 93010 (old: 90010) Nitrocharger Sport Front Shocks.

NOTE: Med and Heavy coils are rated to handle additional weight from aftermarket bumpers, winches, and accessories and should NOT be used without stated weight already in or installed at all times. All lift figures are based on averages.

Coilovers do not come assembled

ARB – OME 3 inch lift kit for 2010-2019 Toyota 4Runner install instructions

Customer reviews

Rated 3.8 out of 5 stars
5 reviews
5 stars 2 40 %
4 stars 2 40 %
3 stars 0 0 %
2 stars 0 0 %
1 star 1 20 %

5 reviews for ARB / OME 3″ lift kit for 2010-2024 Toyota 4Runner

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        How will installing this lift disable the KDSS system?
      1. 0 votes
        QHow will installing this lift disable the KDSS system?answer now
        A KDSS has nothing to do with this set and does not interfere with its work
        2. Do non KDSS trucks need the spacer/trim packer to sit level?
      2. 0 votes
        QDo non KDSS trucks need the spacer/trim packer to sit level?
        There are no answers for this question yet. Answer now
        3. Does this work on a Prado 150 ? Do I need a Upper Arm ?
      3. 0 votes
        QDoes this work on a Prado 150 ? Do I need a Upper Arm ?answer now
        A Yes it will work if you have rear coil spring suspension (not rear air leveling suspension).UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
        4. I have a 2016 Toyota 4runner SR5 4WD with a lift kit which consists of a 3" front spacer and a 2.5" rear block. Will i still need to use the 3" front spacer and 2.5" rear block for my lift kit for the 3" OME kit or will i no longer need them?
      4. 0 votes
        QI have a 2016 Toyota 4runner SR5 4WD with a lift kit which consists of a 3" front spacer and a 2....... Read more answer now
        A If you take this kit you will not need to use your 3 "front spacer and 2.5" rear block Just ask you to pay attention to the drop-down menu on the right side and make the right choice
        5. I have a 96 Toyota 4Runner 2.7 L engine ( 2WD 4 cylinder ) and I want do 3” lift kit to it. Please I need to know what’s the best kit and bigger size of tires and wheels I can get? ( keep a comfortable and smooth drive ).
      5. 0 votes
        QI have a 96 Toyota 4Runner 2.7 L engine ( 2WD 4 cylinder ) and I want do 3” lift kit to it. Pleas...... Read more answer now
        A Hello The maximum that you can use on your truck when lifting 3 inches is Lift Size - 3" / 2" Rim* - 8" Tire Width* - 12" Tire* - 32.5" Backspace* - 4.5" we can offerhttps://www.suspensionlifts.com/product-category/toyota-4runner/1996-2002/lift-kits-96-02/?swoof=1&pa_product-type=lift-kit&really_curr_tax=57-product_cat these sets all keep comfortable and smooth movement
        A Hello, thank you for the answer, when I press the link you you provided it send me to a list of kits, I don’t know witch one it will work for me, can you please send for me the best lift kit that will match with details thank you.
        6. So with this kit you would have everything you would need to give your rig lift? Besides eventually getting UCAs.
      6. 0 votes
        QSo with this kit you would have everything you would need to give your rig lift? Besides eventual...... Read more answer now
        A UCA's are recommended but not required, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
        7. A medium coil option for front and rear have my truck sit level in lift height?
      7. 0 votes
        QA medium coil option for front and rear have my truck sit level in lift height?
        There are no answers for this question yet. Answer now
        8. Do you require a differential drop for this setup?
      8. 0 votes
        QDo you require a differential drop for this setup?answer now
        A Diff drop kit is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life.
        9. What UCA do you recommend on a 5thgen 4Runner
      9. 0 votes
        QWhat UCA do you recommend on a 5thgen 4Runneranswer now
        A Great question!! So Total Chaos upper control arms do require some maintenance specially on the uniball since its exposed, Pretty much once every 2 weeks the uniball needs to be cleaned with a microfiber towel and add a couple drops of Triflo lubricant otherwise clunking/squeaking sounds will come out of it. One major thing to keep in mind is that Total Chaos is a high performance UCA and everything is metal against metal so definitely weird sounds will come out of it even with proper maintenance. NOTE: This UCA's are not adjustable but the arm is designed to give the vehicle proper caster and more articulation on the front end SPC upper control arms are more designed for daily driving and tackle easy to moderate trail, also the upper ball joint is fully adjustable and regreasble as well. This SPC UCA's are pretty much maintenance free. NOTE: SPC UCA's will help to get the vehicle aligned and helps a lot with caster and camber If the client is planning on tackling really hard trails Total Chaos is a great choice or if he/she is planning on daily driving and doing easy/moderate trails SPC is the way to go
        10. Will ordering the rear medium coil (889) with light front coil (884) cause the vehicle to have an uneven rake. I.E. will the vehicle sit higher from the rear? Or will this be an even lift combo.
      10. 0 votes
        QWill ordering the rear medium coil (889) with light front coil (884) cause the vehicle to have an...... Read more answer now
        A Coils height is the same, medium or light is not about the lift but about the coils stiffness - please choose according to additional weight carried
        11. Do you require replacement with an adjustable UCA or will oem UCA work with lift?
      11. 0 votes
        QDo you require replacement with an adjustable UCA or will oem UCA work with lift?answer now
        A UCA's are recommended but not require, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.
        12. Are these shocks adjustable? If not do you have a comparable system that is adjustable?
      12. 0 votes
        QAre these shocks adjustable? If not do you have a comparable system that is adjustable?answer now
        A We can offer this kit * * * https://suspensionlifts.com/shop/toyota-4runner/2010-2018/lift-kits-10-17/toytec-boss-1-3-lift-performance-suspension-kit-2010-4runner-fj-cruiser/ * * * with front adjustable coilovers
        13. Will the SPC adjustable UCAs work in conjunction with this lift kit?
      13. 0 votes
        QWill the SPC adjustable UCAs work in conjunction with this lift kit?answer now
        A Yes
        14. Is there a kit that wouldn't require disabling the KDSS?
      14. 0 votes
        QIs there a kit that wouldn't require disabling the KDSS?answer now
        A Unfortunatelly no. Only thin spacers (1/2'' lift) can be used with KDSS, all serious kits with aftermarket long travel shocks and offroad coil springs will require KDSS disabling
        15. Does this kit work if you have KDSS on your vehicle?
      15. 0 votes
        QDoes this kit work if you have KDSS on your vehicle?answer now
        A It will work but the instalaltion of this kit will disable KDSS
        A You don't want to disable KDSS. My KDSS is great! However when lifts get over approximately 3 inches in front and 2 inches in the rear it can start to cause problems. As long as you don't raise your 4runner more than this, KDSS works fine. I don't see anything about this kit that should require disabling KDSS.
