King 3″ Performance Lift Kit for a 2010-2024 Toyota 4Runner

SKU: KN4R10
4.5 out of 5 based on 2 customer ratings
(2 customer reviews)
King 3 inch Lift Kit for a 2010-2016 Toyota 4Runner
King 3 inch Lift Kit for a 2010-2016 Toyota 4Runner

Description
King 3″ Performance Lift Kit for a 2010-2024 Toyota 4Runner

King 3″ Lift Kit for a 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2021, 2022, 2023 Toyota 4Runner

Part Number: KN4R10 (old: KS4R10)

Need this kit with compression adjusters?

We have put together a complete kit for tackling the toughest trails. This kit is not a leveling kit, but designed with strength and maximum performance in mind.

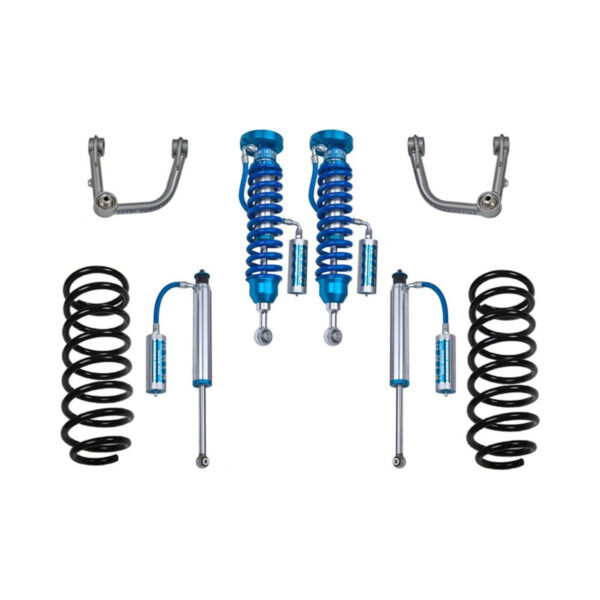

Includes:

  • 25001-133 (old: 25001-278) or 25001-243 – King Front 2.5 Remote Reservoir Coilovers (part # changes depending on KDSS options)
    • King’s new line of Original equipment manufacturer, (OEM), shock upgrade kits provide a bolt on suspension system that elevates your on and off-road performance to unmatched levels. Each kit has been subjected to punishing real world testing to develop the optimal damping curves and spring rates for your vehicle. Built with the same quality of materials and precise tolerances found on our high end race shocks our OEM upgrade kits enable you to experience the famous King ride quality on your daily driver or prerunner.
  • 25001-125 (old: 25001-279) – King 2.5 Rear Remote Reservoir Shocks
    • Measurements: Extended – 24.29″, Collapsed – 15.58″
    • Built with race winning design features our kits come complete and provide simple 100% bolt on installation with no cutting or welding done to your vehicle.
**Add compression adjustability to your front and rear shocks by choosing this option above as a separate product. (Includes King part #’s 25001-133A (old: 25001-278A) w/o KDSS or 25001-243A with KDSS and rear 25001-125A (old: 25001-279A))
  • Revtek Diff Drop Kit – Front Differential Drop Kit **Recommended for lifted 4×4 FJ’s and 4Runners
  • ARB/OME 2″ Rear Coils
  • TC 96504 Total Chaos Uniball upper control arms
    • 4130 chromoly tubular upper control arms are 100% bolt on and hand crafted in the U.S.A.
    • CNC machined slug adapters press into the spindle and convert the factory ball joint to a 1″ uniball for added component strength & maximum wheel travel.
    • Total Chaos includes 1″ I.D. uniballs that feature a heat treated stainless steel ball & heat treated stainless steel race for maximum corrosion resistance and component longevity. These uniball’s also features a military grade PTFE woven fabric liner that helps prevent noise.
    • Custom profile upper and lower hi-misalignment spacers maximize droop wheel travel and are machined from heat treated 17-4 stainless steel. The lower hi-misalignment spacer registers into the slug adapter for maximum strength.
    • Upper control arms combined with extended length coil over shocks will allow for up to 1″ of additional wheel travel.
    • Urethane bushings reduce bushing deflection compared to stock rubber bushings.
    • Control arm pivots include zerk fittings to grease the urethane bushings & inner sleeves without disassembly.
    • 2 stage powder coat process includes a durable clear coat to provide a long lasting finish.
    • Complete grade 8 hardware kit is included.

Tire Info:

Q. What size tires can I run on stock wheels with the 3″ kit?
We have not tested every wheel/tire size on these trucks, but 265/70/17 tires will fit the 4Runner on stock wheels.

Q. What size tires can I run on a 17×8″ wheel?
With 4″ or 4.5″ back spacing we have several trucks running 285/70/17 tires, but they may rub on the front depending on wheel width, and back spacing. We do not guarantee any tire/ wheel fitment and recommend you have your tire dealer install and “test fit” any wheel tire combination you are considering

Customer reviews

Rated 4.5 out of 5 stars
2 reviews
5 stars 1 50 %
4 stars 1 50 %
3 stars 0 0 %
2 stars 0 0 %
1 star 0 0 %

2 reviews for King 3″ Performance Lift Kit for a 2010-2024 Toyota 4Runner

    Add a review

    Use one of the allowed file type: jpg,png,jpeg.

      Questions and answers of the customers

        Are you able to adjust the front only 1.5" and the rear either 0 or .75" ?
      1. 0 votes
        QAre you able to adjust the front only 1.5" and the rear either 0 or .75" ?answer now
        A Front shocks can be adjusted in height, but rear ones are not
        2. What is the minimum lift (fron and rear) one could have with the King set-up with the OME/ARB Medium springs for a KDSS?
      2. 0 votes
        QWhat is the minimum lift (fron and rear) one could have with the King set-up with the OME/ARB Med...... Read more answer now
        A This Lift Kit is designed to only take 3 inches after being installed. KDSS doesn't matter
        3. Do the stock TRD wheels work with these UCA’s running a 285 70 17 or is more backspacing required? Thank you.
      3. 0 votes
        QDo the stock TRD wheels work with these UCA’s running a 285 70 17 or is more backspacing required...... Read more answer now
        A These wheels will fit without rubbing:Rim*  8" Tire Width* 12" Tire* 32.5" Backspace* 4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help
        4. 2019 trd trail 4runner - With the extra weight of a bumper and winch (200lbs) will the king front spring be available to handle it and maintain 3" lift?
      4. 0 votes
        Q2019 trd trail 4runner - With the extra weight of a bumper and winch (200lbs) will the king front...... Read more answer now
        A These front coils are not designed to accommodate this weight while maintaining 3 inches of lift. but we can offer you different set options. Which will be able to compensate your weight from the bumper and winch. Pay attention to the drop-down menu on the right side https://www.suspensionlifts.com/shop/toyota-4runner/2010-2019/toytec-boss-3-inch-lift-kit-2010-2019-toyota-4runner/ https://www.suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/complete-lift-kits/2010-fj-cruiser4runner-ultimate-3-inch-lift-package/ https://www.suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/complete-lift-kits/arb-ome-3-lift-kit-for-2010-2017-toyota-4runner/
        5. How hard is this to install on a scale of 1-10 How long would it take for an average guy with some mechanical experience.
      5. 0 votes
        QHow hard is this to install on a scale of 1-10 How long would it take for an average guy with som...... Read more answer now
        A Hi Typically, the installation of such a kit takes 4-8 hours, depending on the workshop equipment and the mechanic's experience. How long it will take from you depends on how your workshop is equipped and how much time you have for it. In a nutshell, this is not a complex set and in principle it is not difficult to install
        6. I have a 2019 4Runner with the 3rd row seating. I regularly keep 50 lbs worth of gear in back, along with a Hi-Lift jack mounted on the roof. I occasionally tow a side-by-side and/of have six people as cargo. But, I am normally alone in it. I am town between the regular and HD rear springs. Advice?
      6. 0 votes
        QI have a 2019 4Runner with the 3rd row seating. I regularly keep 50 lbs worth of gear in back, al...... Read more answer now
        A You would be fine with the regular. If you go HD, you'll probably get a little extra lift out of them which will in turn make it look like your rear end is much higher than the front unless you adjust the preload on the coilovers. If you planned on putting on an aftermarket bumper, then I would consider the HD springs. That is unless of course you want the extra lift. You'll likely get close to 3" out of those as opposed to 2" with the regular.
        7. If purchased. What other product would I need to buy to level my T4R?
      7. 0 votes
        QIf purchased. What other product would I need to buy to level my T4R?answer now
        A The rear will sit a little higher than the front but when you have gear, it will sag and will be more level. If you really want to level it, you can adjust the preload of the coilovers increasing their ride height or you could add a shim on top of them. If you add a shim, you'll want extended bolts too. Adjusting the ride height too high may cause a rougher ride.
        8. Can these be ordered with a 650 lb front spring rate?
      8. 0 votes
        QCan these be ordered with a 650 lb front spring rate?answer now
        A Yes but such coilovers need to be custom built it will take more than 4 weeks
        9. If I don't buy the compression adjuster, what is the stock compression set at? Stiff, soft or middle?
      9. 0 votes
        QIf I don't buy the compression adjuster, what is the stock compression set at? Stiff, soft or mid...... Read more answer now
        A It's middle setting
        10. Sorry, I meant can you add an option for the heavy duty rear coils. Also, I should be ordering this kit this week. Do you have it in stock?
      10. 0 votes
        QSorry, I meant can you add an option for the heavy duty rear coils. Also, I should be ordering th...... Read more answer now
        A Yes, added it now.
        11. Would you be able to add the option for the heavy duty springs with this kit?
      11. 0 votes
        QWould you be able to add the option for the heavy duty springs with this kit?answer now
        A Yes, added it now.
        12. Is there any mounting brackets for the front and rear remote reservoirs?
      12. 0 votes
        QIs there any mounting brackets for the front and rear remote reservoirs?answer now
        A Hello Most likely no There is no section in the specification that describes mounting brackets
        13. Will there be some helpful installation instructions included?
      13. 0 votes
        QWill there be some helpful installation instructions included?answer now
        A You may refer to the similar kit installation instruction * * * https://suspensionlifts.com/wp-content/uploads/2013/04/BilsteinLifts_SPC-25480_UCAs_fot-Toyota_manual.pdf
        14. Can I order this kit and replace the total chaos uca's for the spc uca's?
      14. 0 votes
        QCan I order this kit and replace the total chaos uca's for the spc uca's?answer now
        A Yes, sir, we can change to other UCAs
        A You can choose this option right now from the drop down menu
        15. How long will it take from the time the order is placed, until shipped?
      15. 0 votes
        QHow long will it take from the time the order is placed, until shipped?answer now
        A 1-2 Days
        16. How tall are the coilover springs?
      16. 0 votes
        QHow tall are the coilover springs?
        There are no answers for this question yet. Answer now
        17. What is the sprig rate of the front coils included in this kit?
      17. 0 votes
        QWhat is the sprig rate of the front coils included in this kit?answer now
        A 600LB
        18. do you have this kit in stock at this time? would like to purchase.
      18. 0 votes
        Qdo you have this kit in stock at this time? would like to purchase.answer now
        A Yes, we have the kit in stock now.
        19. Will this kit fit a 2019 T4R ORP W/KDSS or do you sell one that does?
      19. 0 votes
        QWill this kit fit a 2019 T4R ORP W/KDSS or do you sell one that does?answer now
        A Yes, it will fit.
        20. Does this kit have a KDSS sway bar drop spacer?
      20. 0 votes
        QDoes this kit have a KDSS sway bar drop spacer?answer now
        A Hello If you choose from the dropdown list no KDSS or with KDSS This should solve all your problems.
        21. I have a 2016 SR5 4runner. I want a firmer ride with less roll (bounce) and a lot less nose dive. I want a three inch lift. Are your products adjustable? If so, how? only on the rack? How much are they to rebuild and how long does the build last? I plan to drive city 90 percent and have a whole lot of fun 10 percent of time.
      21. 0 votes
        QI have a 2016 SR5 4runner. I want a firmer ride with less roll (bounce) and a lot less nose dive....... Read more
        There are no answers for this question yet. Answer now
        22. What is available to guard the shocks from damage?
      22. 0 votes
        QWhat is available to guard the shocks from damage?
        There are no answers for this question yet. Answer now
        23. What’s the difference between the regular ones and the extended travel ones if you don’t mind to explain? I’m just trying to get some infor before making a decision.Thank you in advance.
      23. 0 votes
        QWhat’s the difference between the regular ones and the extended travel ones if you don’t mind to ...... Read more answer now
        A There is a small spacer in the shock shaft, that when removed, gives you .25" more travel at the shock, which equates to 1/2" at the wheel. This is per Jason Gonzalez, lead sales at King Shocks.
        24. The King Shocks 25001-278 on this kit are Extended Travel shocks?
      24. 0 votes
        QThe King Shocks 25001-278 on this kit are Extended Travel shocks?answer now
        A No, those are special order
        A What’s the difference if you don’t mind to explain? I’m just trying to get some infor before making a decision.Thank you in advance.
        25. Can the 3" shocks adjust to 4"
      25. 0 votes
        QCan the 3" shocks adjust to 4"answer now
        A It's not recomended to have more then 3'' of suspension lift without serious modifications
        26. Is the entire Kit in stock and ready to ship now?
      26. 0 votes
        QIs the entire Kit in stock and ready to ship now?
        There are no answers for this question yet. Answer now
        27. Is this kit strictly 3” lift in the front and 2” rear or adjustable 0-3” front and 0-2” rear?
      27. 0 votes
        QIs this kit strictly 3” lift in the front and 2” rear or adjustable 0-3” front and 0-2” rear?...... Read more answer now
        A Front is adjustable, rear is 2'' for stock weight
        28. Can you buy shocks separately?
      28. 0 votes
        QCan you buy shocks separately?answer now
        A Yes, it's possible.Do you need font + rear shocks?
        29. Will King 3″ Lift Kit for a 2010-2016 Toyota 4Runner fit a 2016 Lexus Gx460?
      29. 0 votes
        QWill King 3″ Lift Kit for a 2010-2016 Toyota 4Runner fit a 2016 Lexus Gx460?answer now
        A Can't say exactly - we haven't tested it by ourselves.Can say that this kit * * * https://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/complete-lift-kits/2010-fj-cruiser4runner-ultimate-3-inch-lift-package/ * * * will fit the Lexus GX460 - - - This option * * * https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-rear-lifts/rear-coil-conversion-kit-for-toyota-4runner-lexus-gx470/ * * * may need ordering
        30. Do you have this kit in stock and ready to ship out? King 3" Lift Kit for a 2010-2016 Toyota 4Runner Compression Adjusters: Upgrade Front & Rear Shocks (+$600) ($600.00) Vehicle as KDSS?: No 1 × $4,099.99
      30. 0 votes
        QDo you have this kit in stock and ready to ship out? King 3" Lift Kit for a 2010-2016 Toyota 4Run...... Read more answer now
        A Today we have the front in stock but the rear is about 2-4 weeks
        31. Does this kit come with the mounting for the front and rear remote reservoir?
      31. 0 votes
        QDoes this kit come with the mounting for the front and rear remote reservoir?
        There are no answers for this question yet. Answer now
        32. Does this kit gave an option for piggyback shocks or only remote reservoir?
      32. 0 votes
        QDoes this kit gave an option for piggyback shocks or only remote reservoir?answer now
        A Unfortunately we do not have any other options
        33. Does this kit come with the differential drop kit? And is it a 3" front lift and 2" rear lift?
      33. 0 votes
        QDoes this kit come with the differential drop kit? And is it a 3" front lift and 2" rear lift?answer now
        A yes and yes
