Revtek 3″ Lift Kit / Suspension for 2010-2024 Toyota 4Runner 4WD/2WD

SKU: REV432-4R
REVTEK 3 inch LIFT KIT - SUSPENSION FOR 2010-2020 TOYOTA 4RUNNER 4WD-2WD

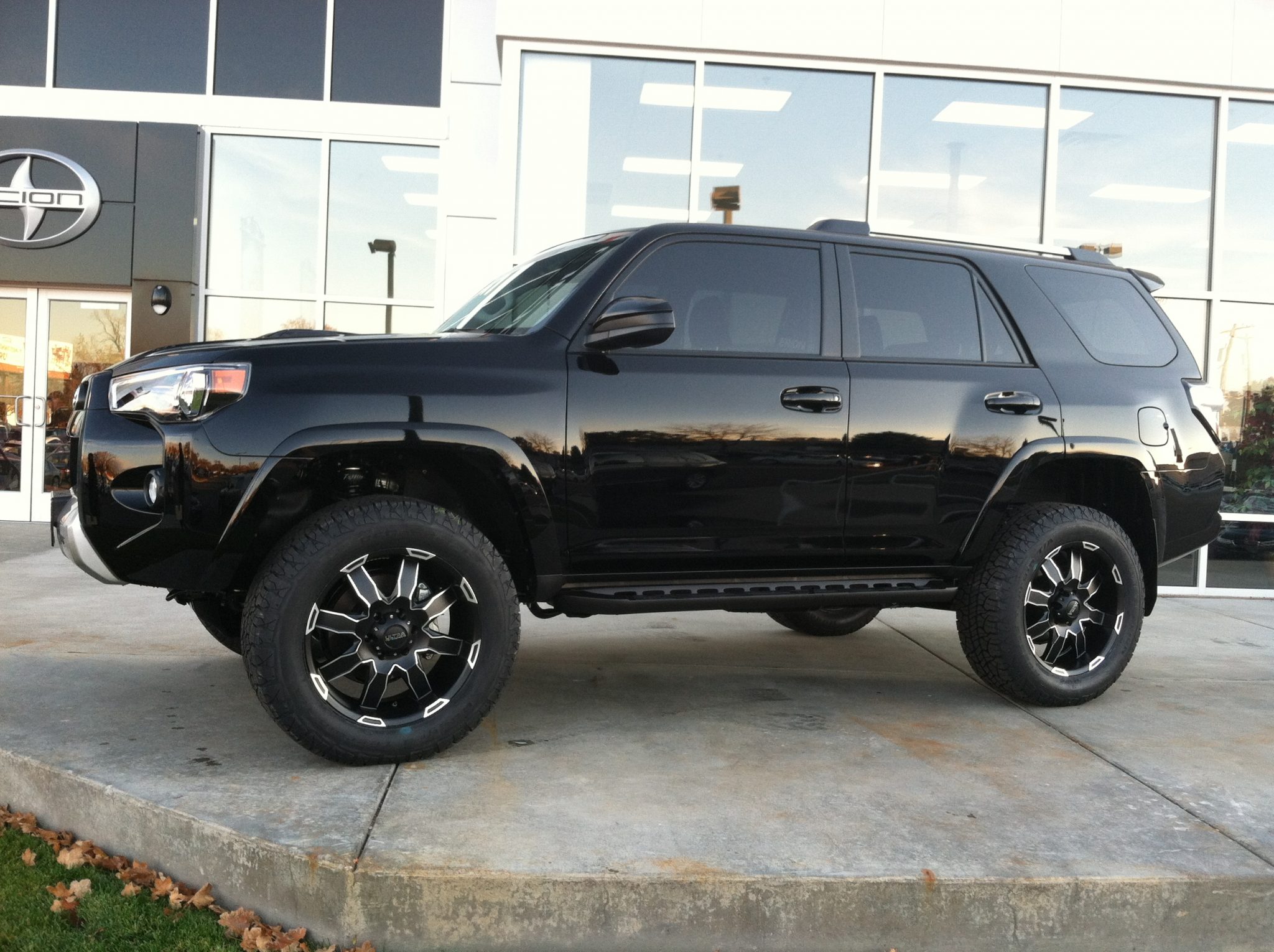

Revtek 3" Lift Kit / Suspension on black 2010-2014 Toyota 4Runner

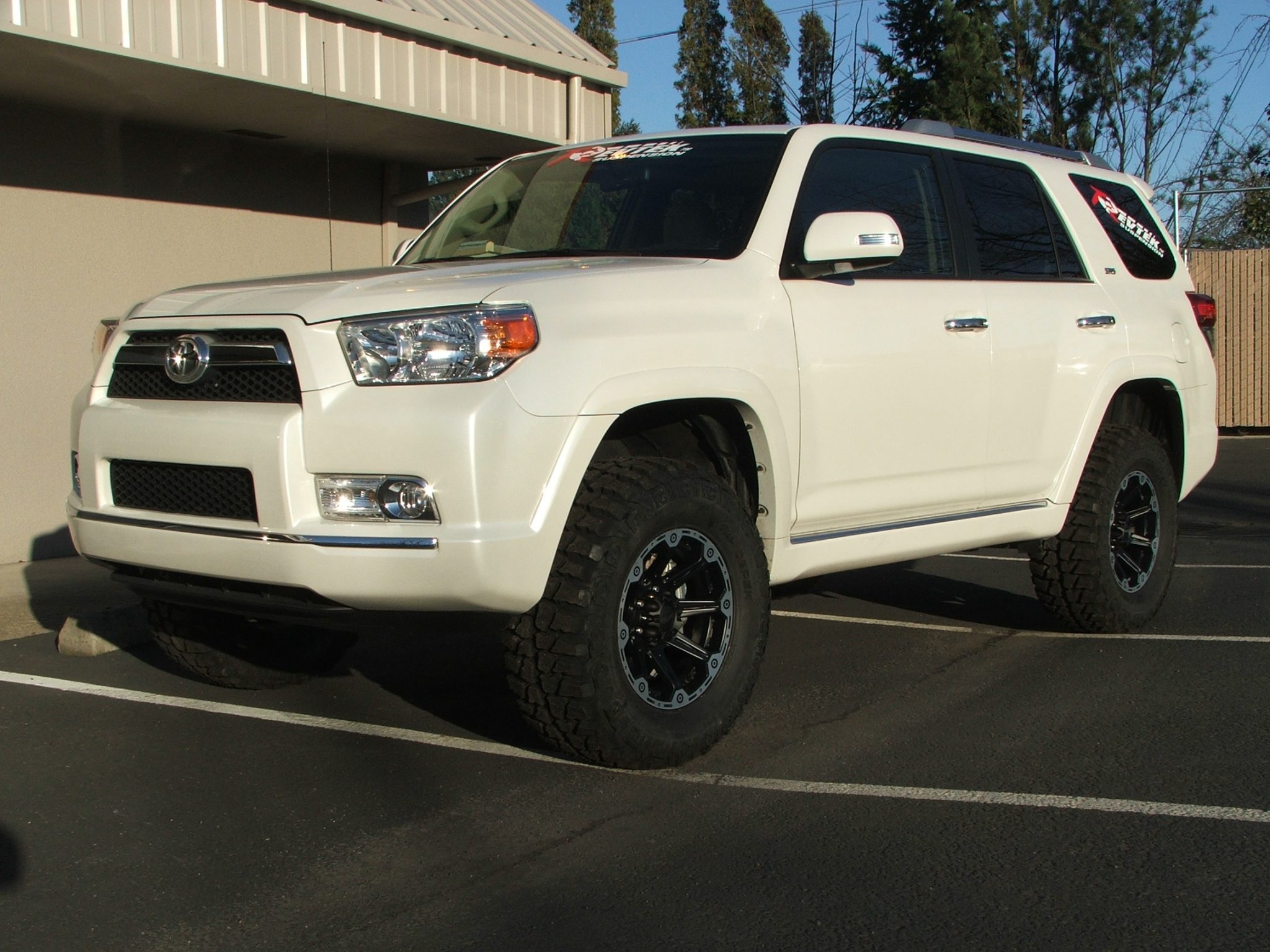

Revtek 3" Lift Kit / Suspension on white 2010-2014 Toyota 4Runner

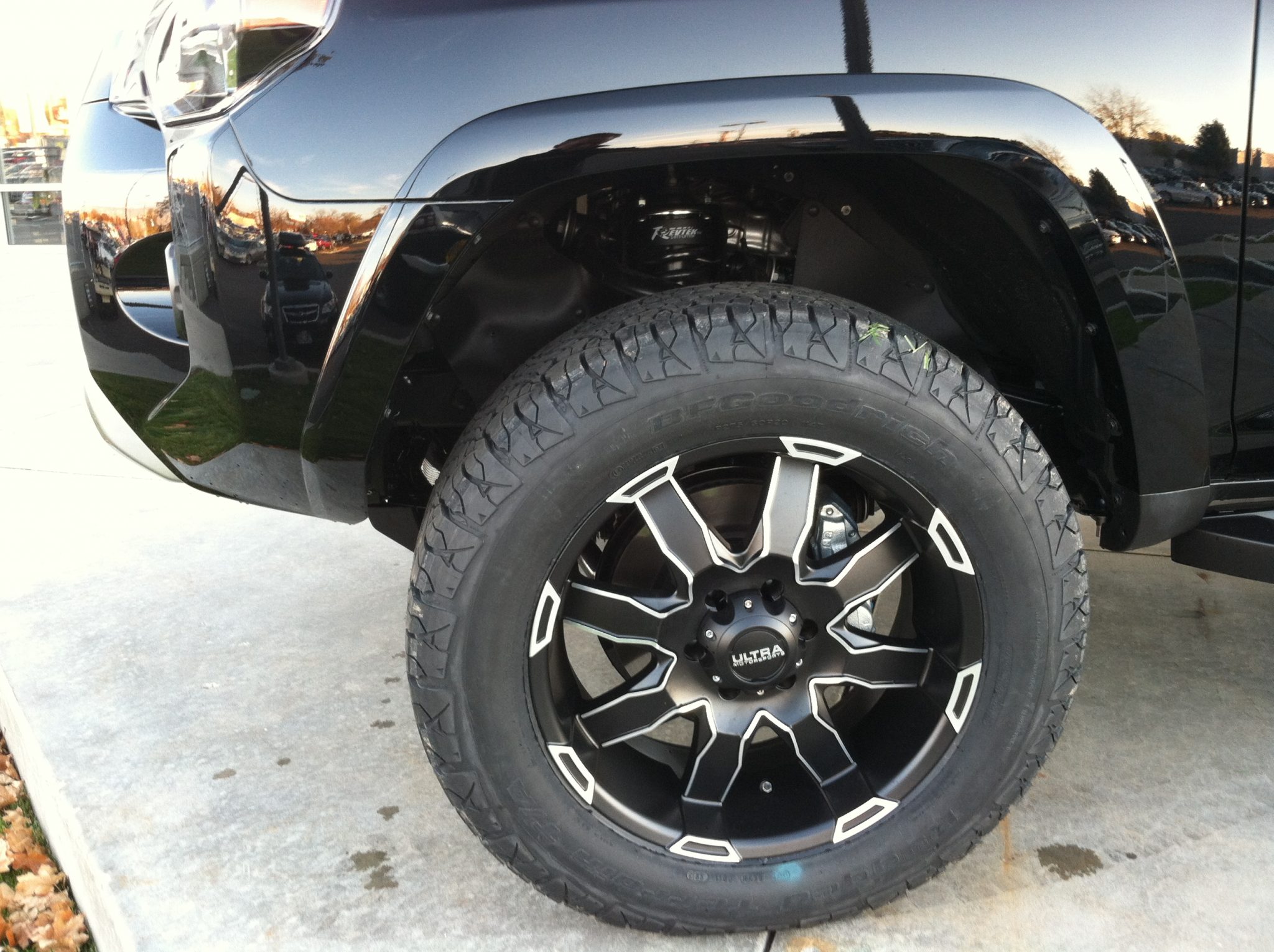

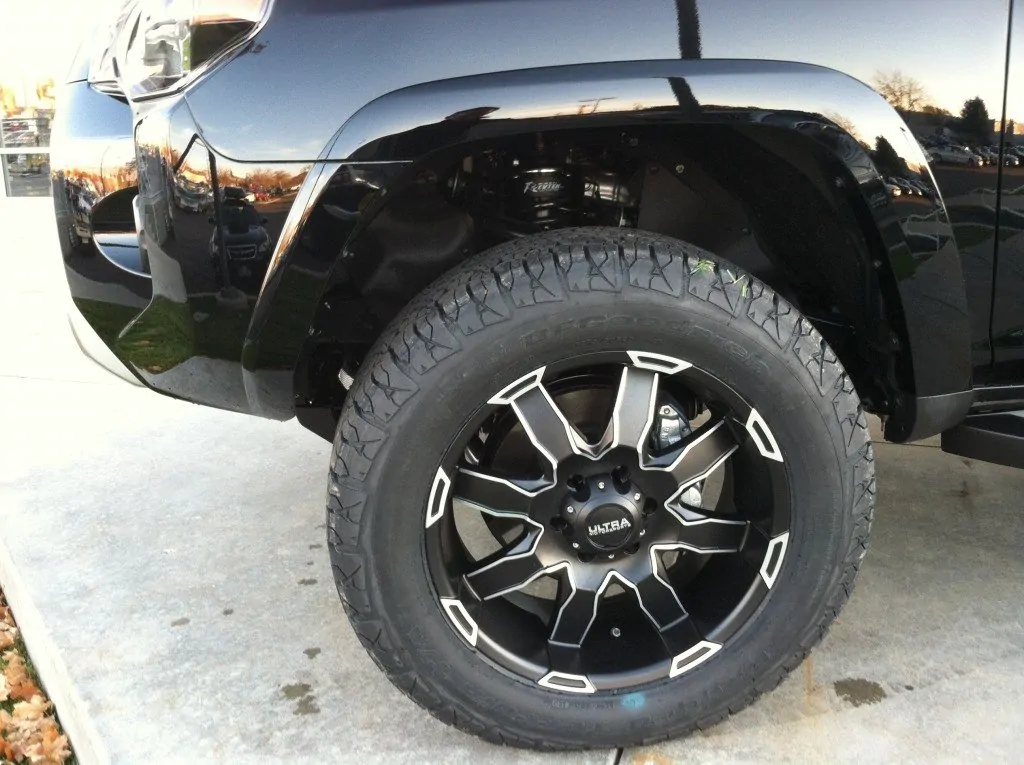

Revtek 3" Lift Kit / Suspension on 2010-2014 Toyota 4Runner installation - 1
REVTEK 3 inch LIFT KIT - SUSPENSION FOR 2010-2020 TOYOTA 4RUNNER 4WD-2WD
Revtek 3" Lift Kit / Suspension on black 2010-2014 Toyota 4Runner
Revtek 3" Lift Kit / Suspension on white 2010-2014 Toyota 4Runner
Revtek 3" Lift Kit / Suspension on 2010-2014 Toyota 4Runner installation - 1

Description
Revtek 3″ Lift Kit / Suspension for 2010-2024 Toyota 4Runner 4WD/2WD

Revtek 3″ Lift Kit / Suspension System for 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2021, 2022, 2023 Toyota 4Runner 4WD/2WD

Stock: REV432-4R

3″ front, 2 1/8″ rear split-spacer system

Features:

  • Does not work on vehicles with X-REAS system or rear air-leveling
  • Easy installation, no cutting or welding required
  • Makes room for up to 33″ tires
  • Retains stock suspension geometry and ride quality

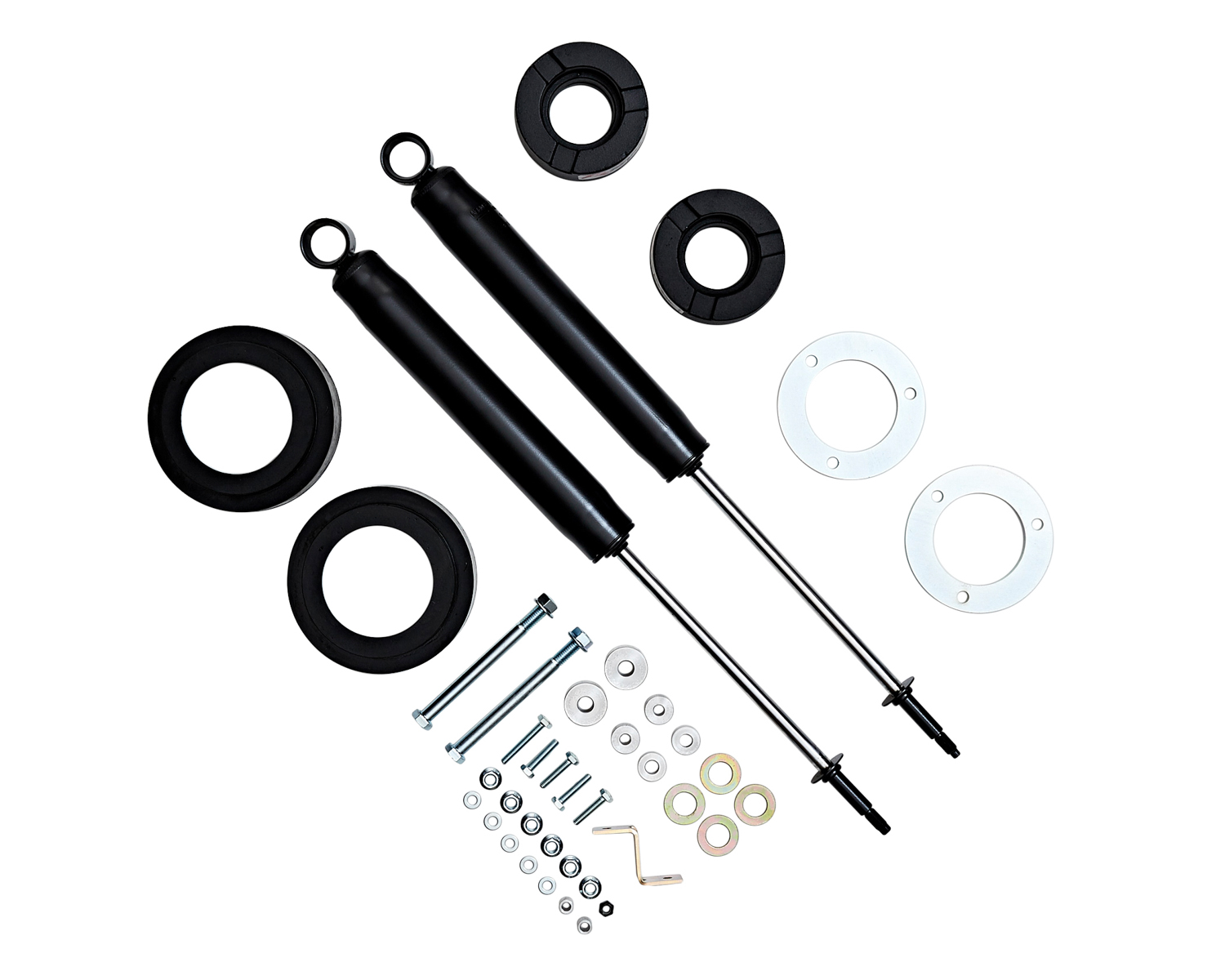

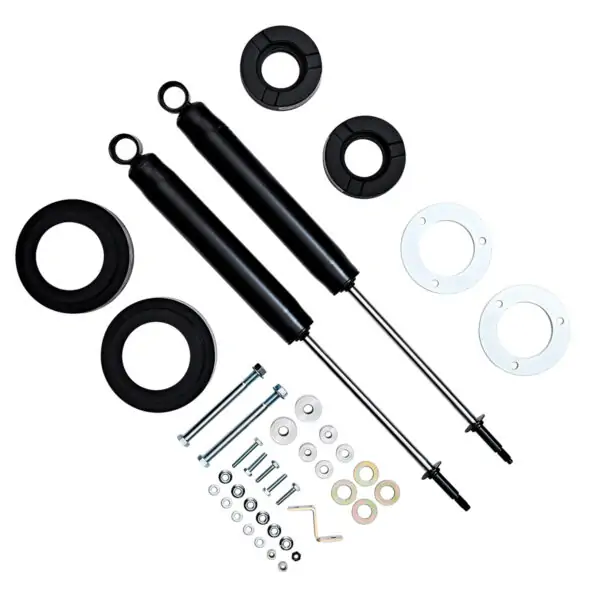

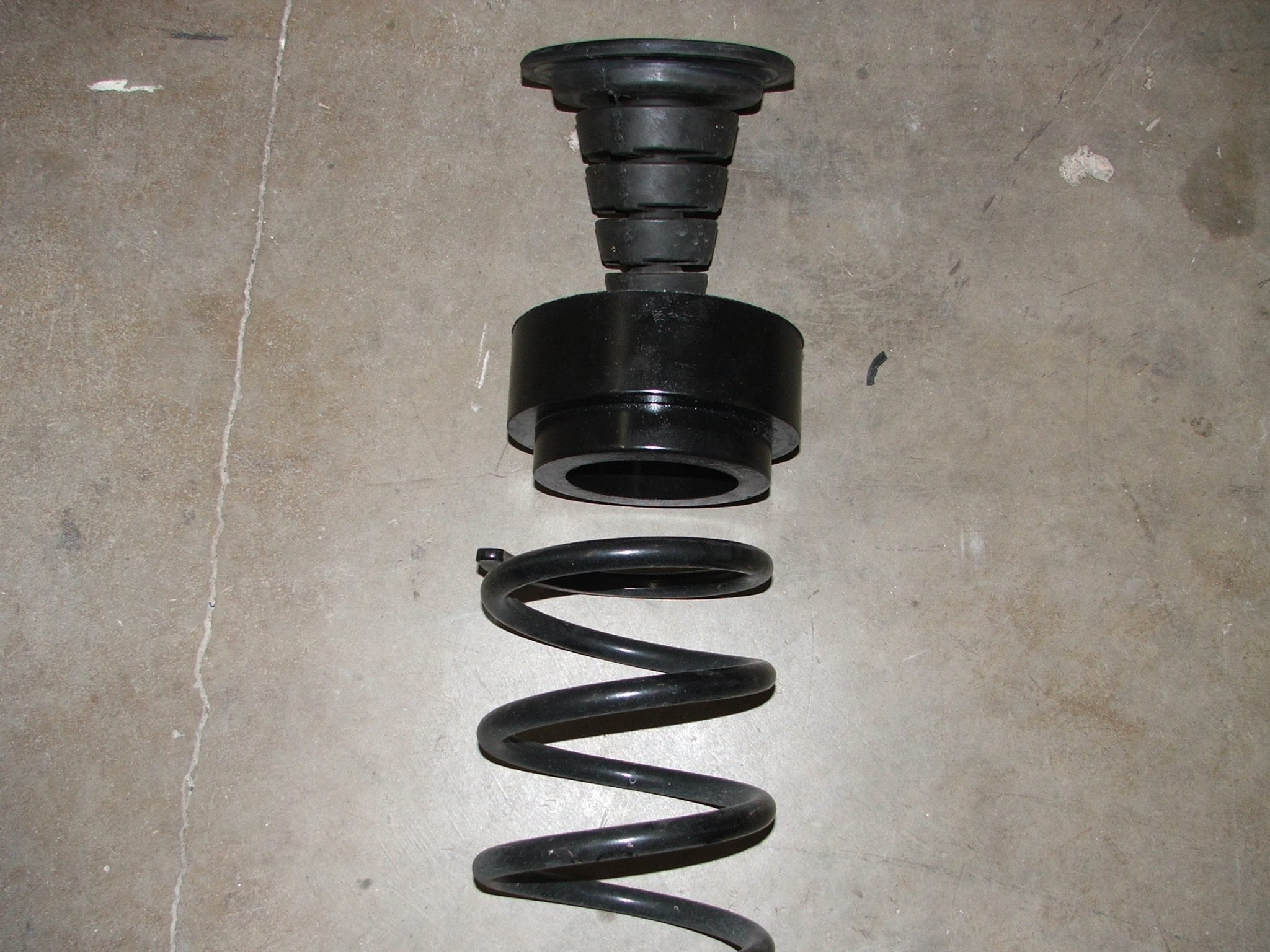

  • Complete system, includes rugged cast aluminum preload and top-out spacers up front, polyurethane spacers and longer shocks rear, plus all necessary hardware and instructions
  • OEM ride using factory coils
  • Average install time under 4 hours
  • All inclusive kit
  • Made in the USA
  • Allows up to 33″ X 12.5″ tire mounted on 8″ wide wheel with 4.5″ backspace

Download Installation instructions REV432-4R

Customer reviews

Reviews

There are no reviews yet.

Be the first to review “Revtek 3″ Lift Kit / Suspension for 2010-2024 Toyota 4Runner 4WD/2WD”

Use one of the allowed file type: jpg,png,jpeg.

    Questions and answers of the customers

      I bought a 17X9 +1 offset with a 5inch back spacing rim. And I planning to get a 285/70R17 KM3 tires. Will the tire rub or rim rub on my 4Runner? Cause this what I read from this kit “ Allows up to 33″ X 12.5″ tire mounted on 8″ wide wheel with 4.5″ backspace”
    1. 0 votes
      QI bought a 17X9 +1 offset with a 5inch back spacing rim. And I planning to get a 285/70R17 KM3 ti...... Read more answer now
      A These wheels will fit without rubbing:Rim* Tire Width* Tire* Backspace* 8" 12" 32.5" 4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help
      2. 2015 4Runner Trail with KDSS will this kit work? Do you recommend a diff from? Anything else you would add to this kit?
    2. 0 votes
      Q2015 4Runner Trail with KDSS will this kit work? Do you recommend a diff from? Anything else you ...... Read more answer now
      A Diff drop kit is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life.Does not work on vehicles with X-REAS system or rear air-leveling.Will work with KDSS.
      3. Does this kit come with a dif drop kit or no?
    3. 0 votes
      QDoes this kit come with a dif drop kit or no?
      There are no answers for this question yet. Answer now
      4. Will this fit Toyo RT 285s on a 2018 4Runner TRD Off Road?
    4. 0 votes
      QWill this fit Toyo RT 285s on a 2018 4Runner TRD Off Road?answer now
      A Such wheels will fit without rubbing:Rim* Tire Width* Tire* Backspace* 8" 12" 32.5" 4.5"Bigger tires may require some trimming. Also precise caster/camber adjustment and body lift may help
      5. Does this come with the diff drop kit as well? 2017 4Runner SR5 4WD
    5. 0 votes
      QDoes this come with the diff drop kit as well? 2017 4Runner SR5 4WDanswer now
      A Diff drop kt is recommended for 4WD trucks for 1.5'' of front  lift and more to increase the CV axles life. Ordered separately if needed * * * https://suspensionlifts.com/shop/toyota-4runner/03-09-4runner/03-09-4runner-parts/revtek-differential-drop-kit-2003-2018-toyota-4runner-fj-cruiser/
      6. Will this Work on 2018 4runners. There haven’t been changes as far as we know but just making sure.
    6. 0 votes
      QWill this Work on 2018 4runners. There haven’t been changes as far as we know but just making sur...... Read more answer now
      A Yes, you are quite right, it will work
      7. Can I clear bf all terrain 285/70/r17 tires with this lift?
    7. 0 votes
      QCan I clear bf all terrain 285/70/r17 tires with this lift?answer now
      A It will depend on your additional weight and engine weight, suspension parts condition and rims.We can't guarantee it and always revomment tire test fitment first
      8. I know the description says it will work will 2WD , but i wanted to check & make sure it will work with my 2016 2WD SR5?
    8. 0 votes
      QI know the description says it will work will 2WD , but i wanted to check & make sure it will...... Read more answer now
      A Yes, it will. Please refer to the instruction to see more https://suspensionlifts.com/wp-content/uploads/2013/12/INST-432.pdf
      9. Will revtek lift work with toytec springs or other springs and coils?
    9. 0 votes
      QWill revtek lift work with toytec springs or other springs and coils?answer now
      A It will work, but please keep in mind that it is not recommended to gain more then 3'' of total suspension lift, because it may do harm to the transmission parts on the 4wd models and also to the suspension and steering parts both on 2wd and 4wd models.This kit was designed to work with stock springs, or afretmarket control arms with steering and other modifications will be required.
