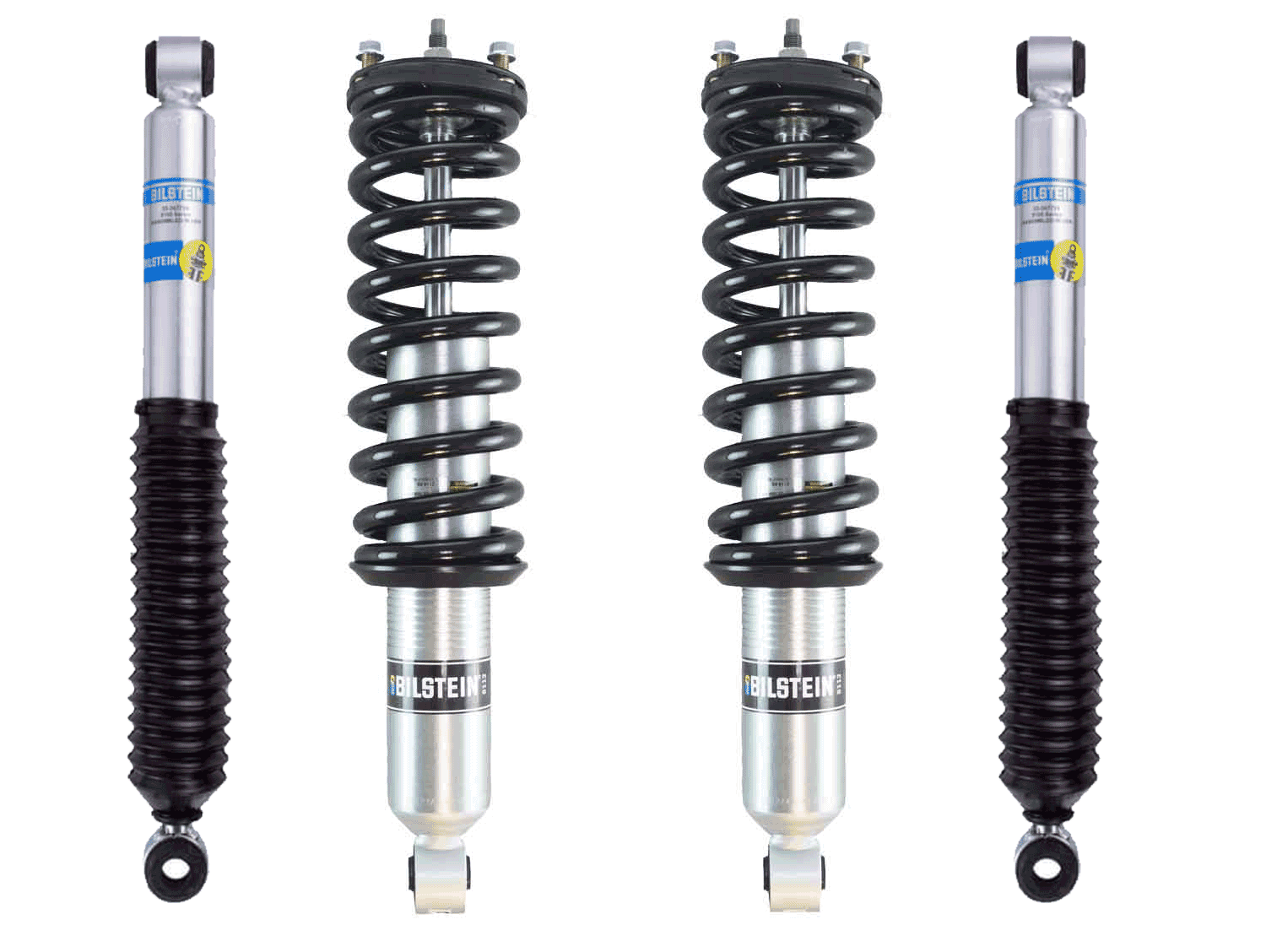

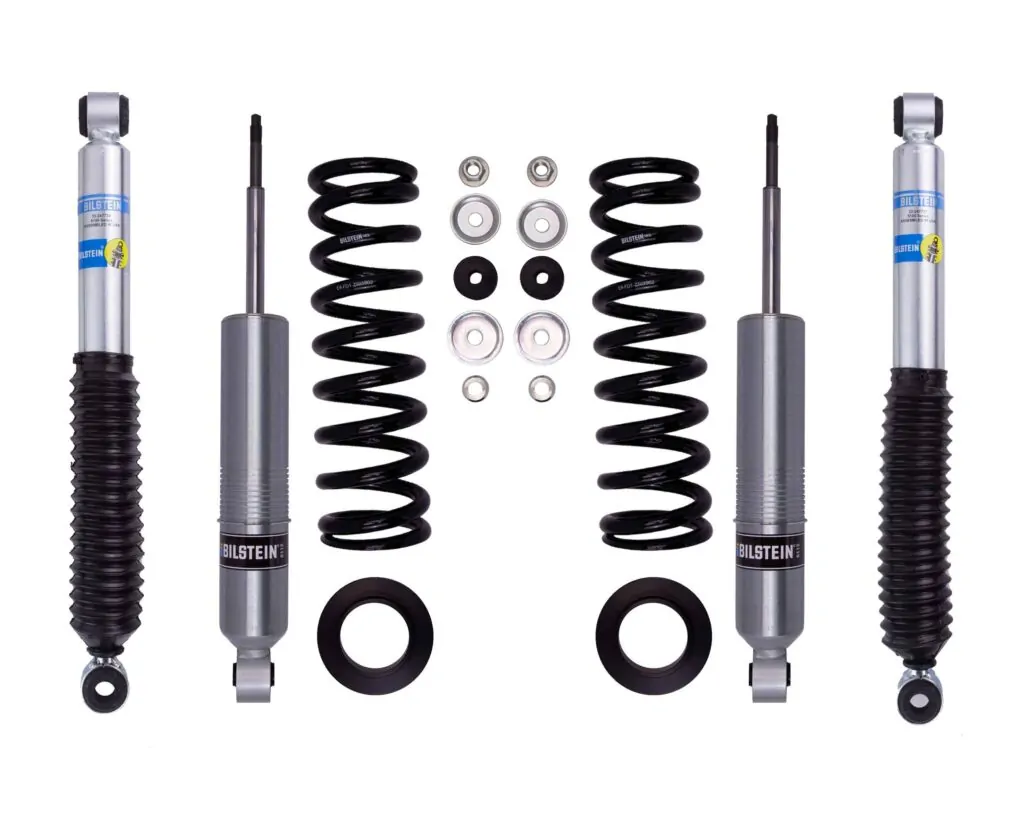

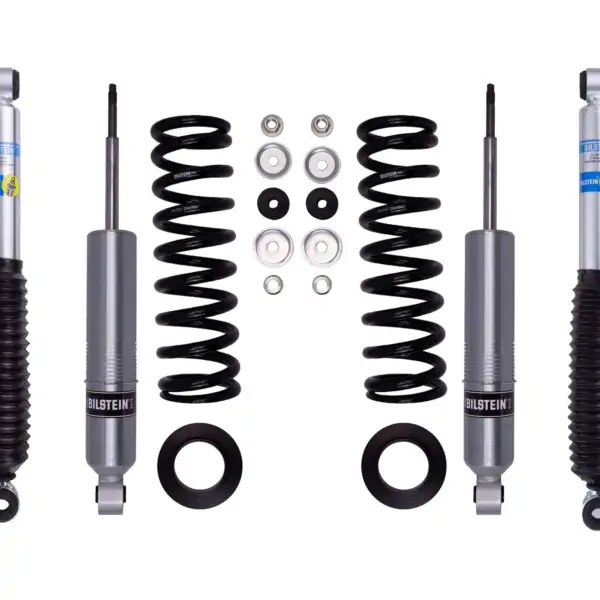

Bilstein 0-2.8″ Front Lift B8 6112 Coilovers, 1-1.5″ Rear Lift B8 5100 Shocks for 1996-2004 Toyota Tacoma 4WD

Description
Bilstein 0-2.8″ Front Lift B8 6112 Coilovers, 1-1.5″ Rear Lift B8 5100 Shocks for 1996-2004 Toyota Tacoma 4WD

Bilstein 0-2.8″ Front Lift B8 6112 Coilovers, 1-1.5″ Rear Lift B8 5100 Shocks for 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 Toyota Tacoma 4WD includ. TRD

Part: 47-310896_33-247724_33-247717

Note: Coilovers do not come assembled

We offer assembly here:

Front Lift B8 6112 Coilovers:

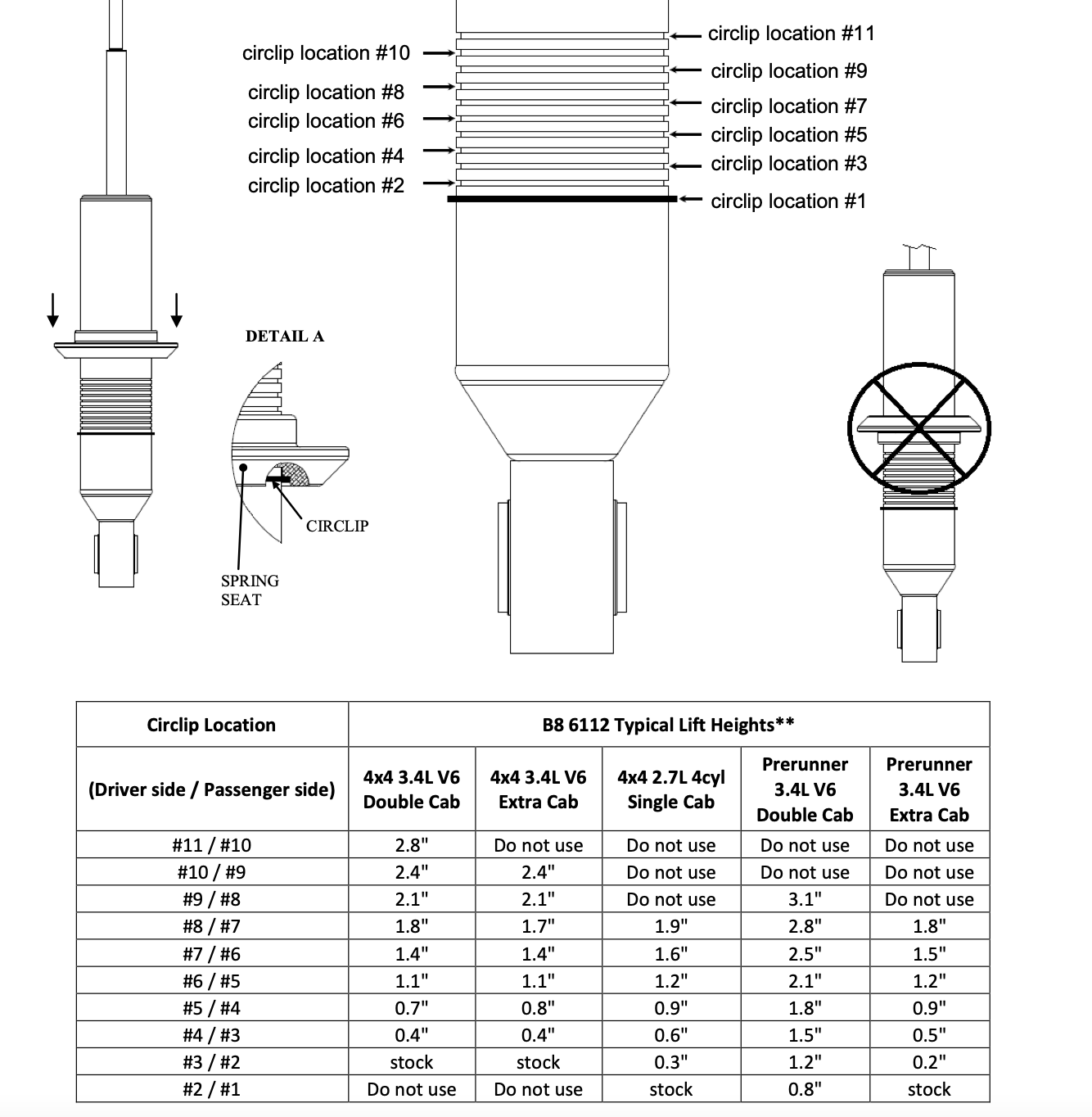

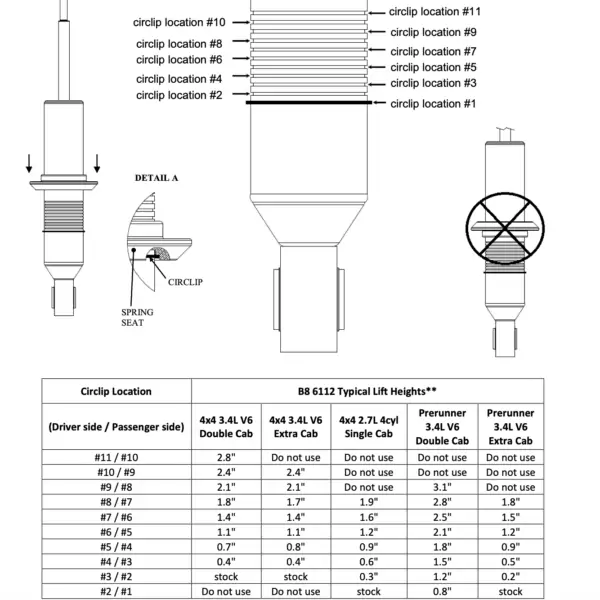

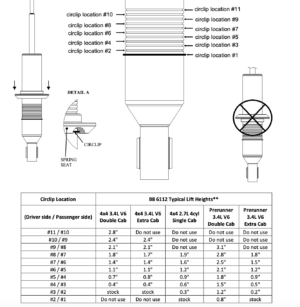

Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

• Finish: Dampers: Zinc Plated/Springs: Black
• Reservoir: No
• Body Design: Snap Ring Grooved Body (Coilover)
• Body Diameter: 60mm

Rear Lift B8 5100 Shocks:

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Rear Left:

• Collapsed Length (IN): 13.62
• Extended Length (IN): 21.26
• Collapsed Length (MM): 346.0
• Extended Length (MM): 540.0
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Adjustable Damping: Non-Adjustable
• Replacement Mounting Kit: B4-KT1-Z234A00

Rear Right:

• Collapsed Length (IN): 14.07
• Extended Length (IN): 22.09
• Collapsed Length (MM): 357.5
• Extended Length (MM): 561.0
• Finish: Zinc Plated
• Reservoir: No
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter: 46mm
• Adjustable Damping: Non-Adjustable
• Replacement Mounting Kit: B4-KT1-Z234A00

Front Lift B8 6112 Coilovers Notes:

• Front Lift Height: 0-1.9″
• Fits models with L4 engine
• Front Lift Height: 0-2.4″
• Fits models with V6 engine
• Front Lift Height: 0-2.8″
• Fits Standard Cab Pickup, Extended Cab Pickup, Crew Cab Pickup
• 1996-2004 Toyota Tacoma 4WD includ. TRD

Rear Lift B8 5100 Shocks Notes:

• A minimum 1″ lift block is required for this application
• Fits models with L4 engine
• Fits models with V6 engine
