2″ ARB OME Lift Kit for 2016-2023 Toyota Tacoma
Description
2″ ARB OME Lift Kit for 2016-2023 Toyota Tacoma
2″ ARB OME Lift Kit for 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2023, 2023, 2023 Toyota Tacoma
OMETAC16LKSB
Aftermarket 4wd suspension is extremely complex. Determining the right solution for your vehicle and your requirements demands special attention to many factors. Unlike numerous aftermarket suspension systems, which are only available in a single configuration targeting lift height, Old Man Emu offers a range of tuned and matched integrated suspension systems to ensure the right suspension is available to suit how the vehicle is outfitted and the conditions it will encounter.
Design and Development
Initial evaluation of the new 2016 Tacoma was that the vehicle provided a balanced, compliant ride that gave the OME engineers a good platform for developing a range of suspension solutions. Consideration was given to the front geometry to maximize the lift while maintaining optimal levels of droop, down travel and proper alignment.
This new generation of Tacoma has a different weight bias and total weight than the previous generation, so a full run of ride testing was undertaken to ensure the proper combination of solutions were found.
Front Suspension:
Springs:
Three spring options were chosen to cater for: No Bar, Bar or Winch only and Bar + Winch vehicle setups. As the suspension design is the same as the previous model Tacoma, existing coil part numbers could be used, noting some slight change in application. Factory geometry allowed for a 2-inch lift and while still maintain an adequate level of droop.
Struts:
An extensive development and tuning project was undertaken to correctly match the ride quality to the spring rate and resulted in 2 front strut options depending on spring selection.
A front trim packer is not needed because shocks come with a ring for adjustment for the lean.
Rear Suspension:
Springs:
Great emphasis was placed on ride comfort, with and without a payload, which led to three loading scenarios using the same leaf spring part number (CS047R). For stock loads where no weight is added, it is recommended to remove a leaf from the spring pack to maximize ride comfort and achieving a 2 inch ride height increase. For heavy applications an extra leaf has been designed.
Stock loads (0lbs to GVM, optimal performance at loads of 0-300lbs) *Removal of third leaf required
Constant 300lbs (300lbs to GVM, optimal performance at loads of 300-600lbs)
Constant 600lbs (600lbs to GVM, optimal performance at loads of 600lbs plus) *Extra leaf required
Shock Absorbers:
The rear shock absorber has been developed and tuned with particular attention to controlling the vehicle both with and without payloads. Numerous iterations of valving were tested in order to determine the best possible spring and shock absorber combination based on potential payload scenarios. As a result the best possible con guration of ride comfort and vehicle control was achieved.
Bushes and Hardware:
A spring bush kit has been developed to work with the original shackles and the driveline spacer kit is available should the vehicle experience any driveline vibration.
Complete Kits:
For the US market, ARB has create 3 separate complete kits to increase the ease of ordering, purchasing, and out tting the new generation of Toyota Tacoma’s. There is a kit suitable for each of the foreseeable types of additional weight that may be installed on the front of these vehicles, using the range of coil springs available. Customers will nd exactly what they need between the Stock, Medium (bumper or winch), and Heavy (bumper + winch) Load kits.
The removal or addition of a leaf spring would need to be completed for those individuals knowing that their rear load scenarios would be lighter or heavier than the constant 300+ lbs load the spring is designed around.
Specifications:
Shocks
Nitro+ Sport Part Number | Open Length (mm) | Closed Length (mm) | Upper Mount Bush Kit Part Number | Lower Mount Bush Kit Part Number | ||
Original Kit | Bushes only | Original Kit | Bushes only | |||
93000 | 543 | 413 | SMP671 | SMP671 | 110-110-122 | 110-110-122 |
63091 | 599 | 360 | SMP474 | OMEB13 | 110-A42-074 | 110-A42-074 |
Coil Springs
- No Load (0 lbs): Part Number 4007 – Ideal for vehicles with no additional load, ensuring optimal ride quality and performance.
- Light Load (0 – 110 lbs): Part Number 4000 – Perfect for vehicles carrying light loads, offering a balanced ride and improved handling.
- Medium Load (110 – 220 lbs): Part Number 4002 – Suitable for moderate load capacities, enhancing stability and control.
- Heavy Load (220 – 330 lbs): Part Number 4004 – Built for vehicles with heavy loads, providing superior support and durability.
- Extra Heavy Load (330 lbs+): Part Number 4004 – Designed for maximum load capacity, ensuring exceptional performance under the heaviest conditions.
330lbs + 4004
Leaf Springs
Spring Part Number | Stack Height (mm) | No. of Leaves | Eye Diameter mm | Weight (kg) | Primary Free Cam- ber mm | Spring Rate | ||
Front | Rear | Lbf/in | N/mm | |||||
EL111R | 57 | 5+2 | 40 | 40 | 32.4 | 207 | 182/392 | 32/69 |

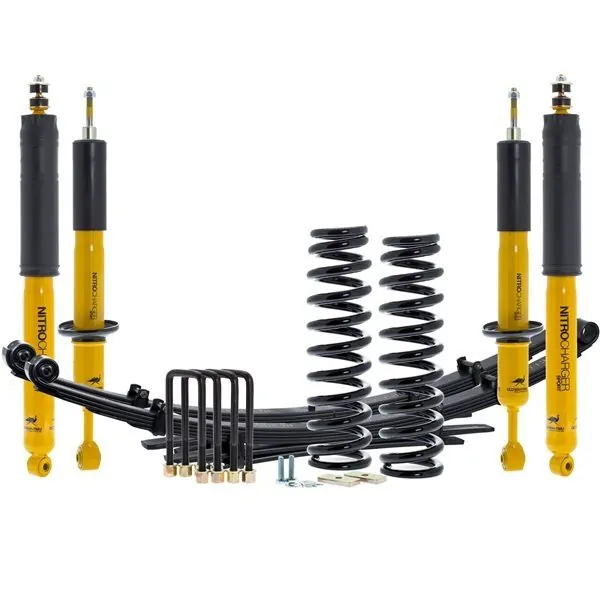

Included:

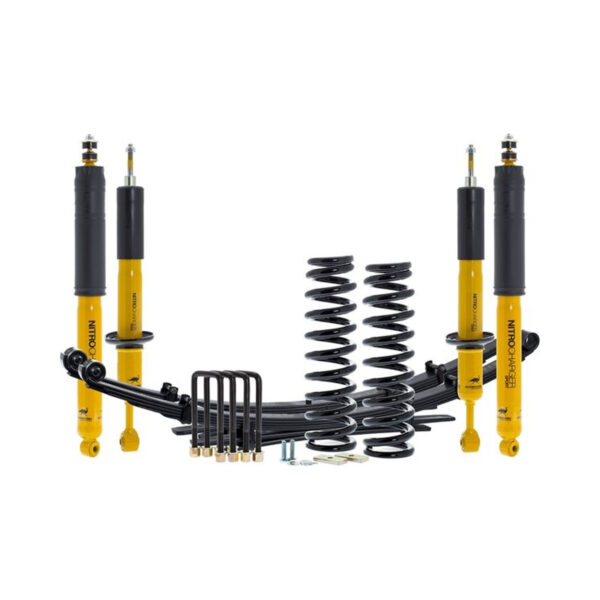

This stock complete kit includes:
- 400* – Old Man Emu Coil Spring
- 2 x 93021 – Front Old Man Emu Nitrocharger Sport Struts
- 2 x EL111R or EL112R – Rear Old Man Emu Leaf Springs
- 2 x 63091 – Rear Old Man Emu Nitro+ Sport Shocks
- 4 x OMEU53A – Old Man Emu Leaf Spring U-Bolts
- FK29 – Old Man Emu Rear Drive Shaft Spacer Kit
- 2 x OMESB108 – Old Man Emu Leaf Spring Bushing Kit
Questions and answers of the customers
-
Will this kit fit a 2nd gen tacoma? if not, what are the differences that would make it not compatible.
- QWill this kit fit a 2nd gen tacoma? if not, what are the differences that would make it not compa...... Read more answer nowA actually it can fit maybe some rear leaf spring part numbers need to be changed please purchase the one for 2nd genhttps://www.suspensionlifts.com/shop/toyota-tacoma/2005-2015/arb-2-full-suspension-lift-kit-for-2005-2015-toyota-tacoma/Will there be a problem if I do not 600lbs sitting on the heavy kit leafs?
- QWill there be a problem if I do not 600lbs sitting on the heavy kit leafs?There are no answers for this question yet. Answer nowI'm planning to add a rear high clearance bumper that weighs about 150 lbs. Will the medium kit stay at a 2 inch lift with that weight or go down?
- QI'm planning to add a rear high clearance bumper that weighs about 150 lbs. Will the medium kit s...... Read moreThere are no answers for this question yet. Answer nowI have a 2021 tacoma trd off road 4x4 I don't plan to add anything to the truck just want a 2inch lift. Do i have to remove any of the leafs in the kit or just install everything
- QI have a 2021 tacoma trd off road 4x4 I don't plan to add anything to the truck just want a 2inch...... Read more answer nowA Removal of third leaf requiredIt appears this will lift but not correct level at the same time, is this true?
- A In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.pngDoes it come with the front strut and spring already assembled ? I'm looking for the HD kit.
- QDoes it come with the front strut and spring already assembled ? I'm looking for the HD kit.answer nowA Front shocks are not supplied assembled Pay attention to the dropdown menu on the right sideIs 2020 Toyota Tacoma easy to lift like 2017 jeep wrangler at 2.5 lift. Please respond because I'll be working on a 2020 Tacoma to lift at 2.5 lift. Thank you
- QIs 2020 Toyota Tacoma easy to lift like 2017 jeep wrangler at 2.5 lift. Please respond because I'...... Read more answer nowA As 3rd gen Tacomas are already sitting 1'' higher from the factory than 2nd gen, additional front lift can be 2''A No. It is not easy. It will take you about 5-6 hours and several curse words. Work with a partner it'll be a lot smoother process. I put a 2in lift on a jk in about 3 hours with a friend.I saw a video stating this gives 3" of lift. Can anyone justify this? I only needed a 2" lift and not a 3"
- QI saw a video stating this gives 3" of lift. Can anyone justify this? I only needed a 2" lift and...... Read more answer nowA As 2016+ Tacos are already lifted 1'' from the factory the additional amount of lift will be 2''A Front is 2” the rear is 3” if you don’t remove the third leaf spring.Windering if these are progressive tuned shocks/struts? Or what tune they’re running in there? Thanks
- QWindering if these are progressive tuned shocks/struts? Or what tune they’re running in there? Th...... Read moreThere are no answers for this question yet. Answer nowI have a 2018 Tacoma Trd Sport Short bed manual. Will this lift work with the new TSS safety system on the truck?
- QI have a 2018 Tacoma Trd Sport Short bed manual. Will this lift work with the new TSS safety syst...... Read moreThere are no answers for this question yet. Answer nowDoes it come with the diff drop?
- A Diff drop kt is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life. https://suspensionlifts.com/shop/toyota-tacoma/2005-2015/front-differential-drop-kit/Hi I want to do this correctly. 2017 Offroad Dual Cab Long Bed. I plan to order the medium kit to obtain a 2" lift (for eventual winch only and some rear payload ~300lbs.) I do not want to level the Tacoma, I like the down angle. I am willing to put in the right parts to maintain long-term reliability, such as either or both upper control arms (UCAs) and/or a differential drop. Do you suggest or offer a kit that includes these or can you suggest those parts for me too?
- QHi I want to do this correctly. 2017 Offroad Dual Cab Long Bed. I plan to order the medium kit to...... Read more answer nowA Diff drop kit is recommended if having more then 1'' of front lift * * * https://suspensionlifts.com/shop/toyota-tacoma/2005-2015/front-differential-drop-kit/ * * *UCA's are recommended but not require, the benefit of the UCA's is to fix the caster when the vehicle is getting aligned and also helps you a lot with articulation on the front end.The best in long-term use are Total Chaos * * * https://suspensionlifts.com/shop/toyota-fj-cruiser/toyota-fj-cruiser-2010-2011-2012-2013/front-lifts/total-chaos-uca-for-tacoma-05-fj-cruiser-07-4runner-03/ * * *I have a 2017 trd off-road short bed with a snug top rebel camper weighing about 200lbs, Occasionally I have a dirt bike off of the trailer hitch motorcycle carrier, which has my truck dragging ass! should I run with the stock load or the medium load setup?
- QI have a 2017 trd off-road short bed with a snug top rebel camper weighing about 200lbs, Occasion...... Read more answer nowA Medium load will be definitely the best choice for your applicationis this a true 2" lift kit for a 16-17... the part numbers appear the same for the pre2015 and they sit an inch lower than 16+?
- Qis this a true 2" lift kit for a 16-17... the part numbers appear the same for the pre2015 and th...... Read more answer nowA It will give 2'' of lift for 2005+ TacomaFor a 2016 TRD-OFFRoad 4x4 Model, are aftermarket control arms needed to achieve proper alignment and clearances with this lift kit?
- QFor a 2016 TRD-OFFRoad 4x4 Model, are aftermarket control arms needed to achieve proper alignment...... Read more answer nowA The UCAs are always not the bad idea, but it will work without themIf i have a Leer Topper on my truck, will the Dakars be enough to withhold the constant weight and eliminate sag?
- QIf i have a Leer Topper on my truck, will the Dakars be enough to withhold the constant weight an...... Read more answer nowA we recommend adding air bags to support the extra weighthttps://suspensionlifts.com/shop/toyota-tacoma/2005-2015/toyota-tacoma-05-rear-air-bags/Will this kit retain the factory rake?
- A This kit will lift the front and the rear ends by the 2''the rake less please consider this kit * * * https://suspensionlifts.com/shop/toyota-tacoma/2016-and-up/2016-lift-kits/toytec-boss-0-2-lift-suspension-system-for-2016-toyota-tacoma/ * * * with 1.5'' blocks (if you don't tow heavy trailers) or the front height-adjusted shocks * * * https://suspensionlifts.com/shop/toyota-tacoma/2016-and-up/2016-lift-kits/bilstein-0-2-lift-front-shocks-0-1-lift-rear-shocks-2016-2017-toyota-tacoma/ * * *What would you expect the actual lift for a 2017 Tacoma TRD Offroad crew cab long bed be?
I want to run 285s, they fit but will rub a bit on the current setup. I need at least another inch lift.
I have had good luck with ARB in the past.
- QWhat would you expect the actual lift for a 2017 Tacoma TRD Offroad crew cab long bed be? I want ...... Read more answer nowA Three spring options were chosen to cater for: No Bar, Bar or Winch only and Bar + Winch vehicle setups. As the suspension design is the same as the previous model Tacoma, existing coil part numbers could be used, noting some slight change in application. Factory geometry allowed for a 2-inch lift and while still maintain an adequate level of droop.Please keep in mind that tire fitment will depend on rims offset, suspension parts condition and other factors. We recommend test fitment before rough usage. Sometimes castorcamber adjustment may be used for rubbing reducingDoes this lift require a front diff drop? 2016 tacoma trd sport double cab?
- A This kit can be used without front diff drop kit, but it is strongly recommended to implement it to increase cv axles lifeHow much lift if running "stock" but get the medium - heavy load kit? Stock currently but plan to run winch, possible armor later.
- QHow much lift if running "stock" but get the medium - heavy load kit? Stock currently but plan to...... Read moreThere are no answers for this question yet. Answer nowdoes it come pre assembled (strut assembly)? and does it come with upper control arms? is this kit available now?
- Qdoes it come pre assembled (strut assembly)? and does it come with upper control arms? is this ki...... Read more answer nowA Unfortunatelly it does not come preassembled - must be assembled when installed. UCAs are always not the bad idea, but the kit will work without them.Can you add top plate spacer to give it a true 3" lift? Also there is no diff drop spacer, would this be required for the installation? Thank you.
- QCan you add top plate spacer to give it a true 3" lift? Also there is no diff drop spacer, would ...... Read moreThere are no answers for this question yet. Answer nowDo these come with the Dakar leaf springs?
- A Yes, it comes with Dakar Springs.I own a 2017 sr5 4x4, will the heavy duty kit allow me to run 285/75/ 16's , and if needed can i safely add an spacer ( leveling kit) to the front?
- QI own a 2017 sr5 4x4, will the heavy duty kit allow me to run 285/75/ 16's , and if needed can i ...... Read moreThere are no answers for this question yet. Answer nowHello-Will this fit 2016 TRD Pro? If so, what size tires can i run? 285??
- A This will fit the TRD Pro model, you will get slightly less lift however. This is because the TRD Pro model is already taller than the standard Tacoma. You should be able to run a 285 but i would check clearance before you buy the tires just to be sure.
