Bilstein B8 6112 0-2″ Front and 0-1.5″ Rear 5160 Lift Kit for 2016-2023 Toyota Tacoma
Sale!
Description

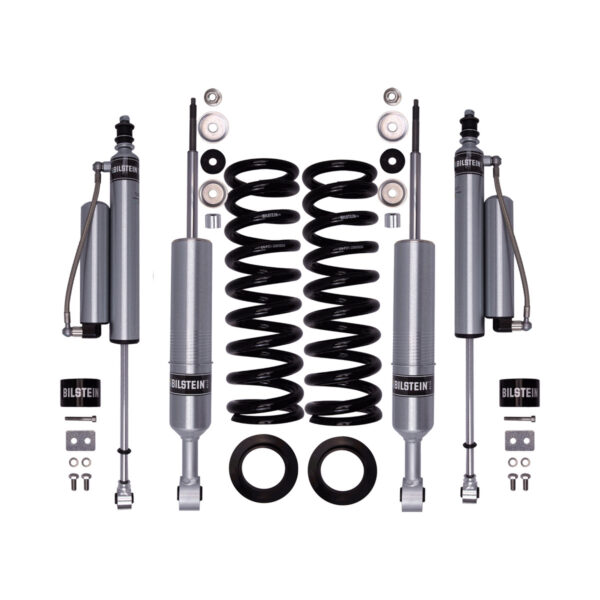

Bilstein B8 6112 0-2″ Front and 0-1.5″ Rear 5160 Lift Kit for 2016-2023 Toyota Tacoma
Bilstein B8 6112 0-2″ Front kit and matching 5160 Series 0-1.5″ Rear Lift Shocks for 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2023, 2023, 2023, 2023, 2023 Toyota Tacoma
Part: 47-309975_25-311259
Do you want 150-200 lbs additional front weight?
OR
Do you want 80-140 lbs additional front weight?

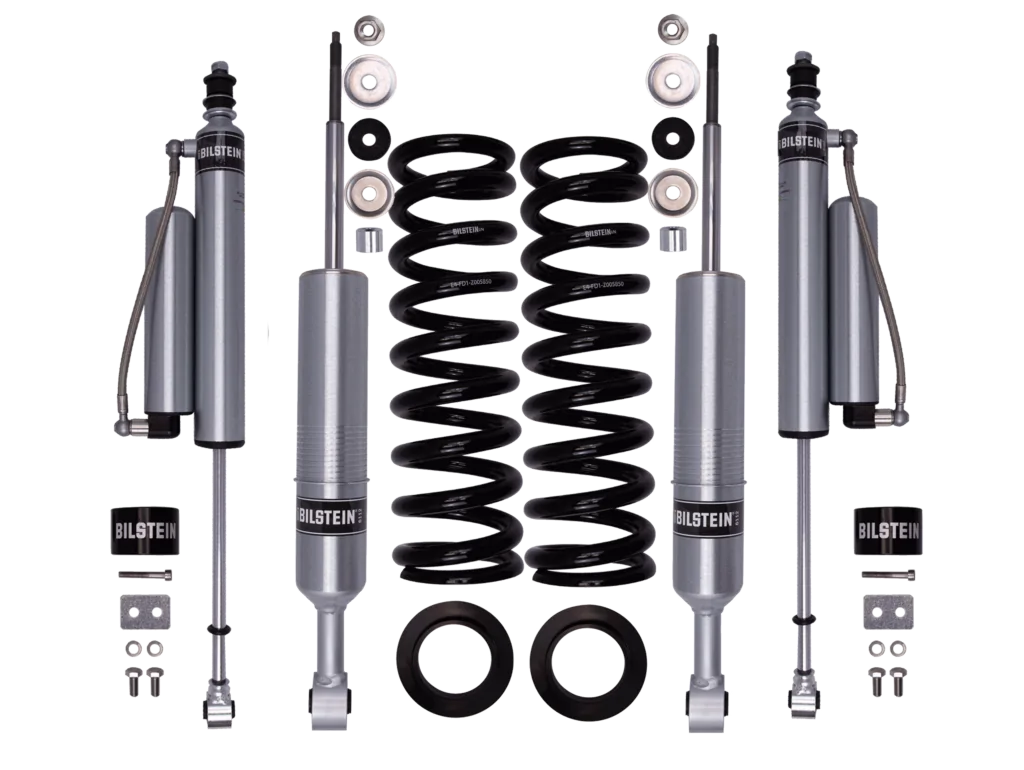

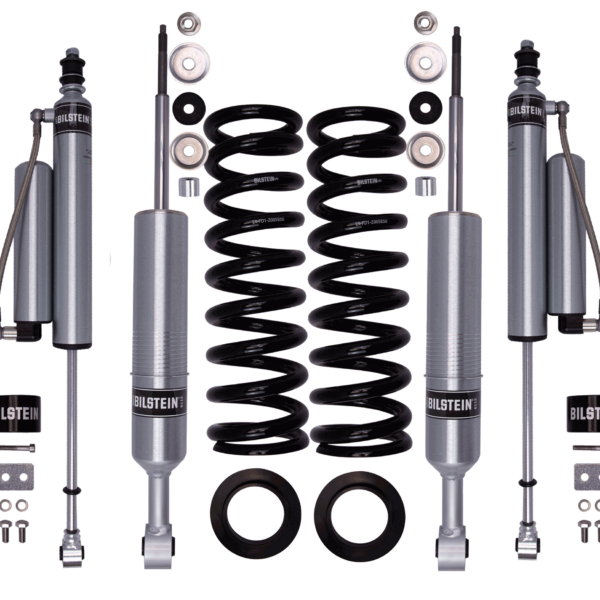

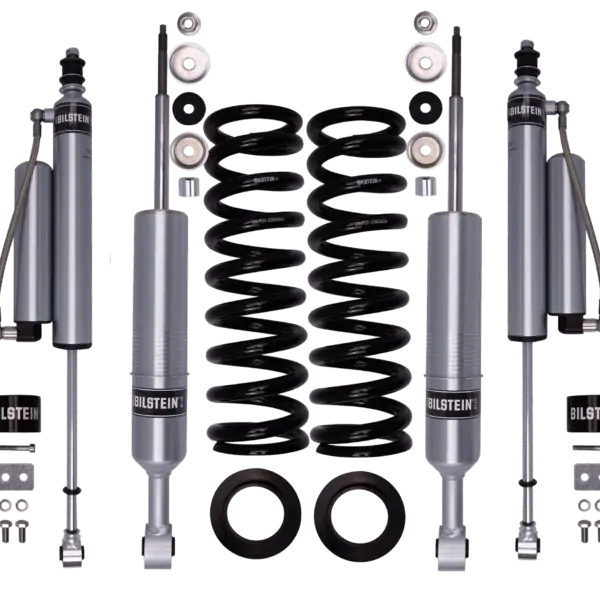

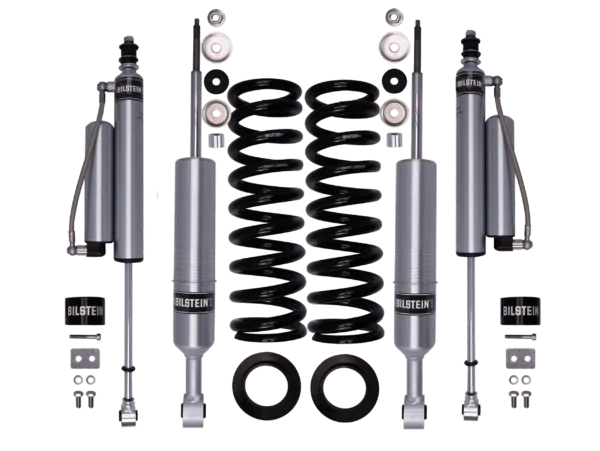

Includes:

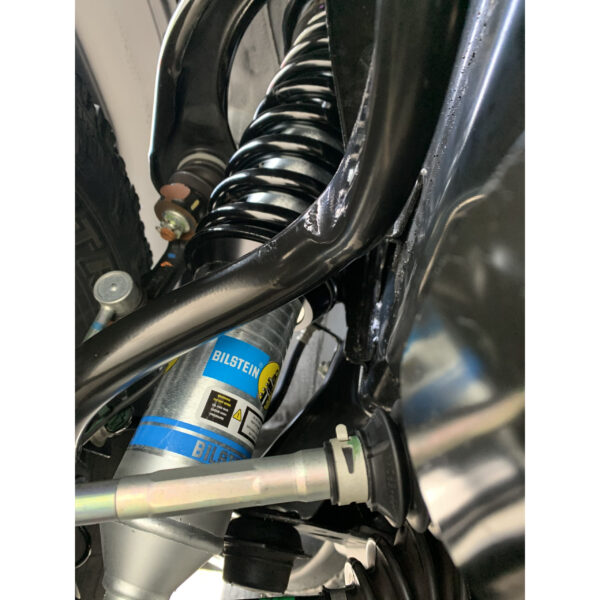

- 2 Front coils, 2 Front shocks (6112 kit)

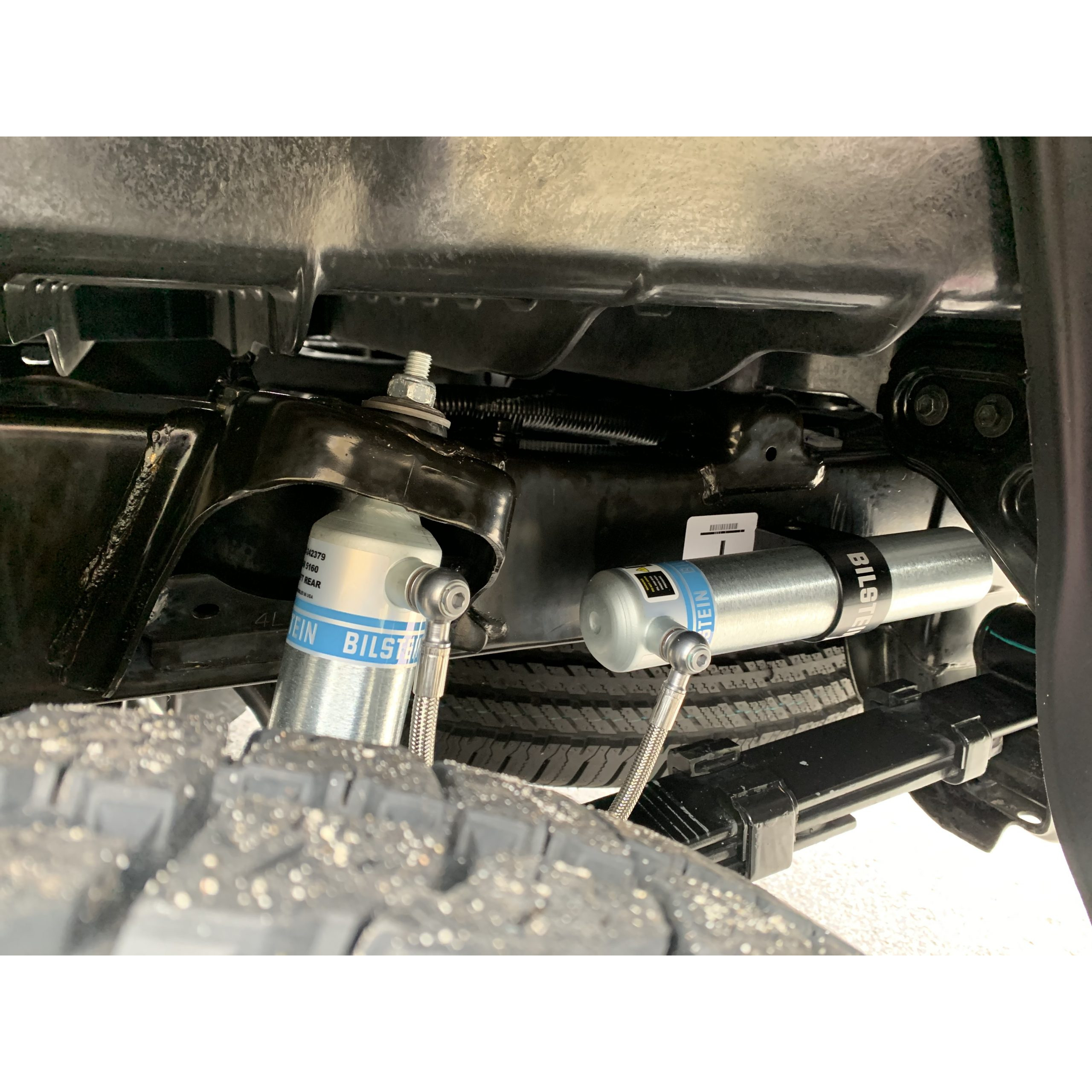

- 2 Rear Remote Reservoir shocks
Bilstein B8 6112 leveling kits are designed to provide more ground clearance, allow for larger tires, and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting, providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.
Do you want a kit that is already assembled?
- Sale!
Bilstein B8 Assembled 6112 Coilovers 0-2″ Front 0-1.5″ Rear 5160 Lift Kit for 2016-2023 Toyota Tacoma
(7 reviews)Original price was: $1,479.39.$1,367.95Current price is: $1,367.95.
Recommended rear lift options:
Front struts installation instruction
- Sale!
Bilstein Reservoir Mounting Clamps pair Billet Aluminum for 5160 and 5165 Reservoir Shocks
(4 reviews)Original price was: $105.66.$96.44Current price is: $96.44.
Questions and answers of the customers
-
Helli. When will you be restocking this 6112 5160 combo?
- A Most likely in a couple of weeksWhen will you guys restock?
- A We estimate mid DecemberWhen will you guys have this kit available?
- A maybe next monthDo the coils come in different color?
I like red!!!
What brand are the coils?
Thanks!!
- A they are Bilstein brand, no colours choise we haveDo they make this kit for a 2020 ram rebel?
- A not yetWith this lift, what Tire/while size will it accommodate for a Tacoma 2020 4x4 without rubbing? I will be adding a 1" lift block lift in rear.
- QWith this lift, what Tire/while size will it accommodate for a Tacoma 2020 4x4 without rubbing? I...... Read moreThere are no answers for this question yet. Answer nowDes this kit come will all new bushings for the front 6112s? The picture does not display the front bushings. I know I need to reuse the oem top hats.
- QDes this kit come will all new bushings for the front 6112s? The picture does not display the fro...... Read more answer nowA Yes, comes with bushings and not assembledWhat is the max ride height for the front?
- QWhat is the max ride height for the front?There are no answers for this question yet. Answer nowAre these 6112 shocks compatible with a driver's side spacer to correct lean?
- A Yes they are compatibleI would like to order this kit with the 650lbs springs. Can you send me a link.
- QI would like to order this kit with the 650lbs springs. Can you send me a link.There are no answers for this question yet. Answer nowFor a 2017 TRD Off-Road, will this kit actually provide for 2" lift up front or would I need a spacer to get the full 2"? Thanks.
- QFor a 2017 TRD Off-Road, will this kit actually provide for 2" lift up front or would I need a sp...... Read more answer nowA Front shocks will lift.Rear shocks will not lift your truck by themselves - some lift kit options as add-a-leafs blocks will be required for a lift. Rear shocks are only longer than the stock shocks - designed for use with the existing lift.Are these the 3rd gen version?
- A They will fit 2016+ TacomaDo you have to purchase UCAS due to the extra travel? Also how much extra is the travel when the strut is set to the first setting?
- QDo you have to purchase UCAS due to the extra travel? Also how much extra is the travel when the ...... Read moreThere are no answers for this question yet. Answer nowI have a 2018 4x4 off road tacoma 4 door long bed . I was really hoping to get about 2.5 inches up front. Can you please tell me if I use the highest cir clip setting can I get 2.5 " If not , can you recommend what setting to use with a 1/2" or 3/4 "spacer on top of coil ?
- QI have a 2018 4x4 off road tacoma 4 door long bed . I was really hoping to get about 2.5 inches u...... Read moreThere are no answers for this question yet. Answer nowMerry Christmas, I’m looking to buy this kit for my 2019 tacoma off-road 4x2 but I’m looking to accommodate 33 “ tires , I know some trimming will be needed, but what size wheel can be used ?
- QMerry Christmas, I’m looking to buy this kit for my 2019 tacoma off-road 4x2 but I’m looking to a...... Read moreThere are no answers for this question yet. Answer nowWill this bring the truck near level or will there be a rear droop? Do the coils come assembled in the front struts?
- QWill this bring the truck near level or will there be a rear droop? Do the coils come assembled i...... Read more answer nowA Brings near level.coilovers come not assembledWould this kid be able to fit 285 70 17 tires
- QWould this kid be able to fit 285 70 17 tiresThere are no answers for this question yet. Answer nowI just purchased this for my Tacoma that has a front wench and wench bumper that made the font sag 3/4". I want to correct that and raise the entire truck an inch to an inch and half. Is all I need the blocks and U-bolts? Or is there anything else I need? https://www.suspensionlifts.com/shop/toyota-tacoma/2016-and-up/rear-lift/toytec-1-rear-lift-block-kit-with-u-bolts-for-2016-2019-toyota-tacoma/
- QI just purchased this for my Tacoma that has a front wench and wench bumper that made the font sa...... Read more answer nowA In order to figure out how much lift you need to level please take existing measurements from center of the wheel hub to the bottom of the fender. Difference between front and rear is how much lift you need to level. https://www.suspensionlifts.com/level.pngusually 1'' rear blocks are used in case of leveling but it may vary from truck to truckI have a 3" factor lift on my tacoma, will these shocks work for my truck????????
- A will work if you have 3'' front and if your rear is leveled.Will not work if rear is also 3'' liftedI like the Bilstein 6112/5160 Kit but don't see the add on options like diff kit and AALs. Also, any word when you will be restocked?
- QI like the Bilstein 6112/5160 Kit but don't see the add on options like diff kit and AALs. Also, ...... Read more answer nowA No earlier then mid spring.You can use AALshttps://www.suspensionlifts.com/shop/toyota-tacoma/2005-2015/rear-toytec-add-a-leafs-for-2000-2006-toyota-tundra-and-2005-and-up-tacoma/Will this kit work on my 2018 tacoma trd off road? Will I need a diff drop down kit? Can the kit be used with no add a leaf in the rear just with the stock leaf springs?
- QWill this kit work on my 2018 tacoma trd off road? Will I need a diff drop down kit? Can the kit ...... Read more answer nowA yes it will for sure work for your 2018 Tacoma, you wont need a diff drop kit and yes it can be used with no add a leaf in the rear using the stock leafs. I have had mine setup like that for over a year with no problems.This kit does allow you to add up to 1.5 inches of add a leaf and if you did that it would not hurt to do the carrier bearing drop. but not needed.Do I need to add a leaf spring to the back or is it not required and what other parts do I need to fully complete everything including the center drive shaft spacer
- QDo I need to add a leaf spring to the back or is it not required and what other parts do I need t...... Read more answer nowA Rear shocks will not lift your truck by themselves - some lift kit options as add-a-leafs or blocks will be required for a lift. Rear shocks are only longer than the stock shock - designed for use with the existing lift.What is the weight rating for the front spring coils?
- A Bilstein Coils in 6112 kit are approximately 10% stronger then stock coilsA these coils are approximately 10% stronger then the stockDoes this come with the rear shock reservoir frame mount ??
- A Yes, comes completely as picturedthis spring set is 887 or 888?
- A These are NOT ARB springs. These are Bilstein springs.Are the protective boots included?
- A They are not neededcomes as picturedWhat is the difference between the coil that this kit brings and the OEM?
- A These coils are longer and about 10% stronger.Can i pay you extra to have them assembled before shipping?
- A Unfortunately it is not possible for 6112 kitsA We can offer assembled only these coilovershttps://suspensionlifts.com/shop/toyota-tacoma/2016-and-up/front-lifts-2/ome-2-inch-lift-front-coilovers-for-2016-2018-toyota-tacoma/* * *https://suspensionlifts.com/shop/toyota-tacoma/2005-2015/front-lifts-and-coilovers/toytec-boss-front-0-3-inch-lift-coilovers-for-2005-2014-toyota-tacoma/Besides the shocks, what else does the kit include?
- A Shocks, bushings, hardware, front coilsIs this setup for both 2wd and 4wd or is it only for 4wd? Also, is this stage 1 or is is there more upgrades needed for this installation, i.e. AAL or control arms?
- QIs this setup for both 2wd and 4wd or is it only for 4wd? Also, is this stage 1 or is is there mo...... Read more answer nowA For both 2wd and 4wd ar long as your Tacoma is 6-lug.These shocks can ne installed either for stock rear height or for 1'' rear liftWill the 6112 be available any time soon?
- A ETA is end of May for the front, the rear shocks are availableDoes this kit need the away bar relocation kit and do you need the front side drop kit. Also do you need brake line extensions and do you have the billet aluminum top caps and can you assemble them?
- QDoes this kit need the away bar relocation kit and do you need the front side drop kit. Also do y...... Read more answer nowA Diff drop kt is recommended for 4WD trucks for 1.5'' of front lift and more to increase the CV axles life.Sway bar relocation is not neededThis item is not supplied assembled unfortunatelly.Would 33” tires fit with this kit
- A 32'' will definitely fir, 33'' may require some trimming or precise castorcamber adjustmentDirections say to put ride height one notch lower on passenger side. (For front) why? Doesn't make sense.
- QDirections say to put ride height one notch lower on passenger side. (For front) why? Doesn't mak...... Read more answer nowA to correct driver's side leanWill this kit need any accessories to complete the leveling job, or will it be all good to go? ...Any brackets or relocates etc. needed?
- QWill this kit need any accessories to complete the leveling job, or will it be all good to go? ........ Read more answer nowA Installation hardware is included - nothing else is needed. This kit will lift the front end of the truck and will allow to use rear up to 1.5'' lift if installedI sent this same question on another lift of yours but would like to know the same answer with this lift.
I have a 2017 TRD Offroad 4x4 model. Will this kit level out my truck when using this kit or do I need any other parts? like a block in the back? I'm currently running 275/70/16 on my stock wheels.
- QI sent this same question on another lift of yours but would like to know the same answer with th...... Read more answer nowA It will lift the front end, the rear will remain th same height without blocksAre sway bar relocation brackets included?
- A No, not includedAre the rear shocks adjustable
- A NoAre the front coil/shocks assembled when shipped or does that need to be done at a shop after shipping?
- QAre the front coil/shocks assembled when shipped or does that need to be done at a shop after shi...... Read more answer nowA they are not assembled.are the rear shocks compatible if we add a Dakar leaf pack?
- A They will be too short.A what shocks would you suggest thenHow diffictuly is the install, and is anything else needed for this lift besides the shocks?
- QHow diffictuly is the install, and is anything else needed for this lift besides the shocks?answer nowA Some experience, some tools and about 1-1,5 hours per side may be required.Will this lift kit provide a level stance? If not, what is needed?
- A This kit will allow to raise your front up to 2''. As for the rear - the rear height will remain the same as it was before the kit installation. The rear shocks are longer and designed to fit either the stocks height or the 1'' existing rear lift.
