ReadyLift 3″F/2″R SST Leveling Kit Pre-Load Spacer for 2005-2023 Toyota Tacoma 2WD/4WD

Name: ReadyLift 3"F/2"R SST Leveling Kit Pre-Load Spacer for 2005-2023 Toyota Tacoma 2WD/4WD
Brand: ReadyLift
SKU: 69-5530
Availability: InStock

SKU: 69-5530

ReadyLift 3 F-2 R SST Leveling Kit Pre-Load Spacer for 2005-2022 Toyota Tacoma 2WD-4WD 69-5530

Description
ReadyLift 3″F/2″R SST Leveling Kit Pre-Load Spacer for 2005-2023 Toyota Tacoma 2WD/4WD

ReadyLift 3″F/2″R SST Leveling Kit Pre-Load Spacer for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota Tacoma 2WD/4WD TRD / SR5 / Rock Warrior

Part: 69-5530

QUICK NOTES:

69-5530 is specifically engineered for the 2005-2022 Toyota Tacoma 6-lug 2WD/4WD trucks.
Utilizes pre-load style lift engineering that maintains factory alignment geometry.
Increases front spring rate for better nose dive control during braking and helping eliminate nose side roll during hard turning.
Easy bolt on installation – no permanent modifications.
Increases ground clearance while allowing for larger off road wheels and tires.
Allows for up to a 285/65-18 tire on 18×9 wheel with +18 mm offset.

ReadyLIFT offers a pre-load lift style SST Lift Kit for the 2005-2022 Toyota Tacoma 2WD/4WD 6-lug trucks. Our traditional top mount strut extension 3″ SST lift kits have been extremely popular for the past decade, but some customers favor a pre-load style lift kit, so we have added this lift technology to our product portfolio. Now you have more ReadyLIFT quality choices when it comes to lifting a Toyota Tacoma!
ReadyLIFT’s 69-5530 3/2 SST lift kit provides 3″ total lift in front and 2″ of lift in the rear. This new kit utilizes a precision crafted CNC-machined billet Aluminum pre-load spacer that installs between the factory spring and the top hat. This design slightly increases front spring rate, reducing nose dive during braking and improving front roll during hard turning at speed.
Like our traditional Tacoma lift kits, the new 69-5530 lift kit includes 1″ differential drop spacers and hardware, sway bar drop spacers, and skid plate spacers. For the rear we include our legendary OE style cast iron rear lift blocks with proper taper and longer U-bolts.
This new Tacoma 6-lug SST Lift Kit enhances the factory driving mannerisms with a slightly more firm ride and handling characteristics thanks to the pre-load spacer. This kit allows for up to a 285/65-18 tire on an 18×9 wheel with +18 mm offset. (Minor trimming may be required depending on tire brand and tread design).

TIRE INFORMATION:

Allows for up to a 285/65-18 tire on 18×9 wheel with +0 mm offset.

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer’s construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

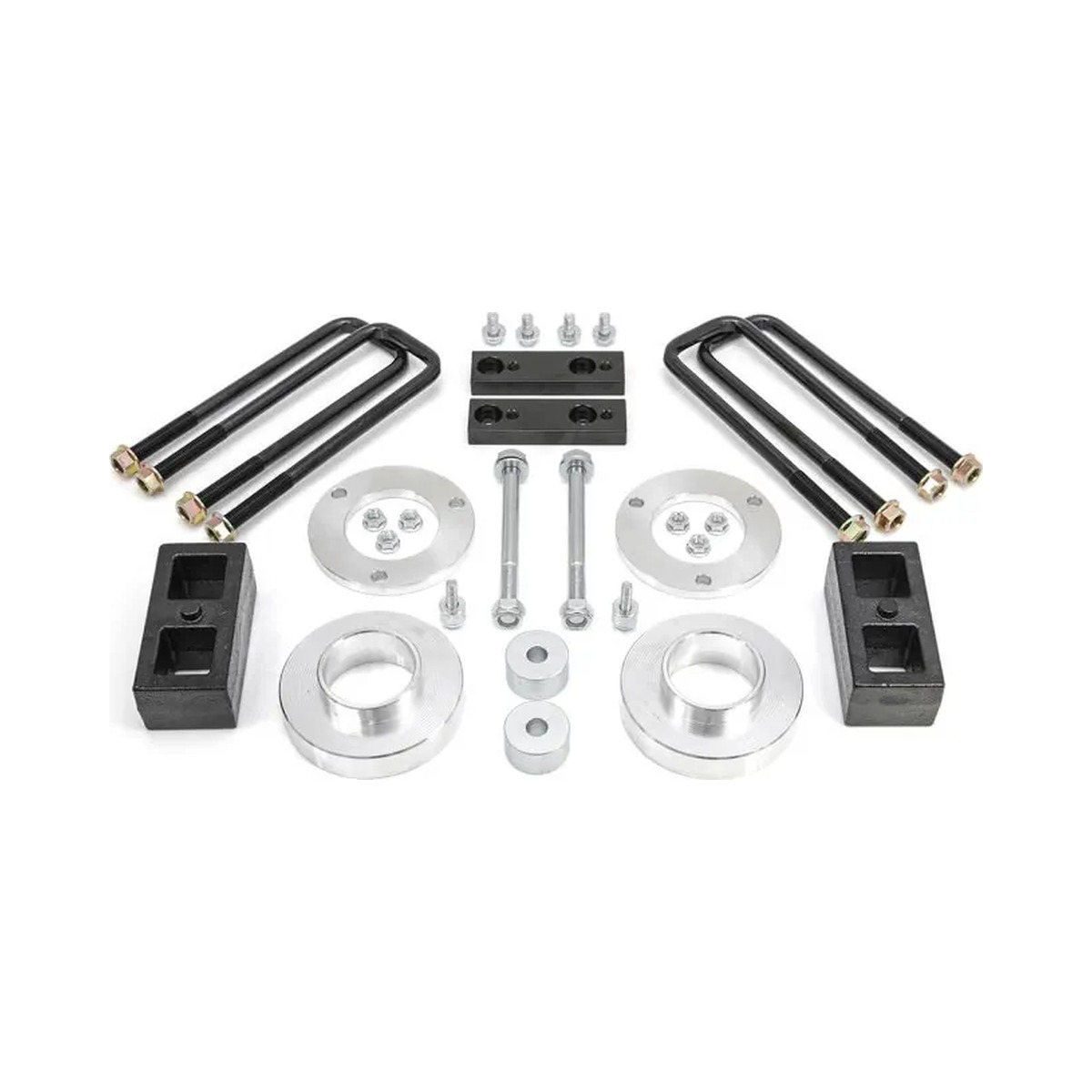

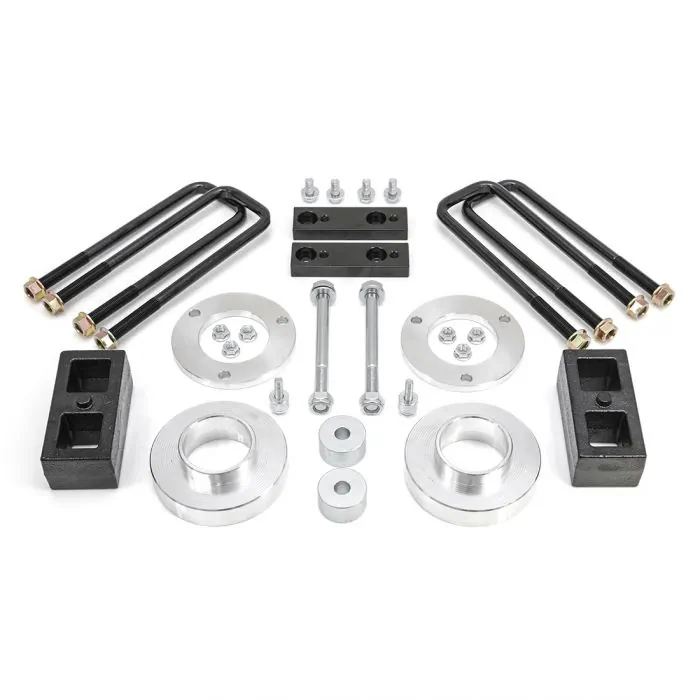

KIT COMPONENTS:

Front pre-load lift assembly
Front sway bar drop spacers
Differential drop spacers.
Rear lift blocks with new longer u-bolts
Skid plate spacers

INSTALLATION:

SAEJ2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than that of factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or roll-over during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner’s manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.
DO IT YOURSELF!
Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.
Download Pdf Instructions
Estimated Installation Time: 3.5 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly
