Fox Performance Elite 2-3″ Front Rear Lift Kit Shocks with Adjusters and UCAs for 2005-2023 Toyota Tacoma

Description
Fox Performance Elite 2-3″ Front Rear Lift Kit Shocks with Adjusters and UCAs for 2005-2023 Toyota Tacoma

Fox Performance Elite 2-3″ Front Rear Lift Kit Shocks with Adjusters and UCAs for 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 Toyota Tacoma

Part Number: FOX05TKElite

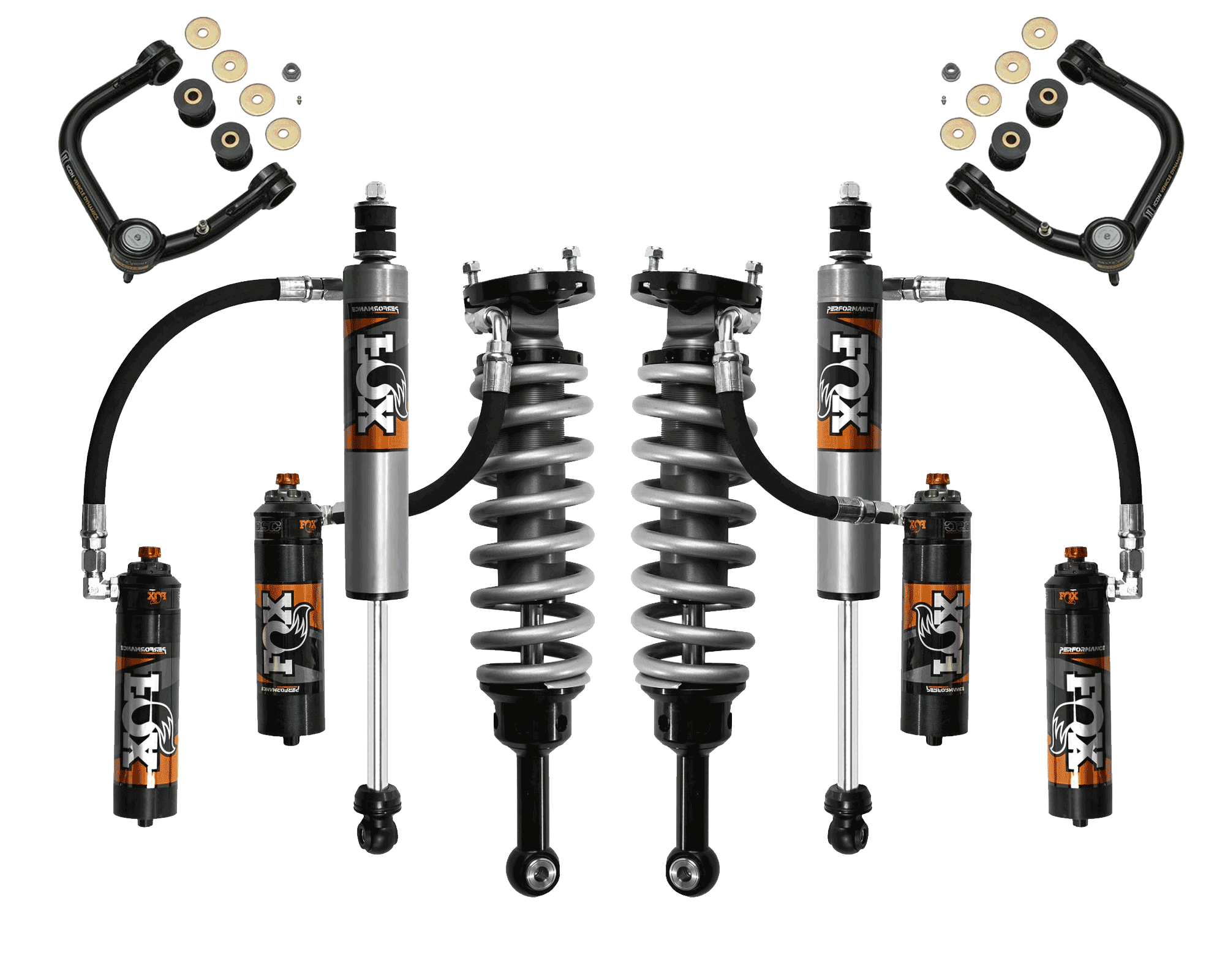

Package Includes:

• Front Shocks: Adjustable 2-3″
• Rear Shocks: Adjustable 2-3″
• Upper Control Arms (UCAs): ICON Delta Joint

Elevate Your Tacoma’s Performance

Elevate your 2005-2023 Toyota Tacoma with the Fox Performance Elite Series Lift Kit. Engineered to perfection, this kit not only levels your vehicle’s ride height but also enhances its off-road capabilities. Bid farewell to forward rake and embrace improved suspension articulation.

Exceptional Durability

Constructed with 2.5-inch hard-anodized aluminum bodies, these shocks resist rust and wear over time, thanks to the Type III anodization. The kit is specifically designed to maximize longevity and performance.

Efficient Cooling Mechanism

The external reservoirs are more than just a design feature. They significantly increase oil capacity, aiding in efficient heat dissipation. This ensures your shocks operate at peak performance for extended periods.

Adapt On-the-Go

Featuring Dual Speed Compression (DSC) adjusters, you can adapt your shock settings on the fly to suit different terrains, load conditions, and driving styles.

Built for the Adventurous

Fox shocks are crafted to complement your Tacoma’s performance, whether you’re cruising through the city or navigating the toughest terrains. With this kit, you’re ready to unlock the full potential of your Tacoma.

Technical Specifications

Front Coilovers:

• Body: 2.5″ 6061-T6 hard-anodized aluminum
• Shaft: 7/8″ heat-treated alloy steel, hard chrome plated
• Piston: High-flow race-developed design
• Valving: Application-specific for maximized performance
• Seals: Redundant sealing pack system
• Top Mount: OEM
• Bottom Mount: Eyelet
• Travel: 5.230 inches
• Fitment Note: Requires Upper Control Arm, fits 6-lug version only

Rear Shocks:

• Body: 2.5″ 6061-T6 hard-anodized aluminum
• Shaft: 7/8″ heat-treated alloy steel, hard chrome plated
• Piston: High-flow race-developed design
• Valving: Application-specific for maximized performance
• Seals: Redundant sealing pack system
• Top Mount: Stem Top
• Bottom Mount: Eyelet
• Travel: 9.550 inches
• Fitment Note: Fits 6-lug version only

UCAs (Upper Control Arms):

• Material: 1026 DOM Steel
• Construction: CNC Bent Tubing
• Bushings: Serviceable Dual Stage
• Caster Correction: Built-in
• Finish: Black Semi-Gloss Powder Coat

Transform your Tacoma into an off-road beast with the Fox Performance Elite Series Lift Kit. Make your next adventure unforgettable.
