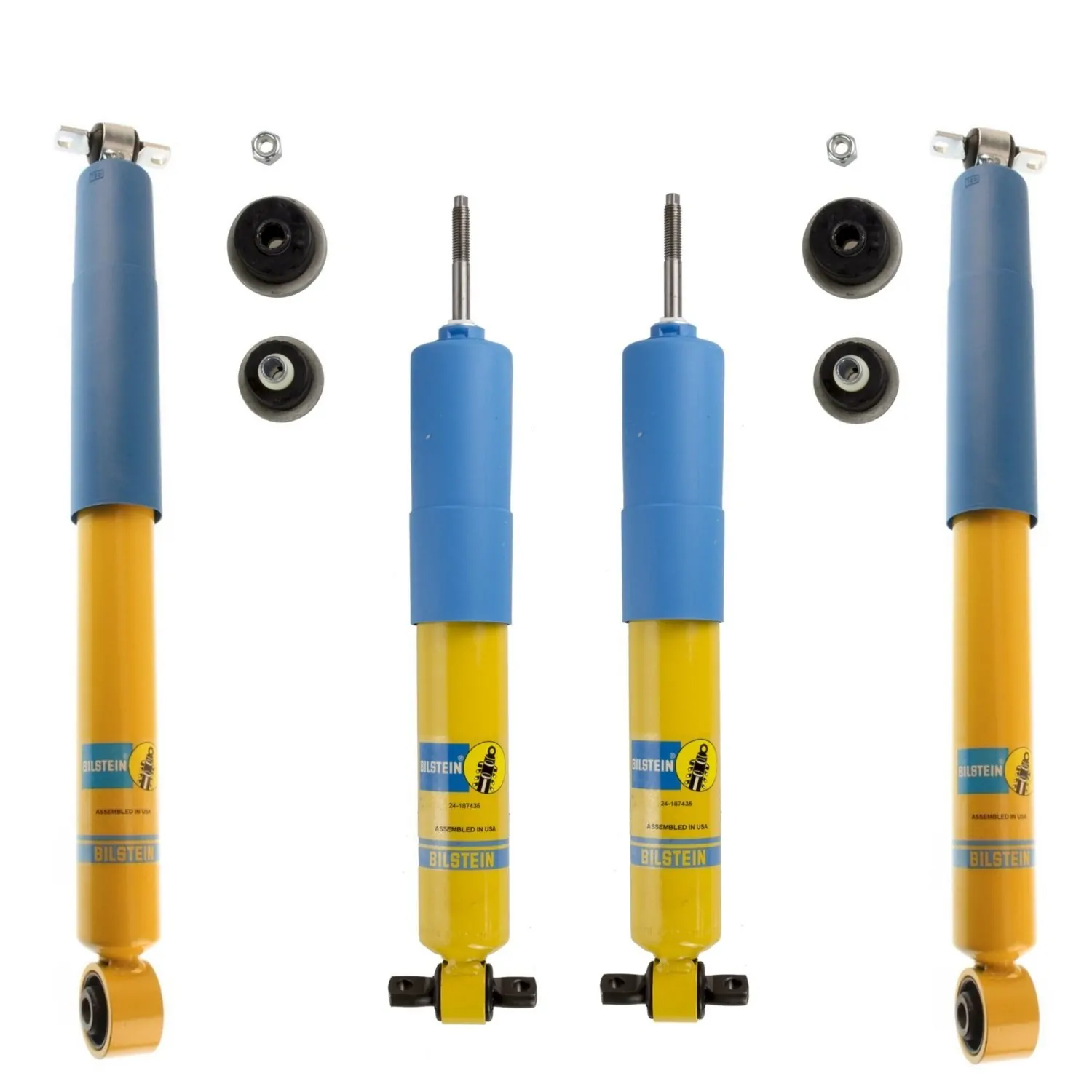

Bilstein 4600 Front and Rear shocks for 2003-2020 Chevrolet Express 3500

Description
Bilstein 4600 Front and Rear shocks for 2003-2020 Chevrolet Express 3500

Bilstein 4600 Front and Rear shocks for 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020 Chevrolet Express 3500

Part number: 24-187435_24-221948
Includes: 2 front shocks and 2 rear shocks.

Front

Notes: Over GVWR: 7,300lbs

Part number: 24-187435
Series: 4600
Extended length: 14.43 Inch
Compressed length: 9.92 Inch
Front Upper mounting: Stem
Front Lower mounting: Bar Pin
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Deflective Disc Valving

Includes dust shield: —
Includes hardware: Yes
Includes boot: Yes

Body color: Yellow
Body material: —
Body diameter: —
Front Rod diameter: 1.81 Inch
Rod finish: Polished
Rod material: Steel

Rear

Notes: Over GVWR: 7,300lbs

Part number: 24-221948
Series: 4600
Extended length: 23.23 Inch
Compressed length: 14.8 Inch
Rear Upper mounting: Bar Pin
Rear Lower mounting: Eyelet
Type: Nitrogen Gas Charged
Internal design: Monotube
Adjustable: No
With reservoir: No
Valving type: Deflective Disc Valving

Includes dust shield:Yes
Includes hardware: No
Includes boot: No

Body color: Yellow
Body material: Steel
Body diameter: —
Rear Rod diameter: 7/16 Inch
Rod finish: Polished
Rod material: Steel
